Music Room Hits High Note
When singer/songwriter Jan Edwards expanded her property in Plymouth, MN, to include the Moonacy Music Room performance space, aesthetics, a state-of-the-art sound system, and optimized acoustics were vital. Designed to represent the four elements—earth, water, air, and fire—the Moonacy Music Room is a collaborative venue for songwriter workshops, video conferencing, house concerts, fundraising for music-related nonprofits, and private events. To achieve optimum acoustics, the design and engineering team incorporated Fabritec wall panels and willtec strips from pinta acoustic inc., Minneapolis, into the art and décor.
The concept for the room began to take shape when Edwards purchased an 18 x 9-ft. colorful Native American painting created by Rabbett Before Horses Strickland, an Ojibwa artist from northern Wisconsin. Called The Right to Consciousness, this artwork was central to the space. The creative process evolved during a brainstorming session between Edwards, architect Alex Haecker of AWH Architects, Minneapolis, and interior designers Shelly Reihl David and Carl David of CIH Design, Los Angeles. Edwards introduced a magazine tear sheet with a quilted wall. This was the impetus behind what has been named the magic wall.
Advertisement
The music room was designed with angled walls, exposed metal trusses, a shiplap ceiling that increases in elevation from 11 to 17 ft., and an epoxy-coated concrete floor. The wall behind the stage contains a 98-in. digital display flanked by large twin guitar cabinets made with glass and reclaimed wood from a tobacco barn in Virginia. Reclaimed wood was also used to build the stage, wide baseboards, and wainscoting. To allow natural light in, the space includes a wall of windows opposite the stage. The wood of the stage, cabinets, and the wood instruments symbolize the element earth.
The shape of the space, along with many hard, reflective surfaces, posed acoustical challenges. To address them, Nelson brought in audio engineer and classically trained cellist Charles G. (Skip) Kahane from PGS/Broadcast Media Services, Missoula, MT. Kahane recommended pinta acoustic’s Fabritec wall tiles, willtec panels, and willduct HVAC ductwork thermal and sound insulation for the room.
“The increasing rise of the ceiling, and ending in a glass wall, gave the space a megaphone-like characteristic,” explained Kahane. “In music venues, we typically treat the stage first and the wall opposing the stage second. We were unable to do that because of the guitar cabinets and large display on the stage and the facing glass wall.”
Above. Fabritec panels form the ‘magic wall’ on the right, addressing the shape of the music room space, along with many hard, reflective surfaces, and providing acoustical equilibrium.
Right. The glass wall facing the stage gave the room a megaphone-like characteristic. Panels from pinta acoustic solved the problem.
Fabric wall panels deliver studio-quality sound without sacrificing design.
Go ahead. Walk all over us.
Give us your toughest environment. Protect-All ® Flooring provides slip-resistant durability that withstands temperature extremes and moisture. But just because we’re tough, doesn’t mean we’re not a softie. Our flooring reduces leg fatigue and absorbs sounds.
We even offer a ground-breaking installation system called Protect-All Rapid Weld ™ that’s fast, easy to install and long-lasting.
800-544-9538 protect-allflooring.com
Scan this QR code to watch our video
“Oscoda Plastics” and “Protect-All” are registered marks owned by Oscoda Plastics, Inc.
For all walks of life.
To treat the space, Kahane specified 15 1/2 x 15 1/2 x 1-in. Fabritec acoustical panels for the magic wall. The magic wall contains almost 400 squares of custom tiles wrapped in 11 different textured and colored fabrics. Made of willtec foam core, the panels offer outstanding acoustical performance, absorbing as much as 85% of the sound directed toward them. Available in custom and standard sizes, Fabritec panels are impact resistant and have a tackable surface. The panels are lightweight, making them easy to install with adhesive and/or hook and loop material.
The Fabritec tiles were custom-wrapped in the materials selected by interior designer David. Willtec strips, faced with a superwhite HPC coating, were directly applied using acouSTIC adhesive in a pattern to blend with the white shiplap ceiling. Additional willtec acoustical panels were nested in the frame behind the artwork using string tacked in a zigzag pattern across the back of the frame. Testing after acoustical treatment revealed a reverberation time of 0.74. The willtec foam is Class 1 fire-rated and available in natural white or light gray with an optional HPC coating in standard and custom colors. Panel sizes can be any dimension to 48 x 96 in. and typical thicknesses range between 2 and 3 in. Willduct was also used to absorb background noise caused by HVAC fans and blowers. Resistant to mold and mildew, willduct passes UL 18 and installs in HVAC ductwork to provide thermal and sound insulation.
To add movement to the wall, Luke Nelson from Acoustic Vision, Missoula, MT, recommended incorporating 19 digital screens, intermixed with the acoustical panels. The digital screens are programmed to display atmospheric images, such as the murmuring of starlings or a rolling storm. The video images on the magic wall represent the element air.
“We couldn’t have done it without pinta acoustic’s product,” said Kahane. “Fiberglass wall panels were not an option. The acoustical performance of Fabritec and willtec and the ability to custom cut the product in the field allowed the freedom to provide a simple solution.”
“Many of the panels were shipped with the custom fabric fully wrapped on the top and edges,” said Devin Jackson, acoustical engineer and owner of Jackson Sound Management Productions, Lolo, MT. “Additional panels were supplied with the fabric secured only to the top. This allowed us to custom cut the tiles to fit the ceiling and wall lines. Once cut to size, panels were finished by wrapping and adhering the fabric to the edges. Each tile was direct applied to the wall using pinta’s acouSTIC adhesive. The willtec strips on the ceiling were also cut in the field to fit around the metal trusses and other fixtures.”
“The fourth element, fire, is depicted in the bar that was created by a local sculptor, James Lamis. Also a light display casts the image of fire onto the draperies behind the bar. Unique hanging light fixtures simulate charred tree branches,” explained Edwards. “One of my favorite features is the aquarium that’s on the same wall as the painting. It exhibits specimens of beautiful koi and a replica of the Moonacy Music Room on a cliff. The painting by Rabbett, the aquarium, and the powder room symbolize water.”
All elements combine to form the extraordinary performance space. CBP
Want more information? The resources below are linked on our website at cbpmagazine.com and our digital magazine at cbpmagazine.com/digital/sep2015.
Circle 4 on the Reader Service Card
Read The Science of Better Acoustics white paper.
Download Fabritec product information and spec sheets.
Get information on acouSTIC adhesive.
Resilient flooring
EcoWorx Resilient:
Flooring products offer sustainable alternative to vinyl Range of sizes and patterns Wear layer protects against scratches, stains
EcoWorx Resilient ooring products combines Shaw EcoWorx technology with the company’s performance and design. Products o er a sustainable alternative to vinyl and are designed with future lifecycles in mind. Designs include a broad range of 18 x 36-, 6 x 36-, and 9 x 36-in. products with distinctive styles including a split-wood pattern with metallic inlay, a patina pattern reminiscent of weathered concrete, and various tonal and textured patterns. A wear layer protects against scratches, scu s, and stains, and products are backed with lifetime warranties. Products are phthalate- and PVC-free and o er guaranteed reclamation and recycling at end of life.
Patcraft, Cartersville, GA Circle 74 patcraft.com
Decorative metal surfacing Gradients collection decorative metal surfacing includes ombre color tones in nine spectrums. Tones range from light to dark with textured grains that add visual interest and dimension. Applications include interior and exterior walls, columns, ceilings, and room dividers. The material is available in 4 x 8 ft. or 4 x 10 ft. aluminum or corrugated-aluminum panels with thicknesses from 0.04 to 0.125 in.
Moz Designs, Oakland, CA Circle 75 mozdesigns.com
Full-spectrum carpet Filtered Effects full-spectrum carpet collection is inspired by the vintage visual of early instant photography and digital fi lters. The carpet provides the ability to enhance or subdue focus through contrast and defi nition with fl oor design. Colors include Chroma, Spectra, Aperture, F-Stop, and Exposure, available in 18 x 36-in. plank to 12-ft. broadloom.
J+J Flooring Group, Dalton, GA Circle 76 jjfl ooringgroup.com
Ceiling panels SpanAir Clip-in metal ceiling panels integrate with and conceal 15/16-in. suspension systems. Clip-in placement allows downward accessibility with no special tools. With a Class A fi re rating and NRC to 0.90, the panels also have recycled aluminum content. The square-edge design is available in solid or perforated panels in 24 x 24 in. or 24 x 48 in.
Rockfon, Chicago Circle 77 rockfon.com
FR-free vinyl upholstery Bloom collection upholstery for hospitality, healthcare, and contract markets is anti-bacterial and anti-microbial. With a stain-resistant fi nish and enhanced abrasion resistance, the product meets a variety of fl ammability requirements. The collection is available in three patterns and eleven colors.
Morbern, High Point, NC Circle 78 morbern.com
FROM DORM ROOM TO CLASSROOM
Occasional tables Celes minimalist-design, circular-top tables are available in three heights and four fi nish colors. Suitable for indoor or outdoor use, the tables are made from recycled aluminum fi nished in a fi reproof polyester paint.
Magnuson Group, Woodridge, IL Circle 79 magnusongroup.com
TURN TO MAXXON FOR BEST IN CLASS FLOOR SOLUTIONS
For renovation or new construction on college campuses, Maxxon offers a complete line of underlayments, sound control mats and moisture mitigation products:
• Used for fire ratings, floor leveling and sound control • Gypsum Underlayments • Level-Right Self-Leveling
Underlayments • Acousti-Mat Sound Control Systems
• Moisture Vapor Barriers • More than 100 UL Fire Rated Designs • Documented sound tests over a variety of assemblies • May help contribute toward points for LEED ® project certification
Learn more:
800-356-7887 info@maxxon.com www.Maxxon.com
© 2015 Maxxon ® Corporation, all rights reserved.
LVT fl ooring Sereno LVT fl ooring is part of the Global Entry collection. Available in an 18 x 36-in. format for a range of applications, the fl ooring is made with 100% virgin vinyl material. M-Force enhanced urethane prevents wear-through and is said to extend the life of the fl oor.
Mohawk Group, Calhoun, GA Circle 81 mohawkind.com

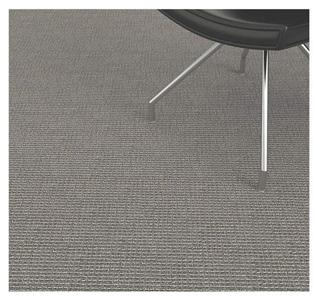

Carpet Part of the Tuva Looms line, Broadcloth, Veneer, Lineage, and Visage carpet are made with Zeftron nylon, a fully renewable nylon 6 fi ber. Coordinating patterns and common colorways work together to create spaces that are dynamic yet complementary. Broadcloth, Visage, and
