New Lighting, Not New Fixtures

National real estate firm uses simplified connections and customized fixtures for pleasing results.

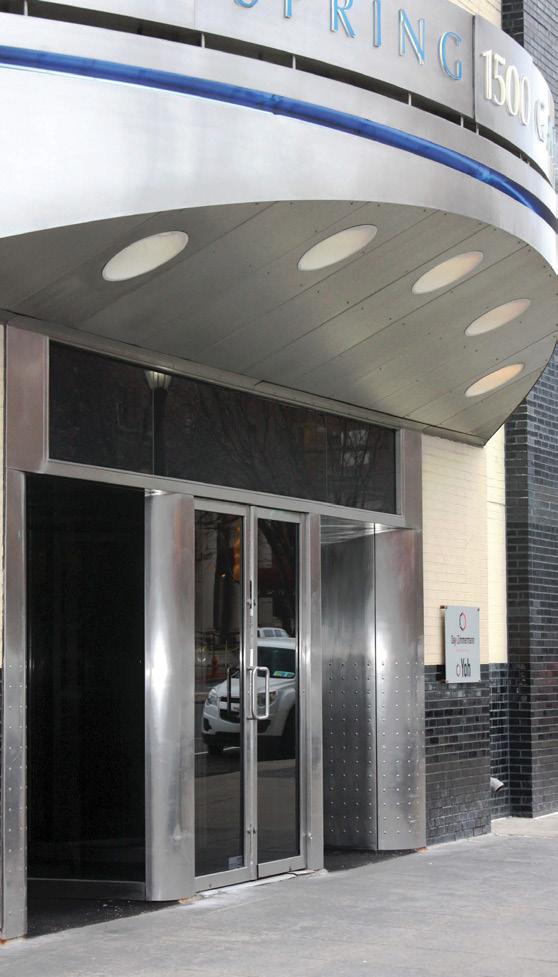

Above, left. The lighting in several of the Nightingale Group’s Philadelphia properties was upgraded while retaining the look and feel of the original fixtures.

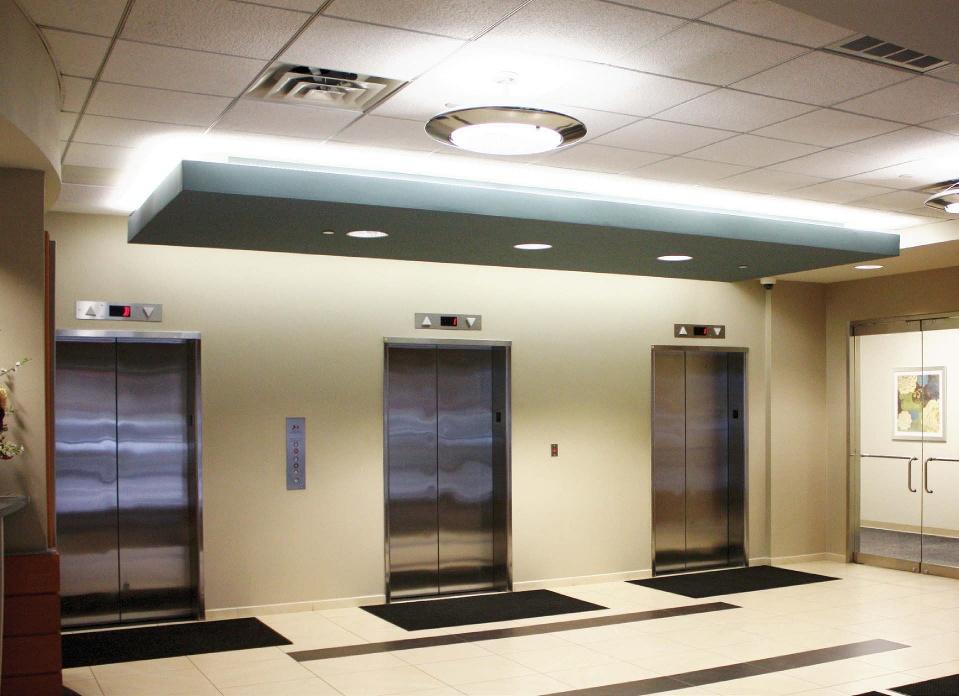

Above, right. The fluorescents in each building lobby were replaced with i-lighting’s iluma LED light strips to greatly reduce the energy consumption of each location. The system fit neatly into each lobby cover. M ichael Murray, regional director of engineering for New York-based Nightingale Group, recently faced the challenge of upgrading the lighting in several of the real estate investment firm’s Philadelphia properties while retaining the look and feel of the original fixtures. Replacing each fixture was further ruled out because it would have cost an estimated $1,000/fixture.

“The management and tenants loved the look of the fixtures and the way they fit the décor, but the sconces were extremely costly to operate and the components and lights were no longer available,” said Scott Holland, president and CEO of i-lighting, located in

North East, MD.

“So, we customized each individual fixture at our manufacturing facility to operate with our iluma LED lighting. The process only took several weeks and proved far more economical than replacing the sconces with all new LED fixtures. We even created several prototypes before the project began. This ensured that everyone was on the same page, and Murray received exactly what he expected.”

Overall, this meant redesigning approximately 500 separate fixtures, including 265 bathroom sconces, at i-lighting’s headquarters for a considerable cost savings.

The solution further entailed retrofitting and installing the custom-designed iluma lighting into various spaces located in the lobbies, reception areas, bathrooms, tenant offices, and vestibules of the two high-rise Philadelphia complexes.

In addition, i-lighting also worked with Murray to replace the fluorescents in each building lobby with iluma LED light strips to greatly reduce the energy consumption of each location. The system not only fit neatly into each lobby cover, but was also available with clear-white or warm-yellow LEDs designed in either 5-mm or 10- mm strips.

Using i-lighting’s proprietary LED Lighting Simplified and Easy Plug micro connectors, the iluma system simply plugged together to ensure easy installations, which can be achieved in half the time of traditional lighting and with near invisible results, according to the manufacturer.

“I was immediately impressed with the iluma LED system and even visited i-lighting’s facility in Maryland to learn more,” Murray said, explaining why he chose i-lighting. “We worked with other

LED lighting manufacturers in the past, but were constantly faced with unacceptable failure rates and product obsolescence. i-lighting not only took the time to learn about our specific needs and goals, but also worked with us to customize their lighting to address our specific installation requirements. In fact, their services proved so versatile that we were able to use it in various interior and exterior applications throughout the facilities including soffits, light pockets, and rotundas.”

“Retrofitting our iluma LED lighting to fit all the nooks, crannies, and corners in each building was no problem at all,” offered Scott Holland.

In addition to the custom-design possibilities, each iluma system uses approximately 80% less energy than incandescent bulbs and is rated for a lifetime of 50,000 hr. Other advantages include a safe lighting design that does not create heat.

“Iluma proved perfect for our needs,” said Murray. “It fit so easily into coves and corners. All of our people loved working with it. Plus, we are also especially pleased with the energy cost savings and the reliability. It’s both costly and time-consuming to have workers replace bulbs in inaccessible areas. So far, we haven’t had a single issue and are looking to integrate the system into several other facilities, including another property in Philadelphia and one in Indianapolis.” CBP

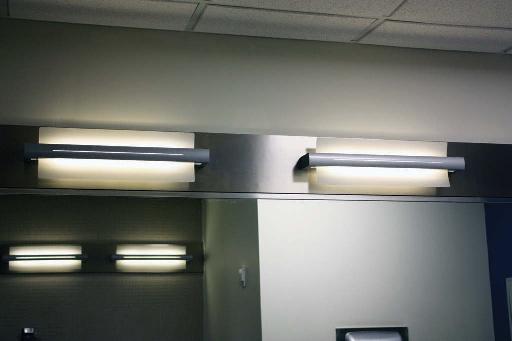

Far left. The management and tenants loved the look of the fi xtures and the way they fi t the décor, but the sconces were extremely costly to operate and the components and lights were no longer available.

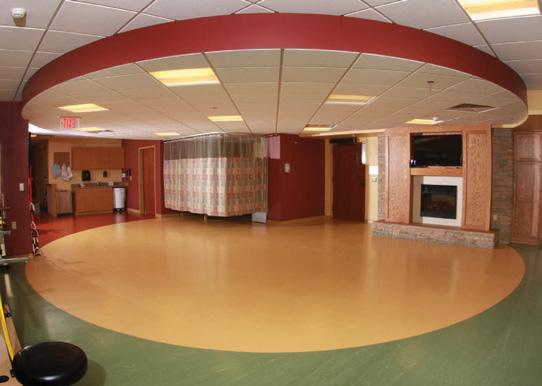

Left. Custom-designed iluma lighting was installed into various spaces located in the lobbies, reception areas, bathrooms, tenant offi ces, and vestibules of the two high-rise Philadelphia complexes.

WE KNOW EDUCATIONAL LIGHTING

Want more information? The resources below are linked on our website at cbpmagazine.com and our digital magazine at cbpmagazine.com/digital/sep2015.

Circle 5 on the Reader Service Card.

Download an iluma spec sheet.

See the i-lighting catalog.

Watch an under-cabinet installation video.

High-performance, energy efficient interior and exterior illumination with LED and fluorescent, including specialty lighting for: • Distance Learning • Video Conferencing • Exterior Low Level • White Boards

Floodlights and Displays Factory assistance is always available!

Find our products at www.elplighting.com or call us at 626.579.0943

Flexible, cur vable LED lighting strips

liniLED RGB light strips:

Architectural, decorative color-changing light Exterior or interior use Continuous runs to 33 ft.

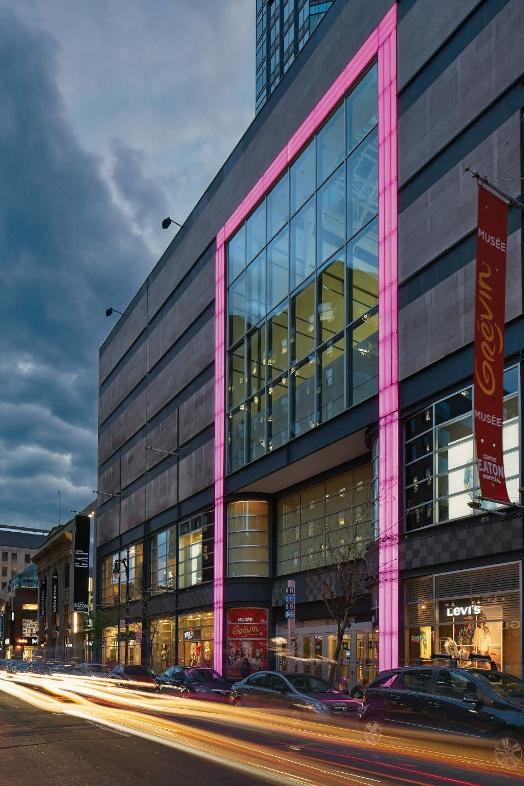

Low-scale, lightweight, and  exible, liniLED RGB light strips provide architectural or decorative color-changing light for exterior building walls or interior walls, ceilings, and  oors. Suited for marine and all-weather applications, the strips have a clear co-extrusion with built-in UV stabilized re ectors, along with clear, protective PVC seals and solder-free push- t connections. Runs measure 1/2-in. wide x 1/4-in. high, are said to be extremely  exible, and have a bend radius of 1 1/4 in. A continuous single-piece run to 33 ft. has seven LEDs/cut section or 11/ft.  e strips use Osram’s Kelvin LEDs.

Organic Lighting Systems Inc., Azusa, CA Circle 91 organiclighting.com

Linear LED fi xtures Fedora LED suspension lamps and direct-downward

Plank and Curv are additions to the Curv Radial LED fi xture line. Plank is a 7-in. fi xture with a rectangular form that provides uplight, downlight, or a combination. Curv has a radial lens and provides indirect-direct or direct illumination.

Alera Lighting, Greenville, SC Circle 92

LED suspension luminaires

aleralighting.com

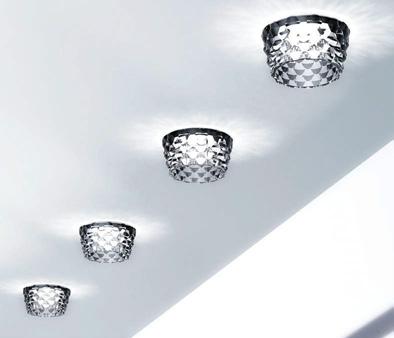

ceiling spotlights are reminiscent of traditional Russian ceiling spotlights are reminiscent of traditional Russian nesting dolls. The luminaires produce diffused direct/ nesting dolls. The luminaires produce diffused direct/ indirect white light for a range of applications. The upper indirect white light for a range of applications. The upper housing and diffuser is aluminum in Metallic Bronze or housing and diffuser is aluminum in Metallic Bronze or Rose Gold. The lower portion is faceted transparent glass. Rose Gold. The lower portion is faceted transparent glass. Fixtures use a single 7 1/2-W GU10 LED. Fixtures use a single 7 1/2-W GU10 LED.

Axo Light USA, Danbury, CT Circle 93 axolightusa.com

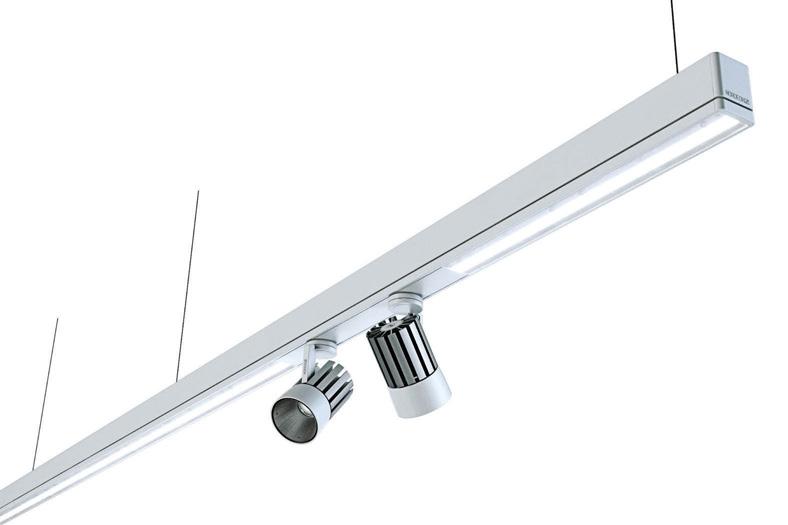

LED light-line system Baldur confi gurable LED light-line trunking system combines general lighting with optional, adjustable light accenting for interiors. A ClickFast system allows installation of lighting modules when the trunking system is confi gured. Trunks are available in 4-, 8-, and 12-ft. lengths. Lighting modules are mounted along 2-ft. increments.

Nordeon USA, Gaffney, SC Circle 94 nordeon-usa.com

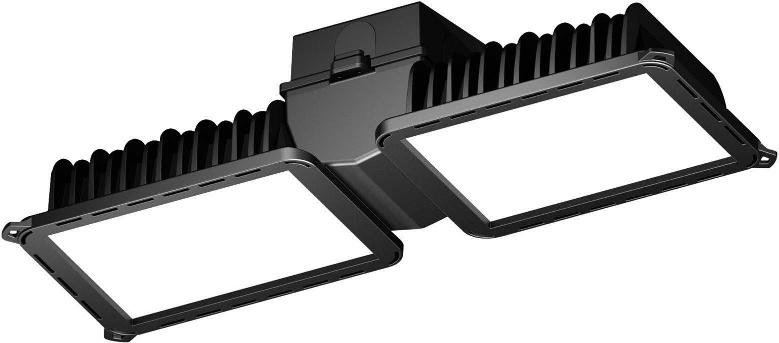

Vapor-tight fi xture The company, along with Shat-R-Shield (Salisbury, NC), developed a thermally conductive plastic LED vapor-tight luminaire. Designed for corrosion and UV resistance in harsh environments, the fi xture is said to withstand moisture, dust, and salt spray. The 5-lb. luminaire reportedly provides more than 100 lumens/W in 3,500 and 7,000 lumen versions.

Nicor Inc., Albuquerque, NM Circle 95 nicorlighting.com

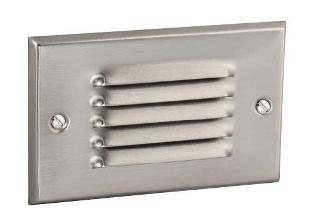

Mini step light MSL is an addition to the LiteStep line of mini step lights. The compact product is small enough to fi t into a standard outlet box. Available in a variety of styles and fi nishes including black, white, brushed nickel, and antique bronze, it brings a stylish light source to staircase areas as well as hallways, walkways, or anywhere unobtrusive illumination is needed close to the ground. Approved for interior and exterior applications, it is also available with louvers.

Prescolite, Greenville, SC Circle 96 prescolite.com

LED lamps Dynasty Omni LED lamps replace high-wattage lamps including metal halide, HID, high-pressure sodium, and mercury vapor. The plug-and-play lamps provide a 360-deg. beam in a variety of color temperatures and power levels.

CAO Lighting Inc., Salt Lake City Circle 97 caolighting.com

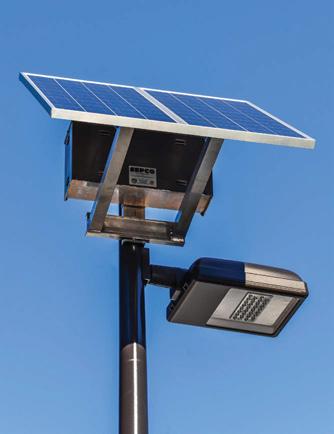

LED outdoor area/roadway lights Sepco SolarCimarron solar-powered, pole-mounted LED area lights provide crisp white light without dependence on an electric-utility grid system. Available in four light-distribution patterns and fi ve mounting options, fi xtures are DarkSky compliant.

Solar Electric Power Co., Stuart, FL Circle 98 sepconet.com

Daylight Sensor

Take Control... Easily.

Occupancy Sensors

Teacher Station

Dialog Room Controller* with UL924 Relay

Expansion Pack * Patent pending

C a l i f o r n i a C o m p l i a n t 24 TITLE - - - - - - - - - - - - - - - - - - - - - - - - -

ASHRAE 90.1-2010

Room Controller

A Plug ‘N Control TM Lighting Control Solution for Classrooms and Offices.

Dialog Room Controller is offered in factory configured kits that make installation and commissioning easy. Devices are connected via the Dialog 2-wire network. Dialog Room Controller systems are BACnet and Demand Response ready. Entry Station

Douglas Lighting Controls is a member of the Panasonic Group BACnet ® is a registered trademark of ASHRAE.

Cylinder lighting DCC2 LED cylinder series uses four mounting types in eleven individual models. The direct-downlight housing shades in 4-, 8-, and 12-in. lengths. Mounting options include cord and pendant-stem suspensions, surface mount, and wall mount. Surface- and wall-mount models are available with single- or dual-direction lighting. The luminaires deliver 750 or 1,000 lumens.

DMF Lighting, Carson, CA Circle 99 dmfl ighting.com

Receptacle Pass & Seymour Plug Load RF receptacle provides a wireless solution for plug load control. Used with the RF Signal Pack, the receptacle is installed into a branch wiring system with the Signal Pack integrated to an occupancy sensor and 24-VDC power pack. The two are connected using a wireless RF connection. The receptacle has an internal relay to switch the plug load on/off according to the sensor’s command. Half- and dual-controlled receptacles are available in ivory, black, light almond, white, brown, and gray.

Legrand, Syracuse, NY Circle 100 legrand.com

800.PAC.CLAD pac-clad.com

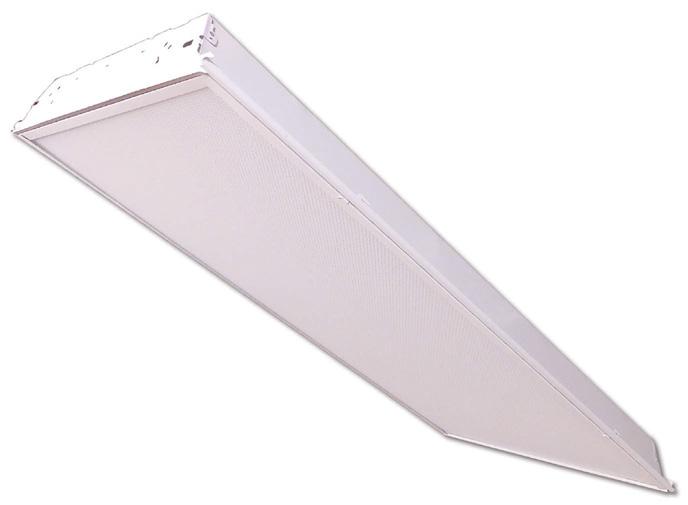

LED lensed luminaires LSL series recessed LED lensed fi xtures use linear-array LED modules that can be replaced in the fi eld. The fi xtures are said to provide even illumination without hotspots. Sizes include 2 x 2 ft. and 2 x 4 ft. in a range of lumen outputs and color temperatures.

LaMar Lighting Co., Farmingdale, NY Circle 101 lamarlighting.com

In-ceiling speakers

SPCE6T speaker provides a 6 1/2-in. aluminum cone woofer and pivoting PEI tweeter. The metal backcan and front ports are said to provide great sound and a wide frequency response. A 70-V transformer dial allows installations requiring power from 1 to 32 W. The speaker has a magnetic grille, providing easy access.

Speco Technologies, Amityville, NY

Circle 102 specotech.com
