Design and Development of an Oil Slinger for an Automobile Engine by IRJET Journal

Design and Development of an Oil Slinger for an Automobile Engine

Yasin Baba1 , Kuldeep Kora2

1MTech Tool Engineering Scholar, Government Tool Room and Training Centre, GTTC, Mysuru.

2Tool Design Engineer, Government Tool Room and Training Centre, GTTC, Mysuru

Abstract - Thedesignanddevelopmentofpresstoolsin sheetmetaloperationsarecrucialforenhancingfunctionality and durability in automobile manufacturing. This review compares various tool designs, particularly press and combinationtools,andassessestheirefficiencyandquality improvements.Thefocusisondevelopinganewcombination toolformanufacturingoilslingers,integratingpiercingand formingoperationsintoasingletool.Thisinnovationaimsto reduceprocesstime,minimizeoperatorfatigue,andlower toolcosts,therebystreamliningproductionandmaintaining high-quality standards in automotive manufacturing. The study contributes to improving the efficiency and effectiveness of sheet metal operations through advanced tooldesignanddevelopmentofoilslingersusingsheetmetal.

1. INTRODUCTION

Through this paper, an attempt is made to explore sheet metalshapingprocedures,whicharevitalinmodernindustry forproducinghigh-quality,complexcomponentsefficiently and cost-effectively, thereby boosting productivity and precision.Thefocusisonthedesignanddevelopmentofoil slingersforinternalcombustionengines,whicharecrucial forlubrication.Thestudyencompassesintricateprocesses such as blanking, trimming, piercing, and forming, with a strongemphasisontheoreticalanalysis,CAD,andadvanced manufacturing techniques to enhance both efficiency and durabilityinautomotiveengines

2. METHODOLOGY

Methodology serves as the structured framework that outlinesthesystematicapproachtoachievingtheobjectives oftheproject,whilealigningwithitsscopeandrequirements.

(a)ProblemIdentificationandScopeDefinition:Definethe project scope, and objectives, and constraints based on automotive industry standards. Establish the clear goals focusing on cost-effectiveness, and dimensional accuracy, componentquality,andproductionefficiency

(b) Literature Survey: Conduct the review of an academic literature and industry publications related to oil slinger components,sheetmetaloperations,andpresstooldesign. Identify theoretical foundations, best practices, and case studiesrelevanttotheproject.

(c)ConceptualDesign:Brainstorminitialconceptsfortheoil slingercomponentusingsketchesandbasicCADsuchassolid

works software. Evaluate each concept based on technical feasibility,andmanufacturability,andalignmentwithproject objectives.

(d)DetailedDesign:Selectthemostpromisingconceptand develop the detailed design using Solid works software. Specifydimensions,andmaterialpropertiesofoilslinger,and design features required for sheet metal operations (blanking,trimming,forming,andpiercing).

(e)PressToolDesignandCalculation:Designthepresstool required for manufacturing the oil slinger component, focusingonDielayout,punchanddiedesign,andmaterial selectionbasedontheoreticalknowledgefromtheliterature review.

(f)Simulationofpresstools:UtilizeSolidworkssoftwarefor virtualsimulationstoanalyzethemanufacturingprocessof the oil slinger. Perform stress analysis and simulate the formingprocesstovalidatethepresstooldesignandensure dimensionalaccuracy.

(g)OptimizationandRefinement:Evaluatesimulationresults, calculationoutcomes,andcostanalysistooptimizethedesign andmanufacturingprocess.Implementdesignrefinementsto improvecomponentquality,productionefficiency,andcosteffectiveness.

(h) Documentation and Reporting: Document the entire designprocess,includingsketches,CADmodels,calculation reports,andoptimizationfindings.Prepareacomprehensive report summarizing the methodology, design rationale, results,andconclusions.

3. STUDY OF COMPONENT AND 3D MODELING OF OIL SLINGER AND PRESS TOOL

An oil slinger is a mechanical component used in rotating machinery like engines to distribute lubricating oil to key componentssuchasbearingsorgears.Designedasadiscor ringmountedonarotatingshaft,itutilizescentrifugalforce to pick up oil from a reservoir and fling it towards these parts,ensuringcontinuouslubrication.Thisprocessreduces friction,dissipatesheat,andpreventswear,maintainingthe efficiency and longevity of the machinery. Regular maintenance is required to ensure the oil slinger's effectivenessinkeepingthemachineryrunningsmoothly.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 11 Issue: 09 | Sep 2024 www.irjet.net p-ISSN: 2395-0072

3.1. DESIGN CALCULATION OF OIL SLINGER

1) BlankingOperationsofoilslinger

 Perimeter (P): 429.23mm

 Shear Force (one cut): 103.03kN

 Total Shear Force (2 cuts): 206.06kN

 Stripping Force: 41.21kN

 Press Force: 247.27kN

 Press Tonnage/Capacity: 35.32tons

2) TrimmingOperationsofoilslinger

 Shear Force (one cut): 151.92kN

 Total Shear Force (4 cuts): 607.68kN

 Stripping Force: 121.54kN

 Press Force: 729.22kN

 Press Tonnage/Capacity: 106.06tons

3) PiercingOperationsofoilslinger

 Shear Force (one cut): 5.277kN

 Total Shear Force (4 cuts): 21.108kN

 Stripping Force: 4.2216kN

 Press Force: 25.33kN

 Press Tonnage/Capacity: 36.18kN(3.6887tons)

4) FormingOperationsofoilslinger

 Shear Force (one form): 77.35kN

 Total Shear Force (2 forms): 154.71kN

 Stripping Force: 30.94kN

 Press Force: 185.65kN

 Press Tonnage/Capacity: 265.21kN(27.03tons)

5) CombinedPiercing&Formingofslinger

 Total Combined Force: 175.818kN

 Average Force: 29.303kN(2.992tons)

3.2 INTRODUCTION TO PRESS TOOLS

Most industrial products are mass-produced to meet consumerdemands,ensureconsistentquality,andachieve cost-effectiveness. Press tools are devices specifically designedtofulfilltheserequirementsacrossawiderangeof products such as televisions, tape recorders, radios, refrigerators,cars,andwatches,whichtypicallyincorporate numerous components made from plastic or sheet metal. These tools are primarily utilized for manufacturing sheet metalcomponents.

1. Blanking

 Definition: Blanking is a manufacturing process whereapieceofrawmaterial,typicallysheetmetal, iscutouttocreateablankwithaspecificshapeand size.

 Operation: In blanking,a blanking die and punch areusedinapresstocutthedesiredshapefroma largersheetofmaterial.Thematerialsurrounding theblankisremovedasscrap.

2. Trimming

 Definition: Trimminginvolvescuttingawayexcess material from a formed part to achieve its final shapeanddimensions.

 Operation: Atrimmingdieandpunchareemployed toremoveunwantededgesorfeaturesfromthepart. This step ensures the part conforms to precise dimensionalandaestheticstandards.

3. Combined OperationsofPiercing&FormingforOil Slinger

 Definition and Operation:

o Piercing: This process involves creating precise holes or patterns in the material, whichiscrucialforoilcirculationintheoil

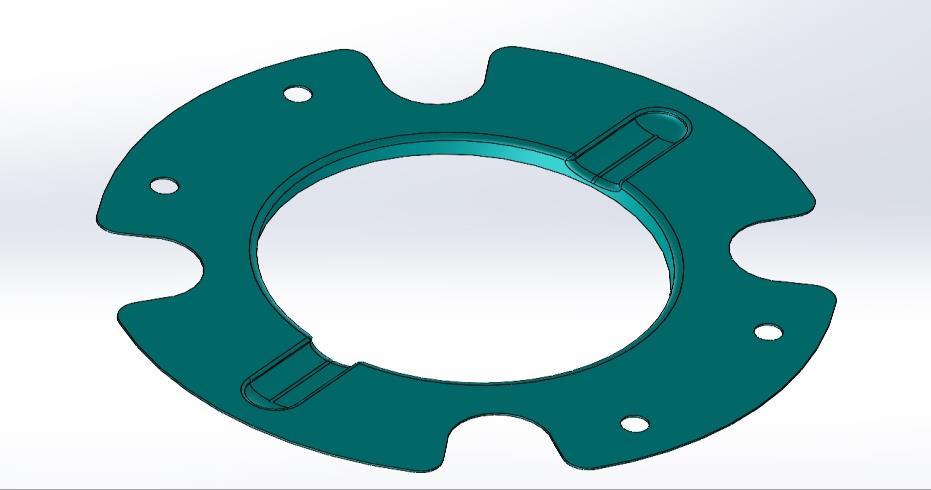

Fig -1:OilSlinger

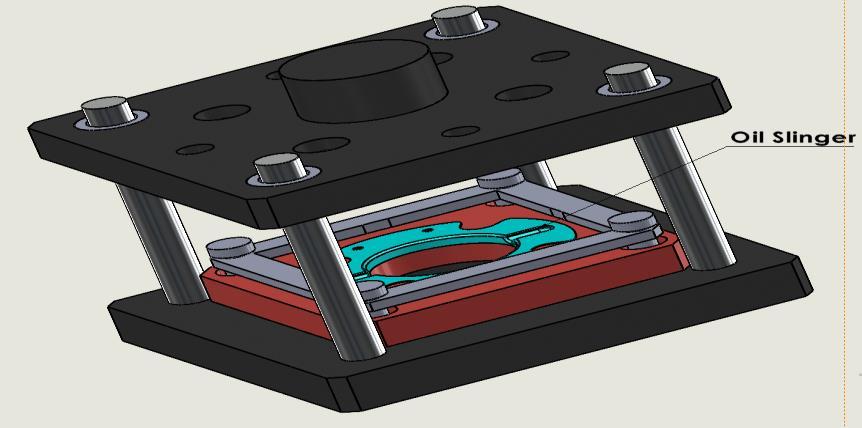

Fig -5:3DModelingofPressTool

PRESS TOOL OPERATIONS

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 11 Issue: 09 | Sep 2024 www.irjet.net p-ISSN: 2395-0072

slinger.Apiercingdieandpunchareused to ensure accurate hole placement and sizing.

o Forming: Thisshapesthematerialintothe necessaryconfiguration,suchasbendingor deepdrawing,tocreatethefinaloilslinger shape. The oil slinger is designed to effectively fling oil away from critical machinerycomponentstoensureoptimal lubrication.

 Integrated Approach: Combining piercing and forminginoneprocessstreamlinesproductionand enhancesefficiency.Itensuresthattheoilslingers meetbothfunctionalrequirementsandhigh-quality standards, crucial for maintaining machinery performance.

DESIGN CALCULATION OF PRESS TOOL

1. Blanking Tool

 Thickness of Die Block (TD): 35mm

 Width of Die Block: 250mm

 Length of Die Block: 250mm

 Die Block Dimensions: 35mm×250mm×250mm

2. Trimming Tool

 Thickness of Die Block (TD): 35mm

 Width of Die Block: 250mm

 Length of Die Block: 250mm

 Die Block Dimensions: 35mm×250mm×250mm

3. Combined Piercing and Forming Tool

 Thickness of Die Block (TD): 35mm

 Width of Die Block: 250mm

 Length of Die Block: 250mm

 Die Block Dimensions: 35mm×250mm×250mm

4. ANALYSIS OF OIL SLINGER

4.1 STRESS, STRAIN, & DEFORMATION ANALYSIS

a) ANALYSIS OF BLANKING WORKPIECE

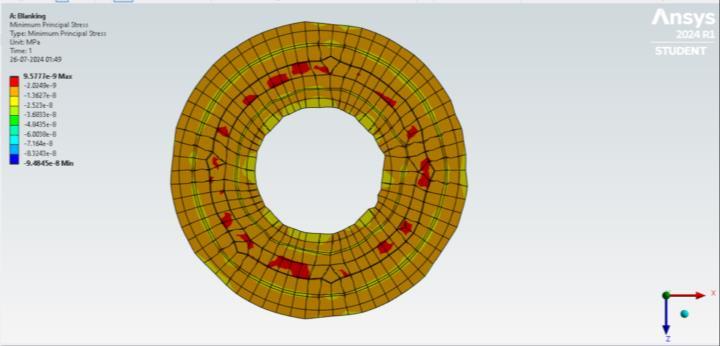

1.STRESS:-Theanalysisshowsminimumprincipalstressin theoilslinger,withstresslevelsfrom9.48e-5to9.577e-9, highlightingpotentialhigh-stressareas.Thestressiswithin acceptablelimits,confirmingthecomponent'sreliabilityand performance.

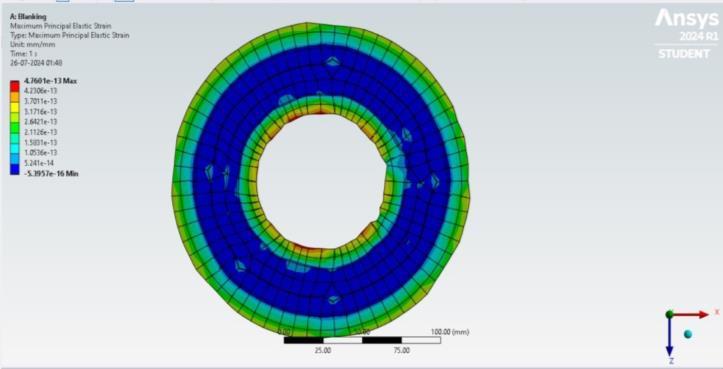

2.STRAIN:-Thestrainanalysisshowsthemaximumprincipal elastic strain in the oil slinger, with higher concentrations near the inner and outer edges. The maximum strain of 4.760e-13 is within allowable limits, confirming the component'ssuitabilityforuseinrotatingmachinery.

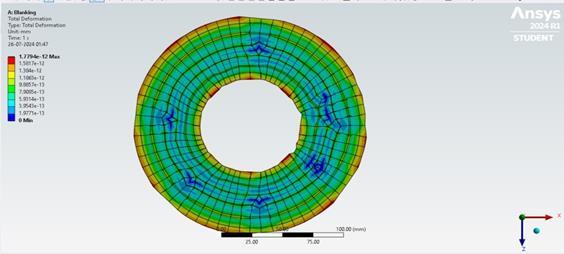

3.DEFORMATION:-Thetotaldeformationanalysisoftheoil slingershowsminimaldeformation,withredindicatingthe maximumandbluetheminimum.Slightvariationsoccurnear specific areas, but overall, the oil slinger maintains its structural integrity under applied loads, ensuring reliable performance. Understanding these deformation characteristics is essential for assessing the component's durabilityandfunctionalityinreal-worldconditions.

Fig -11:Analysisofdeformation

Fig -9: Analysisofstress

Fig -10: Analysisofstrain

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 11 Issue: 09 | Sep 2024 www.irjet.net p-ISSN: 2395-0072

b) ANALYSIS OF TRIMMING WORKPIECE

1.STRESS:Theanalysisshows"MaximumPrincipalStress"in theoilslinger.Acolorgradienthighlightsstressdistribution, withredindicatingthehigheststressat6.4204e-7MPaand bluethelowestat-5.0495e-8MPa.

Fig -12: Analysisofstress

2. STRAIN: The analysis shows the "Maximum Principal Elastic Strain," representingthe highest recoverablestrain alongthemajorprincipalaxis.Thecontourplotusescolorsto indicate strain levels, with red showing the highest strain (3.8672e-12)andbluethelowest(-1.9525e-18),illustrating strainvariationacrosstheoilslinger.

Fig -13: Analysisofstrain

3.DEFORMATION:Thisfigureshowsthetotaldeformationof theoilslingerunderload.Thecolorcontourplotvisualizes deformation, with red indicating maximum deformation (4.7094e-12) and blue showing minimal deformation (5.2372e-13),highlightingthevariationacrosstheslinger.

Fig -14: Analysisofdeformation

c) COMBINED OF FORMING & PIERCING WORKPIECE ANALYSIS

1. STRESS: The maximum principal stress, observed at5.049e-8 MPa, occurs in specific regions of the oil slinger, highlighted in red to orange, indicating high tensile stress near geometric discontinuities. The minimum principal stress,6.420e-7MPa,showsareasundercompressivestress, represented in blue. This stress distribution is crucial for assessingtheoilslinger'sdurability

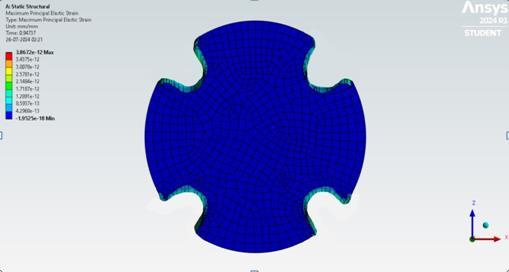

2.STRAIN:-Themaximumprincipalstrainintheoilslinger, rangingfrom-1.952e-18to3.867e-12,occursnearareaslike sharpcornersandholes.Theseminimalstrainvaluesindicate thematerialiswithinitselasticlimit,suggestingthedesignis robust and can withstand operational stresses without failure.

Fig -16: Analysisofstrain

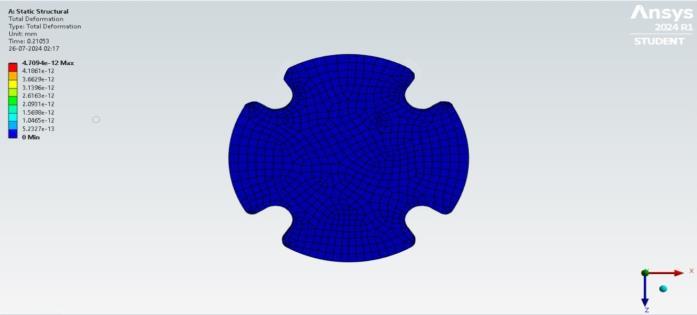

3. DEFORMATION:- Deformation: - The maximum total deformation observed is 4.709e-12 mm. This value represents the highest displacement experienced by any pointontheoilslinger,whichoccursinareassubjectedtothe greatestloadorstressconcentration.Thedistributionoftotal deformationacrosstheoilslingerisrelativelyuniform,with slight variations occurring near geometric discontinuities suchasholesoredges

Fig -15: Analysisofstress

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 11 Issue: 09 | Sep 2024 www.irjet.net p-ISSN: 2395-0072

5. TOLL DESIGN CONSIDERATIONS

 Thestudyemphasizesthecriticalroleoftooldesign inenhancingtheefficiencyanddurabilityofsheet metal operations, specifically in the automotive industry.

 Itpresentsacombinationtooldesignthatintegrates piercing and forming operations into a single process, potentially reducing process time and operatorfatiguewhileloweringtoolcosts.

6. SCOPE AND LIMITATION

 Thescopeisfocusedonoptimizingtheoilslinger's designandproduction processtoimprove engine performance. However, the study is limited to theoreticalanalysisandCADsimulations,without validationthroughphysicaltesting.

 Limitationsincludethescopeofmaterialsusedand thespecificoperationalconditionssimulated,which mightnotfullycapturereal-worldvariables.

7. DEVELOPMENT AND INNOVATION

 The study proposes a new combination tool that mergesmultipleoperationsintoone,streamlining productionandensuringhigh-qualitystandardsin automotivemanufacturing.

 ThedesignprocessinvolvesdetailedCADmodeling, stress-strain analysis, and deformation studies, which could serve as a foundation for future tool developmentsintheindustry.

8. FURTHER STUDY

 Thestudyrecommendsfurtherresearchinvolving physical testing to validate the proposed design underreal-worldconditions.

 Additional studies could explore alternative materialsfortheoilslinger andthepresstoolsto achievebetterperformanceandsustainability.

 Futureresearchcouldalsoinvestigatetheimpactof varying operational conditions on the tool's performanceandlongevity.

9. CONCLUSION

Theprojectfocusedonoptimizingthedesignoftheoilslinger usedinautomobileenginesthroughrigoroussimulationand analysis. Results indicate that the proposed design modificationscansignificantlyenhancetheefficiencyofoil distribution,therebyimprovingoverallengineperformance and reliability. It is recommended to proceed with implementingtheoptimizeddesign,withfurthervalidation through physical testing to ensure its effectiveness under real-world operating conditions. Future research could exploreadditionalrefinementsandalternativematerialsto achieve greater efficiency gains and sustainability in automotiveengineapplications.
