GENUINE ACCESSORIES
KAWASAKI INTERACTIVE DISPLAY
7” Kawasaki Interactive Display - Screen Displays and Functions:
• Battery voltage
• Bluetooth
• Connected device details
• Phone notifications, call & text
• CVT temperature
• Direction, Ambient Temp, and Time
• Drive mode
• KECS Electronic Controls Suspension (if equipped)
• Engine coolant temp
• Differential mode indicator
• Gear indicator
• GPS Map, Tracking and Waypoint
• Audio controls (audio sold separately)
• Pitch and Roll
• Two Camera Ready Front Camera (99994-1724) and Rear Camera (999941725) – Camera Wire Extension Kit (99994-1854 or 99994-1726) ready, sold separately
• Requires Interactive Display Mounting Kit (99994-1877 or 99994-1468), sold separately
• Service Reminders TERYX
TERYX KRX®4 1000 &
KRX® 1000 AUDIO SYSTEM FOR KAWASAKI
INTERACTIVE DISPLAY AUDIO KIT
Add audio capabilities to the Kawasaki Interactive Display (99994-1469)
• Requires Kawasaki Interactive Display (99994-1469) and Interactive Display Mounting Kit (99994-1877 or 99994-1468), sold separately • Same audio system as Audio System for TERYX KRX®4 1000 or TERYX KRX® 1000 (99994-1748 or 99994-1710), but without source unit • Head unit is in Kawasaki Interactive Display (99994-1469) and is required
Door Speakers Feature:
165mm (6.5”) coaxial 2-way waterproof door speakers • Composite construction midrange for deep and accurate mid-bass • .9mm (.75”) titanium dome tweeter for clearer high frequency performance • 99994-1735 comes with 2 door speakers • 99994-1882 comes with 4 door speakers
Sub-woofer Features:
305mm (12”) high power sub-woofer created specifically for the TERYX KRX®4 1000 & TERYX KRX® 1000 side x sides
TERYX KRX®4 1000 (23+)
Teryx KRX®4 1000 Audio System for Kawasaki Interactive Display Audio Kit 99994-1882
TERYX KRX® 1000 (20+)
Teryx KRX® 1000 Audio System for Kawasaki Interactive Display Audio Kit 99994-1735
Door Speakers
FRONT CAMERA
Add additional trail visibility to the TERYX KRX®4 1000/eS or TERYX KRX®
1000/eS with the TERYX KRX® 1000 Front Camera
• High quality image resolution
• Digital camera with 1/3 CMOS low temperature sensor
• 30 fps for clear image quality and smooth motion
• Seamless integration with the vehicle TERYX KRX®4 1000 eS or TERYX KRX® 1000 eS, Kawasaki Interactive Display required for all other TERYX KRX®4 1000 or TERYX KRX® 1000 applications
• Wide angle front camera for technical trail viewing (front camera features wide angle to show front tire patch area to aid in tire placement for technical trails) - FRONT CAMERA ONLY
• Camera Wire Extension Kit (99994-1854 or 99994-1726) required for Kawasaki Interactive Display (99994-1469), sold separately
TERYX KRX 4 1000 (23+) / TERYX KRX 1000 (20+)
Front Camera
99994-1724
REAR CAMERA
Add additional trail visibility to the TERYX KRX®4 1000/eS or TERYX KRX® 1000/eS with the TERYX KRX® 1000 Rear Camera
• High quality image resolution
• Digital camera with 1/3 CMOS low temperature sensor
• 30 fps for clear image quality and smooth motion
• Seamless integration with the vehicle TERYX KRX®4 1000 eS or TERYX KRX® 1000 eS, Kawasaki Interactive Display (99994-1469) required for all other TERYX KRX®4 1000 or TERYX KRX® 1000 applications
• Camera Wire Extension Kit (99994-1854 or 99994-1726) required for Kawasaki Interactive Display (99994-1469), sold separately
TERYX KRX 4 1000 (23+) / TERYX KRX 1000 (20+)
Rear Camera
99994-1725
CAMERA WIRE EXTENSION KIT
The Camera Wire Extension Kit is required for installation of the Front Camera (99994-1724) and Rear Camera (99994-1725) with Kawasaki Interactive Display (99994-1469) and Interactive Display Mounting Kit (99994-1877 or 99994-1468), sold separately
TERYX KRX 4 1000 (23+)
Camera Wire Extension Kit
TERYX KRX® 1000 (20+)
Camera Wire Extension Kit
99994-1854
CAMERAS
CAMERAS
DISPLAY VIEWS Front, Rear, and Both Cameras
AUDIO ACCESSORIES
TERYX KRX® 1000 AUDIO SYSTEM
Built to withstand off-roading and mother nature, this compact Audio System is packed with features that make it easier to listen to audio in remote locations • Located within the polyethylene plastic housing is a compact AM/ FM Bluetooth® enabled 600 Watt 5 channel audio system • Simple plug and play installation • 305mm (12”) sub-woofer with integrated 5 channel system
amplifier • Includes plug and play harness with waterproof connectors with premeasured wires • IPX6 Waterproof • Designed by Hifonics®
AM/FM/Bluetooth Source Unit:
Bluetooth®/AM/FM 5 channel stereo • High contrast LED screen displays album art • Apple Control controls your compatible Apple® device • Built in five-band equalizer for easy system adjustments
• Low noise pre-amplifier reduces noise from source units helps improve sound quality
Door Speakers Feature:
(2) 165mm (6.5”) coaxial 2-way waterproof door speakers • Composite construction midrange for deep and accurate mid-bass • .9mm (.75”) titanium dome tweeter for clearer high frequency performance
Sub-woofer Features
305mm (12”) high power sub-woofer created specifically for the Teryx KRX® 1000 side x side
TERYX KRX® 1000 (20+)
Teryx KRX® 1000 Audio System
REAR ADD ON POD SPEAKER SET
TERYX KRX®4 1000 AUDIO SYSTEM
Built to withstand off-roading and mother nature, this compact Audio System is packed with features that make it easier to listen to audio in remote locations • Located within the polyethylene plastic housing is a compact AM/ FM Bluetooth® enabled 600 Watt 5 channel audio system • Simple plug and play installation • 305mm (12”) sub-woofer with integrated 5 channel system amplifier • Includes plug and play harness with waterproof connectors with premeasured wires • IPX6 Waterproof • Designed by Hifonics®
AM/FM/Bluetooth Source Unit:
Bluetooth®/AM/FM 5 channel stereo • High contrast LED screen displays album art • Apple Control controls your compatible Apple® device • Built in five-band equalizer for easy system adjustments • Low noise pre-amplifier reduces noise from source units helps improve sound quality
Door Speakers Feature: (4) 165mm (6.5”) coaxial 2-way waterproof door speakers • Composite construction midrange for deep and accurate mid-bass • .9mm (.75”) titanium dome tweeter for clearer high frequency performance
Sub-woofer Features 305mm (12”) high power sub-woofer created specifically for the Teryx KRX®4 1000 side x side
TERYX KRX®4 1000 (23+)
TERYX KRX®4 1000 Audio System
99994-1710
99994-1748
These rear speakers are designed for the 99994-1663 Audio System and mount to the ROPS • 6.5 Inch full range rear speakers • Composite poly cone provides sharp deep bass while remaining waterproof • .75 inch titanium dome tweeter for crystal clear high frequency performance • Mounting hardware and harness Included • Compatible with Soft Rear Panel (99994-1297) and KQR™ Rear Panel, Polycarbonate (99994-1294) • Not compatible with 6-Point Harness Kit (99994-1316)
Enclosure
Speakers are mounted in composite housings specially designed to integrate into the roll cage • Speakers positioned to reduce crowding of your seat and helmet • Just great music • These enclosures help resist the elements and add to the sound quality of the high and low frequencies
About Hifonics®
Three decades of designing audio that is better, louder and more reliable for mobile, powersports and chariots. Power From The Gods Non-Kawasaki branded product, produced and developed by Hifonics®
TERYX KRX® 1000 (20+)
Rear Pod Speaker Set by Hifonics® KRX-65RP
6.5-Inch Coaxial Speakers
AUDIO
4 Door Speakers Power Outlet
12-Inch Subwoofer
38-Inch Lightbar
8 6.5-Inch Coaxial Speakers
38-Inch Lightbar
10-Inch Subwoofer
4 6.5-Inch Coaxial Speakers
10-Inch Subwoofer
AUDIO ROOFS
TERYX KRX® 1000 HIFONICS® AUDIO ROOF
Purposely Engineered for the Teryx KRX® 1000:
Designed for the two-passenger model • Required Kawasaki Interactive Display (99994-1469) with Mounting Kit (99994-1468) or Teryx KRX® 1000
Audio System (99994-1710) • Fully integrates with KGA Teryx KRX® 1000 Audio System (99994-1710)
AUDIO
4 6.5-Inch Coaxial Speakers:
Composite construction midrange for deep and accurate midbass • 0.75-inch titanium dome tweeter for crystal clear-high frequencies
10-Inch Subwoofer:
Application specific long-throw high output design
600 Watt High Efficiency, Water-Resistant 5 Channel Class D Amplifier: Big power, small chassis design with low current draw
Dual Sunroof High Impact HDPE Composite Enclosure:
Ultra-compact design takes up minimal overhead space • One piece enclosure construction for structural rigidity • Features two high strength Makrolon Polycarbonate sunroof panels
38-Inch Half Optic Lightbar:
Indirect light source provides better lighting in dusty and heavy weather conditions • 9500 Lumen output
RGB Lighting & Controller:
10+ feet of 5050 RGB LED lights • Integrated RGB controller with output for other lighting • 3 RGB light modes, Solid with adjustable colors, Fade with adjustable color and speed, and Music mode • 2 memory per-sets
Ultra Secure Mounting System:
8 mounting points for secure fitment to vehicles cage • Gasket protected installation between roof and cage
LIFE SHIELD IPX Rated:
Fully protected against the elements • Not compatible with Rear 8” LED K-Glow Light Bar Installation Kit (99994-1323) • Not compatible with Soft Upper Door Set (99994-1298) or Rear Panel, Polycarbonate (99994-1294)
TERYX KRX 1000 (20+)
Teryx KRX® 1000 Hifonics® Audio Roof 99969-3884
TERYX KRX®4 1000 HIFONICS® AUDIO ROOF
Purposely Engineered for the Teryx KRX®4 1000:
Designed for the four-passenger model • Required Kawasaki Interactive Display (99994-1469) with Mounting Kit (99994-1877) or Teryx KRX®4 1000 Audio System (99994-1748) • Fully integrates with KGA Teryx KRX®4 1000 Audio System (99994-1748)
8 6.5-Inch Coaxial Speakers: Composite construction midrange for deep and accurate midbass • 0.75-inch titanium dome tweeter for crystal clear-high frequencies
10-Inch Subwoofer: Application specific long-throw high output design
600 Watt High Efficiency, Water-Resistant 5 Channel Class D Amplifier Big power, small chassis design with low current draw
4 Sunroof Panel High Impact HDPE Composite Enclosure:
Ultra-compact design takes up minimal overhead space • 2 - One piece enclosure construction for structural rigidity • Features four high strength Makrolon Polycarbonate sunroof panels
38-Inch Half Optic Lightbar: Indirect light source provides better lighting in dusty and heavy weather conditions • 9500 Lumen output
RGB Lighting & Controller:
17+ feet of 5050 RGB LED lights • Integrated RGD controller with output for other lighting • 3 RGB light modes Solid with adjustable colors, Fade with adjustable color and speed, and Music mode • 2 memory per-sets
Ultra Secure Mounting System:
18 mounting points for secure fitment to vehicles cage • Gasket protected installation between roof and cage
LIFE SHIELD IPX Rated: Fully protected against the elements
Not compatible with Rear 8” LED K-Glow Light Bar Installation Kit (99994-1754)
Not compatible with Soft Upper Door Set (99994-1747) or Rear Panel, Polycarbonate (99994-1745)
TERYX KRX 4 1000 (23+)
TERYX KRX®4 1000 Hifonics® Audio Roof
99969-3885
KQR™ SPORT ROOF
This semi-rigid KQR™ Sport Roof helps offer passenger protection from harsh weather and sun • Can be installed or removed without tools • Contoured lightweight design for added style • Provisioned to accept up to 6 LED Dome Lights (KAF080-035) in pre-configured mounts • Made from semi-rigid black textured plastic • Can use alone or with KQR Full Windshield, Glass (99994-1290), KQR™ Full Windshield, Polycarbonate (99994-1289), KQR™ Half Windshield (99994-1292), or Flip-Down Windshield, Polycarbonate (999941291) • Use with the KQR Rear Panel, Polycarbonate (99994-1294) or Soft Rear Panel (99994-1297), Soft Upper Door Set (99994-1298), and choice of full windshield to create a complete cab enclosure
Vehicle must be positioned in the forward facing direction when towed on open trailers
TERYX KRX® 1000 (20+)
KQR Sport Roof
99994-1293
SOFT ROOF
600 Denier Sur Last® water-resistant material easily attaches to vehicle with quick release buckles and hook-and-loop straps • Creates a full enclosure when combined with the KQR™ Full Windshield, Polycarbonate (99994-1289), Soft Rear Panel (99994-1297) or KQR™ Rear Panel, Polycarbonate (999941294), and Soft Upper Door Set (99994-1298) • Soft Roof (99994-1296) does not require Soft Upper Door Set (99994-1298) but should be used in combination with a KQR™ Full Windshield, Polycarbonate (99994-1289) and Soft Rear Panel (99994-1297) or KQR Rear Panel, Polycarbonate (999941294) • Not compatible with KQR™ Full Windshield, Glass (99994-1290), FlipDown Windshield, Polycarbonate (99994-1289), or Rear LED K-Glow Light Bar Installation Kit (99994-1323)
Towable on open trailers when used in combination with KQR Full Windshield, Polycarbonate (99994-1289), Soft Rear Panel (99994-1297) or KQR Rear Panel, Polycarbonate (99994-1294) and the Soft Upper Door Set (99994-1298) • Vehicle must be positioned in the forward facing direction when towing
KQR™ SPORT ROOF
This semi-rigid KQR™ Sport Roof helps offer passenger protection from harsh weather and sun • Simple installation and removal • Provisioned to accept up to 12 LED Dome Lights (KAF080-035) in pre-configured mounts • Made from semi-rigid black textured plastic • Can use alone or with KQR™ Full Windshield, Glass (99994-1290), KQR Full Windshield, Polycarbonate (99994-1289), KQR™ Half Windshield (99994-1292), or Flip-Down Windshield, Polycarbonate (99994-1291) • Use with the KQR Rear Panel, Polycarbonate (99994-1745) or Rear Panel, Soft Mesh (99994-1746), Soft Upper Door Set (99994-1747), and choice of full windshield to create a complete cab enclosure
Vehicle must be positioned in the forward facing direction when towed on open trailers
TERYX KRX®4 1000 (23+)
KQR™ Sport Roof________________________________________99994-1743
KQR™ PREMIUM ROOF
Quantum® hard coated polycarbonate material helps provide protection from harsh weather and sun • Can be quickly installed or removed without tools
• Three dimensional, contoured, lightweight design and screened printed black details and logos for unmatched style • Clear center allows natural light into the cabin and a unique custom look • Can use alone or with KQR™ Full Windshield, Glass (99994-1290), KQR Full Windshield, Polycarbonate (99994-1289), KQR Half Windshield (99994-1292), or Flip-Down Windshield, Polycarbonate (99994-1291) • Use with the KQR™ Rear Panel, Polycarbonate (99994-1294) or Soft Rear Panel (99994-1297), Soft Upper Door Set (99994-1298) and choice of full windshield to create a complete cab enclosure
Vehicle must be positioned in the forward facing direction when towed on open trailers
TERYX KRX® 1000 (20+)
KQR™ Premium Roof, Polycarbonate, Black 99994-1325-BK
KQR™ Premium Roof, Polycarbonate, Green 99994-1325-GR
KQR Premium Roof, Polycarbonate, Blue 99994-1325-BL
KQR™ PREMIUM ROOF
Quantum® hard coated polycarbonate material helps provide protection from harsh weather and sun • Can be quickly installed or removed without tools
• Three dimensional , contoured, lightweight design and screened printed white details and logos for unmatched style • Clear center allows natural light into the cabin and a unique custom look • Can use alone or with KQR™ Full Windshield, Glass (99994-1290), KQR Full Windshield, Polycarbonate (99994-1289), KQR Half Windshield (99994-1292), or Flip-Down Windshield, Polycarbonate (99994-1291) • Use with the KQR™ Rear Panel, Polycarbonate (99994-1745) or Rear Panel, Soft Mesh (99994-1746), Soft Upper Door Set (99994-1747) and choice of full windshield to create a complete cab enclosure
Vehicle must be positioned in the forward facing direction when towed on open trailers
TERYX KRX®4 1000 (23+)
KQR™ Premium Roof, Polycarbonate, Black 99994-1744-BK
KQR™ Premium Roof, Polycarbonate, Green 99994-1744-GN
KQR Premium Roof, Polycarbonate, Red 99994-1744-RD
KQR™ FULL WINDSHIELD, GLASS
The KQR™ Full Windshield, Glass can be installed and removed without tools
• Frameless, three dimensional, curved design • Helps provide protection from wind and debris for improved in-cabin comfort • Made from DOT approved AS1 safety glass • Printed gradient border, TERYX KRX® 1000 side x side silhouette, and Kawasaki Logo add to the custom look of this windshield • Can be used with any combination of soft doors, rear panels, and roofs offered by Kawasaki • Not compatible with Soft Roof (99994-1296) • Compatible with Windshield Wiper/Washer Kit (99994-1295)
Vehicle must be positioned in the forward facing direction when towed on open trailers
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+)
KQR Full Windshield, Glass 99994-1290
KQR™ FULL WINDSHIELD, POLYCARBONATE
Quantum® hard coated polycarbonate windshield material helps provide protection from the elements • Three dimensional curved design • Can be installed or removed without tools • Screen printed border • Use with any combination of soft doors, rear panels, and roofs offered by Kawasaki
• Compatible with Windshield Wiper/Washer Kit (99994-1295)
Vehicle must be positioned in the forward facing direction when towed on open trailers
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+)
KQR Full Windshield, Polycarbonate
99994-1289
WINDSHIELD WIPER/ WASHER KIT
2 speed wiper features 483mm (19”) silicon flex blade • Silicon blade aids in use with polycarbonate windshield • 135° sweep • Adjustable blade operating height
• Washer features custom formed 1.89 liter (½ gallon) plastic container and pumps fluid to an adjustable nozzle • Wiper removes fluid and residue
• Use on KQR Full Windshield, Glass (99994-1290) or KQR Full Windshield, Polycarbonate (99994-1289)
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+) Windshield Wiper/Washer Kit
99994-1295
WINDSHIELDS
Windshield Down
FLIP-DOWN WINDSHIELD, POLYCARBONATE
Windshield Up
The Flip-Down Windshield, Polycarbonate can be quickly opened or closed when desired • Helps provide protection from wind for improved in-cabin comfort when closed or increased cabin ventilation when open • Features a screen printed, three piece design with a tinted top piece for added glare resistance • Made from scratch-resistant Quantum® hard coated polycarbonate • Not compatible with Windshield Wiper/Washer Kit (99994-1295), Soft Upper Door Set (99994-1747 or 99994-1298), or Soft Roof (99994-1296)
Towable in forward facing position only • Flip-Down Polycarbonate Windshield must be in the closed and locked position while being towed • Vehicle speed must be kept below 55mph when in flip-down position
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+) Flip-Down Windshield, Polycarbonate 99994-1291
KQR™ HALF WINDSHIELD
The KQR™ Half Windshield deflects direct wind blasts while maintaining comfortable air-flow throughout • Made from Quantum® hard coated polycarbonate • 3D formed and screen printed for a custom look and fit Vehicle must be positioned in the forward facing direction when towed on open trailers
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+) KQR™ Half Windshield 99994-1292
POLYCARBONATE
Quantum® hard coated polycarbonate material helps provide protection from the elements • Three dimensionally formed, lightweight design with screened logos for added function and style • Add a KQR Sport Roof (99994-1293), Soft Roof (99994-1296) , or KQR™ Premium Roof, Polycarbonate (99994-1325-BK, 99994-1325-GR, 99994-1325-WT), Soft Upper Door Set (99994-1298) and choice of windshield KQR Full Windshield, Glass (99994-1290) or KQR Full Windshield, Polycarbonate (99994-1289) to create a complete Cab Enclosure
TERYX KRX® 1000 (20+) KQR Rear Panel, Polycarbonate
99994-1294
POLYCARBONATE
Quantum® hard coated polycarbonate material helps provide protection from the elements • Three dimensionally formed, lightweight design with screened logos for added function and style • Add a KQR™ Sport Roof (99994-1743), or KQR™ Premium Roof, Polycarbonate (99994-1744-BK, 99994-1744GR, 99994-1744-RD), Soft Upper Door Set (99994-1747) and choice of windshield KQR Full Windshield, Glass (99994-1290) or KQR Full Windshield, Polycarbonate (99994-1289) to create a complete Cab Enclosure
TERYX KRX®4 1000 (23+) Rear Panel, Polycarbonate
99994-1745
CAB
CAB COMPONENTS
REAR PANEL, SOFT MESH
Semi-transparent material easily attaches to vehicle rops with hook-and-loop straps • Screened TERYX KRX® logo for a stylish look
Vehicle must be positioned in the forward facing direction when towing • Remove for towing on an open trailer
SOFT REAR PANEL
600 Denier Sur Last® water-resistant material easily attaches to vehicle with quick release buckles and hook-and-loop straps • Large rear window zips open for increased airflow • Creates a full enclosure when combined with the KQR Full Windshield, Polycarbonate (99994-1289), KQR Full Windshield, Glass (99994-1290), Soft Upper Door Set (99994-1298), and choice of Soft Roof (99994-1296) use with KQR Full Windshield, Polycarbonate Only, KQR Sport Roof (99994-1293), or KQR™ Premium Roof, Polycarbonate (99994-1325-BK, 99994-1325-GR, 99994-1325-WT)
Vehicle must be positioned in the forward facing direction when towing • Remove for towing on an open trailer if KQR™ Full Fixed Windshield, Polycarbonate (99994-1154), Soft Upper Door Set (99994-1298), and choice of roof, Soft Roof (99994-1296), KQR™ Sport Roof (99994-1293), or KQR™ Premium Roof, Polycarbonate (99994-1325) are not installed
SOFT UPPER DOOR SET
The Soft Upper Door Set can be installed or removed when necessary • 600 Denier Sur Last® water-resistant Upper Door Set attaches to stock doors and is held closed with the existing door latching system • Large side windows offer additional light and unzip for added ventilation when desired • Seals to ROPS • Provisions included for side mirror installation • Creates a full enclosure when combined with the KQR Full Windshield, Polycarbonate (99994-1289), KQR™ Full Windshield, Glass (99994-1290), Soft Rear Panel (99994-1297) ) or KQR Rear Panel, Polycarbonate (99994-1294) and choice of roof, Soft Roof (99994-1296) use with KQR™ Full Windshield, Polycarbonate Only, KQR™ Sport Roof (99994-1293), or KQR™ Premium Roof, Polycarbonate (99994-1325-BK, 99994-1325-GR, 99994-1325-WT)
Vehicle must be positioned in the forward facing direction when towing • Remove for towing on an open trailer if KQR Full Fixed Windshield, Polycarbonate (99994-1154), ), Soft Rear Panel (99994-1297) ) or KQR Rear Panel, Polycarbonate (99994-1294) and choice of roof, Soft Roof (99994-1296), KQR Sport Roof (99994-1293), or KQR Premium Roof, Polycarbonate (99994-1325) are not installed • Not compatible with Flip-Down Windshield (99994-1291)
TERYX KRX® 1000 (20+) Soft Upper Door Set
SOFT UPPER DOOR SET
The Soft Upper Door Set can be installed or removed when necessary • 600 Denier Sur Last® water-resistant Upper Door Set attaches to stock doors and is held closed with the existing door latching system • Large side windows offer additional light and unzip for added ventilation when desired • Seals to ROPS • Provisions included for side mirror installation • Creates a full enclosure when combined with the KQR Full Windshield, Polycarbonate (99994-1289), KQR Full Windshield, Glass (99994-1290), Rear Panel, Soft Mesh (99994-1746) ) or Rear Panel, Polycarbonate (99994-1745) and choice of roof KQR Sport Roof (99994-1743), or KQR™ Premium Roof, Polycarbonate (99994-1744-BK, 99994-1744-GR, 99994-1744-RD)
Vehicle must be positioned in the forward facing direction when towing • Remove for towing on an open trailer if KQR Full Fixed Windshield, Polycarbonate (99994-1154), ), Soft Rear Panel (99994-1297) ) or KQR™ Rear Panel, Polycarbonate (99994-1294) and choice of roof, KQR™ Sport Roof (99994-1743), or choice of KQR™ Premium Roof, Polycarbonate (99994-1744-BK, 99994-1744-GR, 99994-1744-RD) are not installed • Not compatible with Flip-Down Windshield (99994-1291)
TERYX KRX 4 1000 (23+)
Soft Upper Door Set
99994-1747
CAB COMPONENTS
the WARN logo, GO PREPARED and THE RED HOOK STRAP are registered trademarks of Warn Industries, Inc. AXON and VRX are trademarks of Warn Industries, Inc.
Shown on the Teryx KRX®4 1000 eS Special Edition
Soft Upper Door Set
CAB COMPONENTS CAB COMPONENTS
HEATER KIT
This fully integrated heater system dramatically improves in-cabin comfort during those cold mornings and long winters • Utilizes the heat generated from your engine’s liquid cooling system • Distributes warm air throughout the cabin via two adjustable automotive style dash vents, two face vents and two floor vents • Defrost vents can be used to eliminate condensation or clear frost from your windshield • 3-speed blower with temperature control and automatic shutoff • Features blow molded ducting for an OEM appearance • Can be used as a cabin fan during summer months
Click-6® 6-Point Harness Kits include both driver and passenger side 6-point harness restraint systems • Retractable shoulder straps • Features Kawasaki branding • Includes all mounting brackets and hardware for a complete fit • Not compatible with Rear Pod Speaker Set (KRX-65RP)

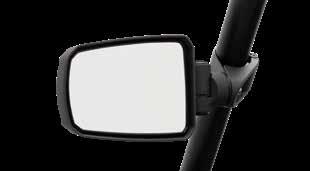

MIRRORS REAR VIEW MIRROR
* Shown on the Teryx KRX® 1000 Blackout Edition
Sport Front Bumper
Headlight Guard
8” LED K-Glow Light Bars
Sport Rear Bumper
SPORT FRONT BUMPER
SPORT REAR BUMPER
TAIL LIGHT GUARD SET
TERYX
HMW FRONT A-ARM GUARD SET
Low profile HMW (High-Molecular Weight) Front A-arm Guard Set with molded TERYX KRX® 1000 side x side logo to match vehicle styling • Helps protect the TERYX KRX®4 1000 or TERYX KRX® 1000 side x side front A-arms from damage on the rocks and trails • 6mm 1/4” thick HMW polyethylene provides durable lightweight protection • All mounting hardware included
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+) HMW Front A-arm Guard Set
99994-1311
MUD FLAP SET
Helps provide additional mud protection when added to the Wide Fender Flare Kit (99994-1324) • Wide Fender Flare Kit (99994-1324), required, sold separately
TERYX KRX 4 1000 (23+) / TERYX KRX 1000 (20+) Mud Flap Set 99994-1461
HMW TRAILING ARM GUARD SET
Low profile HMW (High-Molecular Weight) Trailing Arm Guard Set helps protect the TERYX KRX®4 1000 or TERYX KRX® 1000 side x side rear trailing arms from damage on the rocks and trails • 6mm (1/4”) thick HMW polyethylene provides durable lightweight protection • All mounting hardware included
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+) HMW Trailing Arm Guard Set
HMW SKID PLATE KIT
Help protect your drivetrain and chassis with a three-piece HMW (HighMolecular Weight) Kawasaki Genuine Skid Plate Kit • Constructed of 9.525mm (3/8”) thick HMW these skid plates help provide additional protection to your investment’s under body • Designed to help provide additional underbody protection
TERYX KRX®4 1000 (23+)
HMW Skid Plate Kit
TERYX KRX 1000 (20+)
HMW Skid Plate Kit
99994-1312
99994-1750
99994-1313
WIDE FENDER FLARE KIT
HMW ROCK SLIDER SET
6mm (1/4”) thick HMW (High-Molecular Weight) polyethylene Rock Slider Set is custom molded to the unique shape of the TERYX KRX4® 1000 and TERYX KRX® 1000 side x sides • Fits with the HMW Full Skid Plate Set (99994-1313 or 999941750) to help provide added vehicle protection • Compatible with Nerf Bar Set (99994-1314 or 99994-1751) • Mounts over OEM rocker panels • Installation hardwear included
TERYX KRX 4 1000 (23+)
HMW Rock Slider Set 99994-1752
TERYX KRX® 1000 (20+)
HMW Rock Slider Set 99994-1328
NERF BAR SET
Help protect your TERYX KRX®4 1000 or TERYX KRX® 1000 side x side with these tubular steel Nerf Bars • Textured powder coating matches vehicle styling • Designed specifically for the TERYX KRX®4 1000 or TERYX KRX® 1000 side x side • Helps provide additional vehicle side protection • Bolt on design includes all mounting hardware
TERYX KRX®4 1000 (23+)
Nerf Bar Set 99994-1751
TERYX KRX 1000 (20+)
Nerf Bar Set 99994-1314
Look no further than the WARN® VRX™ lineup. Available in capacities up to 4,500 lbs. and a choice of durable aircraft-grade wire rope or lightweight, easy-to-handle synthetic rope, these winches are built using premium components and offer marketleading performance and features.
WARN® VRX™ 45-S POWERSPORT WINCH KIT
VRX 45-S includes 50’ of lightweight, easy-to-handle 1/4” synthetic rope, hawse fairlead, and zinc-plated hook • Huge 4,500 lb. capacity available for the hardest-working UTVs • Load-holding brake • Durable all-metal construction
• New clutch design based on legendary WARN 4WD hub lock know-how
• Complete waterproof sealing helps keep all the elements out • Semigloss back powder-coated finish and stainless steel fasteners for corrosion resistance • Smooth and reliable all-metal three-stage planetary gear train
• Dash-mounted rocker control and corded remote • Limited lifetime warranty (mechanical), 3 year warranty (electrical) • 39184-0740 Large Roller Fairlead recommended with plow usage
WARN®, the WARN logo, GO PREPARED and THE RED HOOK STRAP are registered trademarks of Warn Industries, Inc. AXON and VRX are trademarks of Warn Industries, Inc.
TERYX KRX®4 1000 (23+)
WARN® VRX™ 45-S Powersport Winch Kit
TERYX KRX® 1000 (20+)
WARN® VRX 45-S Powersport Winch Kit
99994-1759-45S
99994-1300-45S
WARN® VRX™
45 POWERSPORT WINCH KIT
VRX 45 includes 50’ of durable 1/4” steel rope, roller fairlead, and zinc-plated hook • Huge 4,500 lb. capacity available for the hardest-working UTVs • Load-holding brake for great control • Durable all-metal construction • New clutch design based on legendary WARN 4WD hub lock know-how • Complete waterproof sealing helps keep all the elements out • Semi-gloss back powdercoated finish and stainless steel fasteners for corrosion resistance • Smooth and reliable all-metal three-stage planetary gear train • Dash-mounted rocker control and corded remote • Limited lifetime warranty (mechanical), 3 year warranty (electrical) • 39184-0740 Large Roller Fairlead recommended with plow usage
WARN®, the WARN logo, GO PREPARED and THE RED HOOK STRAP are registered trademarks of Warn Industries, Inc. AXON and VRX are trademarks of Warn Industries, Inc.
TERYX KRX®4 1000 (23+)
WARN® VRX™ 45 Powersport Winch Kit
TERYX KRX® 1000 (20+)
WARN® VRX 45 Powersport Winch Kit
99994-1759-45
99994-1300-45
WINCHES
Shown
LIGHTING
* Shown on the Teryx KRX® 1000 Blackout Edition
LIGHTING ACCESSORIES
K-GLOW FEATURE
8” LED K-GLOW LIGHT BAR
8” Light Bar Features:
4 flood light reflectors and 2 spot beam reflectors for a total of 6 LED lights
• Combination flood/spot light • UV-resistant polycarbonate lens • 12V DC Input
• Can be used on front bumper or as one of two lights for the rear of vehicle
• Requires either 8” LED K-Glow Light Bar Harness Kit (99994-1308) or Rear 8” LED K-Glow Light Bar Harness Kit (99994-1323)
TERYX KRX 4 1000 (23+) / TERYX KRX 1000 (20+) 8” LED K-Glow Light Bar
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+)
K-Glow Light Bar
Front Bumper Installation Kit
TERYX KRX®4 1000 (23+)
TERYX KRX 1000 (20+)
38” LED K-GLOW LIGHT BAR
Light Bar Features:
flood light reflectors and 24 spot beam reflectors for a total of 28 LED lights
Combination flood/spot light • UV-resistant polycarbonate lens • 12V DC Input • Requires 38” LED K-Glow Light Bar Installation Kit (99994-1310)
TERYX KRX®4 1000 (23+) / TERYX KRX®
ALTERNATOR KIT
SPARE TIRE ASSEMBLY
Complete OEM spare wheel and mounted tire • Eight spoke cast aluminum 15inch bead lock wheel • Bead locks help securely hold tire bead in place under lower grip conditions • MAXXIS Carnivore 31 x 10.00R15 8PR tire
TERYX KRX®4 1000 (23+) / TERYX KRX® 1000 (20+)
Spare Tire Assembly, Black 99994-1513-BK
Spare Tire Assembly, Green 99994-1513-GR
Spare Tire Assembly, Silver 99994-1513-WT
REAR CARGO/TIRE RACK
Pivoting Rear Cargo/Tire Rack allows for spare tire mounting or additional cargo space • Rear Cargo/Tire Rack can hold up to a 32” tire • One handed latch release for easy access to cargo bed area • Gas shocks support the rack in the up position • Rear Cargo/Tire Rack (99994-1321A) required to mount HMW (High-Molecular Weight) Cargo Rack Tray (99994-1345) • Spare Tire Assembly (99994-1513-BK, 99994-1513-GR, or 99994-1513-WT) sold separately
TERYX KRX®4 1000 (23)
Rear Cargo/Tire Rack
TERYX KRX® 1000 (20+)
Rear Cargo/Tire Rack
99994-1753
99994-1601
SPARE TIRE Y-STRAP
3 point hold down Spare Tire Y-Strap made from 44mm (1.7” ) high strength nylon webbing with rubber coated hooks • Attaches a spare tire to either the cargo bed or Rear Cargo/Tire Rack (99994-1753 or 99994-1321A) with ratcheting strap for a more secure fit • Requires Rear Bumper (99994-1303) when used to attach spare tire to cargo bed
TERYX KRX 4 1000 (23+) / TERYX KRX 1000 (20+)
Spare Tire Y-Strap 99994-1317A
CARGO ACCESSORIES
KQR™ TAILGATE
Help secure your usable cargo space with this durable roto-molded plastic KQR™ Tailgate • KQR™ Tailgate simply slides into place and is secured with two KQR™ Tailgate screw handles • Not compatible with Spare Tire Assembly (99994-1513-BK, 99994-1513-GR, or 99994-1513-WT)
KQR™ TAIL BOX
Add sealed storage within your vehicle’s cargo bed • Ample internal storage space for transporting tools, equipment, straps, tie-downs, emergency kits, trail snacks, etc. • Material: Molded LDPE black plastic • Not compatible with Spare Tire Assembly (99994-1513-BK, 99994-1513-GR, or 99994-1513-WT)
RUGGED RADIOS
Talk between passengers, listen to music, and talk with other vehicles in your group. That is the power of a Rugged Radios Intercom System • With the RRP665, all in-car communications are hands-free, allowing driver and passengers to talk easily between each other. Stream your music and calls via Bluetooth for a completely wireless audio experience. With auto music dimming when speaking, the RRP665 makes clear conversation easy! • Ready to talk to other vehicles in your group? Simply press the PTT (push-to-talk) button on the intercom to transmit miles over your radio • For power, performance, and features you have come to the right place. The RRP665 intercom combined with the powerful RDM two-way radio combines the most popular features for the ultimate communication system • Although not required, for optimal performance a ground plane is recommended • Not compatible with Audio System (99994-1710)
RRP665 Intercom Features:
Hands free voice activated in-vehicle communication • Set VOX volume threshold to activate your mic for in-car communication • Automatic music dimming when speaking • Ports for 4 headsets/helmet kits, expandable to 8
• High output amplifier provides outstanding music listening • Connect optional cable to rear AUX port to record intercom audio to GoPro or another device.
RDM Radio Kit Features:
50-Watt Radio (VHF) & 45-Watt Radio (UHF) • Digital or analog operation
• Dual Band VHF and UHF frequencies • 20~30-mile range (depending on terrain and line of sight) • Includes UNI-MAG Mount (2-in-1 mount provides magnetic mount or fixed mount) • Wide Band 1/4 Wave Antenna with Spring • 13’ Antenna cable
Kit Includes:
(1) RRP665 Intercom • (1) Radio/Intercom Mount • (2) 12’ Intercom Extension
Cables • (2) Offroad Helmet Kits • (1) Rugged RDM-DB Business Band Mobile Radio - Digital and Analog • (2) Ground Straps • (1) Audio Filter • (1) 1/4 Wave
Antenna and Antenna Cable
Rugged Radios
Non-Kawasaki branded product produced and developed by Rugged Radios.
TERYX KRX 1000 (20+)
Communication Kit for Teryx KRX® 1000 99969-3820A
TOWABLE STORAGE COVER
PROTECTION PACKAGE
1 / Sport Front Bumper (99994-1301)
/ Headlight Guard (99994-1302) 3 / Sport Rear Bumper (99994-1303) 4 / Tail Light Guard Set (99994-1304)
5 / HMW Front A-Arm Guard Set (99994-1311)
6 / HMW Trailing Arm Guard Set (99994-1312)
7 / HMW Full Skid Plate Kit (99994-1313) 8 / Nerf Bar Set (99994-1314)
/ HMW Rock Slider Set (99994-1328)
/ Intrusion Bar (99994-1758)
/ Sport Front Bumper (99994-1301)
/ Headlight Guard (99994-1302) 3 / Sport Rear Bumper (99994-1303) 4 / Tail Light Guard Set (99994-1749) 5 / HMW Front A-Arm Guard Set (99994-1311)
/ HMW Trailing Arm Guard Set (99994-1312)
/ HMW Full Skid Plate Kit (99994-1750)
/ Nerf Bar Set (99994-1751)
/ HMW Rock Slider Set (99994-1752)
/ Intrusion Bar (99994-1758)
PROTECTIONCABCABPACKAGE
Package
1 / KQR™ Full Windshield, Glass (99994-1290)
2 / KQR™ Sport Roof (99994-1293)
3 / KQR™ Rear Panel, Polycarbonate (99994-1294)
4 / Windshield Wiper/Washer Kit (99994-1295)
5 / Soft Upper Door Set (99994-1298)
6 / Heater Kit (99994-1306)
7 / Dash Net with Anti-Slip Tray (99994-1340)
8 / Cab Seal Kit (99994-1346)
(99994-1290)
/ KQR™ Sport Roof (99994-1743)
/ Rear Panel, Polycarbonate (99994-1745)
/ Windshield Wiper/Washer Kit (99994-1295)
/ Soft Upper Door Set (99994-1747)
/ Heater Kit (99994-1306)
/ Dash Net with Anti-Slip Tray (99994-1340)
/ Cab Seal Kit (99994-1757)
LIGHTING PACKAGE
LIGHTINGRECREATIONRECREATION PACKAGE
MUDPACKAGES MUD PACKAGE
Entertainment Package includes the following accessories:
1 / Interactive Display (99994-1469)
2 / Interactive Display Mount Kit (99994-1468)
3 / Front Camera (99994-1724)
4 / Rear Camera (99994-1725)
5 / Camera Extension Harness (99994-1726)
6 / Interactive Display Audio System (99994-1735)
Entertainment Package includes the following accessories:
1 / Interactive Display (99994-1469)
2 / Interactive Display Mount Kit (99994-1877)
3 / Front Camera (99994-1724)
4 / Rear Camera (99994-1725) 5 / Camera Extension Harness (99994-1854) 6 / Interactive Display Audio System (99994-1882)
OIL CHANGE KIT
Kit Includes KPO HP Semi-Synthetic 10W-40 ATV/UTV Oil (4 Quarts) • Genuine Kawasaki Oil Filter • Drain Bolt Sealing Washer • One Pair Lime Green Disposable Gloves • One Disposable Funnel
/
TERYX
Oil Change Kit 99974-0160
KAWASAKI
PERFORMANCE OILS
Kawasaki Performance Oils have been formulated to provides the ultimate clutch feel and durability. While providing superior protection in extreme conditions.
Full Synthetic 4-Stroke Engine Oil, Quart, 5w-40
K61027-500-01Q Semi-Synthetic 4-Stroke Engine Oil, Quart, 10w-40 K61027-300-01Q Semi-Synthetic 4-Stroke Engine Oil, Gallon, 10w-40 K61027-300-01G
Kawasaki Motors Corp., U.S.A.
Manufacturer’s suggested retail prices shown. Prices, product and specifications are subject to change without notice or liability. Availability is subject to production, stocking and demand. www.kawasaki.com/accessories
P/N: K925KR-ACC
All trademarks, registered trademarks, logos, and copyrights are the property of their respective owners.
SCAN FOR ALL TERYX KRX®4 1000 ACCESSORIES
SCAN FOR ALL TERYX KRX® 1000 ACCESSORIES
