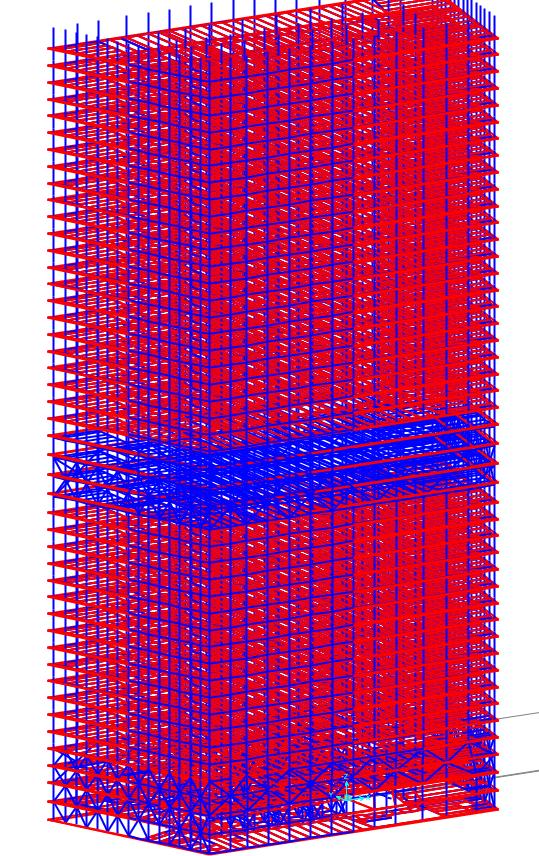

Figure 2.21 SAP2000 model of entire WTC 7 without roof

from University of Alaska Building 7 Report

REFERENCES

Figure 2.21 SAP2000 model of entire WTC 7 without roof.

After the entire WTC 7 was modeled in SAP2000, boundary conditions for Floors 12 and 13 assembly were modeled. We modeled Floor 12 and Floor 13 using both ABAQUS and SAP2000. A significant effort was made to model the building connections so that we could properly account for the boundary conditions and properly use “substructuring” to accelerate the computer analysis time. Figure 2.22 shows the model for Floor 12 to Floor 47. Figure 2.23 shows the model for Floor 3 to Floor 12.

Figure 2.21 SAP2000 model of entire WTC 7 without roof

Next Article

REFERENCES
