Mutations of self-organized mobility

Mapping and Evaluating Alexandria’s minibus movement patterns

Prof. Paola Pucci

Prof. Frank Witlox

Mohamed El Gohary Student:

10702842

Academic year:

Co-supervisor: Supervisor: 2020-21

Research question

2
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.
How could urban mobility data measure the performance of informal mobility in the Global South
??????

Research question ??????

How could urban mobility data measure the performance of informal mobility in the Global South?

What are the available data sources in the study region?

How would urban modelling of paratransit help forecast the minibuses’ correspondence to different mobility policies/emergencies?

3
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Research outline

0111010011010111101 000101010010101101 1010111010111010010 1010101111010101010 1010101111010101101 10111110101010111110 0101010101111010101

Figure 1: Thesis outline. Source: Author.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

4
Investigating minibus challenges in Global South Mobility data And mobility models Digital Mapping of Matatu In Nairobi Mapping and Ground-thrusting The Minibuses MATSim Model for the minibuses Urban Mobility Policy recommendations Ch.1 Intoduction Ch.2 Literature review Ch.3 Good Practice Ch.4 Data ane Methdology Ch.5 Modelling and analysis Ch.6 Conclusions
?!
Nairobi, Kenya

Chapter 1: Mobility challenges in Global South

What paratransit challenges in Global South?

Chapter 1 Introduction:

-Unplanned Sprawl -Informal transport: paratransit -Mobility challenges

Chapter 4 data and methodology:

- Alexandria unplanned sprawl

- Alexandria mobility market

- Minibus as transport supply

- Available data for mapping and analysing minibus supply

Could data map the informal mobility in Alexandria ?

How data could be contained?

Chapter 2 literature review: -Urban Mobility data -Urban Mobility models

Chapter 3 Good practice: -Matatu, Nairobi, Kenya. Chapas, Maputo, Mozambique

What could be learn from good practices?

Chapter 5 mapping and analyzing: - MATSim data framework

- Executing the model - Scoring - Replanning

What is recommended to shift a traditional mobility Paradigm into a smart one? Kenya.

How could MATSim model address minibus inadequacy?

Chapter 6 conclusions: - Conclusions - Recommendations

Figure 2: Minibus terminal, central Kampala. Source: Flickr Greg James Wade.

Urban Sprawl and mobility

Rural areas

Unpredicted population growth immigration

Informal/Unplanned Sprawl

Urban areas Foretasted population growth Planned Sprawl

Demand for Mobility

Informal transport (paratransit)

Formal /Public transport

Figure 3: The relation between Unplanned Sprawl and informal mobility in developing countries. Source: Author.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

6

Urban Sprawl and mobility

7
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Figure 4: Global urbanization trends. Source: UNFBA, 2010. Graphics: Paul Scruton.

Urban Sprawl and mobility

Walk and bicycle

Public (formal) Public (informal) Cars and motorcycles

Atlanta 2016

Los Angeles 2016

New York 2016

Stockholm 2015

Berlin 2015

Tokyo 2014

Hong Kong 2014

Beijing 2011

Cape Town 2013

Johannesburg 2013

Bogotá 2010

Mexico City 2017

São Paulo 2007

Addis Ababa 2015

Lima 2005

Delhi 2014

Nairobi 2005

Paris 2015 S T ABILIZIN G THRI V IN G ( G LOBAL NO RT H ) THRI V IN G ( G LOBAL S OUTH ) EMER G IN G S T RU GG LIN G

0% 20%

100%

8
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.
40% 60% 80%
Dar es Salaam 2005
Figure 5: Mode shares of travelers across different categories of cities.Source: UITP, 2015a, 2015b; CAF, n.d.; Alliance for Biking & Walking, 2016.

Figure 6: Mode shares of travelers across different categories of cities. Source: UITP, 2015a, 2015b; CAF, n.d.; Alliance for Biking & Walking, 2016.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

9
Definition
by providing individualised
without
“transportation service that supplements larger public transit systems
rides
fixed routes or time tables” (Merriam-Webster, 2022)

Paratransit as supply ,benefit and cost,operators, vehicles, route operation and boarding behavior.

Large-vehicle ’’Formal’’ transit Mini-bus Shared taxi Other Paratransit mobility

Figure 7: Percentage of Paratransit trips in developing countries. Source: Author based on Grieco, 2015.

10
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Abidjan Capetown Delhi Jakarta Manila Tehran Dakar Mexico City Algiers Cairo

Paratransit as ,operators, vehicles, route operation and boarding behavior. supply,benefit and cost

Erratic scheduling

fewer vehciles in rush hours.

Meet mobility demand

“In-market” competition drivers compete around stops to make vehicles full.

“Cream Skimming” ride fares mayincreases at rush hours poor vehicles maintatince Safety

Benfits

Cost

Cheap operating fares

Lack of accountability due to absence of public policies

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Taxes and fees operatives avoid to pay taxes

Labour abuse age limites, and wages, and working hours. age limites, and wages, and working hours.

Lack of capacity

11

Paratransit as , vehicles, route operation and boarding behavior. supply,benefit and cost,operators

One-car owner Franchisee route associations

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

12

behavior. supply,benefit and cost, operators,vehicles, Paratransit as

boarding

Class: Conventional Bus

Routes: Fixed

Schadule: Fixed Capacity: 25-60

Service niche: line-haul

Service cover: Region / Subregion

Class: Minibus/jitney

Routes: Fixed Schadule: Semi-Fixed Capacity: 12-24

Service niche: mixed

Service cover: Subregion

Class: Microbus/pick-up

Routes: Fixed Schadule: Semi-Fixed Capacity: 11-14

Service niche: Distribution

Service cover: Subregion

route operation and

Class: Motorcycle

Routes: Variable Schadule: Variable Capacity: 1-4

Service niche: Feeder

Service cover: Neighbourhood

Class: Cycle

Routes: Variable Schadule: Variable Capacity: 1-6

Service niche: Feeder

Service cover: Neighbourhood

Figure 8:

I: Macau Conventional bus. Source: WiNG

II: Matatu mininus in Nairobui. Source: Jociku

III: Minibus commuters from South Africa. Source: Nic Bothma/EPA, via Shutterstock

IV: Wheeler taxi in Indonesia. Source: Mackenzie Smith

V: Pedicab om Yangon. Source: David Stanley from Nanaimo, Canada

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

13

i. one-to-one iii. one-to-few iv. many-to-many

ii. corridor with mulitable stops

and boarding behavior. supply,benefit and cost, operators,vehicles, routes operation Paratransit as generator attractor link generator attractor link

Figure 9: Different route patterns. Source: Author based on Andreas, 2014, p. 23

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

14

boarding behavior. supply,benefit and cost, operators,vehicles, routes operation Paratransit as

and

Figure 10: Minibus stop in Damascus.Source: https://bit.ly/3taFOz0.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

15

$

Challenges of public transport in the global south

Affordabilty Availability Accessibility Acceptability Safety Sustainability

The financial coast associated with transportation in relation to travelers’ paying abilities.

The route options, frequency and timing. The ways of using public transportation irrespective of age, physical ability or gender and the availability of informa tion on routes.

The extent to which modes of transporta tion are acceptable based on travelers’ standards.

The prevention of harm such being killed or injured to road users.

The environmental costs and impacts associated with transportation.

Figure 11: Public transport challanges in Global South. Source: Abdelaal et al., 2017, p. 4

16
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Chapter 2: Mobility data frameworks

What paratransit challenges in Global South?

Chapter 1 Introduction: -Unplanned Sprawl -Informal transport: paratransit -Mobility challenges

Chapter 4 data and methodology: - Alexandria unplanned sprawl - Alexandria mobility market - Minibus as transport supply

- Available data for mapping and analysing minibus supply

Could data map the informal mobility in Alexandria ?

How data could be contained?

Chapter 2 literature review: -Urban Mobility data -Urban Mobility models

Chapter 3 Good practice: -Matatu, Nairobi, Kenya. Chapas, Maputo, Mozambique

What could be learn from good practices?

Chapter 5 mapping and analyzing: - MATSim data framework - Executing the model - Scoring - Replanning

How could MATSim model address minibus inadequacy?

What is recommended to shift a traditional mobility Paradigm into a smart one? Kenya.

Chapter 6 conclusions: - Conclusions - Recommendations

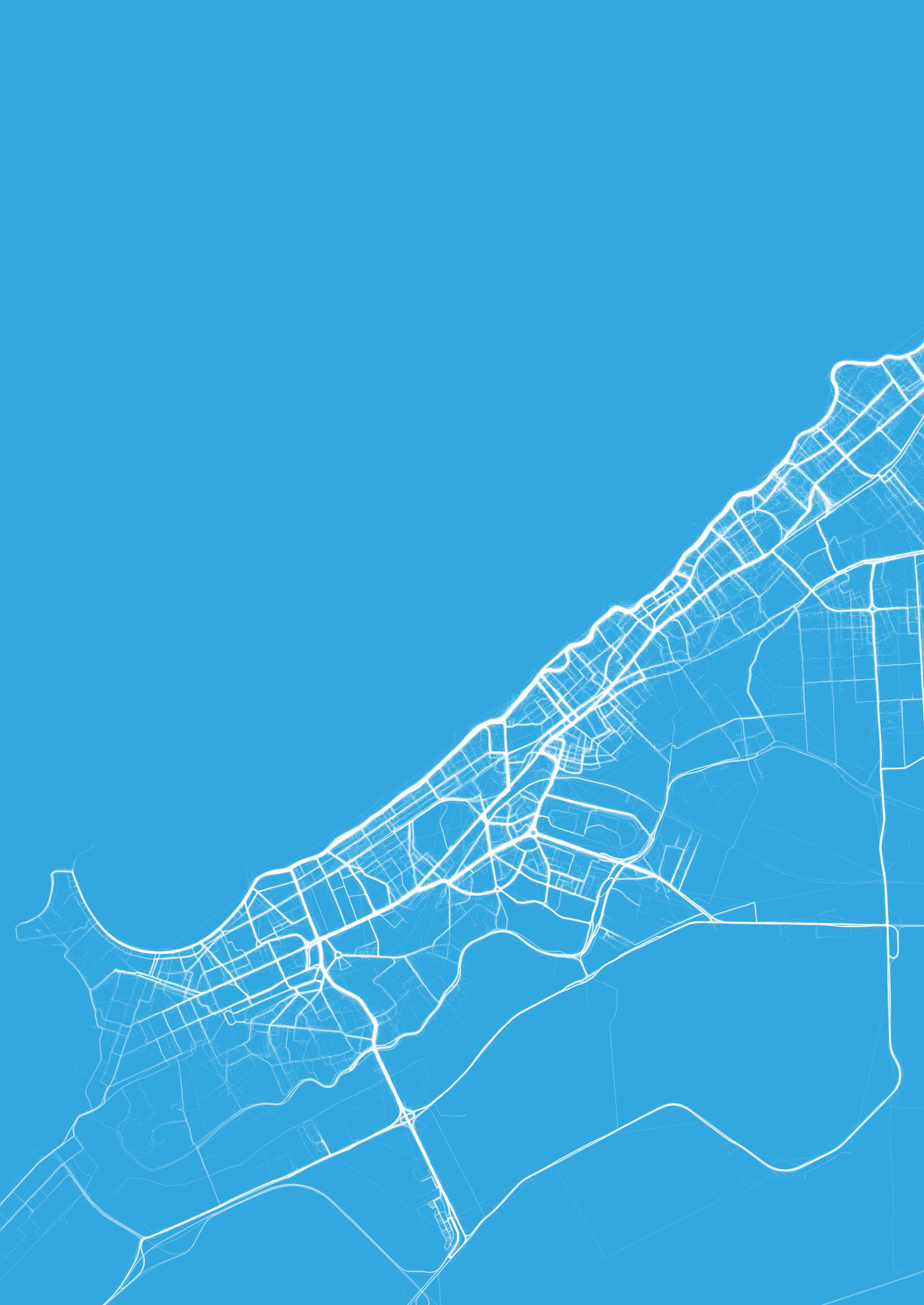

Figure 12: Alexandria’s OSM public traces Source: Author based on OSM.

Mobility data frameworks

Sensing the data

Building data sets

Modelling data Application

Collecting data from the feild Sorting and storing mobility data Test Urban mobility policy Real-time monitoring

Used for digital mapping

Forecast mobility demand Forecast mobility demand

Figure 13: The framework of mobility data based urban traffic monitoring. Source:Liu & Wu, 2011

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

18

Sensing,collecting,modelling the data,and application.

Sensors

Based on infrastructure Based on public vehicles Based on automatic fare collection records

Based on other sensors Based on crowdsourcing

Loop detector Taxis

AFC systems

Traffic camera

Buses

GPS Accelerometer Ambient temperature Gyroscope Light Proximity Pressure Relative humidity High-cost

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

19
Sensors low-cost Sensors

Sensing,collecting,modelling the data,and application.

p3 = {x, y, t}

GPS Point Trajectory

Characteristics Big data Small data

Volume Very large Limited to large Exhaustivity Entire population Samples

Resolution and indexicality Tight and strong

Coarse and weak to tight and strong

Relationality Strong Weak to strong

Velocity Fast Slow, freeze-framed

Variety Wide Limited to wide Flexible and scalable High Low to middling

Figure 14: GPS traces and trajectory. Source: Author.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Table 1: Big and small data charachteristics. Source: Kitchin & Lauriault, 2015, p. 464

20

Sensing,collecting,modelling the data,and application.

Four steps model FSM

Activity-based travelling demand model

Landuse and Transportation interaction model (LUTI)

Land Use Inputs/ Forecasting Trip Generation Trip Distribution Modal Split/Choice Route Assignment

Planning Inputs Road and Public Transport Networks Trips arranged by Modal choice

Trips sorted by origin/ Destination zones Trips assigned to links On a network

Figure 2: Traditional four-step transport model (adapted from Button, 1977, p.117)

Figure 15: Traditional four-steps transport model.

Source: Button, 1977, p.117.

Trip based Model

Figure 16: Activity-based travel demand model.

Source:Joviić, 2001

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Transport & mobility input

LUTI model input input work at occupy regulate

Land use Policy & planning

occupy service adjust Output input

Socio-demographic & Economic features Household Industry Infrastructure Natural environment Scenarios of Land use patterns

Figure 17: Traditional four-step transport model.

Source: Button, 1977, p.117

Activity - based Model Landuse = Transportation based model

21
Meeting Work Supermarket Home Cinema Work based tour Home based tour 1 Home based tour 2 Trip 1 Trip 2 Trip 3 Trip 4 Trip 5 Trip 6 Trip 7

Sensing,collecting,modelling the data,and application. Multi-agent Transport Simulation Model (MATSim)

initial demand mobsim scoring analysis re-planning

Figure 18: MATSim model. Soruce: Horni et al., 2016

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

22

Sensing,collecting,modelling the data,and application. Smart mobility services.

Navigating Monitoring Optimizing

Figure 19: Smart mobility survices.Source: Author based on Fourie et al., 2020

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

23

Chapter 3: Digitalizing self-organized mobility in Global South

What paratransit challenges in Global South?

Chapter 1 Introduction: -Unplanned Sprawl

-Informal transport: paratransit -Mobility challenges

Chapter 4 data and methodology:

- Alexandria unplanned sprawl

- Alexandria mobility market

- Minibus as transport supply

- Available data for mapping and analysing minibus supply

Could data map the informal mobility in Alexandria ?

How data could be contained?

Chapter 2 literature review: -Urban Mobility data -Urban Mobility models

What could be learn from good practices?

Chapter 5 mapping and analyzing:

- MATSim data framework

- Executing the model - Scoring - Replanning

What is recommended to shift a traditional mobility Paradigm into a smart one?

Chapter 3 Good practice: -Matatu, Nairobi, Kenya. Chapas, Maputo, Mozambique

How could MATSim model address minibus inadequacy?

Chapter 6 conclusions: - Conclusions - Recommendations

Figure 20: Paratransit in Ethopia. Source: Flickr risabelle chauvel

Available Public transport data in Africa

Figure 21: Open source paratransit data in Africa. Source: Projects - DigitalTransport4Africa 2022

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

25

Digital Mapping Matatu in Nairobi

26
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Figure 22: Main mobility mean in Narobi. (Williams 2020)

Digital Mapping Matatu in Nairobi

27
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Figure 23: Students collects data via mobile phones and GPS devices. (Williams 2020)

Digital Mapping Matatu in Nairobi

Figure 24: Data visulization Williams 2020

28
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Digital Mapping Matatu in Nairobi

Figure 25: Raw GPS trajectories Williams 2020

29
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Digital Mapping Matatu in Nairobi

30
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Figure 26: Minibus routes simplified Williams 2020

Digital Mapping Matatu in Nairobi

31
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Figure 27: Minibus routes grouped Williams 2020

Matatu’s data findings

33
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Figure 29: Digital mapping outputs Williams 2020

Chapter 4: Paratranist supply in Alexandria Data and Methdology

What paratransit challenges in Global South?

Chapter 1 Introduction:

-Unplanned Sprawl

-Informal transport: paratransit -Mobility challenges

Chapter 4 data and methodology:

- Alexandria unplanned sprawl

- Alexandria mobility market

- Minibus as transport supply

- Available data for mapping and analysing minibus supply

Could data map the informal mobility in Alexandria ?

How data could be contained?

Chapter 2 literature review: -Urban Mobility data -Urban Mobility models

Chapter 3 Good practice: -Matatu, Nairobi, Kenya. Chapas, Maputo, Mozambique

What could be learn from good practices?

Chapter 5 mapping and analyzing:

- MATSim data framework

- Executing the model - Scoring - Replanning

What is recommended to shift a traditional mobility Paradigm into a smart one? Kenya.

How could MATSim model address minibus inadequacy?

Chapter 6 conclusions: - Conclusions - Recommendations

Figure 30: Al-manchya Square, Alexandria, Egypt from above. Source: Nour Jackson2021

Upsurge Population growth

Increase in inhabitants

Population growth in Alexandria

0 100.000 200.000 300.000 400.000 500.000 600.000 700.000 800.000 900.000 1907-1917 1917-1927 1927-1937 1937-1947 1947-1960 1960-1976 1976-1986 1986-1996

Time period

Internal migration increase Natural increase

Figure 31: Natural and migratory increase of popultaion. Source: Lotfy Kamal Abdou Azaz, 2004, pp. 61–62

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

35

Upsurge Population growth

Coast line Built environment Lakes

1805 1855 1905 1955 1993

Figure 32: Alexandria - Characteristic stages of growth during the last 150 years. Source: Author based on Lotfy Kamal Abdou Azaz, 2004, p6

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

36
37
Earthstar
Source: Esri, Maxar, GeoEye, Earthstar Geographics, CNES/ Airbus DS, USDA, USGS, AeroGRID, IGN, and the GIS User Community Maxar Maxar Maxar 0 5 2.5 Kilometers ¯ 0 0.55 0.28 Kilometers 0 0.2 0.4 0.6 0.8 0.1 Kilometers 0 0.2 0.4 0.6 0.8 0.1 Kilometers 0 0.09 0.17 0.26 0.34 Kilometers Alexandria’s Urban Ecologues 1 1 3 4 2 2 3 4 Borg El Arab Industrial District Borg El Arab Industrial District El Dekhila Port Informal Settlement The north coast The North coast summer resorts El Dekhila Port Informal settlements
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.
Geographics

Alexandria’s road network

Figure 33: Alexandria main street vehicles composition. Source: Author elaboration based on https://bit.ly/3KG1lY8

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Legend Alexandria street

Primar y

Secondar y Others

Trunk The Mediterranean Alexandria_coast_line

Figure 35: Alexandria Promanade

Source: https://bit.ly/3vpIwlo

Figure 34: Abu Quir Street Source: https://bit.ly/37qZdFg

38

Facebook’s relative

Alexandria's Density ¹

KILOMETERS

Legend

Alexandria_coast_line Mediterranean Sea Population Density 0 - 9.0137915 9.0137915 - 13.67447 13.67447 - 22.688262 22.688262 - 40.121009

Water scapes

40.121009 - 73.836088 73.836088 - 139 04133 139 04133 - 265.14881 265.14881 - 509 04172 509 04172 - 980.73263 980.73263 - 1,892.9868 NoData

Figure 36: Alexandria's Facebook relative density.

Source: Author based on Facebook data for good and OSM

39
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.
31°14'N 31°12'N 31°6'N 31°N
31°16'N 31°10'N 31°8'N 31°6'N 31°4'N 31°2'N 31°N 30°6'E 30°4'E 30°2'E
29°50'E 29°48'E 29°46'E 29°44'E 29°42'E 29°40'E 29°38'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E 29°48'E 29°46'E 29°44'E 29°42'E 29°40'E 29°38'E 0 2 4 6 8 10 12 1
desnity 31°22'N 31°20'N 31°18'N 31°16'N
31°22'N
30°E 29°58'E 29°56'E 29°54'E 29°52'E

Alexandria's Density ¹

KILOMETERS

Legend

Figure 37: Alexandria's Facebook relative density.

Source: Author based on Facebook data for good and OSM

40
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.
31°16'N 31°14'N 31°12'N 31°6'N 31°N 31°22'N 31°16'N 31°10'N 31°8'N 31°6'N 31°4'N 31°2'N 31°N 30°6'E 30°4'E 30°2'E 30°E
29°56'E 29°54'E 29°52'E 29°50'E 29°48'E 29°46'E 29°44'E 29°42'E 29°40'E 29°38'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E 29°48'E 29°46'E 29°44'E 29°42'E 29°40'E 29°38'E 0 2 4 6 8 10 12 1
Facebook’s relative desnity 31°22'N 31°20'N 31°18'N
29°58'E
Alexandria_coast_line Mediterranean Sea Population Density 0 - 9 0137915 9 0137915 - 13.67447 13.67447 - 22.688262 22.688262 - 40.121009 40.121009 - 73.836088 73.836088 - 139 04133 139 04133 - 265.14881 265.14881 - 509 04172 509 04172 - 980.73263 980.73263 - 1,892.9868 NoData Water scapes

Transport Supply in Alexandria

Figure 38: Alexandria main street vehicles composition. Source: Author elaboration based on https://bit.ly/3KG1lY8

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

41
m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus m.bus bus https://i1.trekearth.com/photos/5043/corniche.jpg taxi taxi taxi taxi taxi car car car car car car car car car car car car car car car car car car car car car car car car car car car car car car car Private cars Taxi Mini buses Bus

Transportation Market

Ownership

Public Semi-public Private companies

Private ownership Operated by companies. 1 Lines 15 Line 49 Line 76Line

No data available. Data retrieved.

Private Individuals

Service: Primary and secondary Roads. Operation: Fixed schedule.

Service: Operates in primary and secondary roads on demand. Operation: On demand

Service: Operates in primary and secondary roads. Operation: On demand

Service: All roads except primary and secondary roads. Operation: On demand

Reachness

Figure 39: Alexandria mobility market. Source: Author.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

42

Kilometers

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Legend

tram station

Figure 41: Tram operates within cars in western Alexandria. Source: Heike

43
Alexandria’s tram network 31°20'N 31°19'N 31°18'N 31°17'N 31°16'N 31°15'N 31°12'N 31°11'N 31°10'N 31°9'N 31°8'N 31°7'N 31°6'N 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 29°52'E 29°51'E 29°50'E 29°49'E 29°48'E 29°47'E 29°46'E 29°45'E 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 29°52'E 29°51'E 29°50'E 29°49'E 29°48'E 29°47'E 29°46'E 29°45'E 0 2 4 6 1
tram lines Alexandria_coast_line The Mediterranean Alexandria street network Alexandria street network Alexandria's tram lines ¹
Figure 40: Alexandria tram network. Source: Author elaboration based on OSM

Alexandria's tram lines permeability

Kilometers

Legend

Alexandria street network

Alexandria coast line The Mediterranean

44
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.
29°48'E
0
1
Alexandria’s tram network 31°20'N 31°19'N 31°18'N 31°17'N 31°16'N 31°15'N 31°12'N 31°11'N 31°10'N 31°9'N 31°8'N 31°7'N 31°6'N 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 29°52'E 29°51'E 29°50'E 29°49'E
29°47'E 29°46'E 29°45'E 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 29°52'E 29°51'E 29°50'E 29°49'E 29°48'E 29°47'E 29°46'E 29°45'E
2 4 6
low permeability high permeability
¹
Tram permeability Figure 42: Alexandria tram network. Source: Author elaboration based on https://bit.ly/3KG1lY8
Figure 43: Isolated tram in Alexandria. Source: APTA
45
trains
31°22'N 31°20'N 31°18'N 31°12'N 31°6'N 31°24'N 31°20'N 31°18'N 31°14'N 31°12'N 31°10'N 31°8'N 31°6'N 30°8'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E 29°48'E 29°46'E 30°8'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E 29°48'E 29°46'E 0 2 4 6 8 10 1 Kilometers
Train stops Alexandria Abu Kir railway coast line the mediterranean sea Alexandria street network Alexandria domestic train ¹
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Alexandria’s domestic
31°24'N
Legend
Figure 44: Alexandria domestic train. Source: Author elaboration based on https://bit.ly/3KG1lY8
Figure 45: Train in Alexandria. Source: https://bit.ly/3wAQryH

Figure 46: Alexandria domestic train. Source: Author elaboration based on https://bit.ly/3KG1lY8

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Figure 48: Natural Gas bus in Alexandria

Source: https://bit.ly/3v06QeP

Figure 47: Double deck bus in Alexandria Source: https://bit.ly/3uVTW13

46
0
Alexandria’s bus network 31°22'N 31°20'N 31°18'N 31°16'N 31°14'N 31°8'N 31°20'N 31°18'N 31°14'N 31°12'N 31°10'N 31°8'N 31°6'N 30°10'E 30°8'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E 30°10'E 30°8'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E
2 4 6 8 1 Kilometers
Legend Bus routes 2013 behiera_streets Alexandria_coast_line The Mediterranean Alexandria street network APTA bus network

Minibus as a transport supply

Transportation Model Share in Alexandria 1985

Transportation Model Share in Alexandria 1985

Transportation Model Share in Alexandria 2005

Transportation Model Share in Alexandria 2005

Public transport Public transport Private cars Minibuses (8%) Minibuses (25%)

Private cars

Private cars

Private cars

Public transport Public transport Private cars Minibuses (8%) Minibuses (25%)

Taxi Others Taxi

Taxi Others Taxi

Private cars

Figure 49: Transport mode share in Alexandria. Source: Abdel-Monem Hassan, 2008, p. 123

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

47

Minibus vehicles, stops and fares

Figure 50: Minibus vehicles in Alexandria.

Source: https://bit.ly/369Mvdh

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Figure 51: Minibus vehicles in Alexandria.

Source: https://bit.ly/369Mvdh

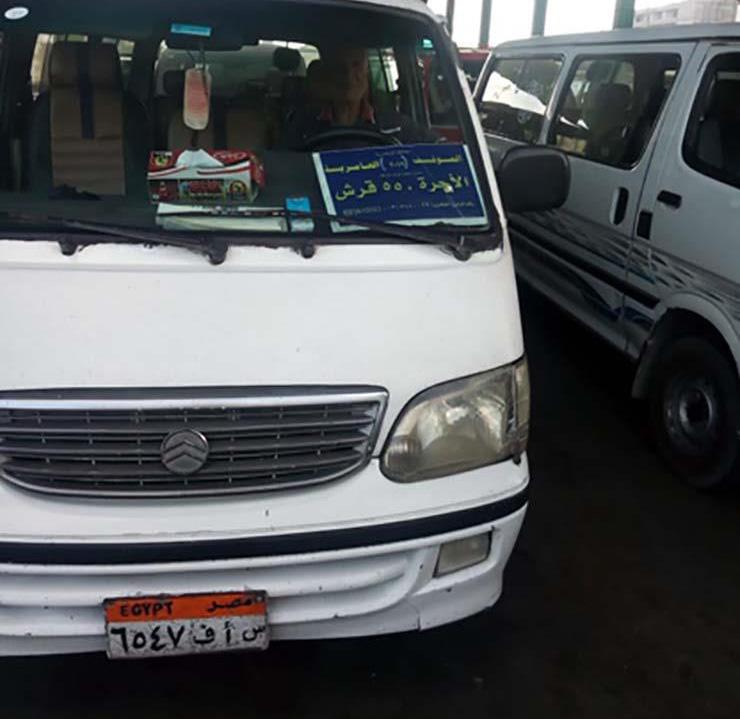

Figure 52: A sticker declares the fare in front of a vehicle.

Source: https://bit.ly/3wxCp0D

48

Critiques about the service offered by minibuses

Affordability

Fares inflate based on fuel prices.

inadequity

Availability Accessibility

Passengers que for long time to get into a vehicle during rush hours.

Acceptability

People with disabilities can not access the minibus.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Safety

Seats are too close and not comfortable enough.

Not safe for women, specially in late night, And some drivers do not have a licence.

49

Neoliberal competitors

Figure 53: Banner on an Alexandrian taxi "Uber and Kareem, they destroyed our busi ness" during a rally against Uber,Careem on March 30, 2016

Source: Photo: Al-Ahram

Figure 54: SWVL bus.

Source: https://bit.ly/37AFDpT

50
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Mapping Minibus

Open street map

Public GPS traces Generators Attractors

Street Network

Google Open-building project ESRI street map premiun

Personal

Data base

Volunteer

mini bus routes

GPS Minibus traces

Figure 55: Data sources classification based on type. Source: Author.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Bus routes Relative movment

Alexandria Passengers transportation Agency

Relative Density

Meta formerly Facebook Data for good portal

Big data Small

data

51

Mapping Minibus

Open street map

Public GPS traces Generators Attractors

Google Open-building project

Street Network

ESRI StreetMap Premium

Personal

Data base

Volunteer

mini bus routes

GPS Minibus traces

Figure 56: Data sources classification based on privacy. Source: Author.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Bus routes Relative movment

Alexandria Passengers transportation Agency

Relative Density

Meta formerly Facebook Data for good portal Public data Private data

52

Minibus stops

¹

Minibus stops

0 10 20 5

29°50'E

29°52'E

29°54'E

31°18'N 31°12'N 31°10'N 31°8'N 31°6'N

29°56'E

Kilometers

Legend

Alexandria_coast_line Alexandria street network

Alexandria street network

The Mediterranean minibus stops Alexandria_coast_line Orgin Destination

30°4'E

30°6'E

30°8'E

31°22'N 31°20'N 31°18'N 31°16'N 31°12'N 31°10'N 31°6'N

30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E 30°8'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E

Figure 57: Minibuses stops in eastern Alexandria.

Source: Author based on OSM

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

53

Networks incompatability

31°12'5"N

29°54'20"E 29°54'15"E 29°54'10"E 29°54'5"E 29°54'E 29°53'55"E 29°53'50"E 29°53'45"E 29°53'40"E 29°53'35"E 29°53'30"E 29°53'25"E

Network differences

0 1 0.5

Kilometers

31°12'N 31°11'55"N 31°11'50"N 31°11'45"N 31°11'40"N 31°11'35"N 31°11'30"N

Legend

Alexandria_coast_line

Alexandria street network

The Mediterranean minibus stops Alexandria_coast_line ESRI_Mahattetmasr_man Mahattet_masr Manchya

31°12'5"N

29°54'20"E 29°54'15"E 29°54'10"E 29°54'5"E 29°54'E 29°53'55"E 29°53'50"E 29°53'45"E 29°53'40"E 29°53'35"E 29°53'30"E 29°53'25"E

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

31°12'N 31°11'55"N 31°11'50"N 31°11'45"N 31°11'40"N 31°11'35"N 31°11'30"N

Figure 58: ESRI Network and OSM incompatibility.

Source: Author based on ESRI Premium maps, OSM maps

54
¹

Minibus routes

Minibus network

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Kilometers

Legend

Alexandria_coast_line Alexandria street network

Alexandria street network The Mediterranean Minibus routes minibus stops Alexandria_coast_line

Mini-bus hubs KMs of Minibus routes.

Figure 59: Minibus Network in eastern Alexandria.

Source: Author based on OSM

55
31°22'N 31°20'N 31°18'N 31°16'N 31°12'N 31°10'N 31°6'N 31°18'N 31°12'N 31°10'N 31°8'N 31°6'N 30°8'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E 30°8'E 30°6'E 30°4'E 30°2'E 30°E 29°58'E 29°56'E 29°54'E 29°52'E 29°50'E 0 10 20 5
¹
Minibus route 23 934 62

Ground-truthing the data

Figure 60: Shared minibus routes with vounteers with corrections. Source: Author based on Google maps.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

56
57
GPS traces for minibuses in Alexandria 31°20'N 31°19'N 31°18'N 31°17'N 31°16'N 31°15'N 31°13'N 31°10'N 31°19'N 31°16'N 31°13'N 31°12'N 31°11'N 31°10'N 31°9'N 31°8'N 30°6'E 30°5'E 30°4'E 30°3'E 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 29°52'E 30°6'E 30°5'E 30°4'E 30°3'E 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 29°52'E 0 2 4 6 1 Kilometers Legend Alexandria_coast_line GPS traces The Mediterranean Alexandria street network background GPS traces for minibuses in Alexandria ¹ Figure 61: Minibus GPS traces. Source: Author based on vounteers data and OSM 11 Volunteers. GPS Point 53 747 246 Minibus stops 62 GPS trajectory
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

31°15'50"N

GPS traces for minibuses in Alexandria

29°59'50"E 29°59'40"E 29°59'30"E 29°59'20"E 29°59'10"E 29°59'E 29°58'50"E 29°58'40"E 29°58'30"E 29°58'20"E

31°15'40"N 31°15'30"N 31°15'20"N 31°15'10"N 31°15'N

Legend

Vactoria

31°15'50"N 31°15'40"N 31°15'30"N 31°15'20"N 31°15'10"N 31°15'N

Figure 62: GPS traces Properties. Source: Author based on voulnteers and OSM

29°59'50"E 29°59'40"E 29°59'30"E 29°59'20"E 29°59'10"E 29°59'E 29°58'50"E 29°58'40"E 29°58'30"E 29°58'20"E

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

58
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 0.1
¹
Alexandria_coast_line Alexandria street network Mandarah
GPS stops The Mediterranean Minibus network SpeedKMH 54 0.0 Manddarah Vactoria GPS trace 0
Kilometers

Transportation

Tram Way

Trains

Train Station

Minibus station

Minibus Sea road corridor

Minibus abuquir corridor

Minibus agricultural road

Minibus regional road

Minibus connecting road

The Promanade route: Average speed: 40km/h

The Promanade route: Average speed: 30km/h

International and regional route: Average speed: 70km/h

Minibus route start

Minibus end

Transportation hub

m01-m02-m03-m13-m15-m17 m21-m01r-m28-m02r-m30-m10r m33-m38-m42-m28r-m54-m55

m01-m02-m03-m04-m17m02r-m36-m52-m55

LEGEND

Landuses

The mediterranean Parks Lakes Built Environment

AboQuir Minibus stop

m01-m02-m03-m10-m17-m32 m01r-m28-m02r-m30-m10r-m33 m34-m38-m42-m28r-m54-m59 m26-m44-m45-m51-m57

m07-m08-m09-m11

23

From # To

#

30 M

Assafra Minibus stop

From # # To

07 08 09 Assafra Elmawqaf Eljadid 10 10 Assafra 45 kilo 21 Assafra 45

Manchya 12 12 Assafra 45 Manchya 13 13 Assafra Sidi beshr 13 13

Bahari Minbus stop

42 M

Manchya Minbus stop

#

From # # To From # # To

37 M

Kilo 21 Minbus stop

45 M

Maamoura Minbus stop

From # # To

Mahmett Masr Minbus stop

From # # To

53 M

01r M.masr Abu quir M.masr Assafra 23

01r

24 M.masr Elmawqaf Eljadid 24

25 M.masr Kilo 21 25

26 M.masr Mandrah 26

27 M.masr Manchya 27

28 M.masr Sedi beshr 28

59 M

56 M

30

02r M Manchya Abuquir Manchya Elsa’aa 10r M Manchya Assafra Manchya M.Masr

33 M Manchya Sedi bishr 34 M Manchya Vactoria 27r M Manchya Kilo 21 35 M

02r 10r 33 34 27r 35

Sidi Beshr Minbus stop

Agriculture From # To From # # To

41 43 28r 49

42

41 M Sidi beshr Assafra Quibly Sidi beshr Manchya 43 M Sidi beshr Victoria Sidi beshr M.Masr 28r M Sidi beshr El sa’aa 49 M

Mandrah Minbus stop

36 38 39 40

37

36 M Mandarah Abuquir Mandarah Assafrah 38 M Mandarah Manchya Mandarah Tabyah 39 M Mandarah Victoria 40 M

Sidi Gaber Minbus stop

From # # To From # # To

44 46 47 28r

45

44 M Sidi Gaber Abbis Sidi Gaber Al haddrah 46 M Sidi Gaber Green Plaza Sidi Gaber Elmawqaf Eljadid 47 M Sidi Gaber M.Masr 28r M

Tabyaa Minbus stop

52 54

52 M Tabyaa Mandrah Tabyaa Ma’mmoura 54 M Tabyaa Manchya 53

Victoria Minbus stop

From # # To From # # To

55 M Victoria Abuquir Victoria El sa’aa 57 M Victoria M.Masr 56

55 57

58 M Victoria Manchya Victoria Sidi gaber 39r M Victoria Mandrah 59

58 39r

N
m04-m19 m04-m05-m19-
m12-m12r m12-m12r-m25-m35
Eltabyah ElMa’moura ElMandarah Assafrah Assafrahst45 SidiBeshr Elsaa Awayed Vactoria SidiGaber SidiGaber M.Masr Manchya Airport’s lake Almazah airport ElMahmoudi’aCanal ElMontazah Palace Marriout’s lake M.Eljadid Karmouz GreenPlaza Bahari ToElAmryia,Kilo21 M 01 02 03 04 M 17 M 17 M 30 M 10 M 33 M 38 M 42 M 27 M 02 M 19 M 20 52 M 53 54 M 53 20 M 36 19 05 14 36 M 37 M 40 M 14 40 08 M 11 41 M 43 49 49 56 43 43 55 M 56 M 57 58 M 59 M 42 39 M 11 24 M 26 M 26 M 54 M 26 51 M 57 M 24 47 M 45 09 M 12 M 06 M 07 09 08 M 07 M 44 46 M 44 M 45 M 46 M 51 47 07 05 M 04 M 13 M 35 M 34 03 03 15 15 M 10 12 26 M 52 M 39 37 41 M 02 10 38 13 M 10 M 58 M 59 01 01 02 55 01 M 28 27 M 28 M 21 32 21 30 M 43 28 28 M 33 m24m25 m12-m12r-m44
Abuquir
Alexandria Minibus Transportation map 02 01 Abuquir
03
04 02 01 03 04 06 05
07
06 05
Mahattet_masr Abuquir Manchya
Abuquir Bahari Abuquir Awayed
Assafra Awayed Assafra 45 Karmous
Assafra Amerya Assafra El Sa’aa 08 Assafra Hadarah 09
03r 15 Bahari Assafra Bahari Abu Quir 03r 15
03r
Kilo 21 Manchya Kilo 21 Assafra 45 03r 17
20
19 Maamoura Awayed Maamoura Tabya 20 19

Chapter 5: Analysing Minibus in MATSim model

What paratransit challenges in Global South?

Chapter 1 Introduction: -Unplanned Sprawl -Informal transport: paratransit -Mobility challenges

Chapter 4 data and methodology: - Alexandria unplanned sprawl - Alexandria mobility market

- Minibus as transport supply

- Available data for mapping and analysing minibus supply

Could data map the informal mobility in Alexandria ?

How data could be contained?

Chapter 2 literature review: -Urban Mobility data -Urban Mobility models

Chapter 3 Good practice: -Matatu, Nairobi, Kenya. Chapas, Maputo, Mozambique

What could be learn from good practices?

Chapter 5 mapping and analyzing: - MATSim data framework

- Executing the model - Scoring - Replanning

What is recommended to shift a traditional mobility Paradigm into a smart one? Kenya.

How could MATSim model address minibus inadequacy?

Chapter 6 conclusions: - Conclusions - Recommendations

Figure 63: Alexandria’s MATSim model. Source: Author

Figure 64: MATSim model. Soruce: Horni et al., 2016

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

61
initial demand mobsim scoring analysis re-planning

MATSim

62
Route profile Departure times Vehicle type Vehicle length Standing number Seats number Change transportation mode Change routes Change departure time Scoring Constant money per transportation factor Constant money per transportation factor distance spend on vehicle time spend on vehicle Transport type waiting score performance score late arrival score early departure score Strategy Transport scoring Activity scoring Vehicle type Transit Vehicles Re-planning Initial Demand Network Transit schedule Street intersection Street geometry Streets geometry Speed limits Street lanes Street intersections Network type (Walking, cars, public transport) Street capacity Activity location Activity type Transportation Type Activity time Model input Mobility Policy input
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.
model inputs flow
65: Alexandria’s MATSim model inputs flow.
Figure
Source: Author

Initial demand

-Origin - destination of movement -Mobility Network -Transport Schedule

initial demand mobsim scoring analysis re-planning

Figure 66: MATSim model. Soruce: Horni et al., 2016

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

63

Figure 67: Movement between tiles (Origin-Destination).

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

31°13'30"N 31°13'N 31°12'30"N 31°12'N 31°11'30"N 31°11'N 31°10'30"N

Disaggregating Facebook movement between tiles map

0 2 1 Kilometers

Legend

The Mediterranean Starting_trips Ending_trips end_quad_ke start_quad fb_tiles

¹ Figure 68: The aggregated syntactic population. Source: researcher based on PostGIS and OSM 2.5km 2.5km

E Ib ah m a S a on ﺔ ﻤ ﻫ ر ﻰ ﻃ ﺸ ك ﻤﺠ ﻢﺴ

Abu E Abbas ﻪﻛﺪ مﻮﻛ قرﺷ ﻲ ﻏرﻤ ﻳ ﻮﺼ

ﺶﻴﺠﻟاﻖﻳرﻃ

ﻟ ا ع ﺎر ﺪﻴﻌﺳرﻮ عرﺎﺷ ﺐﺟرﻰﻛ عرﺎﺷ

ﺶﺠﻟاﻖﻳرﻃ ﻦﻛ ﺴﻣ ط ﻀﻟ ﻦﻛﺎﺴﻣ ت و ﻌ ﻪﺣﻮﻤﺳ

مﻮﻛ ﻰ رﻤﺸﻟا ﺔﺷﻮﺷ ﻮ ﻞ ﻣ ﻤﻬ ﺔ ﻴﻨﺠ ةر ﻜ ﺰ ﻌﻤ قﻮﺳو برﻏ ﻦ ر ﻄﻌ ﻦ ر ﻄﻌ رﺻﺎﻨﻟاﺪﺒعلﺎﻤﺟعرﺎﺷ ذﺎﻌﻣﻳﺰﻮﻓﺪﻤﺤﻣءاﻮﻠﻟاعرﺎﺷ

ﻦﺑاعرﺎﺷ ﻞﻴﻨﻟ ا ع رﺎ ﺷ ةﺪﻳ ﺪﺠ ﻟ ا ﺔ ﻜﺴ ﻟ ا عر ﺎﺷ ر نﻮﻣاﺦﻨع تﻮﺗعرﺎﺷ

عر ﺎﺷ ﻞ ﻳ ﻮﻧﺎ ﻤﻳا رﻮﺘﻜﻓ ع رﺎ ﺷ ﻮﻻاترﺒﻟاعرﺎﺷ

و برﻏ ﻪ ﺴﻤ ﺷﺎ ﻒ رﺷ برﻏ ﻪﻛﺪ مﻮﻛ ﺪ ﺪﺠ ب ﺸ ﻣ و برﻏ ر ﻮﻧ ﺷ ﺐﻏ ر ةﺪﻫ رﻔ ةر ﺣ دﻮﻣ ﻌ ﻮ ﺎﻣ 14عرﺎﺷ

ﺔﻫﺰ ﻟا ﻖ ﺪﺣ هرﻀﺤ ﻰﻠ ﻗ ﻊﻣﺎﺠﻟ ﺔ ﺰع ﺔﻫﺰ ﻄﻣ ﺪ ﺼﻟ ﻳ ﺪ ﺔ ﺰع Map data © OpenStreetMap contributors, Microsoft, Esri Community Maps contributors, Map layer by Esri

29°57'E 29°56'30"E 29°56'E 29°55'30"E 29°55'E 29°54'30"E 29°54'E 29°53'30"E 29°53'E 29°57'E 29°56'30"E 29°56'E 29°55'30"E 29°55'E 29°54'30"E 29°54'E 29°53'30"E 29°53'E

ﺔﺣﻮﻤﺳ ﺪ ﻲﺿ ﻳرﻟا ﺪ ﻧ ﺞ رﻮ ﺳ ﺔ رﺪ ﻜﺳﻻا ىر ﻟﺤﺒ ا ﺔﻳ دﻮ ﻤ ﺤﻤ ﻟ الﺎﻨﻗعرﺎﺷ يرﺋاﺪﻟاﻖرﻄﻟا

21 27

31°13'30"N 31°13'N 31°12'30"N 31°12'N 31°11'30"N 31°11'N 31°10'30"N

64
Initial demand
ﻦ د ﺼ ﻪﻛر E An oush نﺎﻣﻻاعرﺎﺷ ش ﺎﻄﻴ ﻟا عر ﺎﺷ ﻦ ﺳ أر عرﺎﺷ ﺲﻜﻤﻟاعرﺎﺷ رﻔﺻ ةروﺪﻣ ﻳ ر ﻘ ﺪﻴﻌﺳرﻮﺑعرﺎﺷ A Sha by Park ﻪ ﻤ ﻫ ر ﻻ ىرﺤﺑ ﺔع رﺰ ﺔﻴ ﻛ ﺔع ر ﻟ ﺔ ﻛ ﺊﻃ ﺷ ﻲ ﻃﺎﺸ E Shah d Mus a a Zayan S a on E Aza a S at on E Shoban E Mus men S a on E Gamaa E Sha by S
نﻮﻟﻮﻃ
ﻀﺧﻻاب ﺎ
ﺷ لﻮﻠﻏزﻪﻔﺻع رﺎﺷ ﻚ مرﺤﻣ عر ﺷ ز ﻮ رﻛ ع رﺎ ﺷ دﺎﻗﻮﻟاﻞﺒﻧ عرﺎﺷ ﻪﻳرﺤﻟاﻖرﻃ ﻪ ﻇﺎﺑ انﺎﻤﺜع
ﻊرﺴﻟا رﺎﺒﻘﻟاﻖرﻃ ﺲﻳﻮﺴﻟاهﺎﻨﻗﻖﻳرﻃ 10 ﻳ رﺎﻘﻟاىرﺑﻮﻛ ﻚ ﺑ مرﺤﻣ ىرﺑﻮﻛ تﻻﻼﺸ طﻮ رﻣ ةر ﺤ قرﺷ ﻪ ﺴﻤ ﺪﻳﺪﺠﻟا ب ﻰﻗرﺷ ﻪﺻرﻮ و ﻫر ﻜ و ﻪ ﺠ ﻮﻄﻟا ﺲﻃ ﻐ رﻔﻛ و ﻮ ﻮﺑ ﻲ رﺪ ﻜﺳﻻ ﺔ ر ﻐﻤﻟ كر قﻮﺳو ﺔ ﺸ ﻤﻟا ير ﻜ
Source: Author elaboration based on Facebook data for good ﻪﻓﺎﻘﺸ
at on Kahwet Farouk قرﺷ

Networking

OSM Network

0 2 1 Kilometers

Legend

OSM Network

Alexandria_coast_line

The Mediterranean

MATSim Network

Legend

Matsim network

Alexandria_coast_line

The Mediterranean

Figure 69: Transforming OSM network to MATSim. Source: Author based on OSM,MATSim & JOSM

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

65
¹

Networking Matsim network

MATSim Network

0 2 1 Kilometers

Legend

OSM Network

OSM Network ¹

Alexandria_coast_line

The Mediterranean

Legend

Matsim network Alexandria_coast_line

The Mediterranean

Figure 70: Transforming OSM network to MATSim. Source: Author based on OSM,MATSim & JOSM

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Alexandria_coast_line The Mediterranean

66

Networking

0 2 1 Kilometers

MATSim Network

Legend

OSM Network Alexandria_coast_line The Mediterranean

Figure 71: OSM to MATSim conversion settings. Source: Author based on OSM,MATSim and JOSM

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Legend

OSM Street network Metadata MATSim Street network Metadata

Matsim network Alexandria_coast_line The Mediterranean

67
OSM Network ¹

Figure 73: Major Minibus stops in Eastern Alexandria. Source:Authors elaboration based on OSM

68
31°10'N 31°9'N 31°20'N 31°19'N 31°18'N 31°17'N 31°16'N 31°15'N 31°14'N 31°13'N 31°12'N 31°11'N 31°10'N 31°9'N 30°5'E 30°4'E 30°3'E 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 29°52'E 29°51'E 30°5'E 30°4'E 30°3'E 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 29°52'E 29°51'E 0 2 4 6 1 Kilometers Legend Alexandria_coast_line car pt MATSim simulation network ¹ Mediterranean sea
31°19'N 31°18'N 31°17'N 31°16'N 31°15'N 31°14'N 31°13'N 31°12'N 31°11'N 31°10'N 31°20'N 31°19'N 31°18'N 31°17'N 31°16'N 31°15'N 31°14'N 31°13'N 31°12'N 31°11'N 31°10'N 30°5'E 30°4'E 30°3'E 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 30°5'E 30°4'E 30°3'E 30°2'E 30°1'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E 29°55'E 29°54'E 29°53'E 0 2 4 6 1 Kilometers Legend Alexandria s ree ne work minibus s ops Alexandria_coast_line Mininbus hub connectivity Mediterranean sea Minibus rou es OD Minibus major stations in eastern
¹
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Transit schedule 31°20'N 31°19'N 31°18'N 31°17'N 31°16'N 31°15'N 31°14'N 31°13'N 31°12'N 31°11'N
31°20'N
Alexandria
Figure 72: MATSim Minibus segmentation network. Source: Author based on OSM and MATSim plugin for JOSM

Mobsim (mobility Simulation)

Figure 74: MATSim model. Soruce: Horni et al., 2016

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Overall Mobility Simulation Stuck Mobility

Demand on minibus route Activities related to minibus route

initial demand mobsim scoring analysis re-planning

69

Mobility Simulation

Figure 75: Traffic simulation in MATSim.

Source: Author elaboration based on MATSim

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

70

Stuck agents

Figure 76: Most Frequent minibus stops.

Source: Author based on MATSim Simunto Via

Figure 77: Stuck agents statistics. Source: MATSim

71
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Minibuse routes Most stucked agents at Minibus stops

Passengers demand on minibus routes

Transit Route r09 19 departures between 00:00:00 and 24:00:00

Figure 78: Passengers entering and leaving along Assafrah Haddarah route

Source: Author based on MATSim and Simunto Via

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

31°17'N 31°16'N 31°15'N 31°14'N 31°13'N 31°12'N

0 5 2.5

Legend Alexandria street network

The Mediterranean Minibus routes Assafrah Haddarah route number of passengers 0 1 2 3 4 5 6 7

Proposed stops Minibus routes

30°E 29°59'E 29°58'E 29°57'E 29°56'E 30°E 29°59'E 29°58'E 29°57'E 29°56'E

Kilometers

Passengers drop in and off along route Assafrah - Haddarah ¹

31°17'N 31°16'N 31°15'N 31°14'N 31°13'N 31°12'N

72
Stops -2.0 -1.5 -1.0 -0.5 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 0 1 2 3 4 5 6 7

Activites on single Minibus route

73
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. Minibus route Routes agents

Scoring

Scoring activity behaviour

Scoring travel behaviour

initial demand mobsim scoring analysis re-planning

Figure 79: MATSim model. Soruce: Horni et al., 2016

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

74

Scoring

Evaluating one person’s overall movement based on a desired urban policy

(Encourging public transport over cars... )

Mobility Score = Activity Score + Travelling Score

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

75

Scoring

Evaluating

(Encourging public transport over cars... )

Mobility Score = Activity Score + Travelling Score

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

leaving home at 7:30 am (+)

being at work at 8:30 am (+) having lunch break at 3 pm (-)

76
one person’s overall movement based on a desired urban policy

Scoring

Evaluating one person’s overall movement based on a desired urban policy (Encourging public transport over cars... )

Mobility Score = Activity Score + Travelling Score

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Walking to bus stop (-)

Taking tram to work (-) Go to mall by car (-)

77

Scoring

@home car walk

Activity + TravelActivity + TravelActivity + 0

time @lunch @workplace workplace opening time

Figure 80: MATSim scoring criteria.

Source:Axhausen, 2016, p. 6

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

78
score accum.score

Adapting minibus policy measures

MATSim Scoring Values

Score

10 5 0 -5 -10 -15 -20

6 -0.9 - 6

-18

-0.5

Figure 81: MATSim Policy measures Source: Author.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Late Arrival On time trips Waiting for minibua Travel constant Travel per Hour Travel per KM Travel constant Travel per Hour Travel per KM Travel constant Travel per Hour Travel per KM

Activity Car Minibus Walking

-0.01 -0.456 -1 -.0001 --0.5 --0.5 -0.001 Positive score Negative score

79

Replanning

initial demand mobsim scoring analysis re-planning

Figure 82: MATSim model. Soruce: Horni et al., 2016

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

80

Replanning

is a MATSim component that trigger a mutational change in travelling behaviour to reach an optimim score.

Score Reroute

Change transportation mode Change time allocation

81
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Replanning

Figure 83: MATSim Strategy componenet. Source: Author.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

82
Scoring Value 70% 20% 5% 5% Change mode Rerouting Change Time Allocation Re-planning strategy components

Change Trasnportation mode

Time profile mobility profiles Scores statistics

initial demand mobsim scoring analysis re-planning

Passengers drop in and off per route

Figure 84: MATSim model. Soruce: Horni et al., 2016

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

83
Analysis

Figure 85: Mode Statisistcs.

Source: Author elaboration based on MATSim

Transportation mode statistics

Minibus Cars Number of iterations

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

84
12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57
63 66 69 72 75 78 81 84 87 90 93
Analysis 0 20 40 60 80 100 0 3 6 9
60
96 100
Model Selection Percentage Testing improvments trends Mobility policy effectiveness: increase of public transport share Mobility policy ineffectivness: 60% of passengers are using minibuses, 40 % of passengers are using cars
Equilibrium between minibuses and cars

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

85
Analysis 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51 53 55 57 59 61 63 65 67 69 71 73 75 77 79 81 83 85 87 89 91 93 95 97 99 101 Car Travel time
travel time
35000
25000 20000 15000 10000 5000 0
Minibus
Minibus waiting time Walking travel time Passenger Hours travelled per mode Hours
30000
Iteration Testing improvments trends Mobility policy effectiveness: decrease in car travel time Mobility policy ineffectivness Minibus waiting time is relatively long (1/3) comparing to the minibus travel houes Figure 86: Passenger hours travel per mode. Source: Author elaboration based on MATSim

100

0 3 6 9 12 15 18

24

30

36 39 42

48

54

60

66 69

78 81 84

86
Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility. 21
-300 27
-250 33
-200 45
-150 51
-100 57
-50 63
0 72 75
50 87
90 93 96 99 100
Average Score
Score Iteration
Score Statistics
Fluctuating results Score improves (effective policy) Mobility policy ineffectivness Simulation ends with possitve score Score indiactes postive values
Figure 87: MATSim Simulation Score Statistics.
Source: Author elaboration based on MATSim
Analysis

31°16'N 31°15'30"N 31°15'N 31°14'30"N 31°14'N 31°13'30"N 31°13'N 31°12'30"N 31°12'N

30°2'E 30°1'30"E 30°1'E 30°0'30"E 30°E 29°59'30"E 29°59'E 29°58'30"E 29°58'E 29°57'30"E 29°57'E 29°56'30"E 29°56'E 29°55'30"E 29°55'E

¹

Passengers

drop in and off along route Assafrah - Haddarah

Kilometers

0 5 2.5

Legend Alexandria street network

The Mediterranean

Minibus routes

Assafrah Haddarah route The change of number of passengers comparing to the business-as-usual model 3 Passengers less 2 Passengers less 1 Passenger less No change 1 Passenger more 2 Passengers more 3 Passengers more 4 Passengers more Minibus routes

30°2'E 30°1'30"E 30°1'E 30°0'30"E 30°E 29°59'30"E 29°59'E 29°58'30"E 29°58'E 29°57'30"E 29°57'E 29°56'30"E 29°56'E 29°55'30"E 29°55'E

Figure 88: The change of bording behviour on route Assafrah - Haddarah after the iterations.

Source: Author elaboration based on MATSim and OSM

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

Number of passengers

12

10

8

6

4

2

31°16'N 31°15'30"N 31°15'N 31°14'30"N 31°14'N 31°13'30"N 31°13'N 31°12'30"N 31°12'N

14 1 4 7 10 13 16 19 22 25 28 31 34 37 40 43 46 49 52 55 58 61 64 67 70 73 76 79 82 85 88

0

The change of passengers numbers after and before Replanning Stops along the route

Business as usual passenger number along the minibus route

Number of passengers after applying replanning component

Figure 89: The change of bording behviour on route Assafrah - Haddarah before and after the iterations.

Source: Author elaboration based on MATSim and OSM

87
Analysis

Chapter 6: Conclusions

What paratransit challenges in Global South?

Chapter 1 Introduction:

-Unplanned Sprawl

-Informal transport: paratransit -Mobility challenges

Chapter 4 data and methodology:

- Alexandria unplanned sprawl

- Alexandria mobility market

- Minibus as transport supply

- Available data for mapping and analysing minibus supply

Could data map the informal mobility in Alexandria ?

How data could be contained?

Chapter 2 literature review: -Urban Mobility data -Urban Mobility models

Chapter 3 Good practice: -Matatu, Nairobi, Kenya. Chapas, Maputo, Mozambique

What could be learn from good practices?

Chapter 5 mapping and analyzing:

- MATSim data framework

- Executing the model - Scoring - Replanning

What is recommended to shift a traditional mobility Paradigm into a smart one? Kenya.

How could MATSim model address minibus inadequacy?

Chapter 6 conclusions: - Conclusions - Recommendations

Figure 90: Traffic Jam in promandate avune. Source: ESMEE https://bit.ly/36KJfpb.

Conclusion

The rule of data in mapping minibuses

Alexandria:

The Rule of MATSim Model

• Tracking the minibuses via primitive GPS devices helped understate the primitive properties of minibus in the early stage of the research.

• Big data sources helped create a synthetic demand for mobility on the city scale, which were used to measure minibus performance.

• It is crucial to rely on different data sources (Big-Small) to verify the collected data and gap the incompatibility between (private and public) data sources.

• Mobility data is more powerful when it standardized and open to re-use. In addition, it gives the data reliability and validity of different adaptations.

• Digitizing Alexandria minibuses were only helpful in creating the schematic map and a structured data that enables testing the urban policy in the MATSim model.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

89
in
Planning a paratransit system is difficult due to its complex nature and data scarcity.

Conclusion

Planning a paratransit system is difficult due to its complex nature and data scarcity.

The rule of data in mapping minibuses in Alexandria:

MATSim Model helped construct different mobility scenarios for urban mobility due to

Detailed visuals >

Sophisticated modular >

Accurate measures >

The Rule of MATSim Model:

Comprehensive analysis >

MATSim simulates the business-as-usual movement patterns and spots overall mobility performance (stuck areas, overall traffic on streets, average actual speed…)

In Alexandria, the model was asked to measure the impact of making public transport five times cheaper than cars.

The model stated a 6.25% increase in the total number of passengers who use minibuses due to the cheaper fares.

Despite the rise of total minibus passengers, the model shows a long queuing that could be (1/3) of total trip time.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

90

Recommendations

1- Alexandria Minibuses:

• Government should encourage minibus drivers to form an organizational structure to facilitate communication between officials, drivers, and passengers.

• In append, Government should develop a strategy to constantly collects mobility data that supplement urban mobility policy.

2- Collecting GPS data via volunteers:

• The objective of tracking minibus should be clear to volunteers, as they avoid tracking mistakes and give recommendations on the methodology.

• Data should be public; many resources were consumed to regenerate data that was kept private.

3- MATSim model:

•Facebook population census is bais, as the collected data represents only 52% of all Alexandrian populations actively using the Facebook app.

•It is essential to establish a GTFS feed for all mobility data on navigation maps and different applications.

Mohamed El Gohary l M. Sc. Thesis: Mutations of self-organized mobility.

91

Mutations of self-organized mobility

Mapping and Evaluating Alexandria’s minibus movement patterns

Thanks !

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
