NG TZE WAY

COMMUNITY IN THE FOREST

Year: 2021

Location: Kuala Lumpur, Malaysia

Type: Urban Design & Community Center

Instructor: Mr. Muluk, Ar. Stanley Loo

Category: Academic Graduation Project

Community in the Forest is a community college intends to serve the local community by providing various kind of spaces to held activities, improve community participation and involvement. It’s a place where neighbourhood, culture and community come together and inspire each other. The project is inspired by the existing richness of vegetation of the site, then intends to maximize the green spaces – public spaces where the community, the nature and the architecture can grow together.

Healing of an Urban Fragment upon the Kuala Lumpur City Centre

Lack of Public Spaces

The statistics results shows that the site is heavily lack of public spaces, despites it is a high density residential area.

Site Analysis

Despite of the food paradise characteristic, the site is also mainly occupied by lowrise residential house which varies from traditional wooden house to modern houses.

Diagrams

(1) Emphatic Design Process (2) Design Concept | (3) Community to connect People and Culture Site Plan

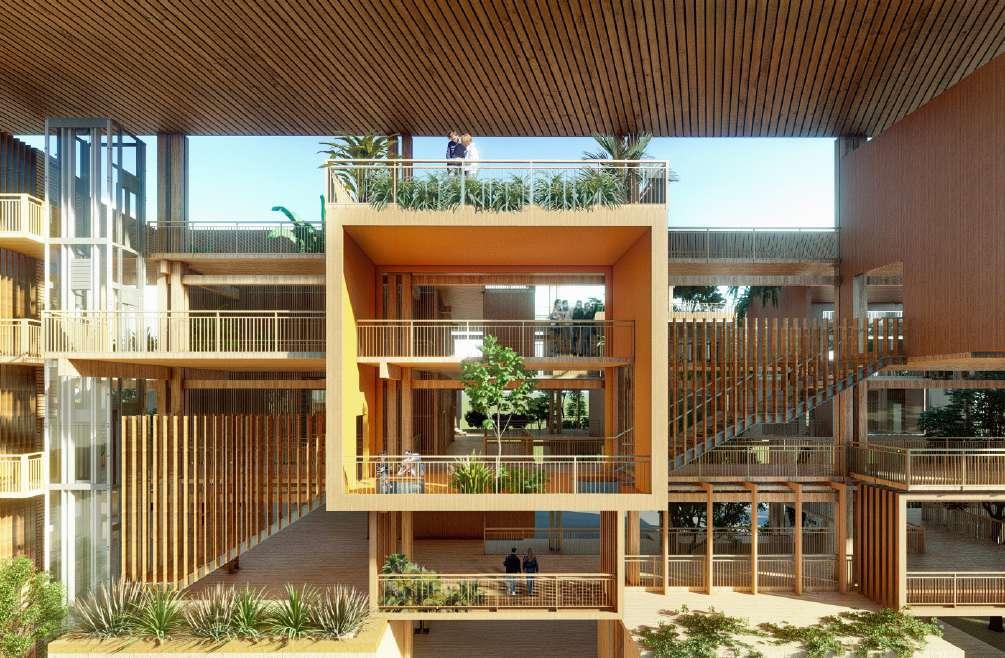

Sectional Perspective

(1) basement carpark | (2) center courtyard | (3) pocket space (4) administration office (5) collaborative lab (6) rooftop cafe | (7) meeting room (8) multi-purpose hall (9) conference room (10) walking deck | (11) center plaza (12) communal ground | (13) community park

(1)

(2)

(1)

(2)

(1)

(2)

(3)

Model (1) Sttructural model (2) Render model

(2)

(1)

THE ASCEND

Year: 2021

Location: Kuala Lumpur, Malaysia

Type: E-Sport Center

Collaborators: Yap Ling | Ow Kar Yong | Sherlynna Liang | Steven Shum

Role: Group leader, Render, Modelling, Board Composition

The E-sports arena is inspired by the hill slope site, mimicking the rise of the E-sport industry. Its innovative and futuristic designs, with a focus on creating spaces that engage and inspire senses. The concept of the arena is to be a bold and striking structure, designed to capture the excitement of competitive gaming that sets a new standard for e-sports arenas around the world.

The Rise of E-Sport Arena

ASIAN E-Sport Center Design Challenge Student Category [ Top 5 Finalist ]

KL Sports City

The KL Sports City in Malaysia is the largest sports complex in the country. It is located in Bukit Jalil, 20 km south of Kuala Lumpur. Described as the “sports complex in a park”, it was the only one of its kind in the country or region when it was fully developed. Site

The site has a small sloping terrain and was surrounded by jogging and cycling tracks. Which creates a welcoming and inclusive environment that encourages physical activity and fosters a sense of community.

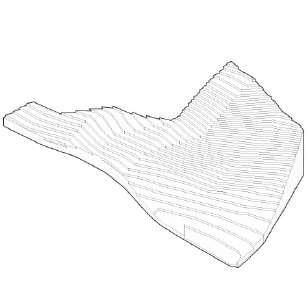

Contour Inspired

The form inspired by the countour to transform into a natural archi-scape

Contextual Framing

Directed views towards stadium Bukit Jalil which enhance visual connectivity

Social-scape

Encourage non-prescribed movements between the arena and the surrounding.

Seamless Continuity

Fluid and dynamic forms, with spaces that were both functional and visually striking.

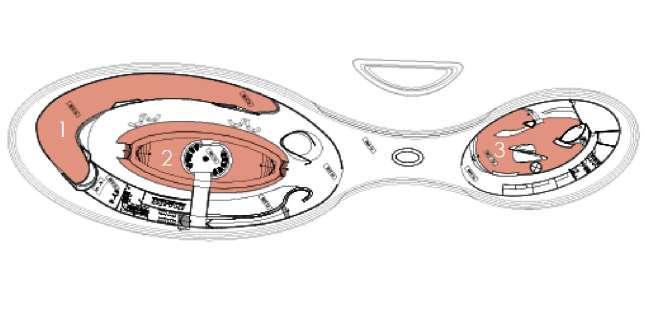

Ground Floor Plan

1. Experience Gallery

2. E-Sport Arena

3. Concept Store

First Floor Plan

1. E-Sport Arena

2. Team Room

3. Meeting & Briefing Room

Second Floor Plan

1. Healing Station

2. Training Center

Section A-A

E-Sport Arena

Interactive Park Entrance

E-Sport Academy Sport Park

South Elevation

Wes Elevation

2F : Private Zone

Healing Station

Training Center Office

1F : Semi Public Zone Team Room

Sleep-pod

VIP Lounge

E-sport Bar

Player’s Rest Area

GF : Public Zone Concept Store

F&B

Battle Arena Experiece Gallery

Hall of Honour

Team rooms

Equipped with the latest technology and infrastructure, including highspeed internet connections, top-of-the-line gaming rooms for players.

Interior views

(1) E-Sport concept store / F&B store

(2) E-Sport experience gallery

(1)

(2)

Double 360’ Screen

Dramatic,

4D

Creating

Competition Mode

The lighting is designed to be dynamic and create different moods and atmosphere..

Performance Mode

The Arena’s lighting have different lighting modes according to the event.

Main Arena

The arena is a large, circular structure, with a dynamic and undulating roof that echoes the movements of gamers and spectators alike.

Competition Stage

The main stage layout changes according to different events.

Product Release Stage

The main stage layout changes according to different events.

sweeping curve, leading visitors into the heart of the gaming action.

Sound System

an immersive and engaging experience for everyone in the arena.

Scenario 1 | DOTA 2 The International Competition

Scenario 2 Gaming Brand Product Launch

THE HORIZON

Year: 2019

Location: Bentong, Malaysia

Type: Eco-Resort

Instructor: Ar. Loh Khang Yong

Category: Individual Academic Project

The challenge is to formulate a series of schemes to rejuvenate an aging new village into a sustainable tourists spot through sensitive planning with minimum negative impact to the environment, while integrating local industries and heritage conservation with modern day life and progress.

ECO-RESORT AT NEW VILLAGE

Asia Young Designer Awards 2020 Architectural Finalist ]

Sun Rise

The stunning sunrise view of a photo inspired to design a resort, a location where tourist embrace the sunrise view.

Framing the view

The concept of the resort is framing the mountain views and sun rise views through different type of openings.

1. Site

4. Main corridor

2. Optimize view

5. Tilted following terrain

7. Main facilities overview

3. Different view zone 6. Programmes along path

With the aim of designing with minimum negative impact on the environment, the chalet is built into a hillside or nestled among trees, with the design taking cues from the natural environment. The cantilivered balcony could allow guests to enjoy the outdoors in comfort.

The use of sharp angles and dramatic walls that jut out at unexpected angles is the reminiscent of the surrounding mountain landscape or contrast with it in a bold way. These elements would add to the unique character of the chalet and make it a memorable part of the eco resort experience.

1. Entrance

2. Pantry/Dining

3. Living Room

4. Balcony

5. Outdoor Living

6. Bathroom

7. Walkway 8. Vanity 9. Bedroom

10. Viewing Deck

View towards Eco-Resort’s chalet

Upper floor plan

Lower floor plan

The Chalet

Sectional Perspective of the Chalet

The Administration

The building is situated halfway up a steep hillside and structured like the wing of a butterfly. The side that runs along the upward path is straight. From this section, an internal staircase runs along the window pane, connecting all of the various levels. The work areas follow the line of the slope and are arranged on various levels also allows the view of the surrounding landscape and seaside to be enjoyed from every level. The administration includes lobby & reception, management office, souvenir shop, training centre, m&e and etc.

Local delights area

The restaurant is designed to have an open-air design that brings in natural ventilation, with plenty of plants and greenery to create a lush and relaxing atmosphere. To maximize views of the surrounding landscape, large windows and an outdoor terrace offers stunning views of the nearby mountains, forests, natural features.

The restaurant with indoor-outdoor spaces that blur the line between inside and outside. A covered outdoor dining area with a retractable roof and walls that can be closed in inclement weather.

The Swimming Pool

The pool is cantilevered out from the side of a cliff or hill, creating a dramatic visual effect and offering guests stunning views of the surrounding landscape. The pool is partially or fully suspended in mid-air with support structures that are discreet or hidden from view. The swimming pool is designed with multiple levels or tiers, with different areas for swimming, lounging, and sunbathing.

The walkway

View from waterfall walkway towards sun rise view.

The deck

View from viewing deck towards sun rise view.

THE GESTURE

Year: 2020

Location: Nanshan Birdpark Guang Zhou, China

Supervisor: Ar. Loh Khang Yong

Collaborators: Chin Mann Yuin Ow Kar Yong | Jonathan See Rachel Lee

Our pavilion intends to visit the basics of bird watching at Nansha Bird Park, through the concept of ‘Gestures’ – a series of hand motions that we naturally perform when we are bird watching.

The concept is derived through the inspiration of a series of ‘Viewing Hand Gestures’ inclusive of ‘Framing Gestures’, ‘Distant View Gestures’, ‘Binocular View

Role: Render, Modelling, Diagrams, Board Composition Scan for video

Waterfront Bird-Watching Pavilion

ASEAN Nansha Birdpark Bamboo Pavilion Competition Local Stage [ Grand Prize ], International Stage [ Runner-up ]

Nanshan Birdpark

Nansha Wetland Park is a great place to escape the city and embrace true nature. Known as “the kidney of Guangzhou”, the park is the city’s first wetland park and serves as a great respite for anyone wanting to escape the pressures of modern life. where there is the home for many waterfowls.

Back to the Basics of Bird Watching: The Gestures

A gesture is concise, purposeful and elegant. It physically and emotionally connects us with nature, living things and scenery. Our Bird Watching Pavilion seeks to achieve this connection through the inspiration of a series of ‘Viewing Hand Gestures’ inclusive of ‘Framing Gestures’, ‘Distant View Gestures’, ‘Binocular View Gestures’ and ‘Anatomy of Gestures’.

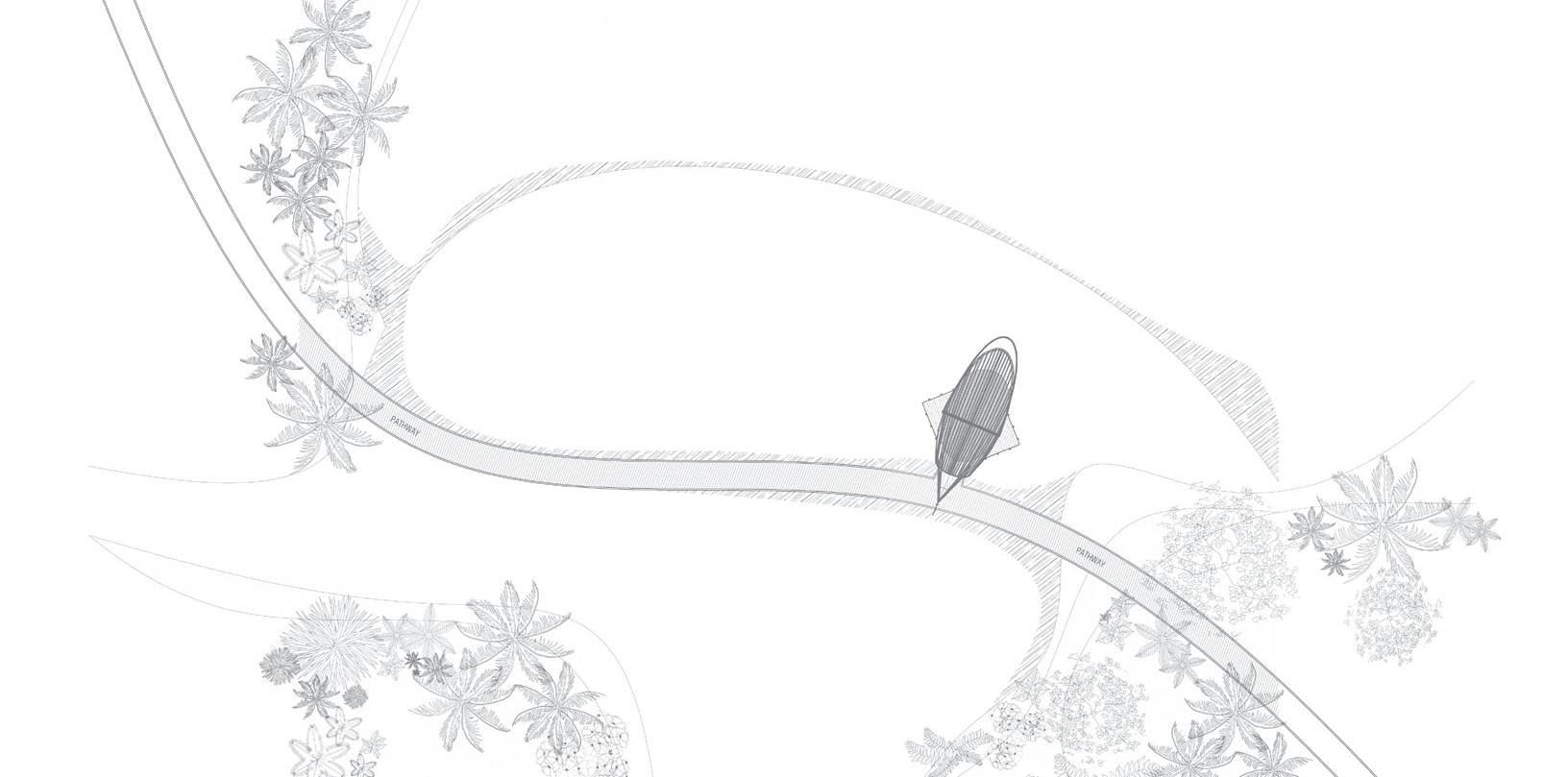

1st - Framing Gesture: The Site

The site selection is inspired by the ‘Framing Gestures’. By ‘framing the map’, the best pavilion angle is selected to view the sunrise along the river horizon.

2nd - Distant View Gesture: The Form Making

The ecstatic form is derived from the ‘Distant View Gestures’. Working within the boundaries, its seamless form resembles the hand motion of observing the birds in far distance.

3rd - Binocular View Gesture: The Function

One would experience the function of ‘Binocular View Gestures’ when stepping into the pavilion. The tunnel space would cut off all distractions for the visitor to bond visually with the habitats.

4th - Anatomy of Gesture: The Structure & Material

The structure & material is inspired by the ‘Anatomy of Gestures’. The Primary structure refers to the finger skeleton, secondary layer refers to the finger muscle, surface material refers to the skin.

(1)

(2)

(3)

1 The pavilion being installed at the Nansha Birdpark, lighted at night.

2 Entrance view towards the pavilion.

3 Timeline photos showing the construction of the pavilion..

(1)

(2)

(3)

1 The pavilion being installed at the UTAR, Kampar campus.

2 People enjoying the swing inside the pavilion.

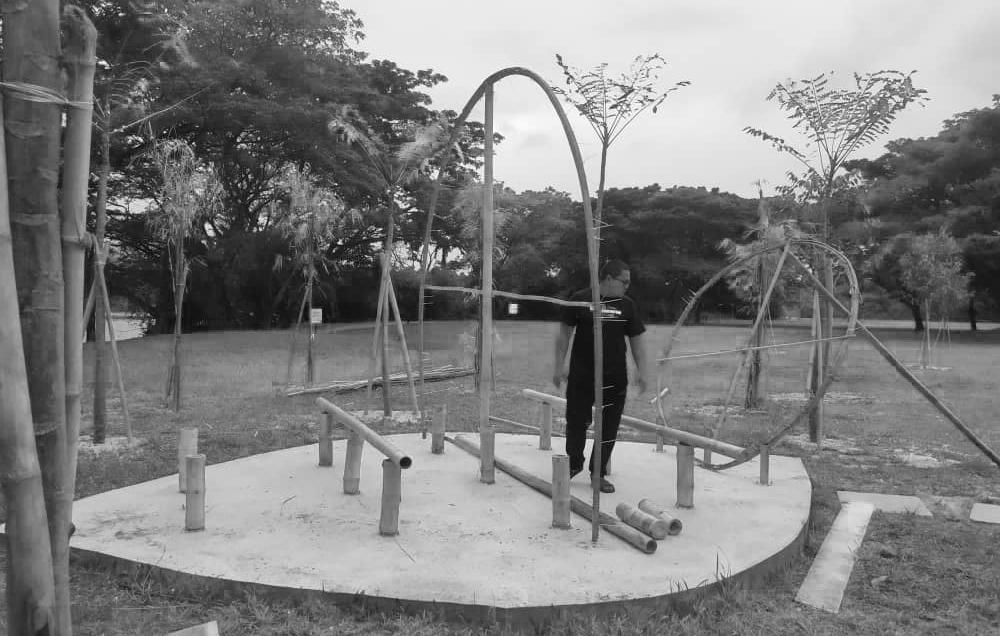

3 Timeline photos showing the construction of the pavilion..
