MORPHING FAUNA BARIER IN COASTAL AND URBAN LANDSCAPE

Nur Azilla Nazli

With the rapid growth of urban environment, spaces pose a challenge in this dense metropolis. Urbanization had undeniably caused landscape fragmentation, which in turn causes habitat isolation. This impedes movement of local fauna, as the harsh dense environment provides no room for them to live in. Further habitat isolation will cause great negative impact for our urban wildlife over time such as decreasing species population. So how does the City in a Garden resonate in an industrial landscape? This project focuses on morphing the barrier in the urban and coastal landscape, using the existing local habitat, as well as infrastructures, as part of its formula.

Landscape connectivity is the key factor for maintaining species diversity in a fragmented landscape.

The limited variety of habitats for animals isolated from one another due to developments and insufficient existing landscape where these animals rely on for movements are identified key issues this project strives to tackle.

The first strategy is to provide habitats in the dense urban areas. To achieve this, firstly, a continuous tree canopy will be maintained throughout the site to serve as stepping- stones for these fauna. Secondly, by mimicking the forest structure in suitable spaces to provide a more diversified habitat. Thirdly, strategic planting designs to accommodate the needs of different species. The second strategy is to integrate habitats in the built environment. This includes retrofitting of building structure and enhancing streetscapes to connect with nearby habitat.

“Morphing fauna barriers” is meant to provide a vision for initiating a solution to the imperative tension between biodiversity and urbanization. Through the implemented strategies and tactics, the overall site will have optimum ecologically viable spaces whilst achieving heterogeneity of species in the Southern part of Singapore. With an increase in habitat, heterogeneity leads to increase in species diversity, expanding Singapore’s biodiversity in our shared landscape.

Fauna Map

Green Typologies

Existing Green Spaces

Potential Biodiversity

Fragmented Habitat

Barriers Evaluation

Urban Barriers For Birds

urban barriers for Land animaL

This map generated from ArcMap indicates areas where there are high or weak barrier imposed for the birds that impedes their movement.

This map generated from ArcMap indicates areas where there are high or weak barrier imposed for the land animals that impedes their movement and visibility.

Existing Fauna

Optimal

Extends existing habitat to create a habitat

-Introduce trees for roosting/ nesting and hunt

STRATEGY 1 - PROVIDE HABITAT IN URBAN DENSE AREA

mimiCking foresT sTruCTure To proVide habiTaT

Creating roof garden for high flying birds to roost and hunt

Creating a vertical greenering on existing buildings -For birds to forage

Creating a low wall with thick planting as fence -Introduce food source

Wild growth area - multiple layers to allow different foraging need

- food source patch

- diverse habitat

Fences - Low wall with alternate big gaps

- Flowering plants to cover any gaps

Green Roofs - food source trees

- verticle greenery to allow foraging for some birds

ConTinuiTy of Tree Canopy as sTepping sTones

Green rooftop

Food patch at private garden

- multiple layers to allow different foraging need

- food source patch

Roosting area

- Continuos canopy at 12m

- Thick dense foliage to allow refuge

Vegetated buffer

- to slow down traffic

- minimize noise barrier

- maintain 2-4m shrub layer with food source sTraTegiC design pLanTing paLLeTe

Existing Streetscape Trees are sparsely spread creating a less favorable steeping stone

Private gardens (715.6m2) Food source trees attracts faunas

Existing Canal Coatal landscape meets the urban where it allows fauna to travel easily Open Public Space (4503.4m2)

The canal is accompanied by lush greenery that attracts fauna for refuge or hunting

A. Exising mangrove

B. Proposed green roofs

C. Core area

D. Private garden

E. Naturalized canal

F. Proposed alley

G. Porposed street

H. Vegetated buffers

Sungei Pandan

J. Pandan Reservoir

Road buffer with layered vegetation -introduce food source

-Maintain continuos canopy at 12m

-Food souce for both at 2-4m

Private gardens for food patch

-Creating vegetated layers

Food patch is accompanied with roosting tree nearby - Alstonia angustiloba -Pterocarpus indicus

Breathing space

Green Roof Growing crops for food production

Unmanaged Areas (1250.9m2)

Unclaimed spaces where vegetation grows wildly

Layered vegetation Multiple layers of vegetation ensures a diverse habitat for fauna

Redefining Streetscape

Vegetated buffers to slow down traffic as well as to create continuous canopy

Food Source Trees & Shrubs

Vegetation are chosen based on the needs of different fauna for food and shelter

Existing Streetscape Tree canopy is connected for some but absence of shrubs makes it less favorable

Retrofitting Built Structures Identifying buildings suitable for green roofs and vertical greenery that acts like a stepping stones

Maintain some open space with low groundcover

Mimicking Forest Structure Core areas to have multiple layers of forest to accomodate the different needs of different fauna

Exposed Trees Some independent trees for perching

Enhancing Existing Habitat Creating diverse habitat to attract more species into site

STRATEGY 2 - INTEGRATING HABIATAT INTO BUILT ENVIRONMENT

reTrofiTTingbuiLdingsTruCTuresandredefiningsTreeTsCaoeTo ConneCT WiTh nearby habiTaT

Area to roost near food patch

- Alstonia angustiloba

- Pterocarpus indicus

Naturalising canal

- to cater for different types of foraging

- introduce food source (fishes)

Green rooftop

Outdoor timber walk

- spillover for foodcourt

- resting area for workers

Creating continuos connection

- vegetated buffer as a stepping stone in between the road

Retrofitting Industrial Landscape Into Everyday Lives

Yong Keng - Whye, Raymond

The perception of mangroves disservices was dominant in research reports. The way people perceive mangroves were mainly negative, treating them as a reservoir of disease, areas of danger and harbour of pests. The public only sees the alluring conditions of the coastal landscape but have not understood the important aspects of mangroves ecosystem services which are beneficial to our biodiversity and environment. Migrant workers being dominant in the industrial district allows the project to focus on their culture, stories, lifestyle to reform spaces which serves to educate and raise awareness of the importance of what coastal landscape while allowing them to enjoy implemented recreational activities.

No.7 Pandan Road, currently an abandoned site is specifically selected for a variety of reasons, in terms of Nature & Human considerations through precise studies, observations & research of biodiversity, habitats especially mudflats and proximity of green spaces.

By adopting the Biophilia methodology, bridging social groups with green spaces and injecting activities helps to cultivate stronger and closer affiliations between humans and nature. Thus, elevating migrant workers working attitude, efficiency and efficacy which could be beneficial in their working prospect and the economy of the country

Redefining the coastal landscape where it allows a larger volume of sediments to be deposited, creating a larger area of mudflat, boosting feeding grounds and habitat for fauna and infauna species. Introducing patches of green spaces in the site and enhancing the existing slipway with recycled materials on site draw users closer to the coast physically and visually.

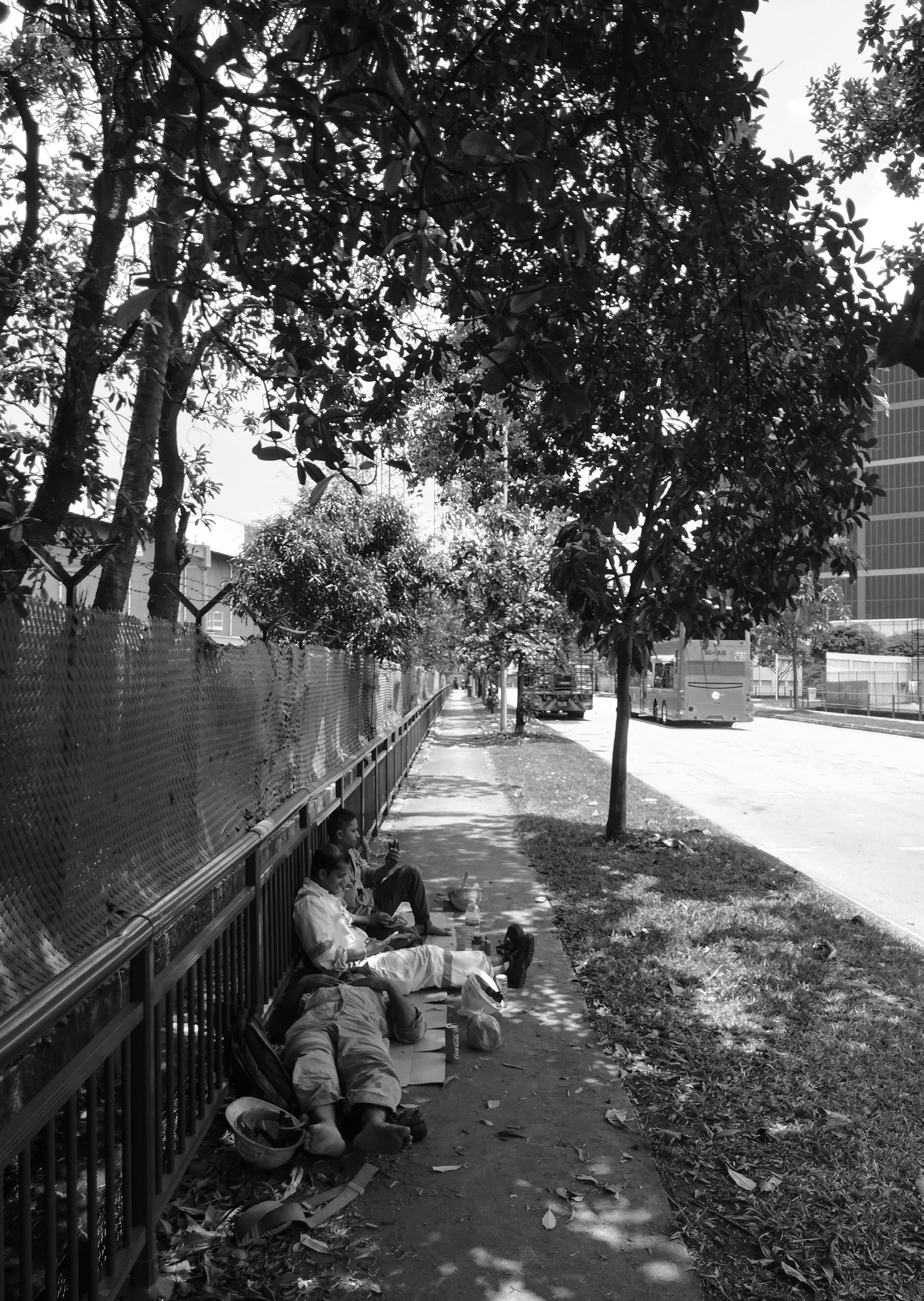

Retrofitting the longitudinal streetscape of Pandan Road, by mimicking the structure of the coastal forest, creates a green canopy framework that elevates fauna and flora habitats and their movement which will be beneficial for the biodiversity and ecology. With this implementation it helps to increase vegetation volume and create larger shaded area for workers commuting along Pandan Road.

These strategy aims to foster a greater appreciation of nature within a particular target audience and cultivate a stronger sense of ownership to the created landscape and at the same time boosting ecological and biodiversity value of the area which could leave a positive impact in the industrial environment and hopefully to the future generations.

Contextual Analysis

singapore, region

Understanding on a macro scale of the main stakeholders and studying the industrial land area in a regional map

Employee Value Proptosition Work - Life - Harmony

“We take care of your health & wellness by providing flexible work arrangments, comprehensive benefits & other practical enablers”.

Historical Study

reViVing ConneCTion WiTh naTure , fragmenTaTion of mangroVes & mudfLaTs hisToriCaL TimeLine diagrams iLLusTraTing The morphing of infrasTruCTure, LandsCape, aCTiViTies & LifesTyLe

Social Issues Of Site

Selected Site

Prosposed Strategies
