AN INTEGRATED WATERFRONT BASED ON BROWN EARTHWORK

Singapore is facing the impacts of high-density urban development. One of these impacts is the contamination of residues in urban brownfields. Being an important node of Sungei Pandan, Pandan river mouth’s waterfront is a nexus of river-based industry, transportation, commerce and maritime activity at the current stage. The site is located in Pandan waterfront industrial area, which is working as a shipyard with a high level of soil contamination, a mixture of organic and inorganic contaminants. Thus, this project seeks a comprehensive way to restore the waterfront area by pollution treatment process and reshape the relationship between ecology and urban system.

The surface runoff in current situation brings contaminants from factories, urban traffic and residential areas to the waterfront area where there is no hardscape to prevent the bare ground from being polluted by these contaminants. The contaminants in the soil are hard to be filtered or degraded with a very low level of vegetation density in the site. While treating the polluted soil, we need to dig out the hot spot and cap the polluted soil. It is a chance to generate a new landform by fully utilizing the brown earthwork.

There are three main strategies in this project, namely, mitigating soil pollution, utilizing nature succession, providing potential for habitats and social programs. The strategy of mitigating soil pollution happens on the whole site with the application of two tactics for this strategy: cutting and filling brown earthwork and using phyto-techniques. On the cut shoreline, the strategy utilizing nature succession is aiming to generate a new shoreline by sediment baffles, which will be set in the water edge and cutting out area for the tide to work for it. Additionaly, the project provides potential habitats and social programs that locate in different types of elevation, slopes of the new topography that is generated by the new brown earthwork.

By introducing these strategies, the proposal integrate Pandan waterfront to a vibrant and active place by dealing with the brown earthwork, so that it can provide the potential for both habitats establishment and people’s need for safe and stable waterfront space, and additionally adapt to the extreme weather.

Landuse Analysis

exisTing Landuse neW deVeLopmenT Landuse hoW To deCide size of The neW park

In new development, residential area: 1750793 m2

Residential FAR: 2.8; Ratio of green space: 26%

Total green space area: 1750793 * 26% = 45.52 ha

Existing green space area: 31.4 ha; So the new park need to be 14 ha

Soil Condition Analysis

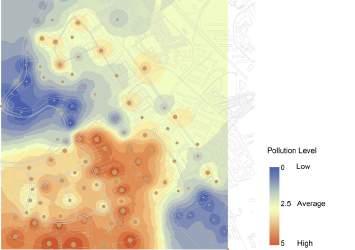

hoW To deCide Lo of The neW park soiL ConTaminaTion eVaLuaTion soiL ConTaminaTion eVaLuaTion

From the historic map, we can know that this area has the potential to become habitat.

Comprehensi V soiL ComprehensiVe eVaLuaTion siTe biodiVersiTy eVaLuaTion

The area with worst soil condition and lowet biodiversity level is chosen to be the design area, which is working as a shipyard in current stage

The storm runoff brought the mixture of contaminants to the shoreline area, we need to modify the landform thoughtfully by cutting and filling brown-earthwork.

Framework

frameWork of ConsTruCTing LandsCape based on broWn-earThWork

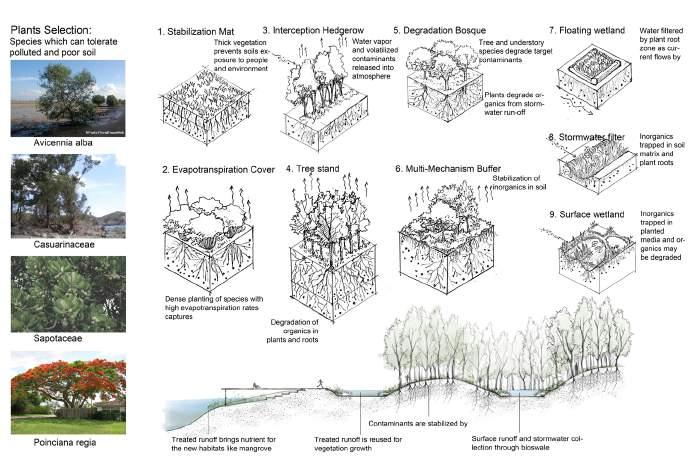

STRATEGY 1: MITIGATE SOIL

CONTAMINATION

STRATEGY 1: MITIGATE SOIL

CONTAMINATION remediaTe soiL poLLuTion by managing sTorm runoff

Rainfall: mm

The annual rainfall: 2700mm

Potential treated area: 30ha

Depth of wetland: 2~3m

Goal: Control 80% of annual rainfall

The dimension of wetland need to be: 2.1 ha.

Source: Data.gov.sg

STRATEGY 2: UTILIZE NATURE SUCCESSION

STRATEGY 3: PROVIDE HABITATS& PROGRAMS

The park will work as an eco-connector between the two patches, and provide ecological services for the surrounding areas.

RESHAPING COASTAL EDGE LANDSCAPE IN A HIGH-DENSE TROPICAL CITY

Yao Haomu

Due to urbanization and land reclamation, Sungei Pandan, once the largest mangrove habitat in Singapore, has witnessed a dramatic change of shoreline condition, which caused intertidal habitat loss and fragmentation. With current land use function and edge condition, the lifestyle around Sungei Pandan is detached from the original coastal characteristics, which leads to lack of public awareness for coastal habitats conservation. The project aims to revive coastal habitats under high-density urban context, by shaping a more diverse coastal edge along the Pandan River at the most representative and critical site of the whole area, the middle part between two canals, as a coastal park to benefit the whole community.

The project applies three strategies to reshaping the coastal edge landscape. Firstly, to diversify landform and shoreline, a shallow branch of water is introduced into the site where both shoreline and waterfront are redefined into natural forms. This creates a heterogeneous hydro condition such as brackish pond and riverine estuaries which expands the intertidal zones.

Secondly, by accommodating various habitats, the whole site is divided into active/passive recreation and restoration zone. Coastal, freshwater and urban habitats are then placed to accommodate the hydrological conditions which engage urban with natural area.

Lastly, the project integrates development into coastal habitats with both education and recreation activities that are arranged closely with nature based on habitats distribution. Community activities happen mostly in the northern part of the site, while housing and passive recreations are placed in the southern part. Mangrove restoration project is mainly placed on the new island. Jogging and biking tracks connect the whole site and implementation of boardwalks, treetop walk and aerie tower allow people to go through these coastal habitats.

The project provides a showcase of coastal habitat for public, in which human activities and coastal landscape are integrated together. A biophilic lifestyle would become widespread while people are unconsciously influenced here.

Background

How To Arrange Spread Image

Strategy 1

Diagram for edge treatment

Mean

Mean

Mean sea level(sea level:1.7m)

Mean low water neap(sea level:1.2m)

Strategy 2

aCCommodaTing Various habiTaTs

Habitat Map A

Zonation Map 25 m N seCTion b

Ardisia elliptica

Callisia repens (Jacq.) L

Diospyros blancoi

Acacia avriculaformis

Avicennia alba

Avicennia officinalis

Talipariti tiliaceum

Lumnizera razemosa

Calophyllum inophyllum

Cerbera odollam

Excoecaria agallocha

Eryngium maritimum

Hibiscus tiliaceus

Lumnitzera recemosa

Lumnitzera littorea nummularia cultivar tectorius cordata amazonica mudflat mangrove coastal forest riparian scrub

Cyrtostchys lakka

Homalomena

Licuala spinosa

Ardisia elliptica

Callisia repens (Jacq.) L

Diospyros blancoi

Ficus Lyrata

Mangifera indica

Tetragonia tetragonioides

Grevillea baileyana

Pentadesma butyracea Sabine

Habitat Condition

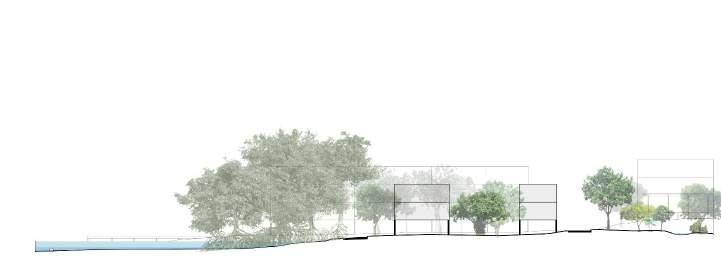

seCTion a

Lysimachia nummularia

L Nymphaea cultivar

Pandanus tectorius cultivar

Pontederia cordata

Victoria amazonica

Acacia avriculaformis

Avicennia alba

Avicennia officinalis

Talipariti tiliaceum

Lumnizera razemosa pool lawn riparian scrub riparian scrub pond stream mudflat mangrove coastal forest riparian scrub

Rocky shore intertidal area with solid rock strech up to spray zone narrow and steep in nature

Sandy beach formed by loose deposits or artficial 0~4.5m 50-100m

Sea grass meadow muddy, rocky or sandy sadiment minus10 - 0.8m up to 1km

Mudflat coastal water front/ gentle slope 0.8m - 1.3m 41m

Freshwater marsh wet muddy area with low oxygen level non-tidal area 10-30m

Seasonal wetland saturated with water, low topographic relief non-tidal area 20m

Riparian scrub interface between land and river,on floodplain 30-53m

Pond closed or more steady waterbody varies

Albizia saman

Cassia surattensis

Livistona Chinensis

Medinilla speciosa

Pandanus sanderi

Veitchia merillii

Avicennia rumphiana

Avicennia marina

Leucaena leucocephala

Rhizophora apiculata

Talipariti tiliaceum

Aegiceras corriculatum

Metrope angulate other urban green roof lawn rocky shore sea grass mangrove

Acacia avriculaformis

Avicennia officinalis

Bruguiera gymnorrhiza (L.) Lam

Cocos nucifera

Lumnizera razemosa

Nypa fruticans

Rhizophora apiculata

Rhizophora mucronata

Talipariti tiliaceum

Shrub:

Acanthus ebracteatus

Pluchea indica

Groundcover:

Chaetomorpha

Salicornia europaea L.

Tetragonia tetragonioides other urban green roof lawn rocky shore sea grass mangrove mangrove mudflat salt-marsh coastal forest pool

Acacia avriculaformis

Avicennia officinalis

Bruguiera gymnorrhiza (L.) Lam

Shrub: Acanthus ebracteatus

Strategy 3

inTegraTing

School with wetland and rain garden

Community centre with tidal pool and green roof

TraffiC
