TESTED – Luxrite SPRO DHIPD80
TEST
PRODUCT TEST
Advertisement
What’s in the box? Turret camera Quick start guide Drilling template Waterproof RJ45 cover Security Torx wrench Screws and wall fixings The SPRO DHIPD80 “Turret” style camera is an IP67 externally rated 8MP (4k) camera with a 2.8mm fixed lens, “ColourNight” operation and Active Deterrence capability. It has a built-in speaker and microphone along with external audio connection and alarm input and output. Available in Dark Grey or White finish with optional deep base and wall and pole mounting brackets.
Getting started
The camera is PoE fed (8.2W maximum, 3.5W basic) or can be powered from a 12v DC supply. In addition to the RJ45 network socket, connections are available on the multi-way connection lead for Audio In and Out on individual phono (RCA) connectors, flying lead alarm input and output and the barrel power input jack. A waterproof shroud is only provided for the RJ45 connector so the other connections must be suitably environmentally protected if likely to be exposed to moisture.
A supplied QR code label gives access to a website with copies of the Quick Start Guide and an Operation Manual. Additional software can be downloaded to provide Video Management and PC based NVR functionality.
Once powered up from a suitable PoE network port the camera must be initialised and then configured, DHCP is not enabled so the camera has a default IP address of 192.168.1.108. The quick guide suggests using “ConfigTool.exe” to locate and initialise the camera however this software is not provided and must be downloaded from a third-party site. Alternatively, the initialisation can be undertaken during the first browser connection if your PC is set to the appropriate subnet for the camera’s default address. The camera could be accessed with all major browsers’ but best performance was found with IE11.
The initialisation is straightforward beginning with Region and language setting, followed by Time zone details. This is then followed by the password entry screen that gives advice on format and an indication of security level with an e-mail option for password resetting. A P2P option is then given with a QR code for App download for remote connectivity plus a Firmware Auto-update option, these can be unticked if not required.
It was found that there was just a still image from the Main Stream display at first use, this was due to the use of H.265 compression being used by default. Changing to H.264 gave a correct live browser view. Sub Stream 2 is disabled by default so must be enabled if required.
Luxrite – SPRO DHIPD80
Menu options
The SPRO browser connection gives a series of Tabs for selecting Live, Playback, Setting, Alarm and Logout options. The “Setting” tab replaces the live view with a configuration screen with a menu tree down the left-hand side giving access to the following options:
Camera: Conditions – All picture settings such as Exposure, Backlight, WB, Day / Night, Illumination and Profiles. Video – Main and Sub stream settings, Snapshot, Overlay (inc. Privacy) and ROI. Audio – Main and Sub stream audio format and Alarm announcements.
Network: TCP/IP, Port, PPPoE, DDNS, SMTP, UPnP, Bonjour, Multicast, Auto Register, 802.1x, QOS, Access Platform (P2P, ONVIF, RTMP).
Event: Video Detection, Smart Motion Detection, Audio Detection, Smart Plan, IVS, Alarm, Abnormality and Disarming.
TEST
(continued from p12)
Storage: Schedule (Record, Snapshot & Holidays), Destination (Path, Local, FTP, NAS), Record Control.
System: General (inc. Date & Time), Account, Safety, Default, Import / Export, Auto Maintain, Upgrade.
Information: Version details, Logs and Online User.
By default, the camera uses GMT when set to a UK location, but the System Date and Time setting allows Daylight saving dates to be entered and the function enabled.
Other Icons on the Browser are used to Set / Unset the Alarm output, to trigger the warning light, to sound the alarm, to take a snapshot image and to turn on the audio.
A wide range of security and encryption options are included within the Network and System Safety menu trees.
Performance
The 1/2.8”, 8MP sensor gives a high level of image detail from its 3840 x 2160 pixel sensor (16:9) at up to 20 fps if AI detection is used or up to 25 fps if not. The 2.8mm fixed lens gives a field of view of 107° H x 56° V. The “ColourNight” feature provides good definition and correct colour at very low light levels, with sensitivity stated as 0.007 Lux. This in practice is not as sensitive as some of the current 4MP offerings but has the advantage of much higher resolution. While the pixel count is much higher than the majority of security monitors can display, the ability to electronically zoom in on recordings has the potential for greater evidential value. Where no light exists, the camera is supported by its white-light LED illuminator mounted on the front of the camera. This can be left on Auto or manually adjusted from 0 to 100% from its default of 50% and provides a warm-white lighting that is rated to 30 metres. 3D noise reduction effectively removes AGC noise.
The camera can be easily set up to detect either any scene motion or using smart mode with AI for specific detection of people or vehicles entering the scene or crossing a detection line or area. On alarm the camera can be set to record the event to its SD card (up to 256GB) or connected NAS drive, to signal a warning from its alternately flashing front mounted Red and Blue LEDs with a High, Medium or Low rate for 5 to 30 seconds per intrusion and to e-mail a user if required. An audio warning can be associated with the alarm, and this can be selected from a range of 10 included files such as “Danger no climbing”, “No parking here”, “Private land no entry” and “You are under surveillance”; or a piercing alarm tone or user created Wav files can be uploaded. The message can be repeated 1 to 10 times per alarm. Triggering the alarm output contact allows external devices or site lighting to be activated. Alternatively with a suitably configured system you can speak directly through the inbuilt loudspeaker to inform or warn off intruders.
Audio level or abnormality detection is set using a graphic display indicator for level and threshold.
The camera was able to detect human subjects of greater than 5% of screen height, but improved results were found with subjects above 8%; careful adjustment for specific scenes would be expected to improve on this. The manual gives confusing figures relating to screen height and pixel count for people detection and appears to suggest a minimum of 10%, but this could be due to translation errors. Video clips are recorded onto the micro-SD card and can be downloaded as .dav files and snapshots as .jpg, these can be replayed via the browser “Playback” tab or using the SPRO CSS software.
Up to four privacy zones can be added to the view. These are black rectangles that are simply moved to a suitable location on the screen and sized to suit.
The free download software package for video management “SPRO CSS” and PC recording “PCNVR” are straightforward to load and operate and can be used to create a low-cost recording and display solution. ONVIF compliance means that this camera can be used on compatible existing recording systems as well as the Luxrite range of 4k NVRs.
Conclusion
A very sensitive “Turret” style camera with high definition and some excellent features for deterring intruders.
9.0 out of 10
NOTE: This PSI Product Test was carried out by an independent third party, not editorial staff. The manufacturer had no input in the review or the final result
EDITOR’S CHOICE
Electronic padlock for wire-free security
Abloy UK has launched the SMARTair i-gate Electronic Padlock, which boasts resistance to attack and extreme weather, wire-free installation, and batterypowered operation.
This new device in the SMARTair wireless access control range enables the addition of realtime control to non-electrified gates, cupboards, cabinets, crates and more — wherever they are and whatever the climate.
For many organisations, security and access needs do not stop at the perimeter door. Gates and outbuildings are hard to reach with cabling. Upgrading an existing padlocked closure involves simply swapping the devices and integrating the i-gate Padlock into an existing or new SMARTair wireless access control system
assaabloyopeningsolutions.co.uk
EDITOR’S CHOICE
The security industry is busy and complex, so it’s easy to miss new products and services as they get lost in day-to-day activities. Every now and again, certain products grab our attention so here we take a look at a few of the products we think you won’t want to miss this month.
NDAA compliant Super Fisheye is now available
The 12MP IR Super Fisheye camera from IDIS is now NDAA compliant and features Smart UX Controls, which enable smooth and intuitive panning, tracking, and zooming. These controls allow operators to easily follow moving objects or suspects in real-time and dewarp any point of interest in six view modes directly from the camera, VMS or via IDIS mobile apps on smartphones or tablets.
On-board analytics include active tampering alert, tripzone alert, and heat mapping tools. The fisheye can also be utilised by IDIS Deep Learning Analytics for users to benefit from object, loitering, and intrusion detection, as well as metadata and appearance searching.
idisglobal.com
NOTE: All technical specifications listed are provided by manufacturers
Switches ‘made for video’ provide high security Ethernet transmission
The RY-L28-XX Series layer-2/3 managed ethernet switch range from barox Kommunikationis designed to meet the operational and performance demands of CCTV surveillance. The switches boast a maximum of 48 x 10/100/1000Mbit/s ports, 4xSFP 1/10Gbit/s ports, 740W total PoE power, and an intuitive Device Management System (DMS) GUI, the barox RYL28-XX Series 19” rackmount Managed Ethernet switch range with L3 functionalities and provides a robust solution for key CCTV applications.
Tackling the increasingly higher requirements for robust cyber security, barox has implemented more firewall features to maximise the security of IP video transmission networks. With regards to access protection and encompassing network protection from unauthorised sources, barox utilise their Access Protection, Management, Performance and System (AMPS), an end-to-end communication encryption technique and certificates, to ‘lockout’ unauthorised network access.
barox.ch/en
EDITOR’S CHOICE
Fire alarm panels with seamless connectivity
The Zettler Profile Lite range of fire alarm control panels from Johnson Controls includes the Pro215S Lite, the Pro415S Lite and the Pro415D Lite. The Pro215, which supports 250 addresses, is equipped with two shared power loops that can be hardware configured as one high-power loop. The Pro415 range, which supports 500 addresses, is equipped with four standard power loops which can be configured as two high-power loops. Up to 99 panels can be networked together and existing networks possibly containing a mix of Profile Flexible and earlier MZX technology panels can be joined seamlessly.
In addition, the Zettler Profile Lite series offers a range of repeaters – the PR32AR LT and P32DR LT Repeaters – which include both AC and DC powered models.
The Pro215S Lite is housed in a compact, shallow enclosure available in grey/black or red, while the housing of the Pro415S Lite panels includes additional space for batteries. The frame and cables can be fitted before the panel is mounted, and an optional mounting plate makes the range simple to install.
zettlerfire.com

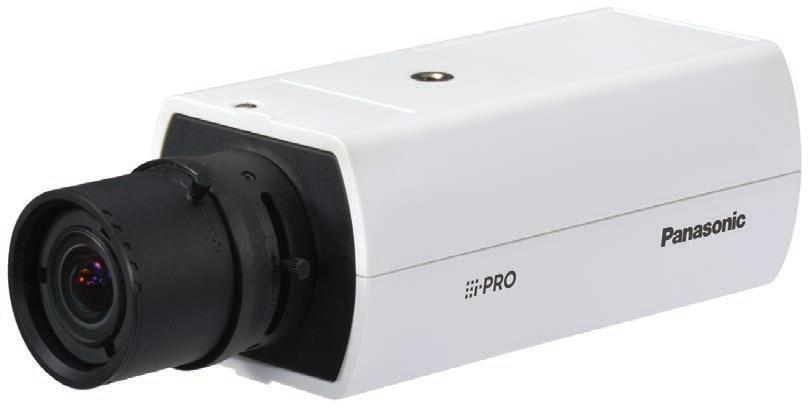

Updated camera series featuring AI capabilities
Panasonic has announced the updated range of S-Series cameras. The cameras come pre-bundled with the i-PRO in-house apps AI Video Motion Detection (AIVMD) and AI Privacy Guard. They provide instant access to intelligent security functions such as intruder or loitering detection, whilst making sure to protect the privacy rights of individuals by pixelating their figures or faces; important for businesses where privacy laws are in force, such as Europe with GDPR.
Besides these two default applications, there are three new additions to the iPRO inhouse application range: AI Face, People and Vehicle Detection enable easy and quick search of footage based on pictures of faces – even when masked – or pre-defined attributes for people and vehicles. All these applications are included free-of-charge to aid the AI-ification of businesses. Lifting AI beyond the purely visual level, sound classifications picked up by external microphones, such as gunshots, yelling, vehicle horns or glass breaking have also been added to the range.
business.panasonic.co.uk/security-solutions
IP intercom with 10” screen with 5MP camera view
2N has launched the new IP Style intercom with a platform supported by an Axis processor.
The 2N IP Style has a 10” touchscreen LCD display provides a detailed view of incoming visitors. To ensure its durability, it is protected by scratchresistant 4-mm tempered glass. Users will also benefit from the ‘smartphone-style’ touchscreen display with instant response and smooth animations.
Drawing on the processing power of Axis’ Artpec 7 chip and the flexibility benefits of edge IP devices, the new system gives the building owner or user all the decision-intelligence they need at their door.
2n.cz/en_GB

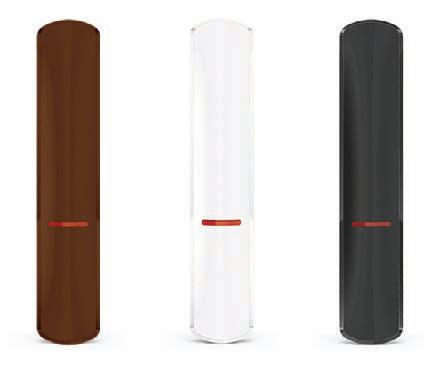

Multipurpose wired detector for any alarm panel
XD-2 from Satel is a BS EN-50131 and PD6662 Grade 2 multipurpose wired detector, which can operate with any alarm control panel. XD-2 can work as: magnetic contact, shock detector, shock detector and magnetic contact, and water flood detector.
Each unit features a LED indicator which can be remotely enabled/disabled of LED indicator, supply voltage control, tamper protection against enclosure opening and removal from mounting surface. Two magnets are included (for surface and flush mounting) of the unit.
The detector is available in white (XD-2), brown (XD-2 BR) or dark grey (XD-2 DG).
