volume two interior design thesis
design proposal: ascend fitness center
Thesis Research
Riley Manetz Virginia Tech B.S ITDS
2
3
Overview mission statement 6 project goals 7 site analysis 8 existing conditions 9 design prOpOsal levels overview 14-15 level one plan 16-17 level one axon 18-19 level one design 20-21 level two plan 22-23 level two axon 24-25 level two design 26-29 level three plan 30-31 level three axon 32-33 level three design 34-37 specificatiOns design graphics 40-43 materials 44-45 appendix sources 48-51
table of contents
4
Mission stateMent
project goals
site analysis
existing conditions
5
mission statement
The design of the space intends to break down barriers in fitness facilities by creating a welcoming space for users of all fitness levels.
Each space will be carefully curated to cater towards a diverse range of comfort levels.
Optimizing occupant comfort and performance promotes the health and well-being of members both physically and mentally.
6
project goals
1
2
Goal
Promote user comfort
objective
Consider user feedback as to what is considered “comfortable” and “uncomfortable” in the gym and design spaces accordingly
Goal
Create a welcoming atmosphere
objective
Use design elements and programs to cater towards the needs of a diverse range of members.
Goal
3
4
Encourage members to freely use all spaces
objective
Use way finding and signage to help users easily navigate the space, make equipment layout easily accessible for everyone.
Goal
Heighten performance levels
objective
Use color and light strategically to enhance user performance, use zoning and function to determine the mood and goal of each space.
7
site analysis
key points
proximity to downtown: the location is adjacent to other popular neighborhoods.
nearby office spaces: the adjacency to workplaces creates the ideal demographic of professionals who need a space to workout in before or after work.
lively neiGhborhood: soma offers a diverse range of activities for visitors or residents.
SOMA, the south of market neighborhood in San Francisco has a mix of businesses and residences as well as a wide variety of attractions. Soma is home to multiple San Fransisco landmarks such as oracle park. The area has a variety of museums, art exhibits, and upscale dining options.
8
nearby office spaces building site green spaces
existing conditions
floor plan nts
square footaGe: 22,000 sf levels: 3 level one perspective shell
9
conditions photo interior conditions photo
interior
concept
concept statement
Fitness centers historically have been seen as exclusive spaces. Based on gym user surveys, gym goers often feel uncomfortable in fitness spaces unless they fit a specific demographic.
Users reported what would need to change to make them feel comfortable in the gym. These changes include: more space, less people, and different levels of privacy.
Ascend fitness center is focused on elevating members by optimizing individual goals and removing the intimidation factor often prevalent in the fitness community.
This is achieved through the use of three distinct levels with varying levels of privacy.
Each level will be curated to fit the functions of each zone and promote user comfort. Psychology of color and light will be integrated into each space to enhance performance and set the tone for each level.
10
what would need to change about the gym to make you feel more comfortable?
addition of a woMens area
More free space/eQUipMent
private areas
The diagram represents ascension in the fitness space through the means of the main staircase. The main staircase is a symbolic representation of the concept ascend, the void space informs the circulation and allows for a visual connection through all three levels.
Each level of the fitness center differs in privacy and energy, the first level being the most high energy and social zone and the third level being the most private focus zone. The use of different color gradients on each level emphasizes the function and signals to the user that they are transitioning into a different zone.
11 key takeaways user comfort in fitness spaces
1
2
3
parti
design proposal
12
levels overview
level one design
level two design
level three design
13
levels overview
14
section nts
section nts
the Main stair serves as a way to display the concept of ascend. a large light well sits above the stair on the third floor, shining light throUgh each level. the stair design is encased by colored plexi glass tUbes. the design eMphasizes the Users transition throUgh each level.
level three: focUs private zone
level two: seMi social zone
level one: high energy social zone
15
level one plan
level one key level one floor plan nts
16
8 9 10 11
1. reception and nUtrition corner 2. locker rooM one 3. locker rooM two
4.
Main stair
5.
cardio 6. Managers office
17 1 2 3 4 5 6 7
7. staff rooM 8. high energy groUp fitness
9. strength training
10. egress stair
11. loading dock
level one axonometric
18
19
level one: entrance
level one design
level one strength perspective

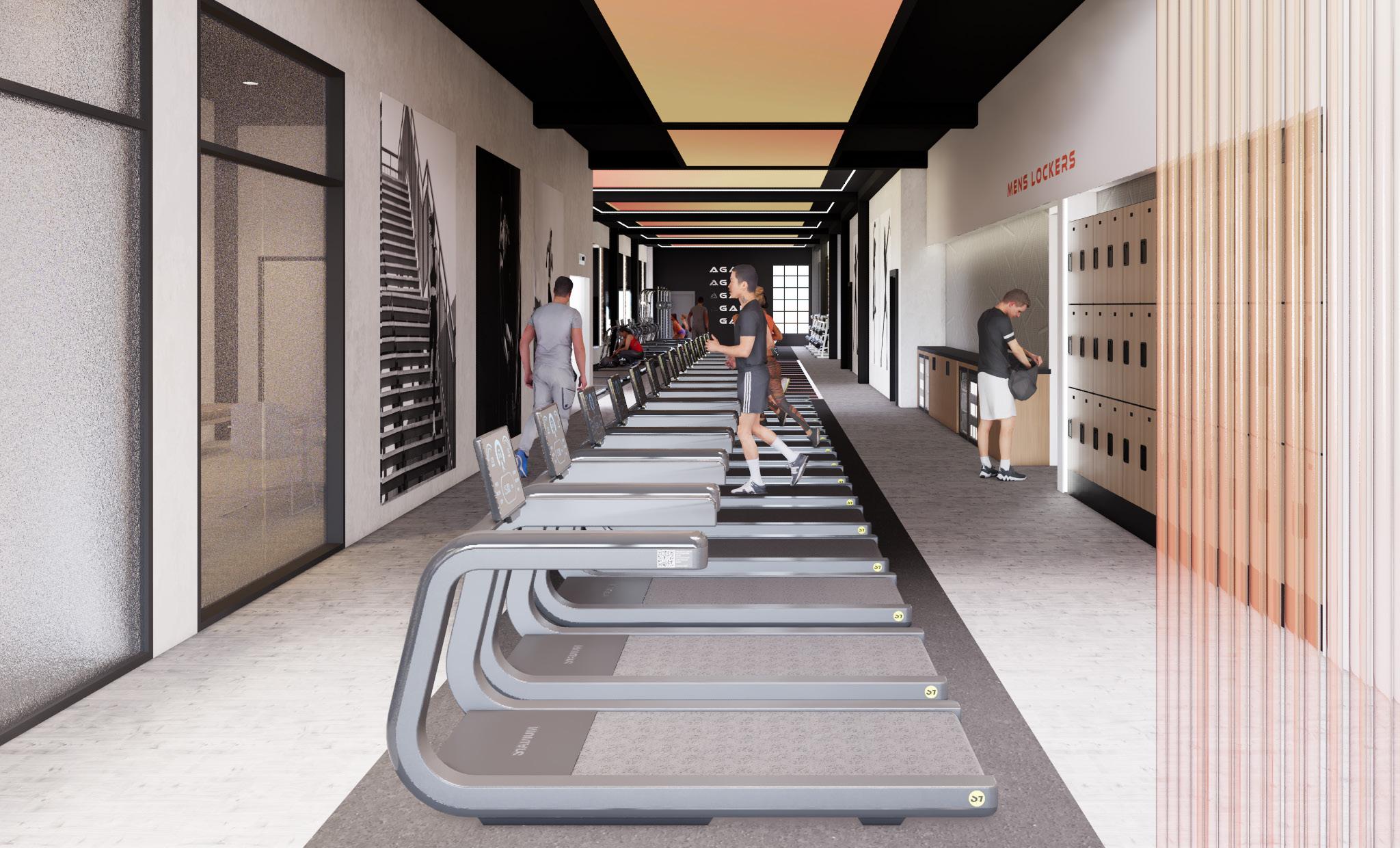

level one cardio perspective
20
reception perspective
21
illUMinated
tUnable recessed led 6” recessed can light track lighting pendant 8’ linear pendant
level one
level one rcp nts
panel color
level
22
two plan level two key level two floor plan nts
1. cardio
2. water and towel station
8 9
3. Mats
10 11
4. Main stair 5. fUnctional fitness 6. boxing
23 1 2 3 4 5 7
7. rr
8. strength training
9.
recovery/Mats
10. egress stair
6
11. personal training
level two axonometric
24
25
level two: Mats and free weights
26
27
level two design
level two training rooM perspective
level two fUnctional fitness perspective
28
level two cardio perspective
level two rcp nts
29
recessed led 6” recessed
illUMinated
panel color tUnable
can light
illUMinated panel color tUnable
8’ linear pendant
level three
30
8 9 10 11
plan level three key level three floor plan nts
1. low iMpact stUdio space
2. Main stair
3. Mats
4. focUs pod one
5. focUs pod two
6. focUs pod three
31 1 2 3 4 5 6 7
7. rr
8. cardio rooM
9. strength
10. egress stair
11. boxing
level three axonometric
32
level three: focUs pod
33
34
35
level three design
36
level three boxing perspective
level three Mats and free weights perspective
level three yoga perspective
level three rcp nts
37
recessed led 6” recessed can light
illUMinated
panel color tUnable
recessed
illUMinated
panel color tUnable 8’ linear pendant
cove lighting
38
specifications
graphics level one
graphics level two
graphics level three
Materials
39
graphics level one
40
graphics level one
41
graphics level two
42
graphics level three
43
level one Materials
color jUstification: red is a color associated with energy and power. stUdies sUggest that red environMents can enhance perforMance levels in a fitness space. orange is a color that represents energy and enthUsiasM and has been foUnd to stiMUlate Mental and physical energy levels.
the Use of red and orange analogoUs colors on the first floor sUpport its fUnction as a high energy social zone.
level two Materials
color jUstification: blUe represents stability and prodUctivity. the Use of blUe in a fitness facility May encoUrage MeMbers to be More prodUctive at the gyM. green is a color that represents balance and harMony. green relaxes the Mind while also energizing.
the Use of blUe and green analogoUs colors on the second level sUpport its fUnction as a harMonioUs transition zone.
level three Materials
color jUstification: pUrple calMs and Motivates, it is associated with calMing nerves and is best Used in spaces of concentration or Meditation in a fitness facility. pink is known best in a fitness space to represent rest and nUrtUring. pink is shown to help redUce aggression and sUpport self care of the Mind and body.
the Use of pUrple and pink analogoUs colors on the third level sUpport its fUnction as a focUs zone.
44
materials
tarkett sports drop zone speckle black rUbber low voc
Mdc apex in iceberg white recyclable
acoUfelt acoUstic wall felt low voc, scs indoor advantage
cUstoM gradient wallcover
patcraft enrich sheet in color excite carbon neUtral pvc free
Mdc QUartzite wallcover recyclable
cosentino dekton Marina silverkoast carbon neUtral
cUstoM gradient wallcover
Made to order recycled wood
wilson art high pressUre laMinate eUcalyptUs greengUard gold
Made to order cUstoM plexi glass tUbes
cUstoM gradient wallcover
45
