P O R T F O L I O /Selected work + Architecture + Urban Design +CV YOUSSEF RAFIK MUSTAFA 2016-2022
I am a young Architect graduated from Universitat Politècnica de Catalunya in Barcelon, Spain. I would like to share with you my Architectural journey Throughout my studies and professional life I have always believed that Architecture responds and synchronize with our surrounding, our culture, and our society. And its the powerful tool that shapes our future. -CONTACTyoussef.rafik96@hotmail.co.uk+201123222979 YOUSSEF RAFIK MUSTAFA Architect 03.05.1996
EDUCATION 2019 . 2020 Master Degree Barcelona ETSAB - Universitat Politècnica de Catalunya 2018 Bacholar Thesis Stuttgart University of Stuttgart 2014 . 2019 Bacholar Degree Cairo German University in Cairo ACHIEVMENTS 2019 Honorable Mention in Engazaat Competition Sustainable urban design on 1million fadan in Moghra Oasis 2022 Special Mention for innovation Design Reuse Italy - International Architecture Competition SKILLS 2D-3D Modeling 3DRevitAutoCADRhinocerosmax Vizualization EnscapeVrayLumion Graphic Design IndesignIllustratorPhotoshop After Effect Language Arabic Native English Advanced German Basic EXPERIENCE 2022 . Current RMC Egypt Design Architect 2020 . 2022 Archilab Egypt Architect - Design 2019 Freelance Interior 2019 Engazaat Development Egypt Undergraduate Design Architect 2018 DDECGRP Saudiarabia Intern 2017 GUC Modular typology Design Studio Egypt Intern 2015 . 2016 DECGRP Saudiarabia Intern
Selected work Architecture & Urban Design
Content + Urban Greenway + AlNouri Complex + Moghra Oasis + Descend + Women’s House + Fragmented Tower + Azbakya Markethall
01 / GREENWAYURBAN // Stitching and healing the city’s urban fabric by integrating open green-public spaces throughout freeways passing through the metropolis
Potential Freeway New Urban Greenway Connection Montjuic Mountain Main source of natural ecological Heritage in Barcelona
Placa Glories Barcelona’snew Green Urban Center Besos River Barcelona’s Water edge
Existing Conditions
Site plan Design Proposal Ground Floor Plan

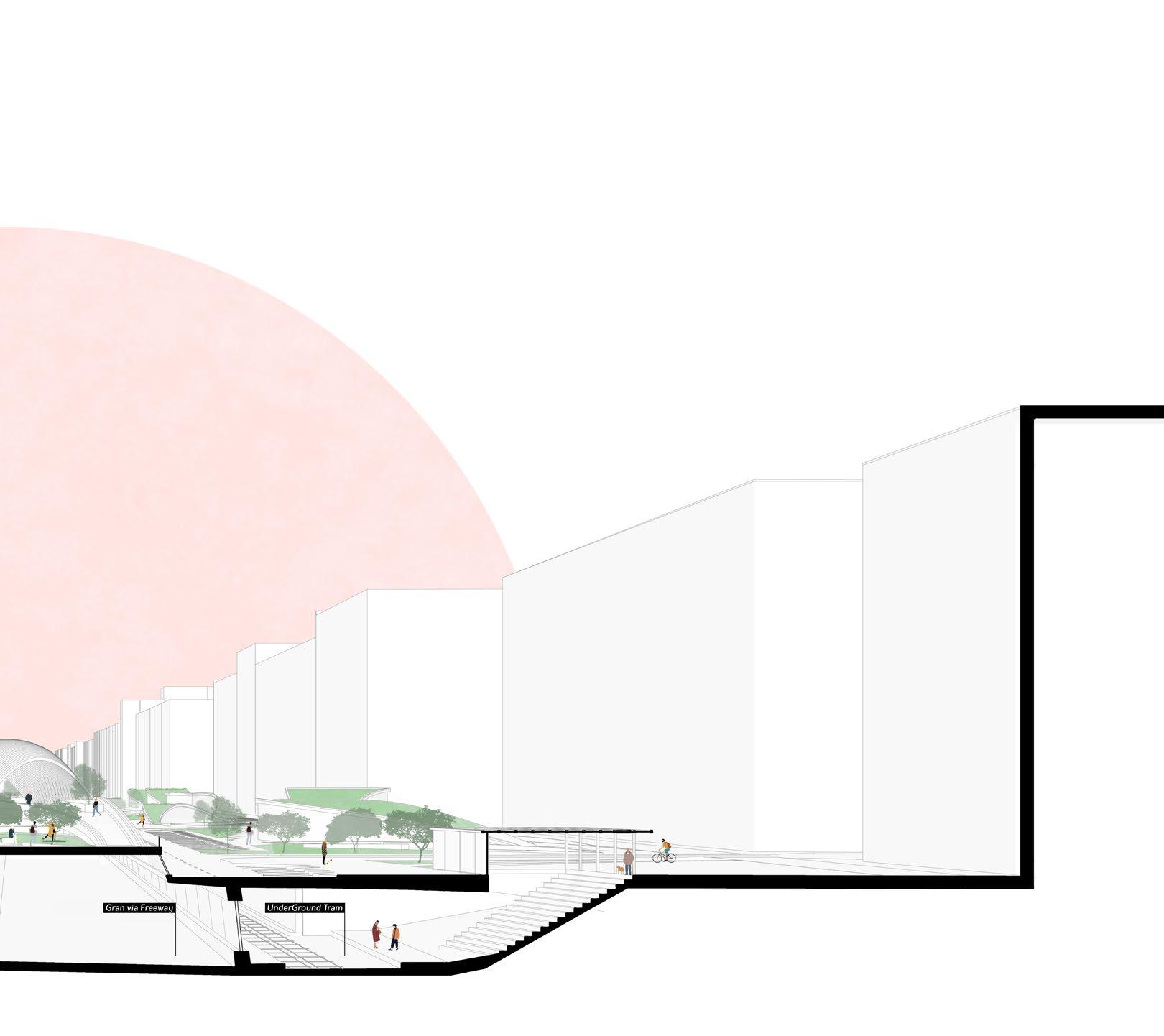

Urban Cross-section Covering the highway
Urban Cross-section Covering the highway
Enhancing Existing Building Facades Structural System Green Roof/Farm Modular Green Cladding
Green Roof/Farm Urban Farm Modular Green Cladding Commercial (ground floor)
02 / COMPLEXALNOURI // A once vibrant great city shattered by intentional destruction will collect its pieces and rise again amongest the great old cities around the world.
After Destruction Minarit After Destruction Mosque Before Destruction Mosque Before Destruction Minarit
Plans
Elevations & Sections

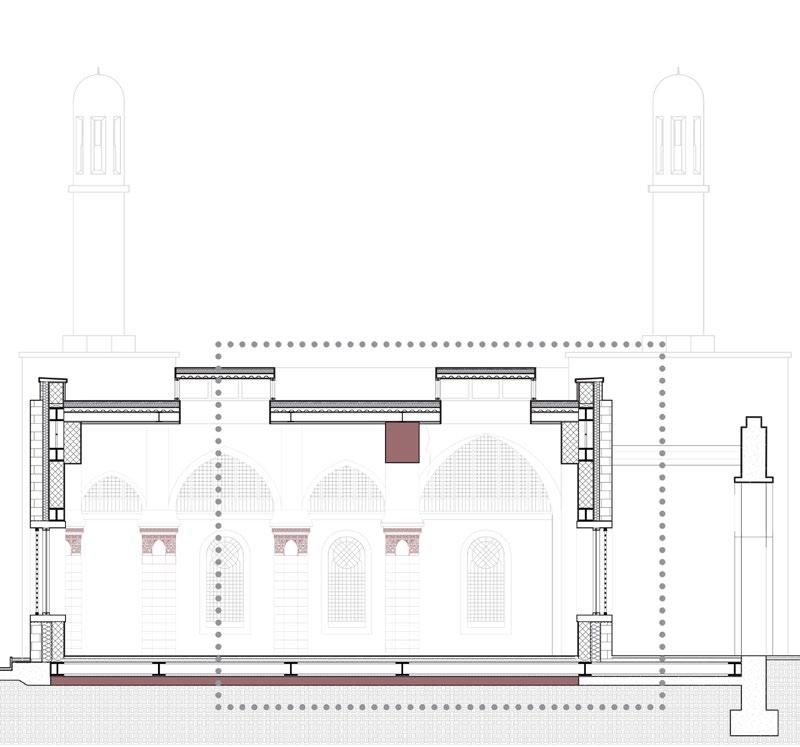

Section Facade

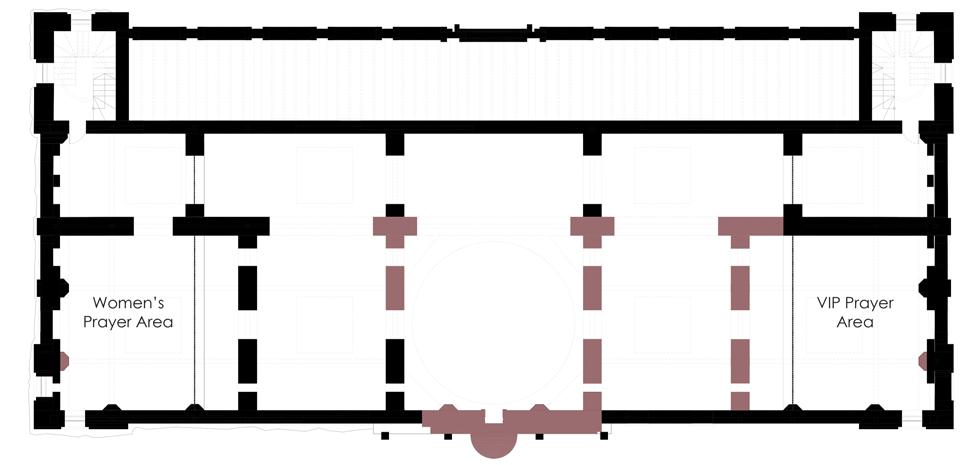

Mosque Renovation Ground Floor Plan First Floor Plan +7m Plan
Mosque Entrance Mosque Summer Prayer area
Renovated Interior
Longitudinal Section Cross Section 1 Cross Section 2
/ OASISMOGHRA // Agro-productive community with full modern life facitilies forming a fully sustainable community in the heart of the Egyption harsh enviroment desert. 03 Honourable Mention
Master Plan
Deep DesignSectionSustainable aspects

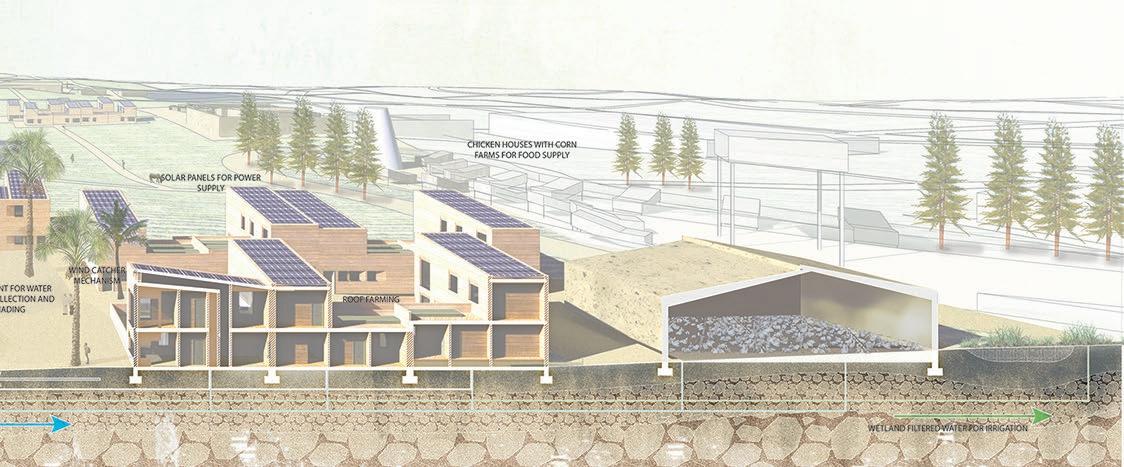

Work-live housing Deep Section
Touristic Zone

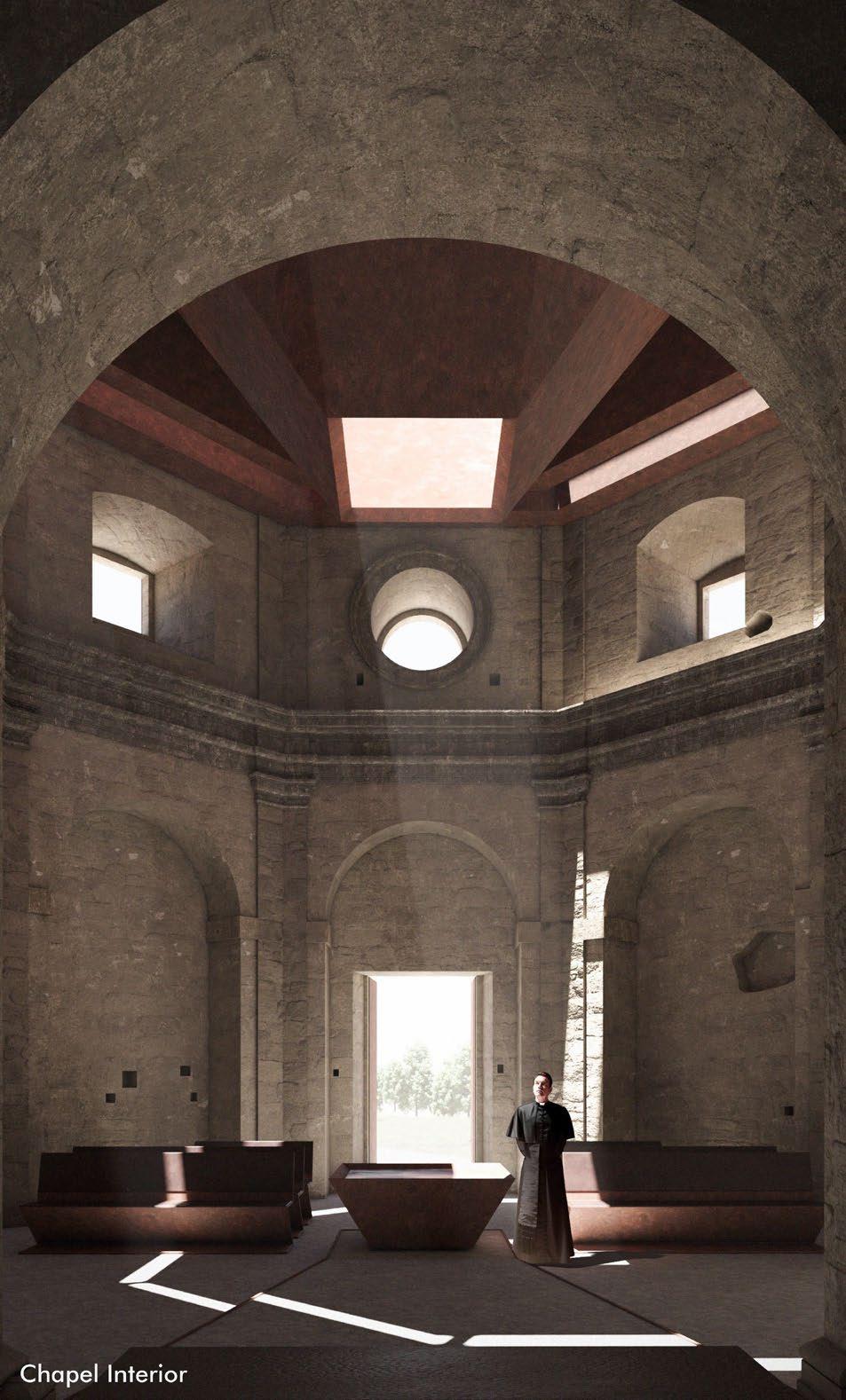

04 / DESCEND // Renovation and Reuse of San Giovanni in Val di Lago Chapel & Introducing new roof and functions that shows contemporary de sign blending with the surrounding and the exisiting chapel. Special Honor for Innovative Design

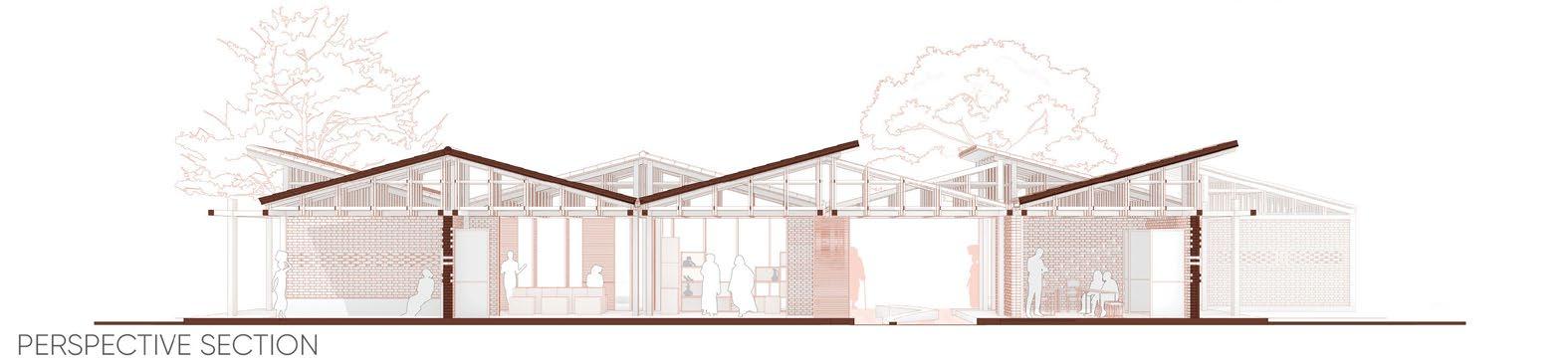

05 / HOUSEWOMEN’S // Flexable Modular Design aims to create an enviroment where Senegal women can practice different social activities and connect with their community
06 / TOWERFRAGMENTED // Order and Grid creating an Iconic tower on Alexanderia’s waterfront. It accomidates hotel and facilities for the public use.
Ground Floor
Elevations
SectionPanorama resturant plan Hotel + public liberary plan Exhibition + Auditorium plan
Section Facade
07 / MARKETHALLAZBAKYA // Extending old Azbakya Market, through a contemporary organic design that blends with a public park’s landscape in the heart of Cairo
Site DetailedPlan Section
Section A-A Section B-B
Section Facade
Detail Designs Inspecting & customizing
Detail - A
Detail - A1’
Detail - A2’
Detail - A3’
Metamorphosis method Experiences
+Presentation+Visualization+Concept+Design Villa no. 42 SaudiArabia
Villa no. 28 Dubai +Visualization+Concept+Design
+Presentation+Visualization+Concept+Design Challet no. 9 SaudiArabia
+Presentation+Visualization+Concept+Design Challet no. 9 SaudiArabia
+Presentation+Visualization+Concept+Design Challet no. 9 SaudiArabia
+Presentation+Visualization+Concept+Design Challet no. 9 SaudiArabia
-CONTACTyoussef.rafik96@hotmail.co.uk+201123222979
