the Case Study re-dux 2.0

Page 1

PROJECT

CLT ENGAGEMENT

EFFICIENCY

% of blank used

high- most (80% +)

moderate- some (65% +)

low- half (50%+ )

STRUCTURE

GOOD, BETTER, BEST

FINISH

amount of exposed clt

high- exterior exposure + moderate

integration of clt within the structure

high- single clt system

moderate- hybrid clt + another wood material

low- hybrid clt + another non-wood material

moderate- interior wall exposure + low low- interior elements (stair, doors, casework, furnitecture)

case study redux 2.0 spring 2023.
MANUAL

BEHAVIOR VERBS

each designer picks 2 verbs.

MAKING the act or process of forming, causing, doing, or coming into being

THINKING the action of using one’s mind to produce thoughts

RELAXING [relax] to make less tense or rigid exploring[explore] to investigate, study, or analyze: look into

HEALING [heal] to make free from injury or disease: to make sound or whole

MOVING

marked by or capable of movement

BEING the quality or state of having existence

GROWING increasing in size or amount

SEEING the quality of the images of celestial bodies observed telescopically

SPEAKING that speaks: capable of speech

VISITING

invited to join or attend an institution (such as a university) for a limited time

LISTENING [listen] to pay attention to sound

ADJUSTING [adjust] to bring to a more satisfactory state

FEELING

one of the basic physical senses of which the skin contains the chief end organs and of which the sensations of touch and temperature are characteristic: touch

SITE

OFF CENTER:

10-20 blocks from river, first residential neighborhoods of the city, nuclei of the community is typically a religious institution, neighborhood conforms to a master plan (grid), and neighborhoods form soft city boundaries.

OFF CORE:

20-35 blocks from river, industrial landscape near railways, neighborhoods impacted by highway construction, and urban infill lots, vacant, or undeveloped land.

OFF MAIN:

35-60 blocks from river, first city suburbs - villages established near cbd, annexed by the city within fifty years of being established, neighborhoods arranged along a main street, and an early business district, business diversity.

OFF RAMP:

60-100 blocks from river, near highway, highway market district, car oriented, and scattered neighborhoods.

OFF GRID:

grid spring 2023.

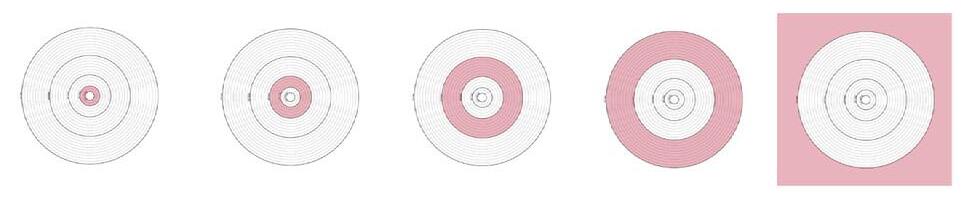

site diagram.

off center to off
100+ blocks from river, agricultural fields, lower population density, neighborhood islands, and plowed land and tree lines form boundaries. case study redux 2.0
1. off center. 1640 vine street cincinnati ohio 45202. 2. off core. 2021 vine street cincinnati ohio 45202. 3. off main. 404 mcclelland ave cincinnnati ohio 45217. 4. off ramp. 1003 mary lane cincinnati ohio 45215. 5. off grid. 320 cameron road springdale ohio 45246.

ONE singular occupants

FEW two to three inhabitants related to one another or those on similar life paths

MANY four or more inhabitants related to one another or those on similar life paths

MULTIPLE

a collection of groups with separate dynamics/ relationships

STEWARD
35
5. 4. 3. 2. 1.
