EMAG Geometry Set
Precision and safety for your machine
The perfect measuring solution for maximum machine performance
The EMAG Geometry Set features outstanding quality of the various components and excellent value for money. Its perfect selection of measuring instruments covers every requirement of your machine.

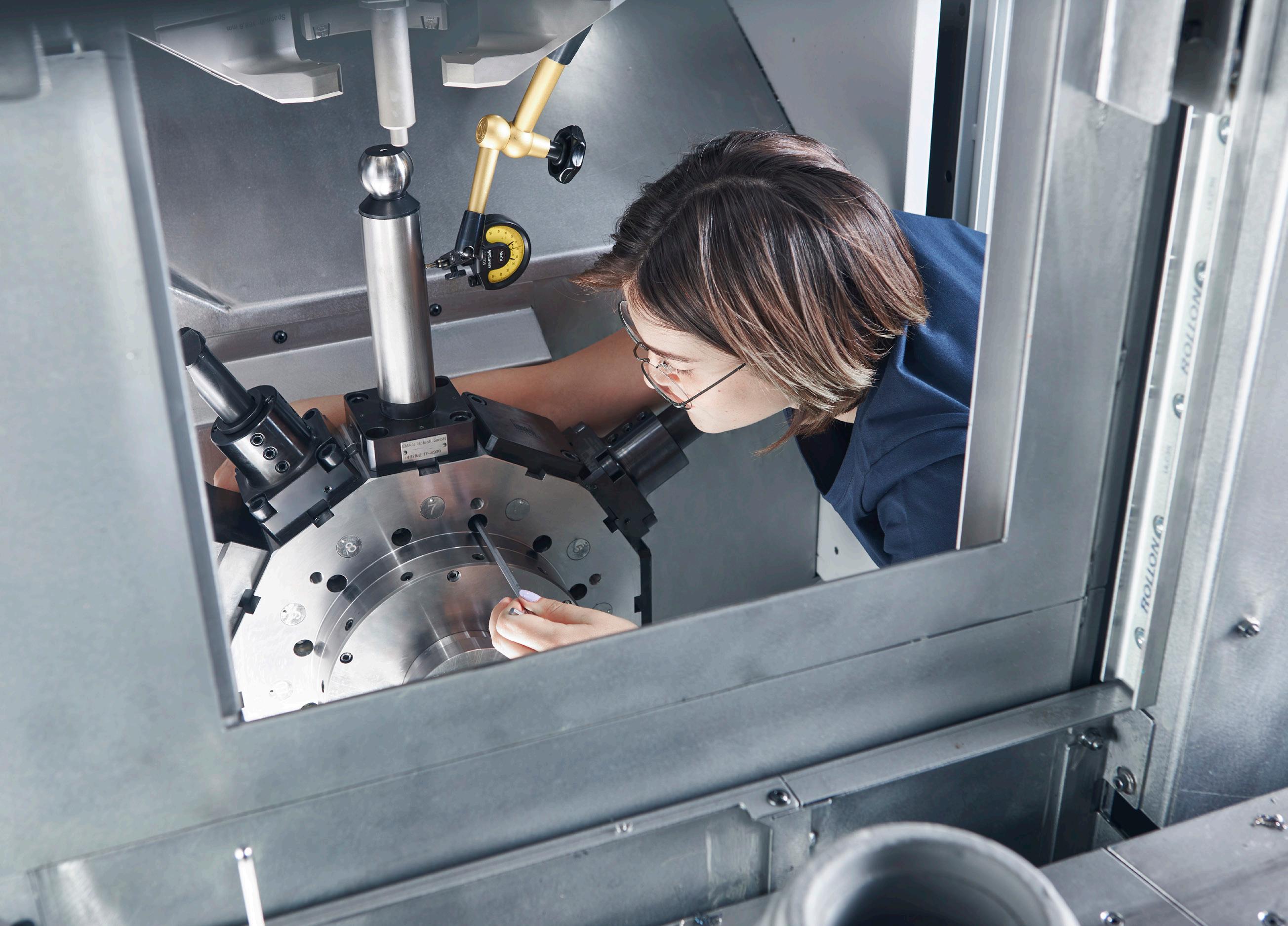

It enables you to check your machine and restore the tool carrier geometry easily and regularly. This ensures uniformly high machining quality and maximum machine availability.
In addition, using the EMAG Geometry Set will also save you some significant costs by enabling you to carry out regular checks, reducing production defects. It combines a whole series of benefits to deliver the best possible performance.
30 % cheaper than the total for the individual components
2
The Geometry Set reduces the amount of planning and work for service deployments, minimizes downtimes and maximizes the productivity of your EMAG machine.
Benefits
1. Higher machine availability through preventive measures to avoid component failures
2. Fast maintenance after tool breakages or collisions
3. All the required equipment readily available
4. Reduction of maintenance costs as geometry can be adjusted and checked either as part of preventive maintenance or without delay
5. The set price is 30% cheaper than the total for the individual components
6. Optional: training for proper use of the Geometry Set, provided by EMAG service specialists
3
Measuring instruments for BMT and special tools
There is a standardized Geometry Set available for BMT tool sockets on EMAG vertical turning machines. It includes measuring instruments for interface sizes 55, 65, 75 and optionally for Lifetool drive units.
Solutions are also available for special tools.
4
GEOMETRY SET AVAILABLE FOR HSK CAPTO
* Other interfaces available to order.
We recommend the appropriate EMAG Geometry Set as the perfect addition to your machine. The EMAG Service team is available at any time to assemble the perfect set to meet your requirements. Take advantage of this attractive offer to get the absolute maximum from your machine.
BMT Lifetool
VDI
5
EMAG Geometry Set: quality and precision in one package
The EMAG Geometry Set contains essential measuring instruments for your machine, supplemented by an efficient storage system. Highly sensitive measuring instruments safely stored in the supplied case are immediately ready for use and guarantee precise, direct measurements to rule out the possibility of geometry errors in the machine.
24/7 service
In addition to the Geometry Set, EMAG provides 24/7 service to ensure the maximum availability of your machine. If you have technical challenges or questions, the EMAG Support team can provide fast, reliable assistance. This minimizes downtimes and maximizes the productivity of your EMAG machine.
6
7
Contact EMAG After Sales & Service Phone: +49 7162 17-4300 E-mail: service.salach@emag.com
