Florida Fountain Reborn

The Florentine-style fountain at the Breakers Hotel and Spa in Palm Beach, FL, once again greets guests at the front of the hotel under dramatic lighting supplied by Acclaim Lighting.

Florida Fountain Reborn Acclaim Lighting provides dramatic nighttime lighting of an iconic fountain.

One of America’s most iconic fountains has been reborn. The demolition and replication of the 548-sq.-ft. Florentine-style fountain at the Breakers Hotel and Spa in Palm Beach, FL, once again greets guests at the front of the hotel under dramatic lighting supplied by Acclaim Lighting, Thomson, GA.

The fountain’s magnificent, Italian Renaissance design and breathtaking setting give the Breakers its exotic appeal. The main fountain at the Breakers was built during construction of the current hotel in 1926. It was inspired by a fountain located at the entrance to the Boboli Gardens on the Pitti Palace grounds in Florence, Italy. The fountain was created from designs by Italian sculptor Leo Lentelli.

The cast-stone fountain consists of a central sculptural feature of four nymphs supporting two tiers of basins, spindles, and a finial within an octagonal pool. There are eight putti holding either alligators or herons alternating around the basin atop the corners of the pool copings. The pool is raised within a stepped plaza that is centrally sited at the terminus of the main drive just west of the hotel entrance.

Unfortunately, over time, the ocean’s salt air caused significant damage to the fountain’s underlying metal structure. Cracks and pieces of the fountain fell off, including some of the arms of the putti and nymphs. As the underlying metal structure declined, it caused a failure of the cast stone itself.

BEAUTY RESTORED Recently, the existing materials were preserved or replicated, as needed, according to the conservation requirements for a landmark historic site. The fountain’s operability also had to meet current building code and industry standards.

The opportunity to reconstruct the fountain also provided the opportunity to use new materials that waterproof the cast stone and rebar. The project included removing and rebuilding the steps and two bordering benches. The cost to bring the fountain back to life was estimated at $1.2 million.

Focus Lighting, based in New York City, had the monumental task of returning the fountain to its glory days under the night sky. The architectural lighting design firm carefully analyzed the fountain to properly enhance and accentuate its architectural beauty with light.

One of the contractors involved in the revitalization of the seaside resort since 1992, Weitz Co., with offices in Florida, hired Kuhns Engineering Corp., Jupiter, FL, to implement the conceptual lighting scheme. David Lithgow, president of Kuhns, said, “Our main criteria was finding a high-quality lighting system that could deliver precise colors and perform for many years in the very corrosive salt-air environment.”

Kuhns selected Lighting Dynamics Inc., Tamarac, FL, to provide lighting products and controls that met the criteria. Tony Plonner, founding principal of Lighting Dynamics, recommended Dyna Flood QW, Flex Tube SE, and DMX controls from Acclaim Lighting.

ACCENTUATING CRAFTSMANSHIP Dyna Flood QW, a high-powered quad-color LED fl ood unit that supplies precisely matched colors in outdoor settings, was strategically placed around the fountain to highlight its architecture. Using Acclaim’s quad-color technology, Dyna Flood QW has an RGB+white color recipe. Because quad-color technology mixes the colors under the lens, unlike traditional technology, the fl ood delivers more precise color matching, as well as improved aesthetics where the fi xture itself is visible. In addition, each model features an auto-switching, multi-voltage power supply, and an on-board touch-sensitive menu that allows the color scheme to be changed.

“The Breakers is able to makes seasonal lighting changes without diminishing the architectural beauty of the fountain. For instance, lighting colors are changed for Breast Cancer Awareness, Autism Awareness, St. Patrick’s Day, Christmas, and other holidays,” said Lithgow. “The lighting system is controlled with a DMX-512 for color and dimming options.”

The Dyna Flood QW features brightness of 1,579 lumens at a 20-deg. beam angle, delivering efficacy of 26.3 lumens/W. Consuming 60 W, the units are warranted for five yr. and retain 70% of brightness at 50,000 hr.

For lighting around the benches, Flex Tube SE, a side-emitting, outdoor-rated, flexible LED tube in multiple color temperatures, was specified. It provides a 160- deg. beam angle while operating off of 24 VDC and consumes only 3.3 W/ft. Flex Tube is available in color temperatures of 2,700, 3,000, 3,500, and 4,000 K in red, green, blue, and RGB. IP68-rated and submersible to 3 ft., Flex Tube SE features a UV-coated, saltwater-resistant, flexible silicone jacket that can bend to a diameter as small as 4.8 in. Several mounting channels allowed installers to discretely install tubes under and around the benches.

The lighting system was installed from June to late November 2015. According to Lithgow, the lighting fixtures go through a rigorous salt-bath test daily at the seaside resort. Lithgow said, “We were impressed with the construction and performance of the lighting. More important, the guests at the Breakers are enjoying one of America’s most beautiful fountains during the day and at night.” CA

Want more information? The resources below are linked on our website at commercialarchitecturemagazine.com and our digital magazine at commercialarchitecturemagazine.com/ digital/apr2016.

Circle 8 on the Reader Service Card.

Learn the history of the fountain.

Download a specifi cation sheet on the Dyna Flood QW.

Download a specifi cation sheet on Flex Tube.

EDITORS’ CHOICE

LED portfolio

Contractor-series LEDs:

Lighting solutions rated to 11,000 hr. Fit a variety of sockets Instant-on lighting

Contractor-series LED portfolio includes lighting solutions rated to 11,000 hr. for a variety of sockets. A19 LEDs replace 40- and 60-W traditional lamps and use 6- and 8 1/2-W respectively. Providing instant-on lighting, they are available in 2,700 and 5,000 K. Also included in the series are 75- and 100-W replacements and solutions for track lighting such as R20 (dimmable), MR16, PAR30, and RT5/6 LED recessed downlight kits.

Osram Sylvania, Danvers, MA Circle 81 osramamericas.com

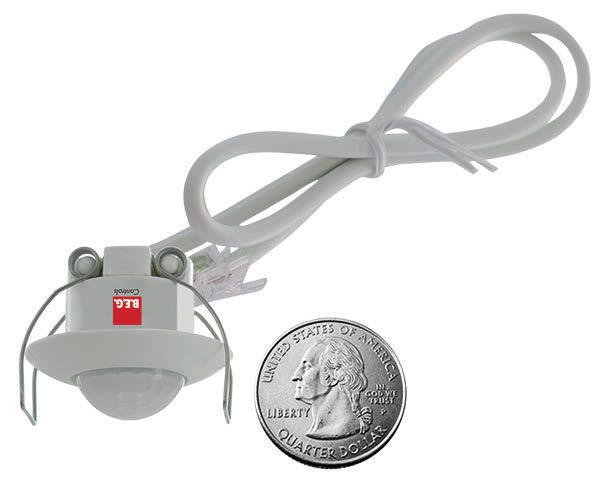

Lighting control Mini sensors are about the size of a quarter. The ceiling-mount sensors are said to offer superior PIR detection and provide a wider range of coverage than a full-sized sensor. Mounted at a ceiling height of 8 ft., coverage is 32 ft. Programmed for occupancy or vacancy mode, settings can be remotely adjusted. The sensors are indoor/outdoor rated.

B.E.G. Controls, Peachtree City, GA Circle 82 begcontrols.com

Vanity light Balance LED 3-light vanity light in brushed nickel has an acrylic lens. Wall or ceiling mounted, in vertical or horizontal orientation, it provides 90+ CRI.

Progress Lighting, Greenville, SC Circle 83 progresslighting.com

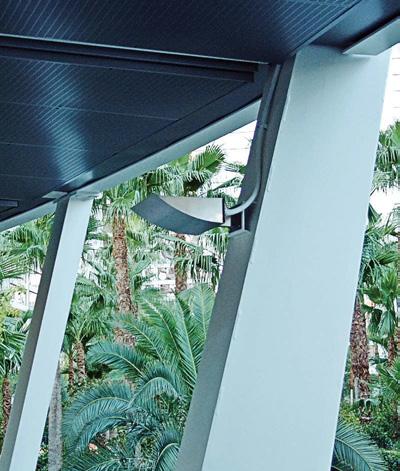

Slender LED luminaire L-Form slender LED luminaire delivers continuous runs of illumination in narrow suspended or surface-mounted interior applications. With a 4-ft. profile that measures 2 1/2-in. deep x 4-in. wide, the fixture is a replacement for fluorescent luminaires and is available in 22- and 44-W versions that deliver as much as 4,000 lumens.

MaxLite, West Caldwell, NJ Circle 84 maxlite.com

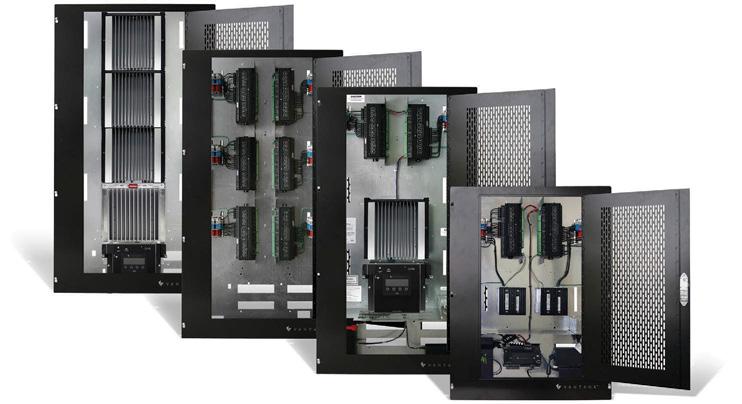

Lighting-control platform LCAP series lighting-control and automation panel, an architectural dimming and integration platform, is a combined project of WattStopper and Vantage Controls. The platform provides precise dimming and energy conservation with a range of applications including schools, offices, hotels, and restaurants. Products in the series include lighting-control panels and a range of interfaces. The platform integrates with a DLM system and with A/V, shades, climate, and other systems.

Legrand, Santa Clara, CA Circle 85 legrand.us

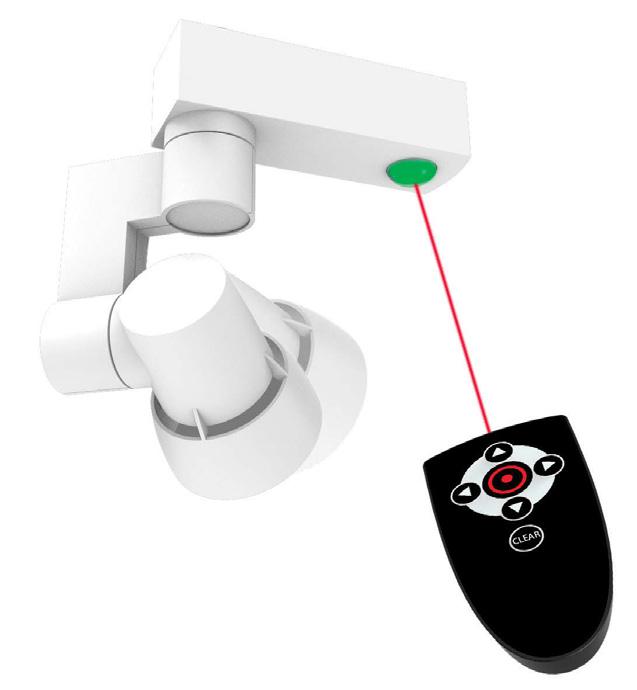

Small, motorized fi xture Tessa motorized light fi xture is a small luminaire that is adjustable using a remote control. One remote controls any number of fi xtures. Smart phones and special apps are not needed and there is no additional equipment or setup. Fixtures can be installed in traditional fashion. The fi xture is compatible with most popular track systems and uses an MR16 lamp with GU10 socket.

Loto Lighting, Somerville, MA Circle 88 lotolighting.com

LED bulb TW-series PAR30 LED bulb delivers bright, focused light. Energy Star certifi ed and available in 25-deg. spot or 40-deg. fl ood beam angles, applications include accent lighting in track and recessed fi xtures.

Cree Inc., Durham, NC Circle 86 cree.com

LED, HID bollard CLXB bollard is available with LED or HID lamp sources and a range of optics, including internal louver, prismatic glass, and opal acrylic. The extruded-aluminum housing has a minimum wall thickness of 1/8 in. Top cap and vertical-support fl anges are made of cast aluminum. The fi xture is 42-in. high x 16-in. wide and available in a variety of vanishes.

Sun Valley Lighting, Palmdale, CA Circle 87 usaltg.com

Indirect LED Butterfl y Wall LED luminaire provides forward-throw indirect wall and ceiling illumination with backlighting. Mounted with side brackets or a fl ush-mounted rear bracket, the fi xture is available in two models: 12-in. square x 4 1/2-in. deep and 18-in. square x 7-in. deep. Both have curving sides that taper to the front edge. Rated for wet locations, dimming and battery-backup options are available.

Orgatech, Azusa, CA Circle 90 orgatechomegalux.com

LED downlights Graffi ti line of LED downlights provides AmbientDim capabilities. Offering 14-W fi xtures in fi xed or adjustable models in square or round trims, the luminaires are available in Ambient Dim models with a 96 CRI or standard models with a 90 CRI. Available with or without fl anges, the fi xtures tilt as much as 40 deg. and extend to 360 deg.

Specialty Lighting Industries Inc., Ocean, NJ Circle 89 specialtylightingindustries.com
