Roof Meets Demanding Curves

University building requires roof that conforms to curves, resists wind, and saves energy.

Sometimes life throws you curveballs. Other times it just throws you curves. That was the case when Berwald Roofing and Sheet Metal Inc., St. Paul, MN, installed a roof on the Univ. of Minnesota Science Teaching and Student Services building in Minneapolis. The new building, which overlooks the Mississippi River, is shaped like a half circle, and features an eyebrow roof on top of a curved lower roof.

“This building had multiple curves and multiple angles and was visible from several areas on campus,” remarked Leigh Rolfshus, senior project architect at HGA Architects and Engineers of Minneapolis. “There wasn’t a square corner on the entire roof,” added Steve Hegge, senior project manager for Berwald Roofing.

FINDING A GOOD FIT Specifying a roof system that could conform to the curves and be aesthetically pleasing was important—but it was just part of

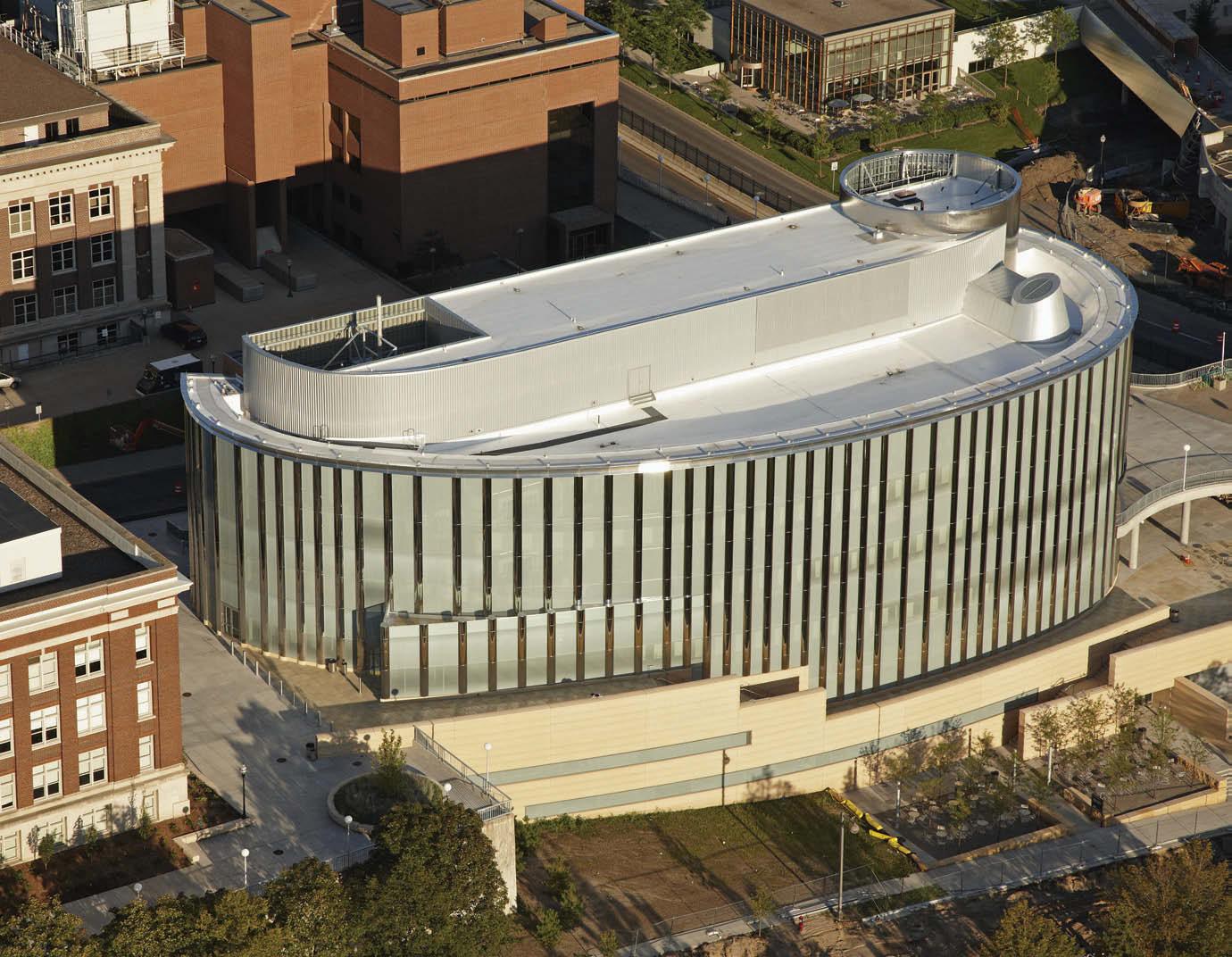

The Univ. of Minnesota Science Teaching and Student Services Building in Minneapolis overlooks the Mississippi River, is shaped like a half circle, and features an “eyebrow” roof on top of a curved lower roof.

Above. The roof was completed on time and just two days before the weather turned wintry—with 8 in. of snow and temperatures in the single digits.

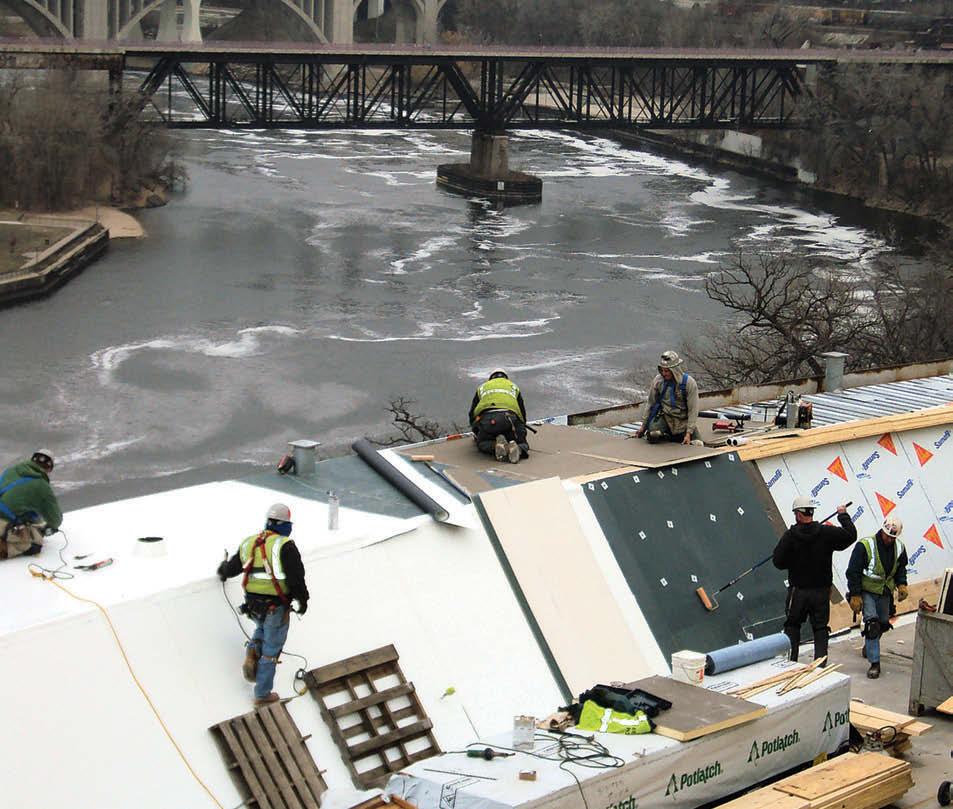

Right. The biggest challenge was working with the eyebrow roof. This portion of the roof sloped up from the main roof 7 ft. below and had a 16/12 pitch, with a curved and elevated eyebrow 6 ft. across—with no parapet wall.

the equation. The roof also had to be energy efficient so that the building could qualify for LEED certification, and it had to meet the FM 1-28 wind rating to ensure it could withstand the steady winds coming off the Mississippi River.

Originally a TPO (thermoplastic olefin) roof was considered, but the university has a stipulation in their construction standards for a 20-year roofing warranty, and, “we realized TPO has not been on the market that long,” said Chuck McNabney, construction manager at Hines of Minneapolis, the owner’s representative for the project. During a meeting between Berwald Roofing, Hines, and HGA, it was decided that a PVC system was a better choice. “We felt that the heat-welding process used to create seams is better and more consistent with a PVC roof than with a TPO,” Hegge explained.

Once the decision was made to go with a PVC system, it was quickly agreed that a Sika Sarnafil, Canton, MA, roofing system was the PVC system of choice. “As a former Sika Sarnafil installer I have experience and understanding of the system and know that Sika Sarnafil stands behind their installations,” McNabney stated. “Plus, we felt the system would lend itself well to the configuration of the building and the nature of the application.”

The Sika Sarnafil roof has a light-colored, reflective surface to reduce air-conditioning costs and can be designed to meet FM 1-28 wind ratings. “We used a lowVOC adhesive, which also helped towards meeting the LEED requirements,” Hegge pointed out.

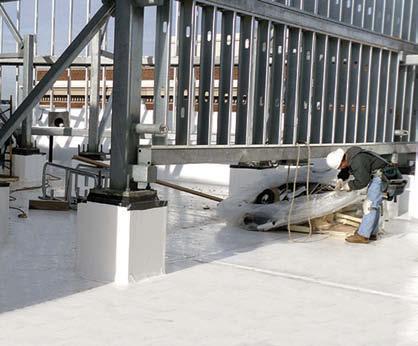

COMPLICATIONS SURROUND INSTALLATION As might be expected, the roof ’s unusual configuration posed many installation challenges. “Although the roof is only 21,000 sq. ft., the various roof levels required over 100 flashings—many of which were hand-welded—and 66 penetrations,” Hegge said. “We also had to tie the roof into an outside curtain wall, which wasn’t easy in the cold weather.”

Fortunately, a company representative was available to help with the detailing work. “The Sika Sarnafil representative was very helpful and approved the details for warranty as we went around the building,” Hegge said. “The superintendent loved having him on the job.”

Another issue was staging. “There was no room to store anything on the ground, so everything had to be stored on the roof,” Hegge said. “This included not only the roofing materials, but materials for the other trades as well.”

Perhaps the biggest challenge was working with the eyebrow roof. “This portion of the roof sloped up from the main roof 7 ft. below and had a 16/12 pitch, with a curved and elevated eyebrow 6 ft. across—with no parapet wall,” Hegge explained. “We needed to cut material in a pie shape to meet the radius of the wall and use 37 field-wrapped davit flashings.”

All of this was done 110 ft. above the ground. Obviously safety was a concern. “We had to have the crew totally tied off to work on half of the roof, with no parapet walls and no curtain wall in that area,” Hegge stated. “We also had to secure the crew against wind gusts created when the wind came down the Mississippi River.”

As if those challenges weren’t enough, Berwald Roofing was also in a race against time to get the roof installed before winter hit. “It was a big challenge to get the roof weather-tight before winter settled in,” McNabney stated. “Because of construction delays, they couldn’t begin installation until October, which was unseasonably wet and cold. As a result Berwald had to play ‘catch up’ in November and work weekends and Thanksgiving.”

Thanks to the quick and dedicated work, the roof was completed on time and just two days before the weather turned wintry—with 8 in. of snow and temperatures in the single digits.

“This was a very complicated installation with all the different shapes and forms and the difficult time of year,” Rolfshus stated. “Berwald did a very conscientious job, and we had a very high comfort level with them. They did very good work.”

ROOF IN FINE FORM “We needed a roof that would look great and perform to our expectations,” Rolfshus stated. “Given the shapes and complexities, the Sika Sarnafi l roof was the right solution. It could be applied at all different angles and gives a nice, clean appearance.” CBP

DATA CACHE

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/jun2014.

Circle 5 on the Reader Service Card.

Download Sika Sarnafi l roofi ng membrane product data sheets at http://usa.sarnafi l.sika.com/downloads/ submittal/product-data/sheets/ roofi ng-waterproofi ng/product-data- sheet-roofi ng-waterproofi ng.aspx

INTRODUCING GUARDIAN SUNGUARD SNX 51/23

SunGuard SNX 51/23 from Guardian is a glass industry  rst — the  rst product on the market with visible light above 50% and a solar heat gain coef cient below 0.25. Along with low re ectivity and a neutral blue color, it represents a breakthrough combination of light, appearance and solar control that meets increasingly strict energy codes. For complete performance data — and other ways to Build With Light — visit SunGuardGlass.com. Or call 1-866-GuardSG (482-7374).

SEE US AT AIA BOOTH #1013

EDITORS’ CHOICE

Cavity wall products

Enverge cavity wall products:

• Improve thermal performance • Prevent thermal bridging • Insulation, air/vapor barrier, fl ashing

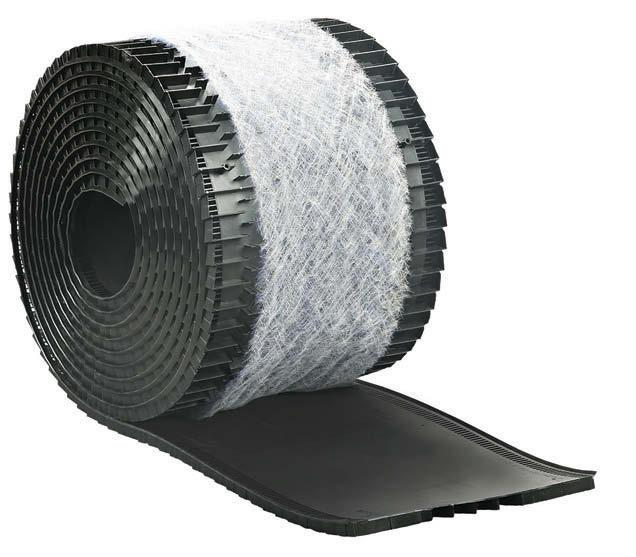

Ventilation products Roofi ng ventilation products include a ridge vent, rolled ridge vent, and intake vent. Part of the Integrity roof system, the ridge vents are made of high-quality co-polymer with reinforced ribs. The ridge vent is available in 7, 9, and 12-in. sizes, either fi ltered or unfi ltered. The rolled ridge vent is designed for roof pitches from 3/12 to 12/12. The intake vent installs on a shingled roof with or without overhangs.

CertainTeed, Valley Forge, PA

Circle 59

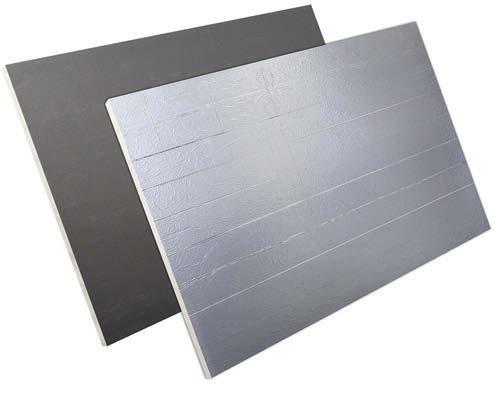

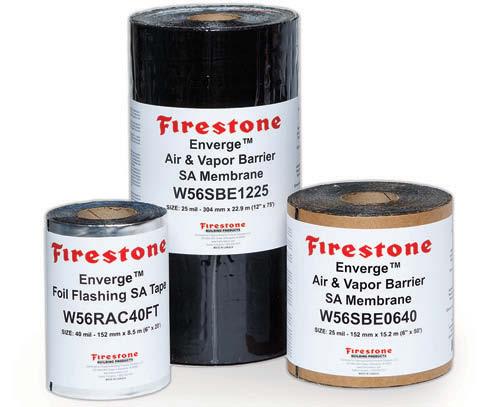

Enverge cavity wall products include continuous insulation available in two facer options, coated fi berglass mat and aluminum foil; air and vapor barrier; and through-wall fl ashing.  e products work together to improve thermal performance and prevent thermal bridging.  e insulation meets ASTM E84 and is said to allow energy-code compliance for every climate zone.  e product uses inorganic facers and closed-cell technology and is formaldehyde free.  e air and vapor barrier is self-sealing around mechanical fasteners, has a 90-day construction exposure, and a temperature application range to –14 F. FlashGard through-wall fl ashing provides UV resistance, puncture and tear resistance, and is available in standard membrane or self adhered confi gurations.

Firestone Building Products Co., Indianapolis

DATA CACHE

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/jun2014.

Circle 58 on the Reader Service Card.

Download information on Enverge exterior wall insulation.

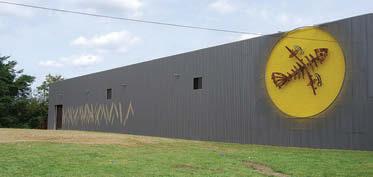

Download information on FlashGard fl ashing. Cladding, metal profi les The company manufactures perforated and profi le wire panels and assists in the development of a total-solution system for fabricating and installing the products. Services and products include a variety of metals and fi nishes, corrugated cladding, custom painting, a wide range of perforated patterns, and laser and water cutting for unique designs and shapes.

Hendrick Architectural Products, Carbondale, PA Circle 60

Fiberglass decking

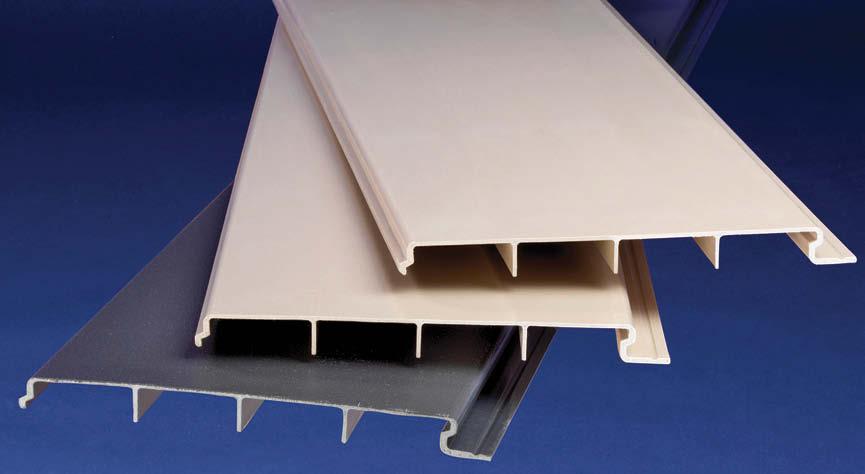

Strongdek fi berglass decking system is a low-maintenance product said to not rot, rust, chip, or mildew. The 12-in.-wide fi ber-reinforced polymer (FRP) panels interlock to become a continuous, solid walking surface when installed with hidden screwlike fasteners.

Strongwell, Bristol, VA Circle 62

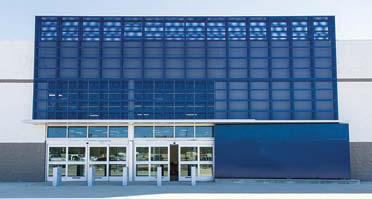

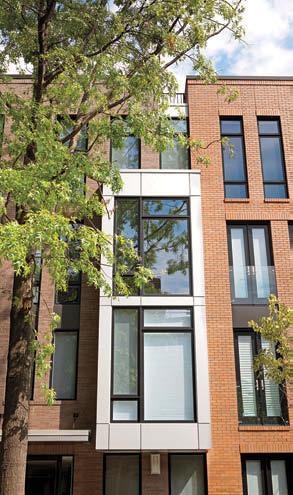

Aluminum composite panels The company’s ACM aluminum composite-material wall panels are available for applications including a rainscreen system, wet-joint system, dry-gasket joint system, and continuous edge-grab system. Panels are available in a variety of standard and custom colors, all in a Kynar 500 PVDF resin-based coating.

Englert Inc., Perth Amboy, NJ Circle 61

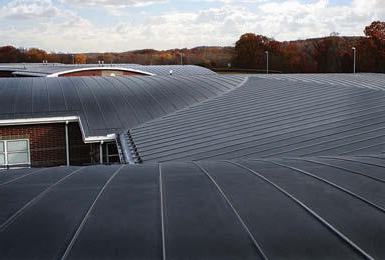

Simulated metal roofing FiberTite simulated metal roofing provides the look of metal with thermoplastic welded seams. The membrane consists of four layers for long-term protection.

Seaman Corp., Wooster, OH Circle 63

THERE’S MORE ON OUR WEBSITE You can find more Exteriors products on our website. Go to cbpmagazine.com

WE KNOW EDUCATIONAL LIGHTING

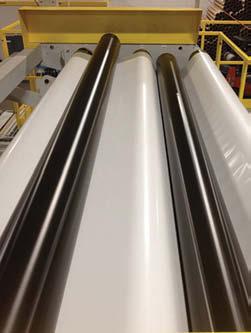

Membrane backing Sure-Flex KEE and FleeceBack KEE membranes contain Elvaloy KEE HP high-performance, hi-molecular-weight resin modifier. The material is said to provide improved aesthetics, enhanced thermal performance, a wide window of weldability, and cold-temperature flexibility.

Carlisle SynTec Systems, Carlisle, PA Circle 64

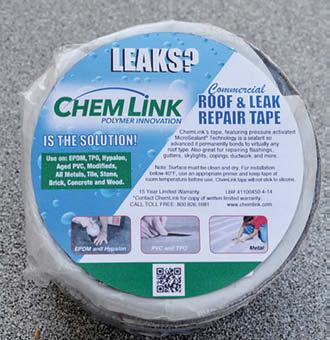

Roof-repair tapes Roof-repair tapes use pressure-activated MicroSealant technology, said to permanently bond to almost any roof type. RoofSeal is a basic repair tape. WebSeal holds coatings and sealers. DoubleStick is for use between two surfaces, including dissimilar materials. Tapes can also be used to repair flashings, gutters, skylights, copings, and ductwork.

Chem Link Inc., Schoolcraft, MI Circle 65

High-performance, energy efficient interior and exterior illumination with LED and fluorescent, including specialty lighting for: • Distance Learning • Video Conferencing • Exterior Low Level • White Boards

Floodlights and Displays Factory assistance is always available!

Find our products at www.elplighting.com or call us at 626.579.0943

Unleash your inner hero.

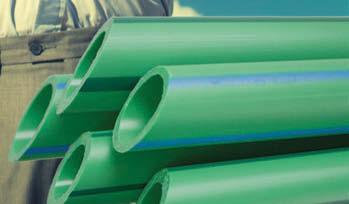

What if your piping systems were invulnerable to corrosion and pinhole leaks? Or if your connections were faster and more reliable than anyone thought possible? And what if your systems helped save time, money, and the planet? With Aquatherm, you can do all that and more.

So visit us at Aquatherm.com/savetheday and find out about the best sidekick you’ll ever have.

aquatherm

801.805.6657 www.aquatherm.com

CIRCLE 221

Brick • Permeable Pavers • Asphalt Block • Garden and Landscape Walls ® Pavers • Roof and Plaza Pavers • Prest ® Prest

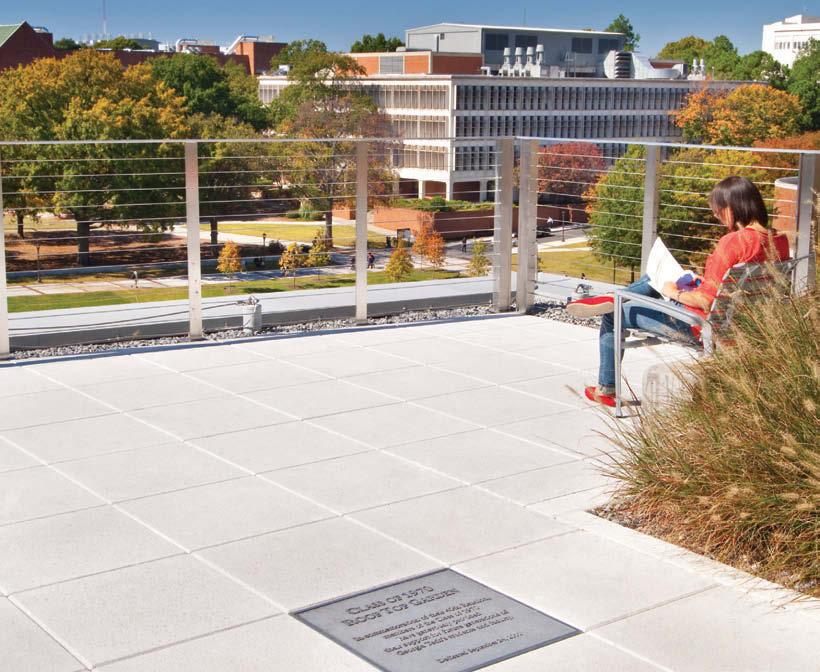

Georgia Technical University, G. Wayne Clough Undergraduate Learning Commons, Atlanta, GA

Hanover ® Roof & Plaza Pavers

Hanover ® Roof and Plaza Pavers create aesthetically appealing rooftops and plaza gardens while providing environmental benefits.

Wall fi nish Stolit Milano is a fi ne, workable fi nish for interior or exterior wall surfaces. The water-based acrylic fi nish is breathable, mildew resistant, and can be top coated for additional surface protection. It can be custom tinted to a wide selection of colors and is ready mixed.

Sto Corp., Atlanta Circle 66

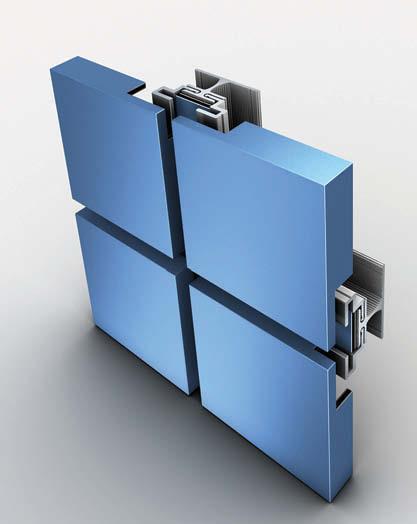

Extra-bend technology Estolga 3000 is a dry seal, open v-joint system with snap-in silicone gasket for metal wall systems. The watertight system, used with the Estolga panel system, is said to allow faster installation and, with no exposed fasteners, provides a clean, fi nished appearance. Using extra-bend technology, the panel system is reported to withstand wind pressure to 180 mph.

Allied Metal Inc., North Bergen, NJ Circle 67

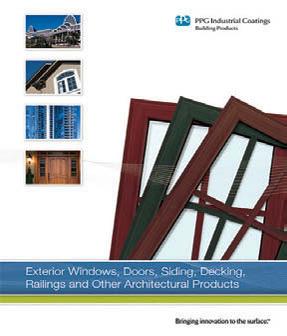

Coatings brochure A 6-page brochure details a range of extrusion coatings for exterior building products. The coatings protect and enhance products made from wood, PVC, vinyl, wood, aluminum, fi berglass, and composite materials. Solvent- and water-based coatings are described, including Flexacron, Aquacron, and Duranar.

PPG Industries, Pittsburgh Circle 68

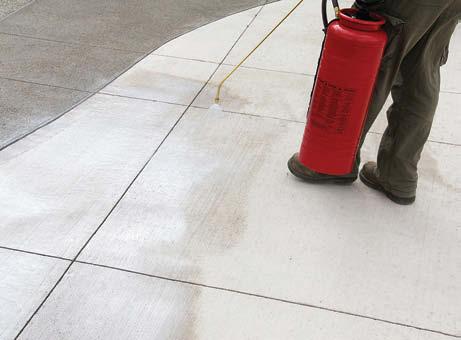

Concrete sealing Intraguard water-based, penetrating concrete-sealing compound uses a blend of silane and siloxane to limit the intrusion of moisture and chlorides into concrete surfaces. The product’s clear sealing properties are said to weatherproof and protect virtually all exterior concrete surfaces. Treated surfaces are also resistant to staining from oils, fuels, and common chemicals.

W.R. Meadows Inc., Hampshire, IL Circle 69

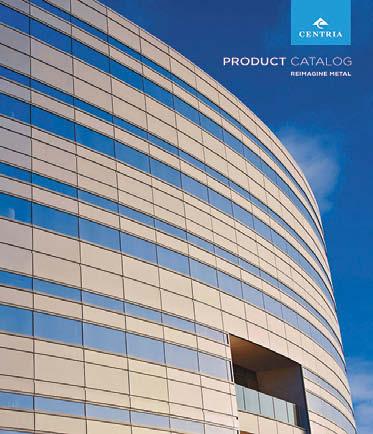

Product catalog An updated product catalog includes information on the Formawall Graphix series insulated metal wall-panel system with directional reveals and the Profi le Series Cascade metal-panel wall system. The catalog also includes recent projects and reviews of a wide array of product fi nishes and coatings.

Centria, Moon Township, PA Circle 70

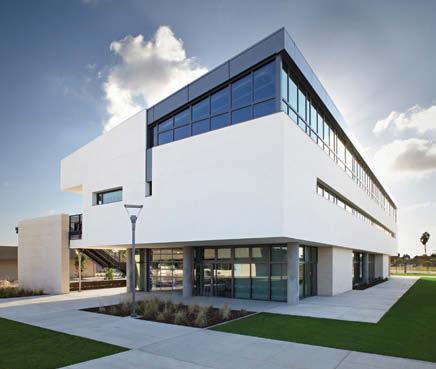

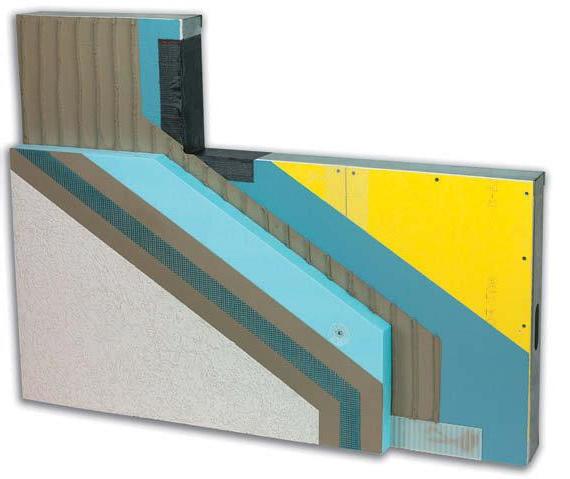

Rigid insulation Outsulation X cladding system is said to provide 39% greater energy effi ciency and 36% better impact resistance, compared with similar EPSbased systems, and uses 2-in. of Dow Xnergy rigid insulation. The insulation provides the code-required continuous insulation layer and moderates the wall-cavity temperature.
