Feds Upgrade Denver Digs

State-of-the-art security solution and LEED designation renew federal offi ce building.

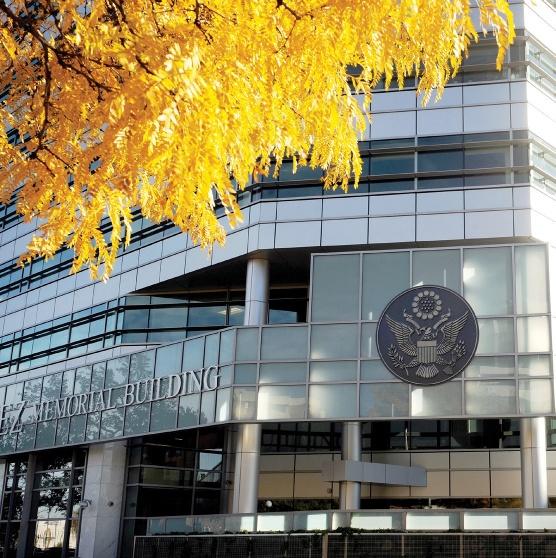

Top. The César E. Chávez Memorial Building is a ten-story, 180,000-sq.- ft. facility that is home to seven federal agencies and acts as a gateway to Denver’s Civic and Justice Center.

Above. Camera improvements allow a security team to control and monitor the entire building from one secure location.

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/mar2015.

Circle 4 on the Reader Service Card.

Visit the i-PRO series product page.

Download the Panasonic Video Surveillance Reference Guide.

Download the Panasonic Video Surveillance Catalog. T he extensive renovation of the César E. Chávez Memorial Building, Denver, effectively transformed it into a state-of-the-art, high-performing green facility and earned the property a Leadership in Energy and Environmental Design (LEED) Gold certifi cation.

The sustainable design strategies secured the building a 75-yr. lifespan, made use of locally available materials and recycled steel, and projected a 32% reduction in water use and a 30% reduction in energy costs. In addition to building improvements and sustainable-design strategies, a key priority of the renovation was a complete overhaul of the building’s existing security and surveillance system.

The building is a ten-story, 180,000-sq.-ft. facility that is home to seven federal agencies and acts as a gateway to Denver’s Civic and Justice Center—the largest saturation of federal buildings outside of Washington. The federal agencies in residence provide a variety of services to city, county, state, and national communities, supporting more than 400 employees and nearly 100 visitors each day. Originally constructed in 1984, the building was due for architectural and security renovations to better accommodate and protect employees and visitors.

A security systems officer with the Federal Protective Service (FPS), a federal law enforcement agency that provides integrated security and law-enforcement services to federally owned and leased buildings, facilities, and properties, commissioned the work. His primary goal was replacing the existing, aging analog system with a new, IP-based surveillance system to better protect the people, building, and property, and provide more advanced perimeter surveillance around the exterior of the building. While analog security systems are quite effective, it was decided that a building of this size would be better served with an IP-based surveillance system, eliminating the existence of additional cords and wiring and creating easier viewing of live feeds from all cameras in one central location.

Steve Didier of Didier Denver was brought in to complete the security overhaul. Didier Denver’s portfolio includes the installation of the Postal Inspectors’ camera system that has been implemented in Post Offices throughout Colorado, the Denver Bronco’s stadium, Red Rocks Amphitheatre, and other projects with the FPS.

To achieve the security goals set forth by the FPS, Didier designed and installed a complete security and surveillance solution from Panasonic, Secaucus, NJ, including a network of 46 indoor and outdoor i-PRO HD 720p security cameras. The fixed-dome i-PRO cameras capture more frames/sec. with a wider range than the previous analog cameras. The cameras also feature day and night modes, face detection, auto back focus, fog and high-light compensation, and high-profile streams for simultaneous real-time monitoring.

To maximize the cameras’ capabilities, Didier also installed four i-PRO NV200 SmartHD network disk recorders in the command-and-control room, where the video from the HD cameras is channeled, displayed in real time on four 47-in. monitors, and stored for playback when necessary and for archiving purposes. The network disk recorders use real-time face-matching technology and can simultaneously display live images from as many as 16 cameras, allowing all cameras to be monitored at the same time in the command center.

Due to these improvements, the command center allows easy access for a limited security team to control and monitor the entire building from one secure location. The system’s flexible design enabled the team to leverage existing power lines to reduce installation costs, and the housings were specifically chosen to ensure cameras could be taken out of their enclosures quickly and easily for any necessary adjustments or repairs.

“Because the system was end-to-end Panasonic, it made things easy for us because everything just works together seamlessly and is easy to deploy,” said Didier.

The security-systems officer with FPS and the local security team at the César E. Chávez Memorial Building were pleased with the results. Since the system deployed, it has brought reliability and consistency, delivering clear HD images of the interior and exterior of the building with no equipment failures or other issues.

The security solution created a reliable system that delivers complete coverage and recording for the entire building. The integrated network runs smoothly and efficiently to supply full visual access and secure video storage. CBP

Data-analysis software The company’s Intelligent Equipment platform uses Internet of Things (IoT) technology. Developed in collaboration with Intel and Wind River, the technology allows building owners to reportedly harness large volumes of data for analysis, moving the industry toward intelligent building systems that intuitively know what building occupants need in terms of comfort, service, and effi ciency.

Daikin Applied, Minneapolis Circle 71

Security cameras Enhancements to the Sarix Professional Range IP camera include edge storage, increased compatibility, and versatile camera options. Features include ONVIF profi le G compliance, Lenel integration, and additional mounts and options. Edge storage ensures storage of video, audio, and metadata to an SD card directly in the camera for uninterrupted monitoring if the connection to the VMS is lost. Smoked domes are also available.

Pelco by Schneider Electric, Clovis, CA Circle 72

Uninterruptible power system An enhanced model 93PM UPS is said to provide 50 kW of internal redundancy at full load. The unit provides effi ciency to 99% through the company’s EES energy saver system mode and 97% in double-conversion mode. With a compact physical footprint, the system reportedly delivers true modular redundancy, negating the need to purchase a second model for paralleled reliability in most applications. With thermal-management options that accommodate in-row, wall, or aisle installations, the unit is said to be easy to confi gure and deploy with line and match accessory cabinets that have a wide range of distribution options.

Eaton, Raleigh, NC Circle 73

EDITORS’ CHOICE

Propane generator

Ecopower cogeneration system:

Uses propane generator 90% electric and thermal effi ciency Emits less CO 2 than traditional power plant

 e ecopower micro cogeneration system (microCHP) uses a propane generator.  e unit produces as much as 4.7 kW with as much as 90% total electric and thermal e ciency. It reportedly serves as a reliable heating and electricity source in locations compromised by the absence of gas mains and reliable power grids.  e system is said to emit signi cantly less carbon dioxide than a traditional power plant. Waste heat is recovered through the system and recycled.  e unit is said to be no louder than a refrigerator. Applications include schools, daycare centers, and hotels.

Marathon Engine Systems, East Troy, WI Circle 70
