T8 LEDs Cut School Costs

Precise directional lighting, offered by the Precise directional lighting, offered LED luminaires, ensures the surrounding by the LED luminaires, ensures the dark sky and neighboring areas are pro surrounding dark sky and neighboring tected, while delivering the exact lighting areas are protected, while delivering levels necessary to light the way. the exact lighting levels necessary to light the way.

In busy downtown Coeur D’Alene, McEuen Park’s sprawling green space overlooks Coeur D’Alene Lake.

LEDs Infuse New Light Into Park The newest and largest park in Coeur D’Alene, ID, is transformed with lighting design.

In busy downtown Coeur D’Alene, ID, McEuen Park’s sprawling green space overlooks the beautiful Coeur D’Alene Lake. Once obscured by a public parking lot, the view has been transformed. Utilitarian asphalt was replaced by a picturesque plaza offering an unparalleled lookout across the waterfront. And that’s not all that has changed.

Only a few short years ago, the city’s parks-and-recreation department set about redesigning the large, underused green space in the city’s center, which hosted a baseball diamond and little else. Their mission was to transform the area into a user- and tourist-friendly hub that would breathe new life into the landscape and unite people of all ages and abilities looking to play, relax, and enjoy a peaceful respite.

Their mission was a success. In May of 2014, the new

McEuen Park was officially unveiled to the public. Boasting 20 acres of land, the park features impressive amenities such as a playground; an environmentally and safety-conscious Splashpad with water features; basketball, tennis, and pickleball courts; a Veteran’s memorial; the Avista Grand Pavilion with room for 200 guests; the Grand Plaza; and a waterfront Rotary Harbour House with concessions and washrooms for park guests. The park also hosts an underground parking lot for 430 vehicles, a boat launch, mooring facilities, and a section of the 60-mile Centennial Trail that runs through its middle.

Challenged to conserve as much of the natural environment as possible during the redevelopment, McEuen Park planners were dedicated to staying true to the Park’s historic roots. A four-acre grassy area, off-leash dog area, and three osprey-nest towers overlooking the park ensure the area reflects its natural purpose. Additionally, by conserving 40% of the park’s mature trees and adding 80 new ones, McEuen Park maintains its lush vegetation while securing green space for decades to come.

Effectively lighting a park of this scale was an essential component. Contracted to help with the lighting redesign, Coeur D’Alene’s Trindera Engineering aimed to define the park’s key spaces while maintaining respect for its neighbors. The firm set about lighting the space with light levels and aesthetics that were appropriate to the surroundings and that increased night visibility, improved safety, and minimized energy use and costs while also eliminating light trespass and glare.

“We were inspired by full-cutoff LED lighting that would protect the dark sky and deliver adjustable lighting levels that would reduce light trespass,” explained Barbara Barker, principal at Trindera Engineering.

Trindera partnered with lighting manufacturer, Luminis, Pointe Claire, Quebec, Canada, to create a lighting scheme that highlights the park’s amenities, as well as its walkways and the Avista Grand Plaza. Chosen for its LED light fixtures, Luminis not only provided durable and sus

tainable luminaires, the company was also able to customize its aluminum lighting poles with powder-coated wood grain to match the surrounding landscape.

“We chose Luminis because of the characteristics of the light fixtures and the aesthetics they provided,” said Barker. “The LED luminaires are not only environmentally friendly, they also look beautiful.”

Trindera opted to use Luminis’ MayaLED series luminaires because of their artfully blended aesthetics, optical performance, and energy efficiency. The fixtures combine sleek design with consistent lighting performance expected to last more than 80,000 hr., according to the manufacturer.

Suited for site and area lighting applications such as parks, campuses, urban, and commercial developments, the luminaires combine an engineered optical design with the ability to focus light exactly on the areas to be lit. Clear, tempered glass encloses individual LED lenses to protect their optical characteristics from environmental degradation, while additional electric controls actively monitor the LEDs to deliver consistent lighting performance, despite variations in LED temperature. As a result, MayaLEDs offer energy savings in colder months and protect the system from degradation in extremely hot ambient temperatures.

In addition, precise directional lighting offered by the luminaires ensures the surrounding dark sky and neighboring areas are protected, while delivering the exact lighting levels necessary to light the way.

With these benefits in mind, Trindera Engineering organized the installation of 130 MayaLED MA14SH luminaires within the parking lot, down the Grand Plaza, and along the roadways. Additionally, along the walkways, wood-finished aluminum pole luminaires are optimally spaced for uniform lighting to illuminate paths safely and efficiently for pedestrians, cyclists, and drivers. Echoing the surrounding natural environment, the luminaires have proven to be a perfect fit for the park’s green space.

Public response to the newly redesigned park has exceeded expectations. More than 1,000 people attended McEuen Park’s dedication, and the park has been heavily used ever since, making it a very worthwhile endeavor for

the city. Residents and visitors alike now have a welcoming and vibrant natural space to play, relax, and take in the

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/jun2015.

Circle 6 on the Reader Service Card.

Learn more about MayaLED exterior luminaires.

Download Luminis product spec sheets.

Read about Trindera Engineering.

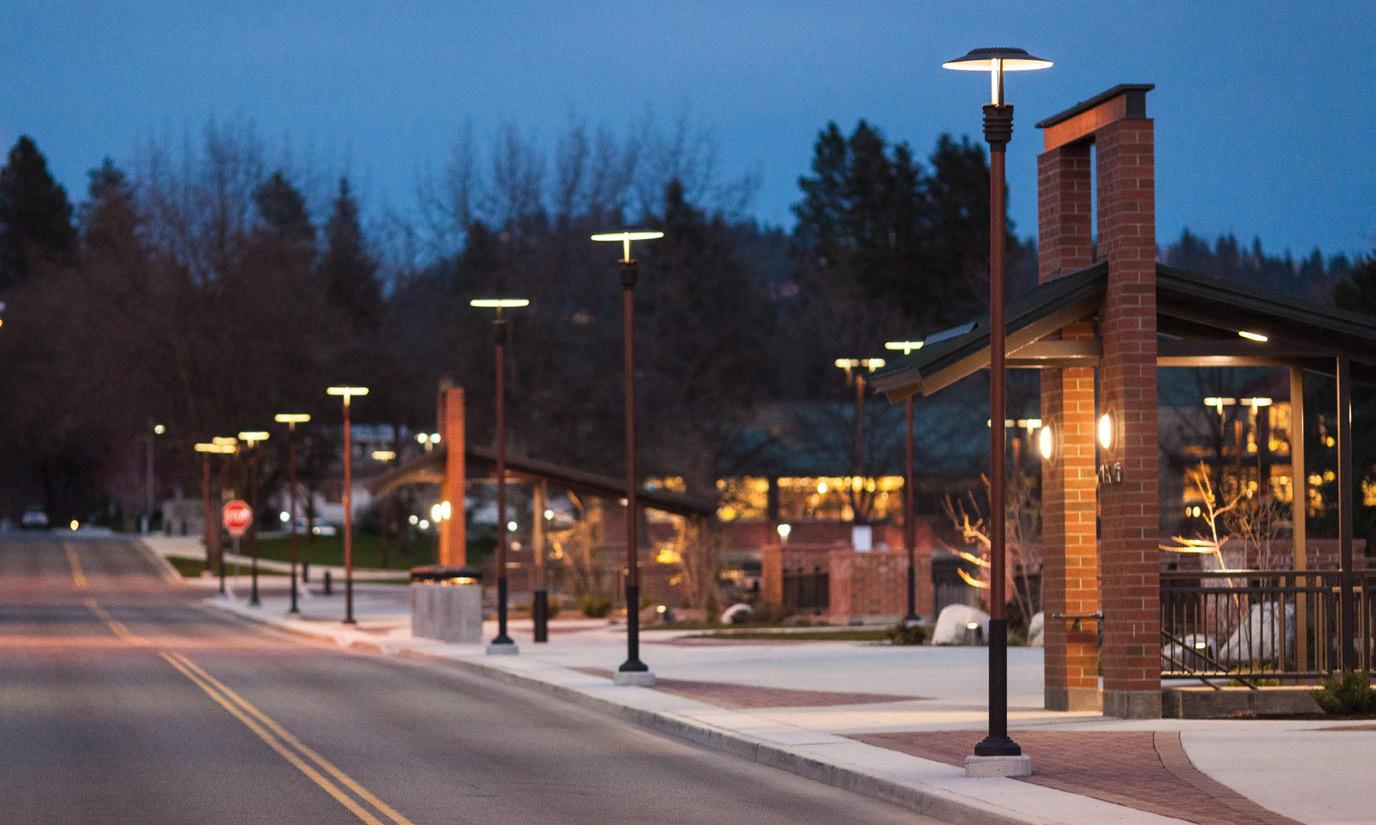

Along the walkways, wood-fi nished aluminum pole luminaires are optimally spaced for uniform lighting.

beauty of Coeur D’Alene. CBP

WE KNOW EDUCATIONAL LIGHTING

High-performance, energy efficient interior and exterior illumination with LED and fluorescent, including specialty lighting for: • Distance Learning • Video Conferencing • Exterior Low Level • White Boards

Floodlights and Displays Factory assistance is always available!

Find our products at www.elplighting.com or call us at 626.579.0943

Right. The lighting change to LEDs provides cool, crisp, white light to enhance classroom-learning environments while providing energy effi ciency and lower operating costs.

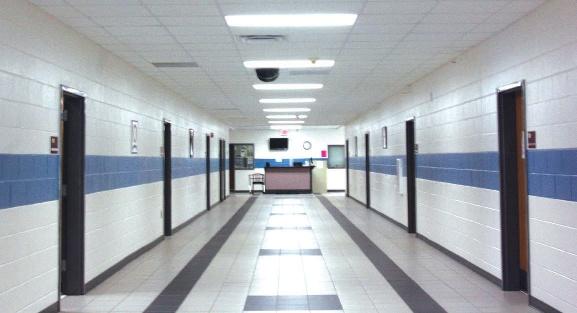

Below. The LEDs provide consistent light coverage in all classrooms, offi ces, work areas, and hallways.

T8 LEDs Cut School Costs A Georgia school system graduates to better lighting, saving energy and money.

About 25 miles north of Atlanta, Forsyth County is experiencing change unlike any other place in Georgia. Until a few years ago, it was just another friendly Southern community with a well-established way of life. Then, the explosive growth of the Atlanta suburbs caught up with Forsyth, and now 200,000 people call it home and the median income is the highest in the state.

Rapid growth brings with it a variety of challenges, including the local school system. From a handful of schools in the ’80s, there are now 45,000 students in 35 schools with three new high schools under construction. To keep rising costs under control, county administrators challenged their service departments to find ways to conserve and reduce operating and maintenance costs. The electrical team responded.

“Our goal is to get under $1 a square foot for electricity in all our buildings,” said Wayne Caston, lead electrician for Forsyth County. “As we got closer to that goal, it became clear that new lighting technology was a major opportunity for us. We have been monitoring the performance and cost of LED lighting products for years, and when the opportunity to work with Forest Lighting [Atlanta] presented itself, we jumped at the chance to retrofit our first building.”

Forsyth’s Academy for Creative Education building had more than 400 lensed troffers with T8 fluorescent lamps. In just a few days, Wayne’s team completed the change-out to Forest Lighting’s T8 LED linear lamps. “We got the hang of it quickly, and the installation went smoothly,” said Bo Weldy, Forsyth school electrician. “I could see right away that the LED lighting was better: cool, crisp, and white. It’s a good product.”

“Usually teachers and students complain when we change the lighting,” Caston continued. “But that was not the case this time. In fact, one teacher told me the lighting was now ‘normal.’ I liked that. My team and I are proud that the kids have an improved place to learn.”

Stan Redd, another school electrician was also involved in the installation. “This project is a success. The Forest LEDs provide great light with great color. We now have consistent light coverage in all classrooms, offices, work areas, and hallways. If the opportunity presented itself, I would look forward to working with Forest Lighting again on retrofits and our new buildings as well.”

Engineers, designers, contractors, and facility managers understand that lighting is typically 30% to 40% of a building’s electricity cost. Modern LED lighting technology is well suited to replace existing fluorescent, halogen, and low-voltage lamps in retrofit and new construction applications to reduce operating expense.

T8 LED linear tubes are now commonly available and are a typical choice for schools, offices, and public buildings. They offer all of the advantages of LED technology

including long life (often more than 50,000 hr.), low maintenance, and a variety of color temperatures to match any environment. In retrofit projects, specifiers now have the option of selecting T8 LED linear products that can be installed with or without replacing the existing ballast. Make sure to consult a certified lighting engineer, qualified electrician, or a manufacturer before making a decision on the best method to retrofit LEDs into installed fluorescent lighting troffers.

Matt Russell, sales manager for Forest Lighting, spearheaded the project. “My family and I have lived in Forsyth County for generations, and I’m pleased that my company has improved the quality of the school facilities and provided a great environment for the kids. As one of the largest LED manufacturing companies in the world with installations in dozens of countries, I’m proud to see these products hard at work right here at home.” CBP

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/jun2015.

Circle 10 on the Reader Service Card.

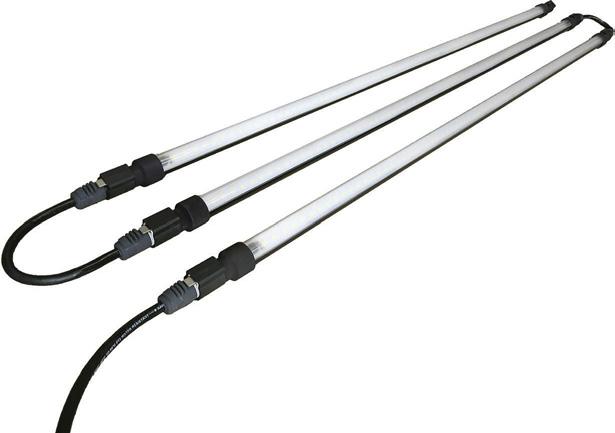

Download information on the T8 LED linear lamp.

Outdoor LED ArcheType X series outdoor LED luminaires are available in fl ood, wall, or site/area models. The line includes the LEAR (light engine adjustable ready) module that allows the fi xture to be confi gured to any standard or custom distribution. Optics features 355-deg. rotation with 70-deg. module tilt independent of the luminaire. Lumen packages range from 10,500 to 30,000.

Kim Lighting, City of Industry, CA Circle 66 kimlighting.com

Ceiling, wall mount Helm LED collection is available in three sizes and brushed nickel or antique bronze fi nishes. The luminaires have a replaceable LED source and a 90+ CRI. Dimmable fi xtures can be installed as standalone pieces or in clusters of two or more. Helm can be ceiling or wall mounted.

Progress Lighting, Greenville, SC Circle 69 progresslighting.com

Large-venue LEDs Sequence LED line is available in three color temperatures from 3,000 to 4,000 K, 0 to 10-V dimmable, and RGB. Suited for large-venue applications such as lobbies, atriums, and auditoriums, the luminaires provide white light while maintaining a uniformly illuminated body.

Visa Lighting, Milwaukee Circle 67 visalighting.com

LED track fi xture The O3 LED track fi xture is available in horizontal and vertical housing models in 20, 29, 36, or 42 W. Beam spreads include spot, medium, or fl ood. Dimming to 1% is standard.

ConTech Lighting, Northbrook, IL Circle 68 contechlighting.com

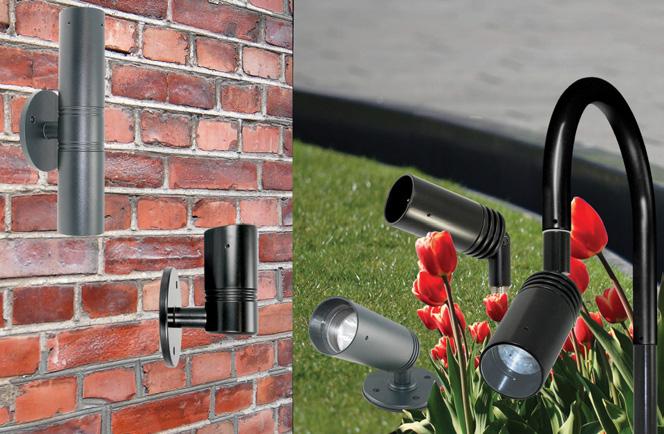

Landscape luminaires LED Bullet and LED ALV line low-voltage luminaires are part of the Landscape collection. Products have multiple distribution patterns, a variety of shield designs for uplight and downlight light control, and a range of color temperatures, sizes, and mounting options.

LSI Industries, Cincinnati Circle 70 lsi-industries.com

EDITORS’ CHOICE

E xterior LED floodlight floodlight

Rubicon:

Exterior LED fl oodlight Multiple lumen packages 5-yr. limited warranty

Rubicon is an exterior LED  oodlight bullet that has a 120/277 V input. Available in two luminaire sizes and power options, the  xture o ers multiple lumen packages to 2,000 lumens and is available in four  nishes. Features include multiple mounting options, accessory options, quarter-turn locking cap for quick accessory installation,  eld-changeable optics, 120-V ELV/TRIAC dimming, and two-step MacAdam binning. Rugged, die-cast 6061-aluminum construction includes a dual-layer powder coat that is UV stabilized.  e luminaire has a 5-yr. limited warranty.

Intense Lighting Inc., Anaheim, CA Circle 65 intenselighting.com

Sometimes moving forward starts with eliminating steps. noraplan ® nTx is a revolutionary new selfadhesive flooring advancement that dramatically reduces labor costs and cuts installation time in half.

Talk to us at www.nora.com/us/ntx34

nor3047-01nTx-QP-cbpD1.indd 1

THYBAR ON TOP!

CIRCLE 211

2/9/15 9:27 AM

Filter Curbs

Need a pitched, insulated Filter Curb for your rooftop? Advanced laser technology allows Thybar to offer quality curbs with the tightest tolerances available. Each Filter Curb has all welded construction and is shipped to the site in one piece if trucking permits. Options include; a built-in roof pitch, extra height, and a pressure treated wood nailer. Order direct at: www.thybar.com.

thybar CORPORATION

www.thybar.com info@thybar.com fax: 630-543-5309 Illinois 800-666-CURB Ohio 800-837-CURB Texas 800-777-CURB Kentucky 800-993-CURB Nevada 866-917-CURB LED troffers A line of LED troffers for a wide range of recessed-lighting applications is available in 2 x 2 and 2 x 4-ft. models. Options include 24 and 40 W, 2,400 and 4,000 lumens, and color temperatures from 3,000 to 5,000 K. Troffers are dimmable, said to be easy to install, and have no sharp edges or corners.

Forest Lighting, Atlanta Circle 71 forestlighting.com

Low-profi le, LED roadway fi xture Razar G is a low-profi le LED fi xture for roadways and public areas. Featuring a Luxeon 120 LED module providing 400 W and a 36,000 lumen package, the fi xture measures 35 1/2-in.-long x 15-in.-wide x 7-in.-deep. The optical housing is only 2 1/2-in. deep. Other sizes are available. All models are available in a wide range of distribution patterns.

U. S. Architectural Lighting, Palmdale, CA Circle 72 usaltg.com

LED luminaire LN series interior LED luminaire uses WaveMax technology. The suspended ambient fi xture combines indirect/direct optical control and reported exceptional effi cacy. The modular design allows increased spacing between luminaires. WaveMax provides control, uniformity, and effi ciency said to deliver a superior visual experience.

Cree Inc., Durham, NC Circle 73 cree.com

Slim luminaire With a 1-in. dia., Lightplane 1 Round is a sleek and slim luminaire said to virtually disappear into the architectural environment. Available in suspended and wall models, the fi xture has a fi eld-adjustable light channel that rotates 350 deg. to provide direct, indirect, wall-wash, or other variable-directional distribution. Powered by a remote driver, the luminaire is available with ambient- and decorative-use LED packages and can be specifi ed in section lengths of 1 to 5 ft.

Architectural Lighting Works, Hayward, CA Circle 74 alwusa.com

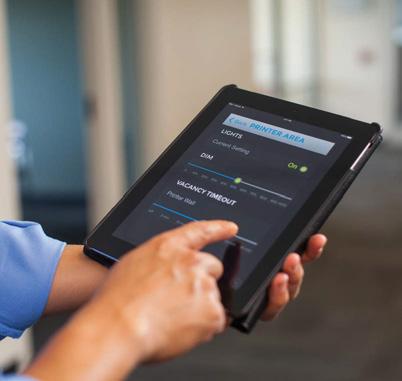

Wireless management Audacy wireless energy-management system provides control using a mobile app over multi-building lighting systems. The system automatically senses and adjusts ambient light, movement, and room occupancy. Integrating with existing building-automation systems, web or mobile control provides custom control of individual fi xtures. The system installs into existing light fi xtures.

Ideal Industries Inc., Sycamore, IL Circle 75 idealindustries.com

FROM DORM ROOM TO CLASSROOM

Wet locations, harsh environment lighting WPX series wet location LED luminaires include push-and-click IP68 connectors and cabling for reported easy installation in any environment. The series needs no hardwiring. The product is NSF certifi ed for use in food processing and storage environments.

G&G LED, Albany, NY Circle 76 ggled.net

Customized lighting Infi nite Color+ LED products combine high-performance white light with every color in the spectrum. From pale pastel pinks to super-saturated seafoam greens to crisp whites, custom lighting possibilities are reportedly endless. The system provides tunable white light from 1,800 K to 12,000 K+, as well as light that is full of saturated colors, light pastels, and subtle hues. The lighting uses an industry standard DMX512 control system.

USAI Lighting, New Windsor, NY Circle 77 usailighting.com

TURN TO MAXXON FOR BEST IN CLASS FLOOR SOLUTIONS

For renovation or new construction on college campuses, Maxxon offers a complete line of underlayments, sound control mats and moisture mitigation products:

• Used for fire ratings, floor leveling and sound control • Gypsum Underlayments • Level-Right Self-Leveling

Underlayments

• Acousti-Mat Sound Control Systems • Moisture Vapor Barriers • More than 100 UL Fire Rated Designs • Documented sound tests over a variety of assemblies • May help contribute toward points for LEED ® project certification

Learn more:

800-356-7887 info@maxxon.com www.Maxxon.com

© 2015 Maxxon ® Corporation, all rights reserved.

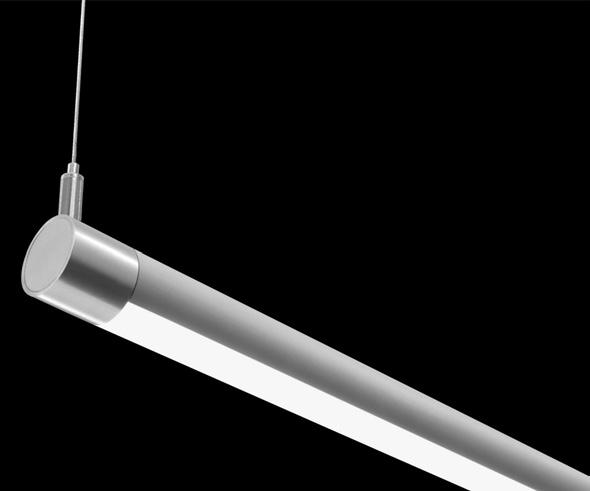

LED linear platform TROV LED linear platform optical system is said to provide beautiful and uniform optical distributions. Options include a wide range of cove, graze, and wash distributions and direct-view/line of light and asymmetric. A Flip to Flat hinge allows adjustment of beam angles from 0 to 180 deg. Dim to Zero technology allows HVAC, hospitality and other fl icker-free light from 100% to 0%. EcoSense, Los Angeles Circle 78

ecosenselighting.com industry leaders depend on it.

Shouldn’t you?

CIRCLE 214

HVAC, hospitality and other industry leaders depend on it.

Shouldn’t you?

LED recessed multiples Aculux 2-in. LED precision recessed multiples are available in 1-, 2-, and 3-head square confi gurations with deep regression for glare control and low-aperture brightness. Available in IC and non-IC rated models and two lumen packages, they are said to have an effi cacy of as much as 70 lumens/W. Several architecturally styled trims are available.

Juno Lighting Group, Des Plaines, IL Circle 79 junolightinggroup.com

FIND OUT WHY.

www.aquatherm.com/commercial

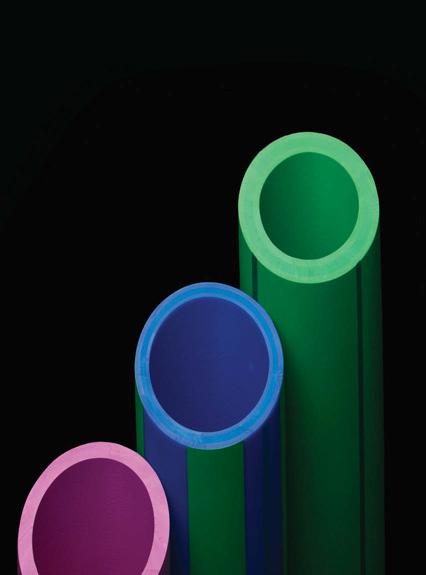

Polypropylene Pressure Pipe for: Potable, Heating & Cooling, and Industrial

801.805.6657 www.aquatherm.com

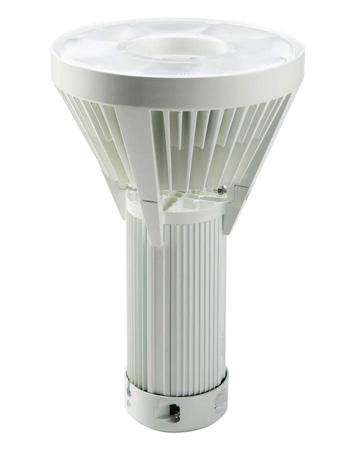

LED high-bay luminaire HBL LED high-bay luminaire is a 215-W replacement for 400- W metal-halide lamps. The luminaire has a wide beam, a 4,000-K CCT rating, and CRI of 80+. A removable cap provides easy access to wiring. Five cord lengths are available, and the unit is dimmable.

EYE Lighting International, Mentor, OH Circle 80 eyelighting.com

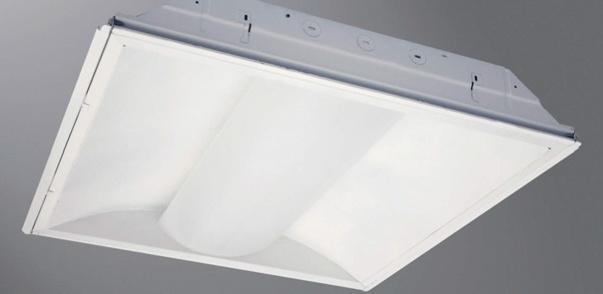

LED luminaires Metalux Cruze LED series combines LED technology with a center lens profi le to provide reported optimal light uniformity and visual comfort. Available in 2 x 2 and 2 x 4-ft. confi gurations with four lens options, color temperatures from 3,000 to 5,000 K, and lumen packages with 0 to 10 V dimming, a hinged door provides tool-less entry from below the ceiling. The series is also available with DALI drivers.
