Taonga Developments

TE MATA LUXURY STUDIO

$46,895

1

FLOOR AREA : 12.96m ² approx.

DIMENSIONS : 3.6m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Electrical

RCD power protection and main 15-meter power lead (caravan lead with interface box connection) supplied.

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

TONGARIRO LUXURY STUDIO

$50,995

FLOOR AREA : 15.12m ² approx.

DIMENSIONS : 4.2m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

TONGARIRO STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Electrical

RCD power protection and main 15-meter power lead (caravan lead with interface box connection) supplied.

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

$67,895

FLOOR AREA : 17.28m ² approx.

DIMENSIONS : 4.8m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

TARAWERA STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing

vanities

Electrical RCD power protection and main 15-meter power lead (caravan lead with interface box connection) supplied.

We allow –4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

HE KĀINGA, HEI TAONGA

TARAWERA STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance exyard Hamilton

$76,895

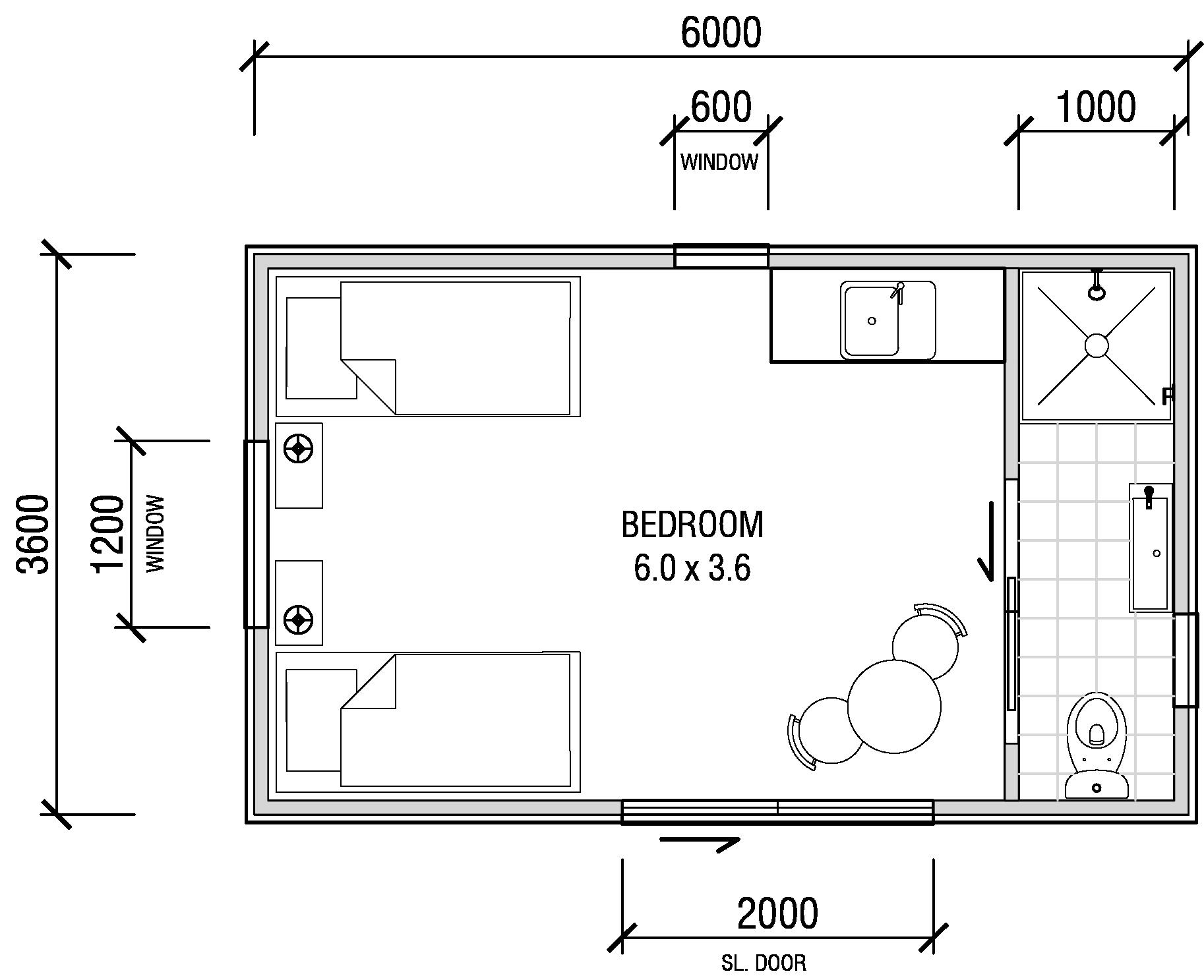

FLOOR AREA : 21.60m ² approx.

DIMENSIONS : 6.0m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

RUAPEHU STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing

vanities

Electrical RCD power protection and main 15-meter power lead (caravan lead with interface box connection) supplied.

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

HE KĀINGA, HEI TAONGA

RUAPEHU STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance exyard Hamilton

KAWARAU LUXURY STUDIO

$94,895

1 1

FLOOR AREA : 34.09m ² approx.

DIMENSIONS : 9.47m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per

manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium

windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC

windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing vanities

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Electrical We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance exyard Hamilton

TE AROHA LUXURY STUDIO

$134,995

FLOOR AREA : 51.84m ² approx.

DIMENSIONS : 14.4m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

TE AROHA (A) STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium

windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC

windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing vanities

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

HE KĀINGA, HEI TAONGA

TE AROHA (A) STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance exyard Hamilton

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

TE AROHA (B) STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium

windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC

windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing

vanities

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

HE KĀINGA, HEI TAONGA

TE AROHA (B) STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance exyard Hamilton

$134,995

FLOOR AREA : 51.84m ² approx.

DIMENSIONS : 14.4m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

TE AROHA (C) STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium

windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC

windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing vanities

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

HE KĀINGA, HEI TAONGA

TE AROHA (C) STUDIO

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance exyard Hamilton

TE MATA STUDIO

$34,995

FLOOR AREA : 12.96m ² approx.

DIMENSIONS : 3.6m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

Steel with Ply

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over selfsupporting roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium

windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC

windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Coloursteel Cladding

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

TV Connection

1 x TV outlet connection

Heater

Wall Heater

Electrical

RCD power protection and main 15-meter power lead (caravan lead with interface box connection) supplied.

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

TONGARIRO STUDIO

ECONOMY RANGE

$36,995

FLOOR AREA : 15.12m ² approx.

DIMENSIONS : 4.2m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

TONGARIRO STUDIO ECONOMY RANGE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

Steel with Ply

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over selfsupporting roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Coloursteel Cladding

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

TV Connection

1 x TV outlet connection

Heater

Wall Heater

Electrical

RCD power protection and main 15-meter power lead (caravan lead with interface box connection) supplied.

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine Square stop walls & ceilings

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

STUDIO

$51,995

1

FLOOR AREA : 17.28m ² approx.

DIMENSIONS : 4.8m x 3.6m

1

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

TARAWERA STUDIO ECONOMY RANGE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

Steel with Ply

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over selfsupporting roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Feature cladding – Niagara Envira 180 Shiplap V Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White

Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing vanities

Electrical RCD power protection and main 15-meter power lead (caravan lead with interface box connection) supplied.

We allow –4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heater Wall Heater

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine Square stop walls & ceilings

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

$61,895

1

FLOOR AREA : 21.60m ² approx.

DIMENSIONS : 6.0m x 3.6m

1

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

RUAPEHU STUDIO ECONOMY RANGE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

Steel with ply

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium

windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC

windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing vanities

Electrical RCD power protection and main 15-meter power lead (caravan lead with interface box connection) supplied.

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heater Wall Heater

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

HE KĀINGA, HEI TAONGA

RUAPEHU STUDIO ECONOMY RANGE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine Architraves 40mm x 10mm single bevelled pine Square stop walls & ceilings

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton Taonga Developments to supply code of compliance exyard Hamilton

TE AROHA STUDIO

$113,995

2

FLOOR AREA : 51.84m ² approx.

DIMENSIONS : 14.4m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

Steel with ply

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing vanities

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heater

Wall Heater

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine Architraves 40mm x 10mm single bevelled pine Square stop walls & ceilings

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton Taonga Developments to supply code of compliance exyard Hamilton

TE AROHA STUDIO - OPTION B

ECONOMY RANGE

$113,895

FLOOR AREA : 51.84m ² approx.

DIMENSIONS : 14.4m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

Steel with ply

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing

vanities

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heater

Wall Heater

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

HE KĀINGA, HEI TAONGA

TE AROHA STUDIO OPTION B - ECONOMY RANGE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton Taonga Developments to supply code of compliance exyard Hamilton

TE AROHA STUDIO - OPTION C

ECONOMY RANGE

$113,995

FLOOR AREA : 51.84m ² approx.

DIMENSIONS : 14.4m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

Steel with ply

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

1 x exterior tap

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing vanities

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

All electrical work completed to exterior meter board ready for power connection to mains

Heater

Wall Heater

Smoke Alarm

1 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine Architraves 40mm x 10mm single bevelled pine Square stop walls & ceilings

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton Taonga Developments to supply code of compliance exyard Hamilton

$170,995

FLOOR AREA : 40.32m ² approx.

DIMENSIONS : 8.4m x 4.8m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

HOUSE SPECIFICATIONS

TAUPIRI HOUSE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium

windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC

windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Laundry Cabinet

600mm Aquatica tubbie – powder coated pre-finished cabinet with mixer and liquid soap dispenser

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

Plumbing for dishwasher & washing machine

2 x exterior taps

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing vanities

Electrical

External meter board positioned as per the plan

Internal distribution board located as per the plan

We allow –

4 x power points per bedroom (2 x doubles)

1 x power point to bathroom (1 x single)

2 x power points to hallway (1 x double)

6 x power points to lounge (3 x double)

4 x power points to kitchen (2 x double)

2 x power points to kitchen island (1 x double)

1 x power point to microwave (1 x single)

1 x power point to rangehood (1 x single)

1 x power point to fridge (1 x single)

1 x power point to the dishwasher (1 x single)

2 x power points to dining room (1 x double)

2 x power points in laundry (1 x double)

1 x 5 bar chrome ladder heated towel rail

1 x Weiss Clear Flow Inline Bathroom Extractor Fan

150mm

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Wiring and connection to under bench oven, electric hob & hot water cylinder

LED down lights throughout the house

Exterior lights – 1 per exterior door

1 x single exterior power point

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

2 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

$208,500

FLOOR AREA : 59.84m ² approx.

DIMENSIONS : 8.8m x 6.8m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

PIRONGIA HOUSE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Laundry Cabinet

600mm Aquatica tubbie – powder coated pre-finished cabinet with mixer and liquid soap dispenser

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

Plumbing for dishwasher & washing machine

2 x exterior taps

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing

vanities

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

1 x power point to bathroom (1 x single)

2 x power points to hallway (1 x double)

6 x power points to lounge (3 x double)

4 x power points to kitchen (2 x double)

2 x power points to kitchen island (1 x double)

1 x power point to microwave (1 x single)

1 x power point to rangehood (1 x single)

1 x power point to fridge (1 x single)

1 x power point to the dishwasher (1 x single)

2 x power points to dining room (1 x double)

2 x power points in laundry (1 x double)

1 x 5 bar chrome ladder heated towel rail

1 x Weiss Clear Flow Inline Bathroom Extractor Fan 150mm

HE KĀINGA, HEI TAONGA

PIRONGIA HOUSE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Wiring and connection to under bench oven, electric hob & hot water cylinder

LED down lights throughout the house

Exterior lights – 1 per exterior door

1 x single exterior power point

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

2 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardware -

Element satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

$276,500

FLOOR AREA : 88.4m ² approx.

DIMENSIONS : 13.0m x 6.8m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Laundry Cabinet

600mm Aquatica tubbie – powder coated pre-finished cabinet with mixer and liquid soap dispenser

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

Plumbing for dishwasher & washing machine

2 x exterior taps

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing

vanities

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

1 x power point to bathroom (1 x single)

2 x power points to hallway (1 x double)

6 x power points to lounge (3 x double)

4 x power points to kitchen (2 x double)

2 x power points to kitchen island (1 x double)

1 x power point to microwave (1 x single)

1 x power point to rangehood (1 x single)

1 x power point to fridge (1 x single)

1 x power point to the dishwasher (1 x single)

2 x power points to dining room (1 x double)

2 x power points in laundry (1 x double)

1 x 5 bar chrome ladder heated towel rail

1 x Weiss Clear Flow Inline Bathroom Extractor Fan

150mm

HE KĀINGA, HEI TAONGA

TARANAKI HOUSE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Wiring and connection to under bench oven, electric hob & hot water cylinder

LED down lights throughout the house

Exterior lights – 1 per exterior door

1 x single exterior power point

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

2 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

$134,995

8 2

FLOOR AREA : 51.12m ² approx.

DIMENSIONS : 14.2m x 3.6m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium

windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V

Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Laundry Cabinet

600mm Aquatica tubbie – powder coated pre-finished cabinet with mixer and liquid soap dispenser

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

Plumbing for dishwasher & washing machine

2 x exterior taps

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing

vanities

Bath

1 x 1525mm Concept white acrylic bath with 2 x rows of 200mm x 200mm white tiles to form splash back

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

1 x power point to bathroom (1 x single)

2 x power points to hallway (1 x double)

6 x power points to lounge (3 x double)

4 x power points to kitchen (2 x double)

2 x power points to kitchen island (1 x double)

1 x power point to microwave (1 x single)

1 x power point to rangehood (1 x single)

1 x power point to fridge (1 x single)

1 x power point to the dishwasher (1 x single)

HE KĀINGA, HEI TAONGA

NGAURUHOE HOUSE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

2 x power points to dining room (1 x double)

2 x power points in laundry (1 x double)

1 x 5 bar chrome ladder heated towel rail

1 x Weiss Clear Flow Inline Bathroom Extractor Fan 150mm

Wiring and connection to under bench oven, electric hob & hot water cylinder

LED down lights throughout the house

Exterior lights – 1 per exterior door

1 x single exterior power point

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

2 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardware -

Element satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

$342,995

FLOOR AREA : 144m ² approx.

DIMENSIONS : 18.0m x 8.0m

Plans are indicative only. Please consult with Taonga Developments for further information.

HE KĀINGA, HEI TAONGA

AORANGI HOUSE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

Sub-floor & Flooring

25mm Strand flooring over 200 x 50 floor joists at 450 centres with 3 rows of 150 x 50 bearers

Wall & Ceiling System

90mm Steel framing

GIB wall and ceiling system

Flat ceiling at 2.4m throughout

Fascia, Spouting

Colorsteel fascia and gutter system - Maxx range

Downpipes

Round PVC downpipes with clips provided

Downpipes to be fitted by drainlayer

Roof

90mm Steel trusses at 900 centres as per manufactures design

75 x 50 purlins at 900 centres

Long run 0.40 colour steel roofing over self-supporting

roof underlay – Colorsteel

Maxx range

Aluminium Joinery

Omega double glazed powder coated aluminium windows and doors

Viridian High performance LowE glass with Argon gas

Stippolyte obscure glazing to bathroom & WC windows, clear float glass to all other joinery

Soffits

4.5mm smooth Hardie Flex with PVC jointers and vented soffits

Exterior Cladding

Niagara Envira weather board – Cavity fixed

Feature cladding – Niagara Envira 180 Shiplap V Groove

Insulation

Under floor - Premier Insulation (R2.5)

Wall insulation - Premier A grade glasswool (R2.0)

Ceiling insulation - Premier A grade glasswool (R6.6)

Kitchen Units

All our kitchen units are constructed from Formica laminate over water resistant board

Door & draw fronts - 16mm Melteca

Bench tops – Formica square edge

Handles – Mardeco range

Kitchen sink – ZJS800 single sink with drainer

Kitchen Appliances

F&P under bench oven - (OB60SC5CEX2)

F&P electric hob - (CE604CBX2)

Robinhood 600mm stainless steel range hood canopy – (RWC3CL6SS)

Glass Splash Back

750mm(h) x 600mm(w) glass splash back

Laundry Cabinet

600mm Aquatica tubbie – powder coated pre-finished cabinet with mixer and liquid soap dispenser

Plumbing

Rinnai A26 External Gas Hot Water Unit (LPG)

All water pipe Dux Secura Polybute

All waste pipes PVC (white)

1 x Tube chrome highrise kitchen mixer

2 x Compact (BTW) toilet suites dual flush

2 x Tube chrome basin mixers

2 x Tube chrome 850mm round slide shower mixers

Plumbing for dishwasher & washing machine

2 x exterior taps

Showers

1000mm x 1000mm Englefield Valencia White Shower with Flat Wall Lining & Acrylic Tray.

Vanities

2 x 900mm Mia 2 drawer (white) floor standing

vanities

Bath

1 x 1525mm Concept white acrylic bath with 2 x rows of 200mm x 200mm white tiles to form splash back

Electrical

We allow –

4 x power points per bedroom (2 x doubles)

1 x power point to bathroom (1 x single)

2 x power points to hallway (1 x double)

6 x power points to lounge (3 x double)

4 x power points to kitchen (2 x double)

2 x power points to kitchen island (1 x double)

1 x power point to microwave (1 x single)

1 x power point to rangehood (1 x single)

1 x power point to fridge (1 x single)

1 x power point to the dishwasher (1 x single)

HE KĀINGA, HEI TAONGA

AORANGI HOUSE

Built to NZS:3604 under supervision of a Registered Master Builder and Licensed Building Practitioner. All electrical work carried out by a registered Master Electrician.

2 x power points to dining room (1 x double)

2 x power points in laundry (1 x double)

1 x 5 bar chrome ladder heated towel rail

1 x Weiss Clear Flow Inline Bathroom Extractor Fan 150mm

Wiring and connection to under bench oven, electric hob & hot water cylinder

LED down lights throughout the house

Exterior lights – 1 per exterior door

1 x single exterior power point

All electrical work completed to exterior meter board ready for power connection to mains

Heat Pump

Daikin Inverted Heat Pump B2B

Smoke Alarm

2 x Goldair GS-526 battery-operated smoke detector

TV Connection

1 x TV outlet connection

Interior Doors

MDF flush face hollow core doors pre-hung on satin chrome hinges and rebated jambs Door hardwareElement satin chrome lever type

Door stops - satin chrome

Hardware

2 x Tube chrome toilet roll holders

2 x 750mm x 900mm polished edge mirrors (dome fixed)

Wardrobes

Each wardrobe has a 300mm wide shelf with a white lumberlok closet rail

Internal Finishing Lines

Skirting 60mm x 10mm single bevelled pine

Architraves 40mm x 10mm single bevelled pine

Square stop walls & ceilings

Stopping

Level 4 paint quality finish throughout

Painting

Interior painting – one colour throughout

Exterior painting – soffits & Weathertex feature wall

Painting application – 1 x undercoat & 2 x top coats

Floorcoverings

Vinyl – Godfrey Hirst (Legacy range)

Carpet – Godfrey Hirst (Detroit range) to remainder

Plans

All standard plans and specifications are included in our price

Permit

Taonga Developments have allowed for all building consent fees ex-yard Hamilton

Taonga Developments to supply code of compliance ex-yard Hamilton

Plans are indicative only. Please consult with Taonga Developments for further information.
