Ruchi Pathak

Hello. I am Ruchi Pathak, currently studying in Rachana Sansad’s academy of Architecture in fourth year. This portfolio potrays the work that i have done and knowledge i gained in the past three years. Being an Architecture student i am well equipped with the skills of sketching, model making and different digital softwares. My forte lies in representing and composing various ideas. I would describe myself as a hardworking and responsible individual who likes to explore and learn.

Address:

Highway Shiring CHS LTD, Near Dnyansadha na College, Thane West, 400604.

Date

Birth:

Marathi,

Ruchi Pathak

SSC (2005-2017)

A.K. Joshi English Medium School, Thane West. 96.80%

Education: Skills:

Autodesk AutoCad

Adobe Photoshop

HSC (2017-2019)

B. N. Bandodkar College of Science, Thane West. 78%

B ARCH (2019-2024)

Rachana Sansad’s Academy of Architecture (Unaided), Prabhadevi.

Current CGPA- 8.51

Adobe Indesign

Adobe Illustrator

Trimble Sketch up

Rhinoceros

Twin Motion

Lumion

MS Office

Physical Model Making

Sketching Photography

Extra Curricular & Achievements:

2019- Architectural Documentation: David Sassoon Clock Tower, Veermata Jijabai Bhosale Udyaan, Byculla, Mumbai

2020- Architectural Documentation: Uru Ship Making Process, Beypore, Kerala

2020- Sem 1 Academic Topper (2nd Position)

2020-21- Class Representative

2021- Sem 4 Academic Topper (3rd Position)

2021- Archmello: Master Peace Competition A Meditation & Yoga Retreat Center Design

2021- Arch 8: Re-vision Competition (Top 13) Redesigning Your Way Of Percieving TV Shows

2021-2023 - Class Social Media Head (@aoaua2024)

2022 -Volume Zero: Re-school Competition (Top 50)

2022- Mumbai Inclusive Urban Vision Design Proposals Exhibition

Consulado Geral De Portugal (The Consulate General of Portugal)

Fontainhas, Goa.

Rising Star - Housing Facility for Actors

Film City, Goregaon, Mumbai.

The Food Town - A Culinary Institute Queens, USA.

The Food Town- Working Drawings Mumbai, India.

Fusion Park- Landscape Intervention with Cultural Elements Byculla, Mumbai.

Creche Interior Design Mumbai, India.

The Ethereal Loop- Archmello: Master Peace Competition Alappuzha, Kerala.

Appartment 20- Arch8: Re-Vision Competition Newyork, USA.

Gurukul- Volume Zero: Re-school Competition Kanoi, Rajasthan.

Uru Shipmaking Documentation

Beypore, Kerala.

David Sassoon Clock Tower Documentation Mumbai, India.

Consulado Geral de Portugal is the Portugal Consulate in Goa. It holds various functions for the Portu gal Tourists as well as the local Goan People.The composition of the design is inspired by the elements of the Portugal flag. The portugal flag has 3 main elements. The colours, the Armillary sphere and the National sheild. The Armillary sphere is a nautical device connected with links. Similary the entire design is connected via pathways and roads. These continuous pathways create smaller courtyards between the masses. Along with the Portugal culture, the Goan culture is blended by the ideas of balcoes. The idea of “to see and to be seen” is given by the Goan balcoes of the houses. It refers to a verandah space infront of the house. The idea is incorporated by allowing and restricting visual access to particular parts of the site.

The National shield on the flag has 7 castles of Portugal. These 7 castles are interpreted as 7 zones in the design. The masses of these buidlings are laid out around the courtyard similar to the arrangement of the castles around the sheild, making it a secure zone.

Rising Star is a co-living facility created for struggling actors who are new to the city. This facility provides them space to reside as well as amenities which help them grow as an actor. There are auditioning the atres, discussion rooms and common amphitheatre spaces for the actors to work together. The living facilities are divided into two parts - dorms and sharing rooms. The location of the design is in filmcity, Goregaon alongside a basti of locals and a school. The form derived follows a certain module which is re peated to create smaller pathways. The pathways are connected and expanding in nature looking towards the common courtyards. Different types of roofs are used to create skylights in living quarters and spot lights in audition theatres.

The Food Town is a Cullinary Institute based in Queens, America. The Institute was designed for a fictional character of Julie from the movie ‘Julie and Julia’. The site for the de sign was selected in vicinity of Julie’s residence in Queens. The design was developed based on the surrounding con text. The design included assembly of only 2 units This re sembled the repetitive life Julie was living. The units are broken out by outdoor spaces and glass sloping roofs and varying height resembling how cooking evolved in her daily routine. The Institute features various facilities for students, residents and fellow cooks in the neighbourhood.

1OMX

WORKING DRAWINGS

FOOD TOWN

The following working drawings are made for the project ‘The Food Town’ of semester 5. The construction technology used is rcc framework with trapezoidal footing. A part of the project was selected and detailed out whose drawings are attached below.

FLOOR PLAN

CANOPY DETAILS

LANDCSAPE DESIGN: THE FUSION PARK

The landscape design of the fusion park at Veermata Jijabai Udyaan, By culla is a blend of the ancient heritage combined with modern installation spaces. The landscape follows differ ent colour palletes for modern and ancient elements. Blues for modern and Rust for ancient. The following is a part of the larger plan with detailing done for the ancient perspective. The area is beside the famous David Sas soon Clocktower. Thus the space is provided with a backdrop of ancient heritage of the park.

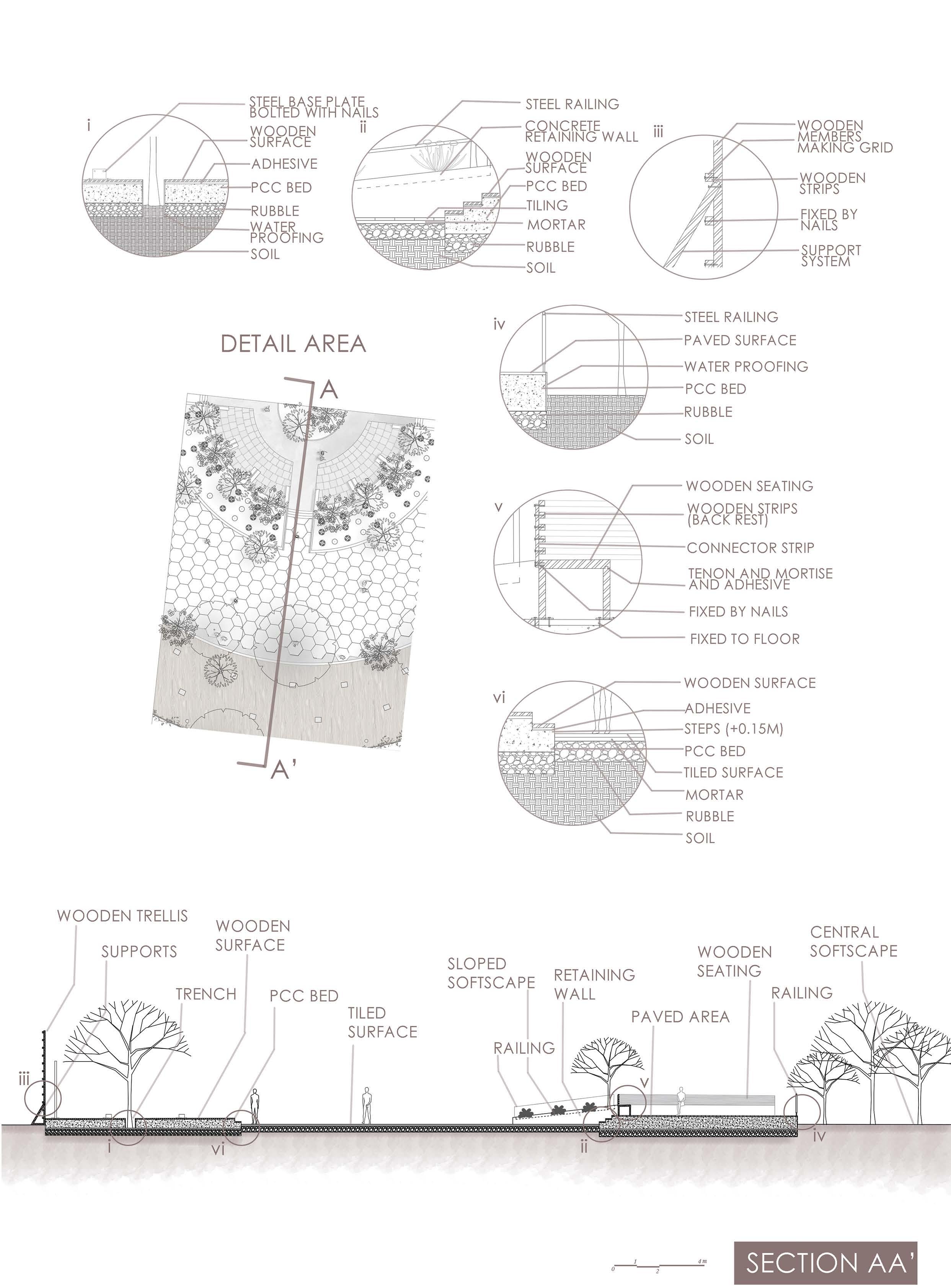

The following is a part of the larger plan with detailing done for the modern perspective. It serves as a waiting area in the main plaza space along with installation stands for modern art.

‘Spending the day in solace of nature’ is the theme taken up for this interior design project of a Creche. The design considers children of age group 0-5 years. The design has various elements taken from the nature like forests, vegetation, caves, mounds, day and night ,etc. All these elements are translated into design using play equipments, ceiling planters, wall papers, seating, etc. The design connects a younger one to nature and the individual feels like spending the day in outdoors even in such a compact space. The Creche Area designed caters to various functions like waiting area for parents, reception desk, storage spaces, play areas, compact sleeping modules, pantry space, washroom, etc.

Sectional

Planter

Seating corner

Equipments

View 1- Storage, Play Area, Window Seating, Pantry

View 3- Waiting Area for Parents

View 2- Reception Desk, Storage Furniture, Play Area

View 4- White Boards/ Eating Space, Pantry, Play Area

The following set of drawings are a part of the documentation done of the Uru Ships in Beypore. The Uru is the largest handicraft of India. The entire ship is made without using advanced machinery but only with manpow er and skilled labour. The entire site and the ship under construction was documented in 3 days by 40 students and 5 mentors.

The following set of drawings are a part of the documentation done of David Sassoon Clocktower in Veermata Jijabai Udyaan in Byculla by the students of Academy Of Ar chitecture Unaided batch of 2024. The tower was measured by the students and drawings were hand drafted and inked with Rotring pens. These are some of the draw ings of the 75 feet high tower.
