MAYAL LYANG : A Meditative Resort

Page 1

1 IR3014 : Contextualising Interior Space Making Tejaswini Sowmya N UG191408 Monsson 22 MAYAL LYANG

STUDIO BRIEF

Architecture, exterior or interior, can be considered to be a result of an appropriate response to a physical context which can be summarised as ‘Form Follows Context’. A deeper understanding would include ‘culture’. The studio will explore the interface between interior architecture and its ‘context’ in hospitality design. If the design of a hotel could showcase the context, it would be an enriching experience for the visitor, while boosting the local economy and preserving the local culture.

The understanding of “critical regionalism” is necessary since it will define the manner in which local architecture, interior and culture will be studied and reinterpreted. Hospitality design that references the local context has always existed but, a new genre was created when architects like Geoffrey Bawa and Kerry Hill designed hotels in Sri Lanka and South East Asia. The endeavour of this studio will be to ask how can architecture help make a visit memorable? For their final outcome, students will be asked to design the interior of designated areas of a hotel and to present their design in the form of 3D rendered images.

2 3

SENSITIZE

Unravelling, Tracing & Mapping

This stage involved research on context-based hospitality architecture / interior. Students were asked to select a project who has been able to successfully integrate design with local context and study these projects - in the context of the studio approach.

The assignment involved selecting a hotel room designed with reference to the local context. Students will be required to study this room in detail by understanding how the room has been designed.

They will draft out the plan from the photographs available and sketch over the plans by hand adding every possible detail that can identified in the room.

4 5

As the indigenous inhabitants of Sikkim, the Lepcha have tended to live in the remotest valleys as the population around them grew.

Due to their mountain settlements, their language and their writing remained completely unique. Mayal Lyang translates to “A land blessed by Gods” in the lepcha dialect. The concept for this project was derived while on the site. The abundant scenic beauty in the state and on the site is the primary source of inspiration.

Taking cue from the local Lepcha community, the project combined elements of geographical, cultural context to generate a Meditation Village Resort.

As the indigenous inhabitants of Sikkim, the Lepcha have tended to live in the remotest valleys as the population around them grew.

Due to their mountain settlements, their language and their writing remained completely unique.

6
SCENIC NATURE LANDSCAPE LOCAL CONTEXT LEPCHA HOUSES MATERIAL CONTEXT
SUSTAINABLE LIVING AWARE OF ONESELF MATERIAL AUTHENITICITY CLARITY AND PURITY
8 9 ACTIVITYHALL RESTAURANT LEPCHAVILLAGE SPAANDSWIMMINGPOOL RECEPTION SUN, WIND AND PATH SOUND MAPPING FOLIAGE MAPPING ALITITUDE /PRIVACY ZONING
10 11 CONCEPT ART CONCEPT & TRANSLATION
Body

Various senses were engaged in the site. These sensorial experiences can be invoked to create meditative spaces.

SENSORIAL EXPERIENCES IN SPACES

Welcoming space

Play of volumes Merging with nature Engaging View Closest proximity to parking and Restaurant

TASTE SIGHT

The five sense guide us through the process of meditation. An individual’s engagment with the senses determines the depth of his/her meditative state. To ensure the project provides a meditative sensibility, it is important to guide what senses will be invoked in which space.

Play of Materials

Complimentary Landscaping Merging Landscape and Pool Tap into potential of local fishes

RECEPTION

Materials on floor, furniture surfaces, wall finishes and cutlery usage

Intelligent Landscaping View and Lighting Well Ventilated

RESTAURANT

The intent of classifying these spaces according to sensorial experiences is an attempt at that.

Naturalistic Materials coing together to Merge Landscape and Built form Mix of open, semi-open and closed spaces Intelligent Landscaping that provides consistency in all types of spaces

COTTAGES

Play of Materials

Complimentary Landscaping Merging Landscape Fantastic View

Mix of Open and semi-open spaces

Surface finishes must correspond to idea of relaxation

Play of Materials

Complimentary Landscaping Merging Landscape Fantastic View

Mix of Open and semi-open spaces

Surface finishes must correspond to idea of relaxation

Engaging Bathing experience

PARKING ROOMS SPA

RECEPTION

RESTAUARANT

12 13
SPA SOUND TOUCH SMELL
PARKING RECEPTION RESTAURANT SPA SWIMMING POOL YOGA HALL ROOMS COTTAGES ADJACENT NEARBY FAR
SWIMMING POOL YOGA HALL SWIMMING POOL
2
YOGA COTTAGE
COTTAGE 1 COTTAGE 3

TRANSLATION

ARCHITECTURE

INTERIOR

NATURALISTIC

14 15
CONTEXT : LEPCHA ARCHITECTURE
MATERIALS STRUCTURE AND PLANNING METHODS
NATURALISTIC THOUGHTFUL REAL / ORIGINAL OPEN LAYOUT SIMPLE. TEMPORARY PARTITIONS
LIGHTING JAPANESE + SCANDANAVIAN = JAPANDI STYLE
MATERIALS AND FINISHES FURNITURE AND ACCESSORIES
THOUGHTFUL REAL / ORIGINAL MINIMAL FOCUSED SUFFICIENT SUBTLE SOFT APPROACHABLE REFLECTIVE CONCEALED INDIRECT TRANSLATION

SPATIAL

16 17
PLANNING
DESIGNING DESIGN
The spatial program includes five spaces : 1. RECEPTION 2. RESTAURANT 3. ACTIVITY HALL 4. COTTAGE 5. SPA AND SAUNA
AND
PROBLEM
18 19 RECEPTION HALL WAITING SPACE WAITING SPACE LUGGAGE SPACE RECEPTION DIAGRAMS RECEPTION PLAN

Thatched Roof with wooden members and wooden ceiling concealing major structure.

Roof shape to encourage feeling welcome

WOODEN ROOF MEMBERS

Flat Roof Ceiling finished with wooden finish

Wooden Members

Glass walls that provide visual porosity.

Reception Back Drop Made of accent water wall and lit Mottos that can

Simple elegant furniture to assist one in feeling comfortable and welcome.

The BOH Office is meant for staff and to store paper work. It’s positioning ensures a symmetric planning.

The Waiting areas are step-down zones of privacy and comfort. The seating element is placed at a height to allow the user with maximum views.

An open hall with a lone central stone table that acts as the receiving point for guests/ users. The table is made of the same material as the flooring to give the feeling of a heavy monolithic strutcure.

The entry is adorned with planters and a water feature to evoke the visual and auditory senses as one enters the establishment.

Back of The House Office

Waiting Space

Washrooms for users Space for Luggage Reception Space

Entry

The walls are finished with textured lime plaster and the flooring is that of black marble and light wood for staircases. The use of these materials is to provide a visual play of materials.

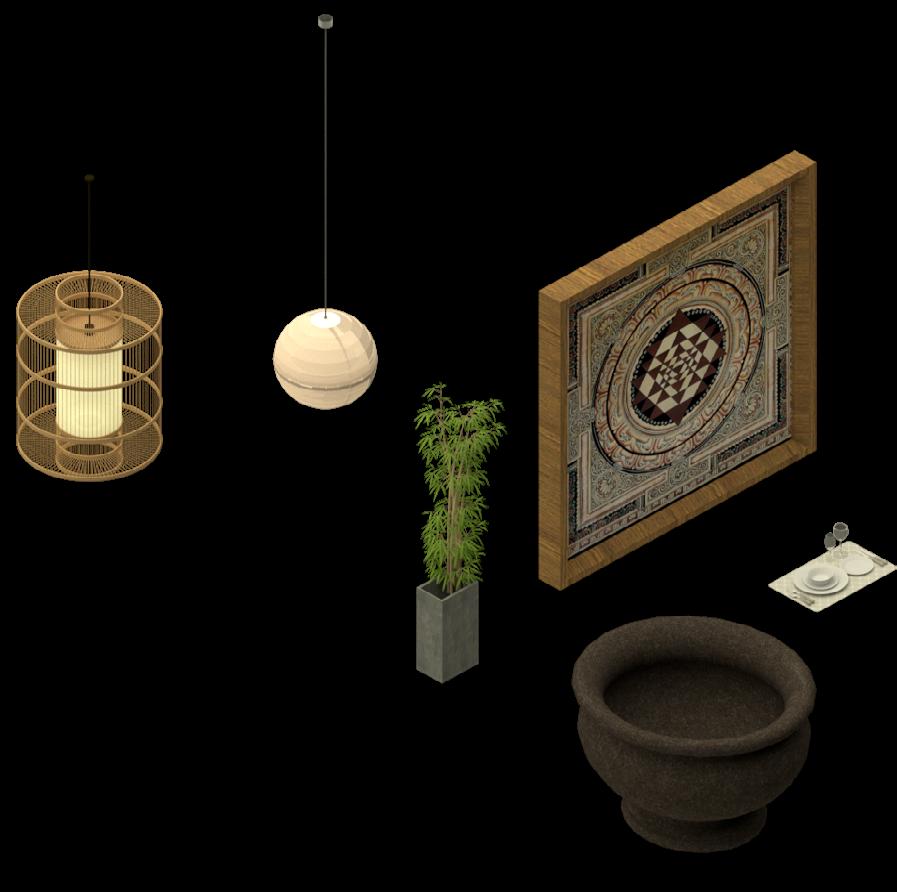

Functional accessories in the form of statement lighting elements. Cane Baskets and large Vases as decorative accessories.

20 21
RECEPTION TBALE RENDER VIEW
WAITING AREA RENDER VIEW
26 27 RESTAURANT BOH SPACES RESTAURANT RECEPTION COURTYARD DINING SPACE DINING SPACE RESTAURANT DIAGRAMS

The light wooden flooring, rattan partitions and simple fabrics generate a meditative quality

STRAW ROOF PROVIDE A TEXTURED ROOF

WOODEN MEMBERS MAKE STRUCTURE FOR ROOF

FLAT ROOF TO CONCEAL NETWORK OF RAFTERS, BATTENS AND PURLINS

COFFERED CEILING IN RESTAURANT WAITING SPACE

EXPOSED ROOF IN DINING WINGS

DINING WING EMPLOYS DIFFERENT MATERIALS TO GENERATE CONTRAST IN FLOORING

ASCENT IN LEVEL FOR COUPLE SEATING

RAISED PLATFORM FOR DINING, PARTITIONED BY WOVEN SCREENS PROVIDES A PRIVATE EXPERIENCE

ENTRY COURTYARD ADORNED WITH PLANTS AND GREENERY

The light wooden flooring, rattan partitions and simple fabrics generate a meditative quality

The dining tables and leg less chairs are inspired by Japanese dining practices. This seating typology encourages users to sit cross legged which is a healthier option while consuming food.

The waiting area couches are plush and well cushioned to ensure comfort and luxury.

DESCENT IN LEVEL FOR GROUP SEATING

Artifacts are kept to a bare essential, the entire focus of the space is to embrace the experience of dining.

The space is ambiently lit by the use of concealed lights and surfaces that are grazed over.

28
RESTAURANT ENTRY RENDER VIEW
RESTAURANT RECEPTION RENDER VIEW
RESTAURANT DINING RENDER VIEW

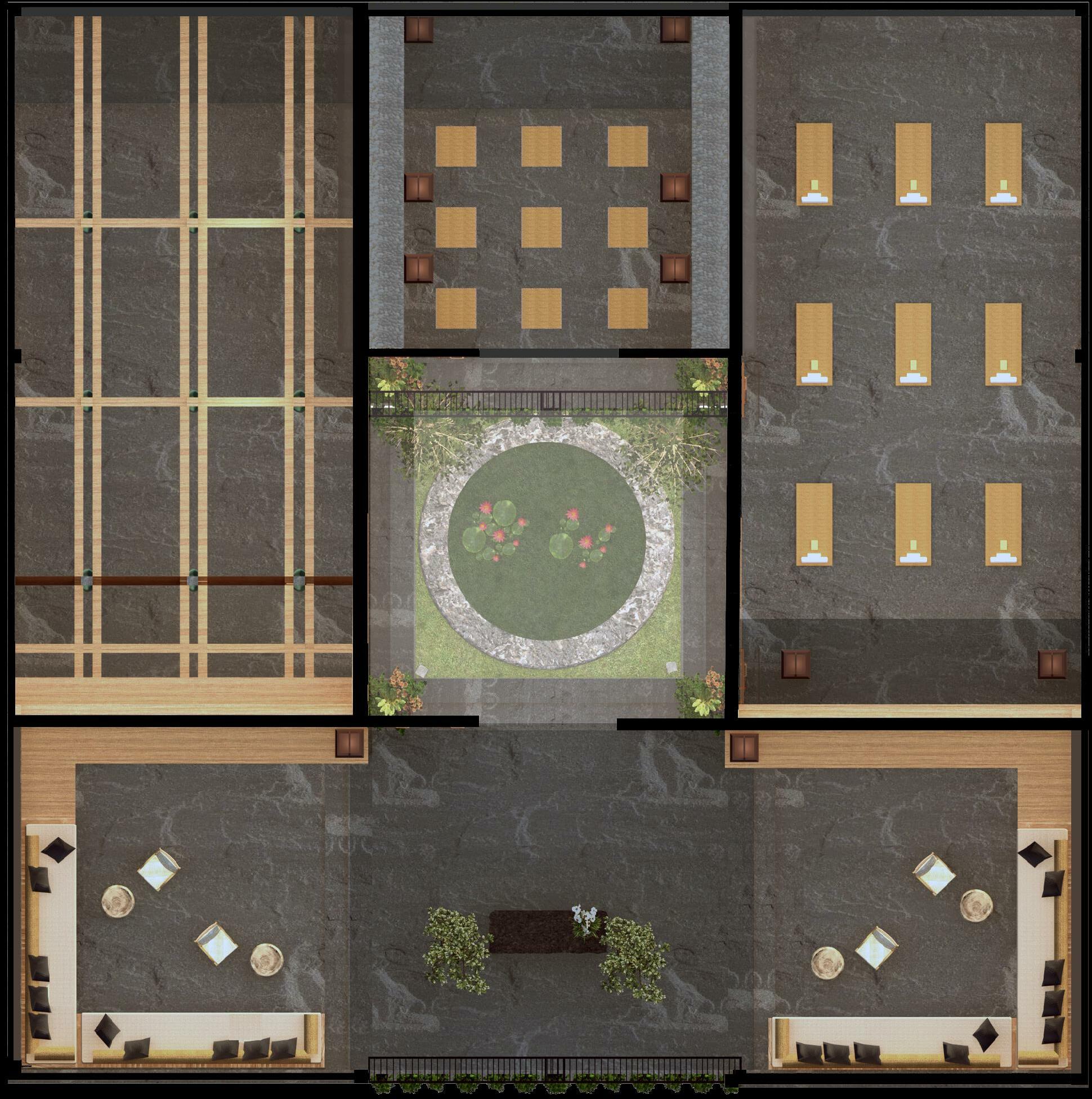

36 37 ACTIVITY HALL RECEPTION & READING HALL MEDITATION HALL YOGA HALL AERIAL YOGA HALL CENTRAL COURTYARD ACTIVITY HALL DIAGRAMS FOR ACTIVITY HALL

Reception / Reading Lounge: The Reading lounge doubles as a reception and waiting area for the activity hall

Yoga/ Exercise hall : A simple, elegant space with sufficient space for yoga and storage Aerial Yoga hall equipped with apparatus to suit yoga exercises.

Courtyard: acts as the central circulation and spills over space for the whole volume.

Mediation hall : Provided with a stunning view of thick foliage and ample sunlight. This space was strategically placed this way to ensure close proximity to nature.

Courtyard is open to sky. Light is allowed to bleed into space through the central courtyard

STRUCTURAL APPARATUS FOR AERIAL YOGA

Visually porous partitions allow surrounding views to consume spce

The Reading lounge doubles as a reception and waiting area for the activity hall

The flooring is a leather finish gray stone, sourced locally to provide a sense of touch in the hall.

The furniture is simple, functional and minimal.

38 39
MEDITATION HALL VIEW SPACE PROGRAM OF ACTIVITY HALL
ACTIVITY HALL COURTYARD VIEW
ACTIVITY HALL ENTRY VIEW

CIRCULATION

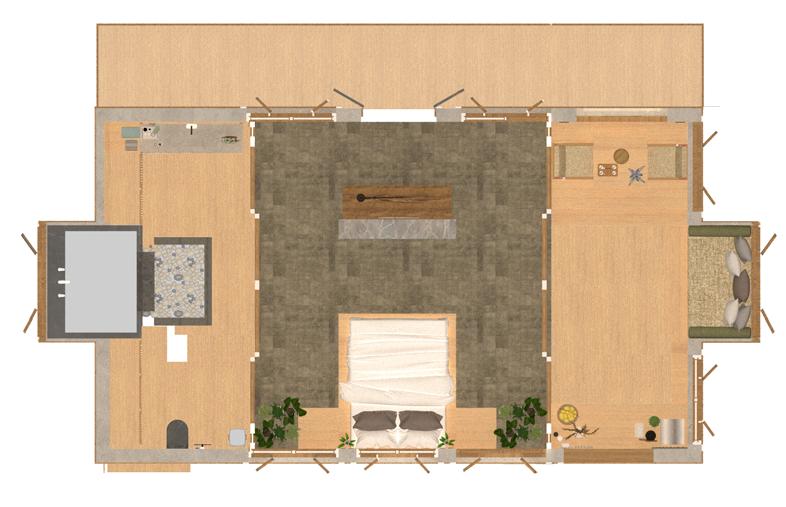

44 45 BED SPACE COTTAGE PLAN LIVING SPACE BATH SPACE ENTRY ZONE COTTAGE DIAGRAMS
SPACE: Defines programmatic requirements, open layout and simple planning
PROGRAMMATIC SYMMETRY : Smooth transition into private areas from public ones, while maintaining programmatic symmetry.
46 47 COTTAGE SECTIONAL PERSPECTIVE 1 COTTAGE SECTIONAL ISOMETRIC
48 49 COTTAGE SECTIONAL PERSPECTIVE 2
50 51 COTTAGE SECTIONAL PERSPECTIVE 3
COTTAGE BED SPACE RENDER VIEW
54 55 SPA
57
interiors
Sauna Single Treatment Room Single Treatment Room Couple Treatment Room Reception BOH Toilet BOH Office
Exploded Isometric and an interior isometric view of a single treatment room.
Green Trellis Partitions for
Private Bath Pool for User Overlooking at the view of the foliage
An
each treatment room
Plants that provide fragrance and visual aesthetic
for large window to provide uniterrupted view of the forest at the top of the site
to Sauna
Waterfall feature within
Floweing
Void
Adjacent
SPA COUPLE TREATMENT ROOM
SPA SINGLE TREATMENT ROOM
SPA CORRIDOOR
