610 Chisel Plow & 714 Mulch Tiller

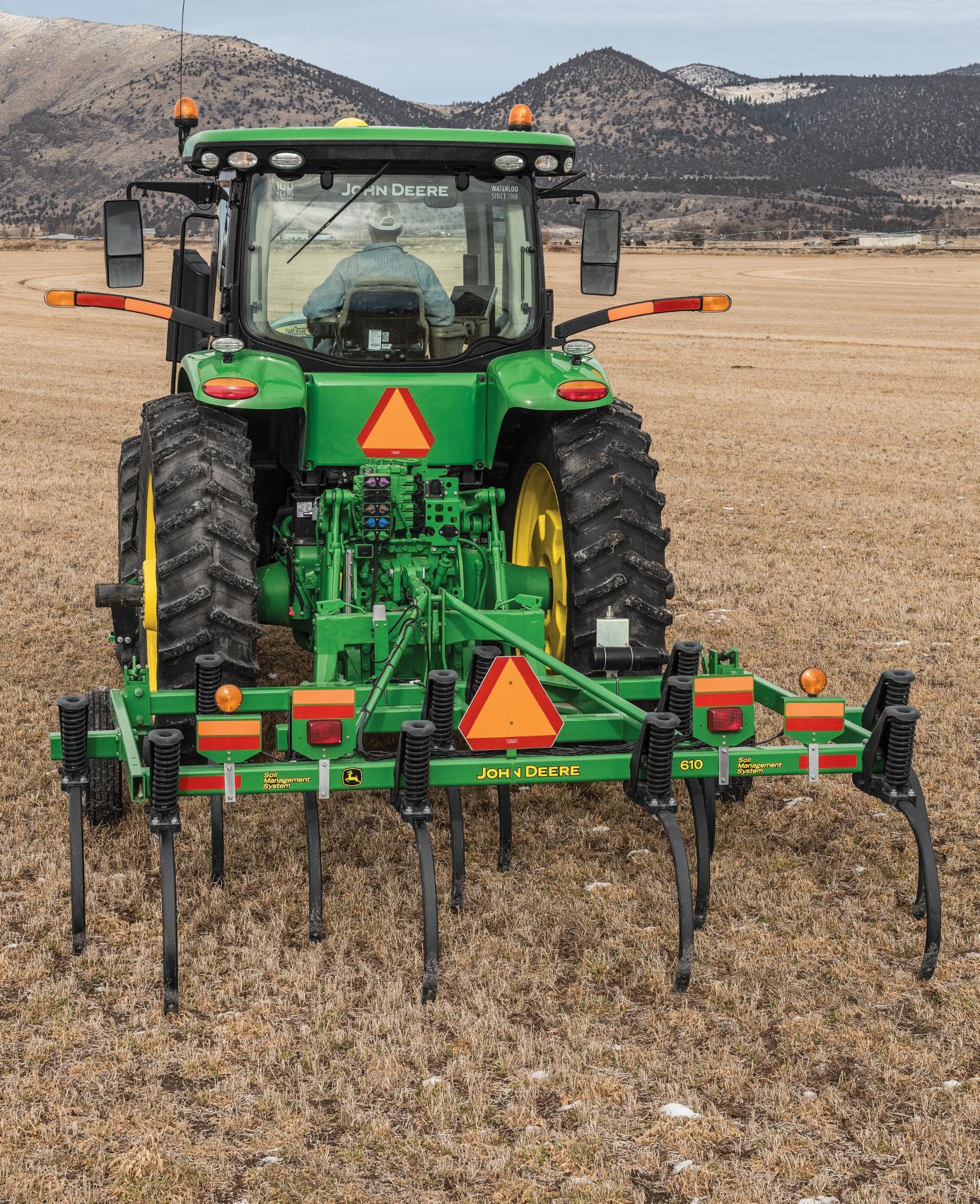

610 Integral Chisel Plow

PICK-UP-AND-GO EASE

The 610 Integral Chisel Plow gives you the good soil breakup and shattering you expect from a chisel plow, plus excellent residue flow – all with pick-upand-go mobility only an integral tool can offer. Good residue flow begins with the 610’s 3-bar frame. With 72 in. (1.8 m) of fore/aft clearance and 28 or 32 in. (0.7 or 0.8 m) of underframe clearance, you can work through high-residue fields easily. Add a coil-tine harrow to level your fields. It offers 12 in. (30.5 cm) spacing between harrow bars and 12 in. (30.5 cm) of underneath clearance for good residue flow. The 610 features a 4x4-in. (10.2x10.2-cm) tubular mainframe. Welded construction provides tremendous inner strength to withstand the twisting and pulling forces encountered in tough conditions. The result: years of reliable work.

TRACTOR COMPATIBILITY CHART

Size Rigid/TruPosition Standards hp(kw) Tru-Depth Standards 8 ft. (2.4 m) 48-80 (36-60) 48-112 (36-84) 10 ft. (3.1 m) 60-100 (45-75) 60-140 (45-104) 12 ft.(3.7 m) 72-120 (54-89) 72-168 (54-125) 14 ft. (4.3 m) 84-140 (63-104) 84-196 (63-146) 16 ft. (4.9 m) 96-160 (72-129) 96-224 (72-167) 18 ft. (5.5 m) 108-180 (81-134) 108-240 (81-179) 20 ft. (6.1 m) 120-200 (89-149) 120-240 (89-179)

TRACTOR COMPATIBILITY CHART

Size Number of Standards Minimum-Maximum PTO hp(kw) 11 ft. 3 in. (3.4 m) 9 130-220 (97-161) 13 ft. 9 in. (3.6 m) 11 160-270 (118-197) 16 ft. 3 in. (5.0 m) 13 190-320 (140-233) 18 ft. 9 in. (5.7 m) 15 230-360 (169-268) 21 ft. 3 in. (6.5 m) 17 250-520 (183-381) 714 Mulch Tiller

RULE THE FALL with this one-pass primary tillage favorite.

Save time and money with the John Deere 714 Mulch Tiller. The 714 combines chisel plow standards with coulters so you complete two jobs at once. On-the-go coulter gang control. Now you can hydraulically control the coulter gang right from your tractor seat. With a 5.5-in. (14-cm) range, you can precisely match coulter depth to field conditions – for excellent residue sizing and efficient use of tractor power. Uniform tillage from fencerow to fencerow. Simple turnbuckle hitch leveling, adjusted at the front of the machine, gives you level, uniform tillage. Reduce plugging with rugged rigid scraper bars. Satisfy your specific soil and residue requirements with a variety of sweeps and shovels. Slice through tough residue. The 20x197-in. (50.8x.5-cm) straight coulter blades on 9-in. (22.9-cm) spacing and rugged welded-steel spools deliver trouble-free performance. Exclusive Dura-Flex™ gang bearings have four protective seals to keep dirt out, and grease in. They come with a twoyear warranty* and provide years of excellent reliability.

*Limitations apply, please see dealer for details.
