DESIGN CONCEPT

The main concept of my building design is connection and interlace between each building. In this project, circle is my main shape. The isotropic nature of the circles makes it possible to contact and arrange the circles in an unoriented and compact way. In my design, every different building function are achieved between the interlacing of circles and circles, and every single building with a different function is connected by main circular corridor. In this way, the design of connection and interlace can makes the circulation and communication efficient.

For ground design, connection alos is main concept of this ground design is connection. I use floating form to create semi-open space for central gallery area, and also can separate private space and public space. I combined the stairs and landscape. In this way, the semi-open big step area make interior space to have better connection with exterior landscape. The design of the landscape is also designed according to the exterior pattern of building. This way makes the building and landscape connected.

3

THE GROUP/ THE FIELD

4 1

Drawing Title:

Intuitive Drawing

5

6 2 DEFINING THE FIGURE ELEMEN TS I N A FI ELD/G R O U P

Drawing Title:

7

Sidewalk Street

Intuitive Drawing

Drawing No 01 of 04 01 North 1

3m

Plan Matrix

125@A3 (drawn in millimeters)

Drawing Title:

Drawing Title: Plan Matrix

9

Drawing Title:

Axonometric Drawings of Figure elements in matrix layout

10

Drawing Title:

Axonometric Drawings of Figure elements in matrix layout

11

Drawing Title:

Overall axon of figure elements in field/group configuration

DEFINING THE GROUND

13 3

Drawing Title:

Topographic Plan

14

Drawing Title: Full Site Plan

15

Drawing Title:

Sequential sections A & B

16

Drawing Title:

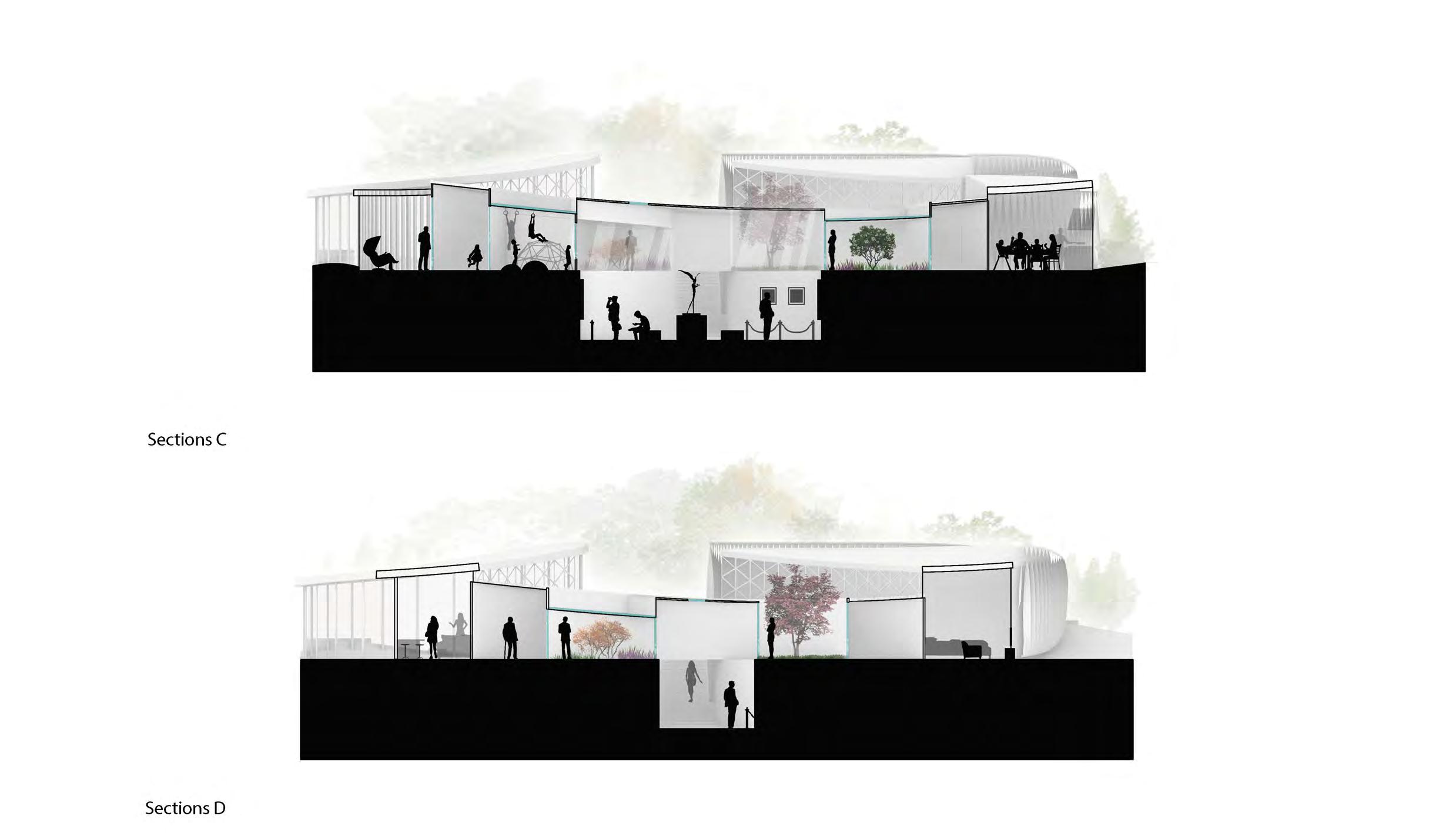

Sequential sections C & D
