PROTOLAB_EXTENSION1_JAEAISKI_DESIGN2022_SEMESTER1_
CONCEPT.
CONSTRUCTION.

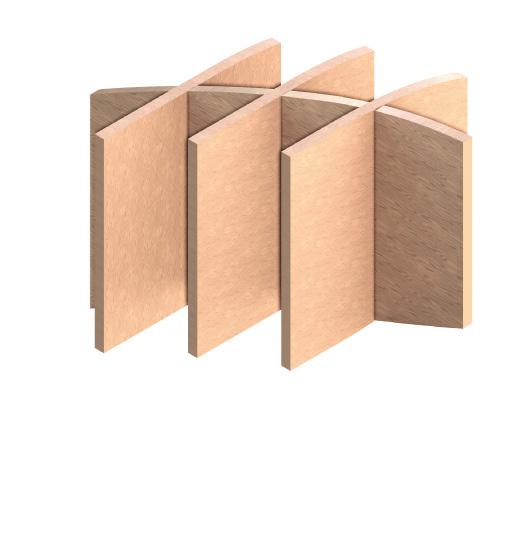

WAFFLE GRID SYSTEM.
INTERLOCKING MOTION
KERTO LVL BUILD-UP OF LAMINATE
CUSTOM CNC-MILLED WOOD PIECES THREADED STEEL RODS
CORNER CONNECTOR PLATES WITH SCREW FASTENERS PROFILED POLYCARBONATE ROOF SHEET
DWGA07 Page Number 7 of 7 Client : Swinburne University Scale : As indicated @A3 C COPYRIGHT Plot Date : 19/5/2022 Drawn : Anders Jaeger Project No. 1 Project Status : Under Review Protolab Proposal Revision Number 1 of 1 7 BRACKET ROOF COVERING (POLYCARBONATE) TRUSS (WAFFLE STRUCTURE) AS/NZS-COMPLY-R2.7INSULATIONWITH3999-2015 ROOF UNDERLAY MEMBRANE -CLASS 4 -TO COMPLY WITH AS4200.2-2017 PLASTER AD - Perspective Detail 1:20 -STRUCTURAL-15mmPLYWOODA-BOND PLYWOOD
19/5/2022Jaeger Revision Number 1 of 1DWG AC - Construction Detail 1:20 AS/NZS-COMPLYINSULATION-R2.7WITH3999-2015PLASTER ROOF COVERING (POLYCARBONATE) -STRUCTURAL-15mmPLYWOODA-BOND PLYWOOD ROOF UNDERLAY MEMBRANE -CLASS 4 -TO COMPLY WITH AS4200.2-2017 BRACKETTRUSS (WAFFLE STRUCTURE)
PLANS.
RENDERS.
