Hi! Nice to meet you! My name is Ain, and I’m from Kuala Lumpur, Malaysia. I am currently living in Liverpool, studying at Liverpool John Moores University.

I enjoy expressing my feelings and ideas through design. My interest and passion in the architecture field started prior to me in this programme. I am commited and strongwilled, which I have acquired and be tested on those traites throughout my study years.

Contents

M(Arch) Year 2 Semester 1:

Connection

M(Arch) Year 2 Semester 2:

The AquaLab

M(Arch) Year 1 Semester 1:

Walking Liverpool (Group Work)

M(Arch) Year 1 Semester 1:

Continuity of Lodge Lane (Individual Work)

M(Arch) Year 1 Semester 2:

Garden Residential

Connection

This project initiated an analysis of the Bilbao-based Zorrozaurre site, examining its characteristics to comprehend the interplay of networking, land utilization, and demographics.

The aim is to establish a contextual connection with the broader site, considering water flood management.

The proposal involves renovating and constructing residential, retail, public, educational, and commercial spaces, fostering connectivity between the land, the city, and its environs.

Bilbao a port in North Spain, largest city in the Basque provinces that has been an important commercial centre, mainly based around the port and its associated exports. In the 19th century during industrial revolution, it became a major center for iron and steel productions. Bilbao remains the economic capital of the Basque Country, due to its strong industrial and commercial heritage, hub for technology and innovation.

The city has a rich architectural heritage that refletcs the history and culture. After the massive transformation of the city it has a notable building the Guggenheim Museum Bilbao that became an iconic landmark. Several historical buildings showcase the city’s cultural heritage such as Gothic, ornate and neo-baroque.

The city has become a hub for innovative and sustainable arhcitecture which led to the development of incorporating environmentally friendly materials as well as designs. Bilbao has an interesting blend of the old and new in architecture, various range of styles and that reflects the diversity of the city and its culture.

The island is located right in the middle of Bilbao, connected to the rest of the city by moving walkways and bridges, and has quick access to both the airport and the planned high-speed train station.

The isle of Zorrotzaurre, as a sustainable island, prioritizes in preserving the surrounding environment, which makes it an essential and distinguishing feature. Bilbao focus on attracting local and international businesses and investments to Zorrotzaurre in order to become a hub for knowledge and entrepreneurship.

It has 3 areas of function for sanitary, equipment and mixed use that is residential, equipment and economic. The future hosuing areas mostly aimed for ages until 35 and maintain the existing buildings. While the economic aea is reserved for the offices, trade and health clinics that provide services to the people.

Zorrotzaurre is a Master Plan designed by the renowned Anglo-Iraqi architect Zaha Hadid, that covers more than 800,000 sq.m, that generates new and vibrant spaces for coexistence, creation, leisure and business.

INDUSTRIAL CITY IN NORTHERN SPAIN

ZORROTZAURRE

CITY IN NORTHERN SPAIN, EUROPE

DESIGN STRATEGIES

Wetlands Building by the shore Varying building heights

The design of the wetlands helps to prevent flooding by absorbing the water. To provide a fully public accessible park.

Social interactive buildings such as cafes one storey high are constructed to control water from the river and provide recreational spaces. Different building heights provide dynamism and variety that imcorporates with the functionality and zoning of the site.

The proposal aims to improve the social activities of people by suggesting new buildings that combine residential and commercial spaces. The ground level of the buildings at residential buildings will be dedicated to commercial activities. Additionally, bridges will be built to connect different zones of the site with existing public transport nodes.

A new zone will be created to connect the commercial, residential, and social spaces. Instead of demolishing buildings, the plan aims to preserve them. The ultimate goal is to maximize the functionality of the island.

TACTICAL STRATEGIES

Micromobility

Pop up markets

Introduce bicycles and electric bikes in promoting physical activity and enhance a sustainable approach.

Engagement

providing commercial spaces to make productive use of vacant land help in urbanization.

providing commercial spaces to make productive use of vacant land help in urbanization.

Accessibility

providing commercial spaces to make productive use of vacant land help in urbanization.

Situated at the island’s upper part, the commercial zone harmoniously combines ecological sustainability with community engagement. The integration of wetlands serves a dual purpose: preventing flooding and reducing the island’s heat. The commercial buildings are designed with a focus on public utility, featuring multipurpose halls, markets, and inviting public spaces. This creates a vibrant and inclusive environment, making the upper part a hub for community activities and commerce.

The educational zone presents a unique opportunity for the island, given the presence of an existing university. In this zone, all buildings will be retained, and student accommodation will be introduced. Additionally, the public square will be repurposed as a multipurpose court and area. Along the shore, small shops will be installed, creating economic opportunities

The mixed-use zone stands as a distinctive landmark on the island, anchored by the historically significant church. This dynamic area introduces new residential buildings with varying heights, each featuring private courtyards for residents’ personal retreats. The preservation of the existing church adds a touch of heritage and cultural significance to the zone.

In addition to residential development, small buildings along the shore enhance the area’s economic vibrancy, providing opportunities for local businesses. This deliberate blend of old and new, coupled with economic ventures along the waterfront, transforms the mixed-use zone into a thriving hub that captures the diverse essence of island life.

The AquaLab

The AquaLab is a project aimed at preserving and increasing the habitat of freshwater animals. The program of this building is a Freshwater Aquarium and Research facility.

The aim of this project is to improve the endangered habitat resulting from local fishing activities in the area. Additionally, it creates a space for people to gain new knowledge about freshwater animals.

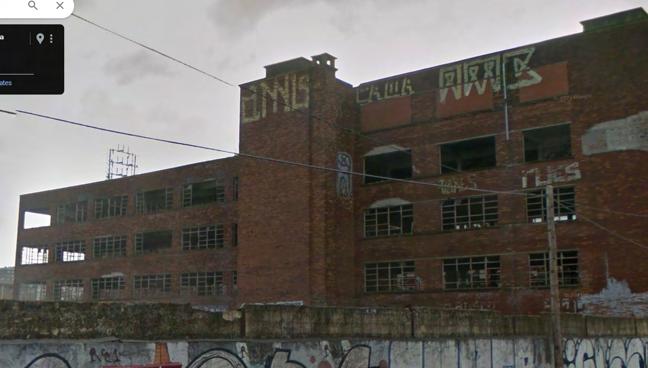

This thesis project is located at the upper part of the island, adjacent to the wetland. It involves readaptive reuse by integrating the existing building with the new construction.

Ground Floor Plan l Scale 1:200

Redevelopingabrownfeildatthetopofthesitenextto EdgeHilltrainstation.Addingparksandareasforshops andeventstotakeplacesuchas;ChineaseNew Year,

Anewbuildingisplaceonthesitetoallowfoodevenus andotherpop-upshopstocreateapresenceonthesite.

UpperParliamentStisthemainserviceroadthatneeded redesigning.Thisnew layoutismoreefficentfortraffic andwithaddedbuslanesandsegregatedbikepathsthe locals willbe incurrage to use othermethods of

The road on the main junction hasreduce in size allowingmoreroadforpedesriansandvegiationtobe

Closingtheroadtocarsandopeningituptopeople allowsfornew areetoform.Plantingtreesaroundthe sitehelpscreateshadeinthesummer,naturaldrainage

Oneofthemainsquaresthatallowsforsocialgathering,

Thebottom entranceofthesitehastwomainsquares withchangesinheightsandplacementoftreets.Around thewholesitepeopleareincurragetomoveindifferent

Connectingpoepletonaturaisthebestwaytomake

Rainwaterharvestinghasbeen collectedfrom therooftopfor thegreywaterusesand the garden.

Calculations:

AveragerainfallLiverpool (835mm) (4254m2)

3,552,090L HarvesterdYearly

Balcony&VerticalLouvers

The balcony are facing towards the communal garden or courtyard.

Balcony and louvers are installed to preventfrom rain and excessive light
