EROWA ClampSet

Modular, flexible, precise

The EROWA ClampSet is the modular system for clamping of workpieces. It can be used consistently in the entire EROWA manufacturing concept. Whether drilling, milling, grinding or EDM sinking: EROWA ClampSet reduces the setup times.

Palletized ClampSet vise on UPC grid pallet. The EROWA UPC palletizing system is the seamless interface between the machine and the ClampSet workpiece carrier for a wide variety of machining technologies.

THE FACTS

• Wide choice of various precise clamping elements. • Easy installation on EROWA palletizing systems. • All components made of hardened and ground steel. • Different clamping jaws to accommodate various workpiece shapes. • Clamping range up to 225 mm. • Can be used vertically and horizontally. • Once palletized, the ClampSet is ideally suited for automatic loading of machine tools.

Workpieces are clamped in the ClampSet with just a few simple steps.

EROWA ClampSet

The ClampSet offers enormous flexibility. A variety of different, precise clamping elements are available. Both machined and non-machined workpieces can be clamped. Different clamping jaws allow accommodation of many different workpiece shapes.

225 x 200 x 200 mm

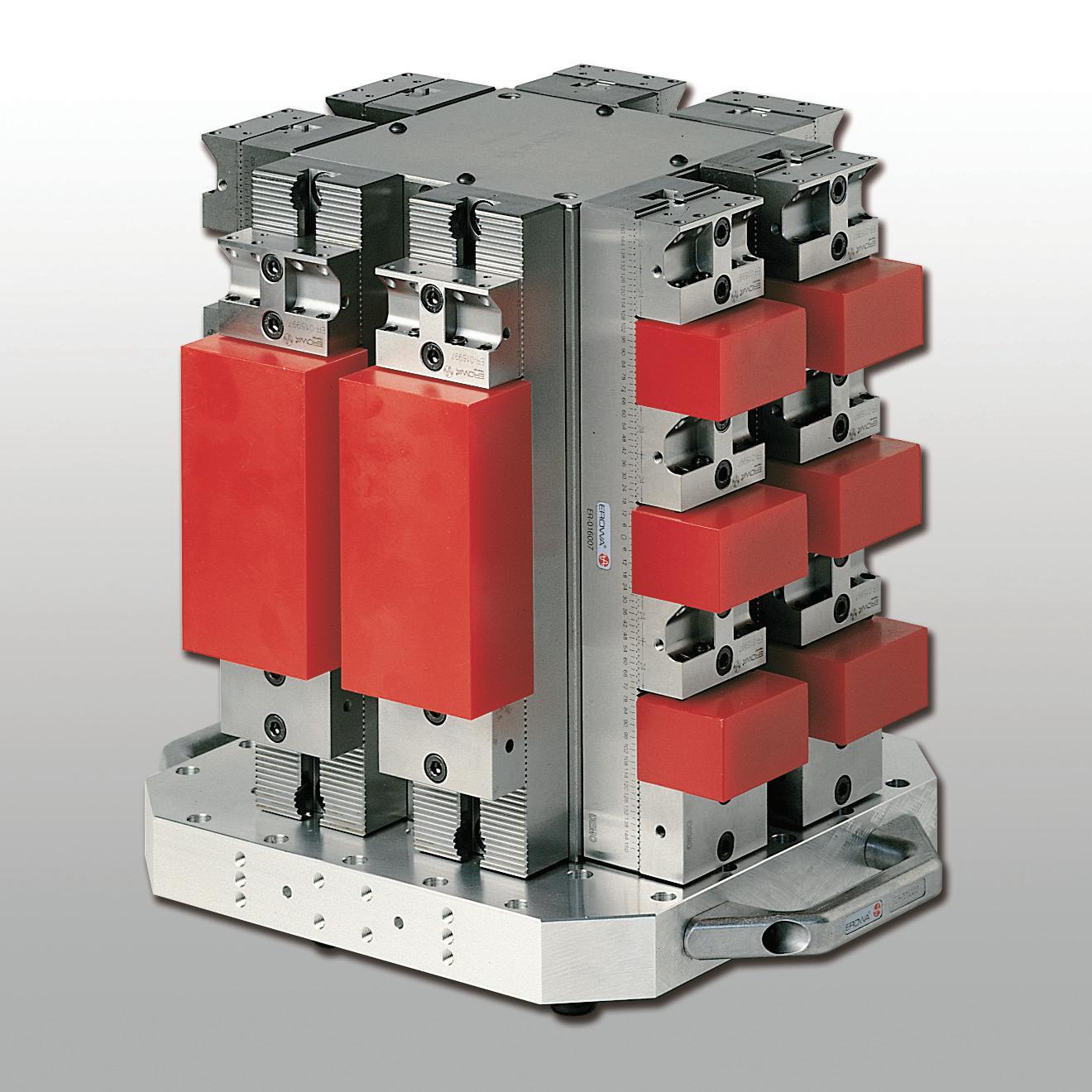

ClampSet multi-clamping on a UPC clamping cube for horizontal machining. ClampSet vise on ITS pallet. Positioned with micron precision and ready for use in seconds.

With ClampSet vices, even long or large workpieces can be clamped easily. By setting up and adjusting the workpieces outside the machine, time can be optimally used and cost can be reduced. The convenient prism jaw for clamping several cylindrical parts in horizontal or vertical position.
