EROWA UPC

Very precise and extremely robust

With a repeatability of two thousandths millimeters, the precision of the EROWA UPC (Universal Power Chuck) palletizing system leaves nothing to be desired. Whether to palletize large workpieces on milling machines or to machine small workpieces on vertical eroding machines; the UPC palletizing system is suitable for flexible use.

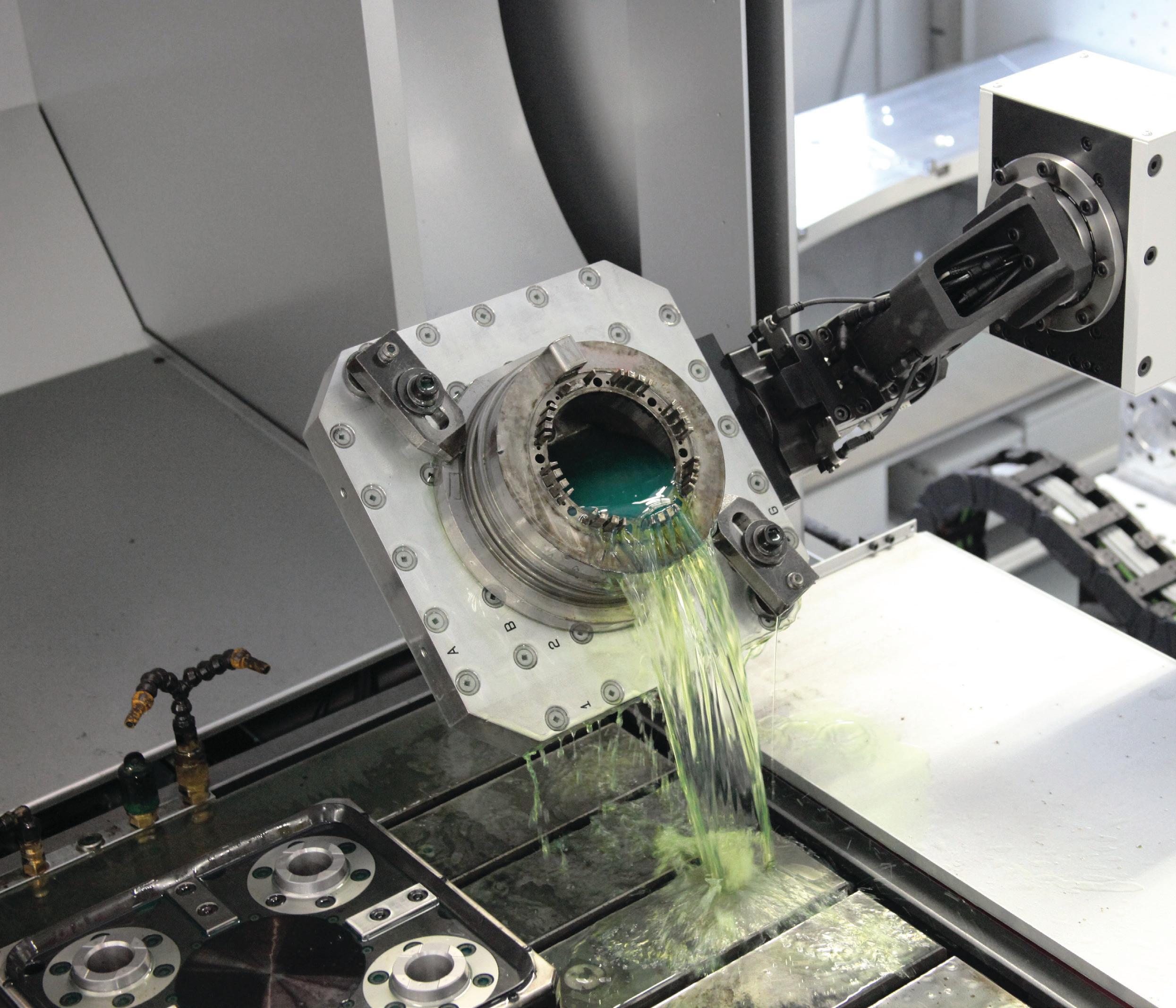

Universal palletizing system: UPC chucks as an interface to the workpiece carrier in an EROWA RoboSPA cleaning and drying module.

THE FACTS

• Blow-off Z-supporting surfaces. • Pallets 4 x 90° indexable. • Repeatability < 0.002 mm. • Sturdy centering segments with patented preload. • Integrable ITS chuck in the center (optional). • Four fixed mounted clamping spigots that are used also as supports in the pallet storage. • Cost-effective aluminum pallets with hardened-Z-supports as a basis for any set-ups. • Cost-effective centering segments to build customized pallets.

The low installation height of the UPC palletizing system allows plenty of space for workpieces.

EROWA UPC

The widely spaced support surfaces of the UPC chuck make the palletizing system extremely tilt-proof. The pallet is pre-centered with chucking spigots. Then four robust centering segments take over to ensure precise positioning in the pallet und chuck. Compressed air is used for opening and cleaning. The closure generates a pull-down force of 50,000 N.

The UPC chuck with the integrated ITS chuck ensures seamless integration of EROWA ITS 50 or ITS 100 workpiece carrier in the UPC system. This combination enables the flexible use of the clamping system depending on the part size.

500 x 500 x 500 mm

Vices, gauges and fixtures are mounted on the UPC pallet. We will be happy to advise you on customized fixture solutions as well.

The UPC palletizing system is the interface between the manufacturing machine and the workpiece for various machining technologies such as: milling, grinding, EDM sinking and measuring machines. Changeover takes just a few steps and then production can continue. Matching PreSet stations and measuring machines are available for setting up, presetting and quality measurement. Manual or CNC-controlled. The UPC palletizing system is consistently automatable. The chucks are completely sealed against ingress of coolant and chips. The contact surfaces are cleaned automatically and thoroughly with air.
