A winning combination EROWA Robot and YCM UV650
2 EROWA Robot Compact 80 with YCM UV650 EROWA Tooling System PowerChuck P ProductionChuck 210 Modular Tooling System Pallet type ITS 148 PC 210 MTS 320 Transfer weight ERC 80 40 kg 80 kg 80 kg Number of pallets 50 24 14 Workpiece dimension square 150 x 150 x 200 mm 200 x 200 x 200 mm 350 x 350 x 220 mm Workpiece dimension round ø 160 x 200 mm ø 230 x 200 mm ø 350 x 220 mm Technical data subject to change. Technical details EROWA Robot Compact 80 depending pallet size EXTENSION OPTIONS • Requires only 2 m2 footprint • Large and flexible magazine capacity, from small ITS holders to large UPC 320 pallets • Fast start-up 3D picture shows drum type conveyor. Layout shows standard type conveyor.
EROWA ROBOT ON YCM 3 ITS 148 PC 210 EROWA Tooling systems Magazine configuration ERC 80 Pallet size ø 148 mm Repeatability 0.002 mm Clamping force 10‘000 N Clamping Spring force Technical details EROWA PowerChuck P Pallet size ø 210 mm Repeatability < 0.002 mm Clamping force 20‘000 N Clamping Spring force Technical details EROWA Production Chuck 210

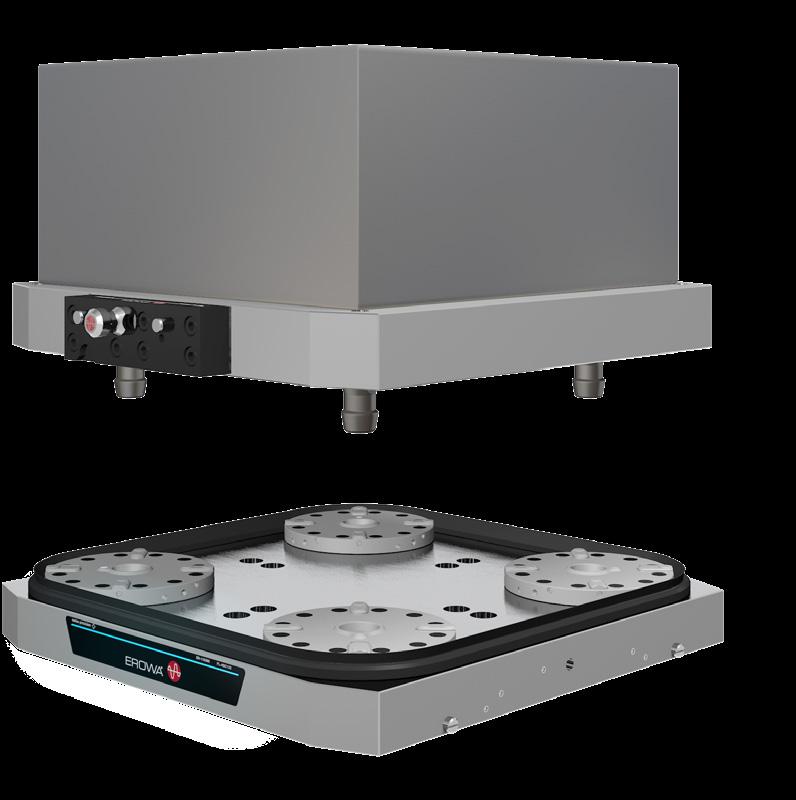

4 MTS 320 EROWA Tooling systems Magazine configuration ERC 80 Pallet size 320 x 320 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 320
EROWA ROBOT ON YCM 5 EXTENSION OPTIONS • For milling, drilling and grinding • Integrated height adjustment • Choice of transfer axis • Choice of magazine configuration EROWA Tooling System Modular Tooling System Modular Tooling System Modular Tooling System Pallet type MTS 320 MTS 400 MTS 500 Transfer weight Robot Easy 250 kg 250 kg 250 kg Number of UPC pallets 6 6 4 Workpiece dimension square 310 x 310 x 390 mm 380 x 380 x 390 mm 510 x 510 x 390 mm Workpiece dimension round ø 355 x 390 mm ø 455 x 390 mm ø 600 x 390 mm Technical data subject to change. Technical details EROWA Robot Easy 250 depending pallet size EROWA Robot Easy 250 with YCM UV650 3D picture shows drum type conveyor. Layout shows drum type conveyor.
6 MTS 320 MTS 400 EROWA Tooling systems Magazine configuration ERE 250 Pallet size 320 x 320 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Pallet size 398 x 398 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 320 Technical details EROWA MTS 400
EROWA ROBOT ON YCM 7 MTS 500 Pallet size 498 x 498 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 500
8 EXTENSION OPTIONS • Flexible magazine configuration • Twin machine operation • Automatic pallet identification • Automatic gripper change depending on pallet size EROWA Robot Leonardo 120 with YCM UV650 EROWA Tooling System ProductionChuck 210 Modular Tooling System Modular Tooling System Pallet type PC 210 MTS 320 MTS 400 Transfer weight ERL 120 80 kg 120 kg 120 kg Number of pallets 33 30 23 Workpiece dimension square 260 x 350 x 250/200 mm 350 x 350 x 250 mm 450 x 450 x 250 mm Workpiece dimension round ø 260 x 250/200 mm ø 350 x 250 mm ø 450 x 250 mm Technical data subject to change. Technical details EROWA Leonardo 120 depending pallet size • MonoBlock design Scalable concept • Integrated loading station One robot – various pallets 3D picture shows drum type conveyor. Layout shows standard type conveyor.
EROWA ROBOT ON YCM 9 PC MTS210320 EROWA Tooling systems to cell Magazine configuration ERL 120 Pallet size ø 210 mm Repeatability < 0.002 mm Clamping force 20‘000 N Clamping Spring force Technical details EROWA Production Chuck 210 Pallet size 320 x 320 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 320
10 MTS 400 EROWA Tooling systems to cell Magazine configuration ERL 120 Pallet size 398 x 398 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 400
EROWA ROBOT ON YCM 11
12 EXTENSION OPTIONS • Flexible magazine configuration • Twin machine operation • Automatic pallet identification • Automatic gripper change depending on pallet size EROWA Robot Leonardo 120 high with YCM UV650 EROWA Tooling System ProductionChuck 210 Modular Tooling System Modular Tooling System Pallet type PC 210 MTS 320 MTS 400 Transfer weight ERL 120 80 kg 120 kg 120 kg Number of pallets 73 66 50 Workpiece dimension square 260 x 350 x 250/200 mm 350 x 350 x 250 mm 450 x 450 x 250 mm Workpiece dimension round ø 260 x 250/200 mm ø 350 x 250 mm ø 450 x 250 mm Technical data subject to change. Technical details EROWA Leonardo 120 high depending pallet size • Safe monitoring • RFID pallet identification • Two-machine loading Control panel with control system
EROWA ROBOT ON YCM 13 PC 210 EROWA Tooling systems Magazine configuration ERL 120 high Pallet size ø 210 mm Repeatability < 0.002 mm Clamping force 20‘000 N Clamping Spring force Technical details EROWA Production Chuck 210
14 MTS 320 EROWA Tooling systems Magazine configuration ERL 120 high Pallet size 320 x 320 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 320
EROWA ROBOT ON YCM 15 MTS 400 Pallet size 398 x 398 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 400
16 Examples
EROWA ROBOT ON YCM 17
18 Controlled data flow The process control system controls and monitors production cells. The complete universality of the data with all systems allows for genuinely comprehensive monitoring and process security. Transparency about productivity Dashboard and supervision applications show the efficiency parameters in real time, as well as the current status of the production cells in the system. User-friendly and easy to operate JMS 4.0 ensures a clear overview of current jobs. All the data that is relevant to production are represented in a user-friendly fashion. Current status messages assist the operator. FACTS • Easy-to-view representation of the entire production process • Import/export interfaces • 24/7 live machine status via monitoring app • Transparent analysis of all production data • Modular software components • Intuitive user interface The process control system EROWA robots open up previously unused production hours. Auto nomous production takes place in the third shift and at weekends. This requires precise, yet flexible planning. JMS® 4.0 provides a clear overview. The order list, the priorities, the CNC programmes, the tool management and the current status messages show at a glance what is going on.
Reporting Job or machine reports can be generated with a few clicks. A user-friendly interface and its availability in the entire network make this application an indispensable tool for process optimi zation.
Thus workpieces can be loaded and unloaded in a fully automa ted process with tailor-made EROWA robots, which, is not an indispensable requirement for an efficient production cell.
The success factors
With competent advice to the right decision At EROWA, we have listened to the wishes of our customers from a wide variety of corporate sizes. Thus we provide tailormade solutions that fit your production process and degree of digitalization.
EROWA ROBOT ON YCM 19 ProductionLine JMS® 4.0
Degree of automation to meet your requirements
This starts with the automation of the data, and the automatic loading process can happen in a second step on request. A solution to meet any requirement We accompany you on the way to the right choice. Our specia lists will be glad to advise you and show you what your perfect solutions can look like and be implemented step by step.
