Content
01
PARRAMATTA RIVER
RIVER CORRIDOR MASTER PLAN
02
ST MARYS
TOWN CENTRE CONCEPT MASTER PLAN
YEAR : 2023 NOVEMBER
TYPE : Master plan & site design
STUDIO TITLE : River corridor master design
LOCATION : Parramatta river, Sydney, NSW
YEAR : 2023 June
TYPE : Master plan & site design
STUDIO TITLE : Town centre master design
LOCATION : St Marys, Sydney, NSW
03 In progress
WAGGA WAGGA
HIGH-SPEED RAIL CORRIDOR DEVELOPMENT
YEAR : 2024 in progress
TYPE : Master plan & site design
STUDIO TITLE : High speed rail corridor design
LOCATION : Wagga wagga, NSW
PARRAMATTA RIVER
RIVER CORRIDOR MASTER PLAN
YEAR : 2023 NOVEMBER
TYPE : Master plan & site design
STUDIO TITLE : River corridor master design
LOCATION : Parramatta river, Sydney, NSW
01
Project location
Our vision for the Parramatta River project is to create a vibrant and sustainable urban hub that thrives on the river's edge by putting our river first. We aim to build a community where residents, industries and businesses coexist harmoniously. Nature and modernity seamlessly blend, and connectivity, accessibility, and environmental stewardship are at the forefront while putting consideration of our country and first nation people during the entire design process.
New transport network
Urban from strategy concept
Connectivity Strategy
Blue-green map

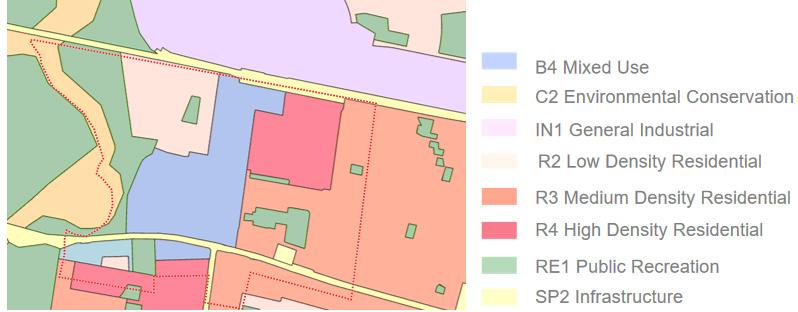

Employment + residential zoning

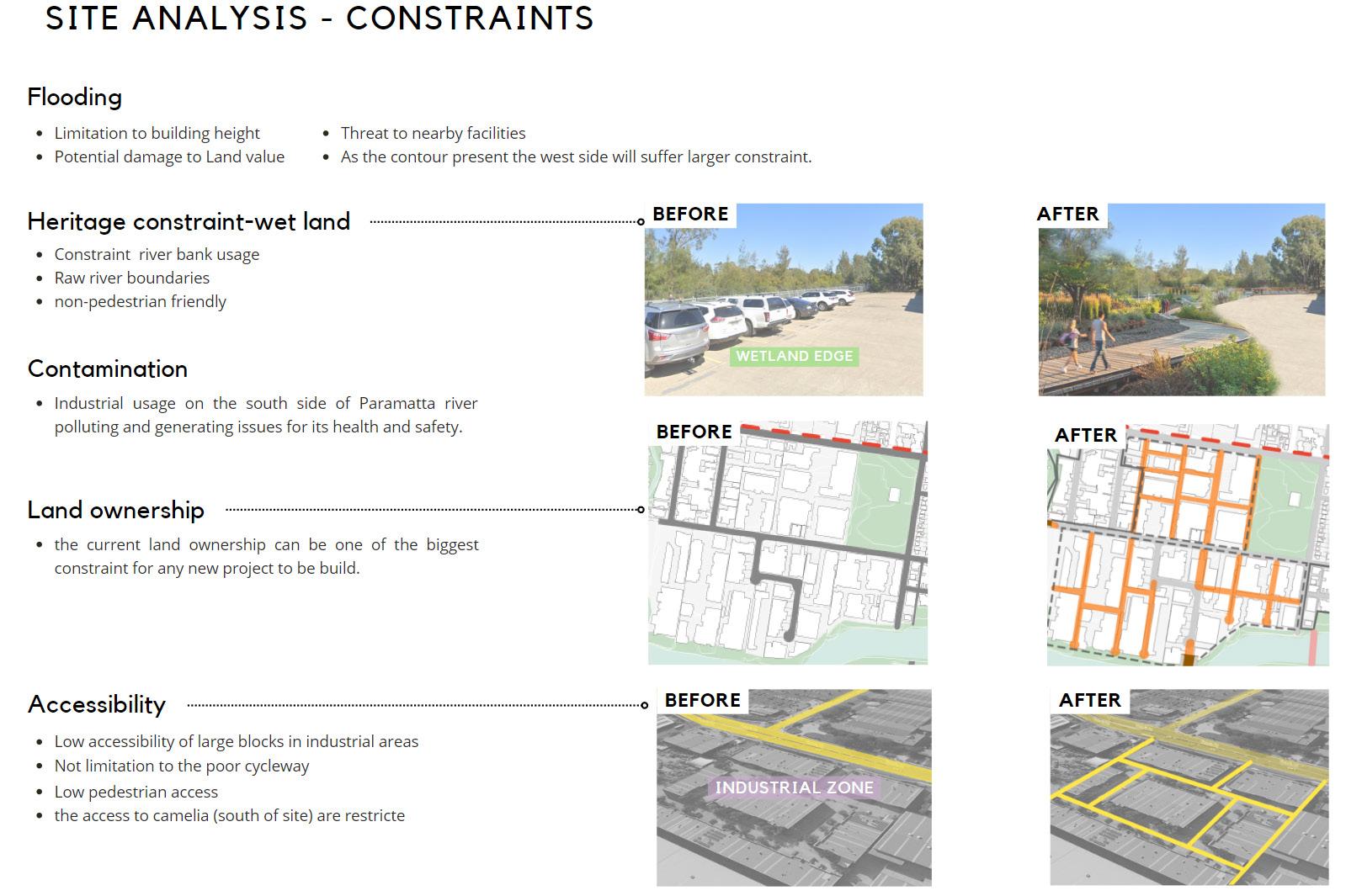

Existing plan
My site is located on the right side of the mia site, separated by a tributary of the parramata river. The site is basically filled with an industrial area, with mainly large factory buildings, no public roads and poor accessibility. The cycling path along the river is completely isolated from the site and lacks connection to the riverbank.
The southern part of the site is cut through by light rail, the site is edged by lorry tracks and has poor environmental management almost no pedestrians
On the flood map The site’s flood risk areas are concentrated in these two parcels, a photograph of the site is shown below
Flooding zone Site locationKey Moves and Design Principles
My design principle is to create a liveable community living zone along the river, so that it surrounds the light industrial area with good river view and vegetation, and the whole site forms an eco district.
Existing green space and lot

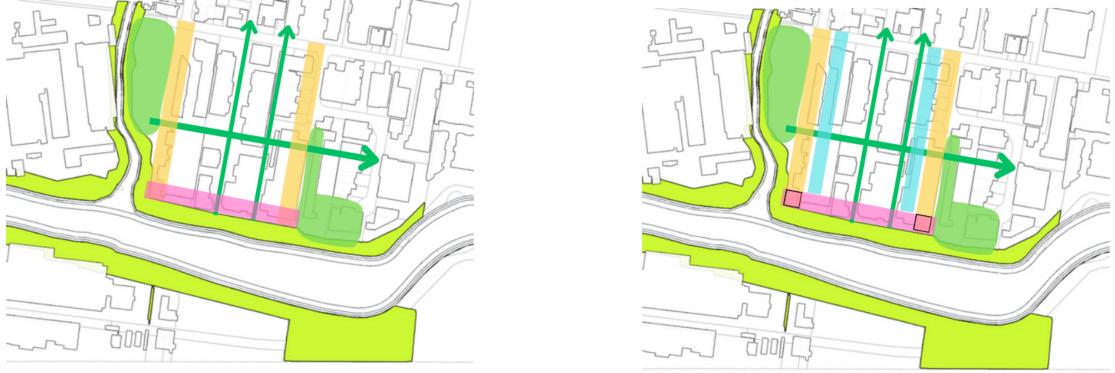

Based on the previous flood analysis, we have designated flood-prone areas as green space and open space
Determine road network and river sight lines based on existing buildings and lot
Opposite the green space will be developed into a livable community, with some offices and a converted factory exhibition center as a buffer between the community and the industry in order to isolate the negative impacts of the industry
Livable community offices and a industrial artwork center as a buffer
Pedestrian-friendly water frontage
Existing plan
The previous idea is continued in my design plan, with some of the dwellings next to the green space.
River frontage section
River frontage section
On the north side, cars are prohibited and the driveway extends in the form of a lollipop into the interior of the block. Along the river, the building supports residential functions such as libraries and childcare, and youth education.
South ST, as the main street through the site, needs to be developed with businesses along the street to activate the street and become a pedestrian friendly main street
On the south side, the building faces the river view and extends the green space along the river into the neighborhood to form a green group. There is frequent truck traffic on this road, so we set up a truck service area with a parking area and storage on the ground floor and a dining and rest area for workers on the upper floor.
3D massing diagram
I designed a functional transformation of the original factory, with the left side as an office area and a buffer zone for the factory.
I utilized the existing building as much as possible by transforming the factory into a shopping mall. Because of his unique location, it not only serves the residents, but also supports the university on the left and cyclists .
This pink building is also a converted industrial factory, and I referenced the way Carriageworks functions with art exhibitions and bazaars.
ST MARYS
TOWN CENTRE CONCEPT MASTER PLAN
YEAR : 2023 June
TYPE : Master plan & site design
STUDIO TITLE : Town centre master design
LOCATION : St Marys, Sydney, NSW
02
Urban analysis
Zoning Infrastructure
Frontage
Building Height
Space
Owner Heritage
Land
Active
Bushfire Prone Land Scenic Protection Economic Triangle Green Connection Srteet and Green Network Building Type Views Landscape Maximum
Public
Land
CONNECTING WITH COUNTRY FRAMEWORK
BUILT FORM STRATEGY Building Type Open space network
The aspiration for a specific outcome and explain how to achieve the outcome
objectives and design principles for the Concept Master Plan
site photos
Demonstrate the program formation process
Group
Existing
Ground floor plan
Street section
3D views
